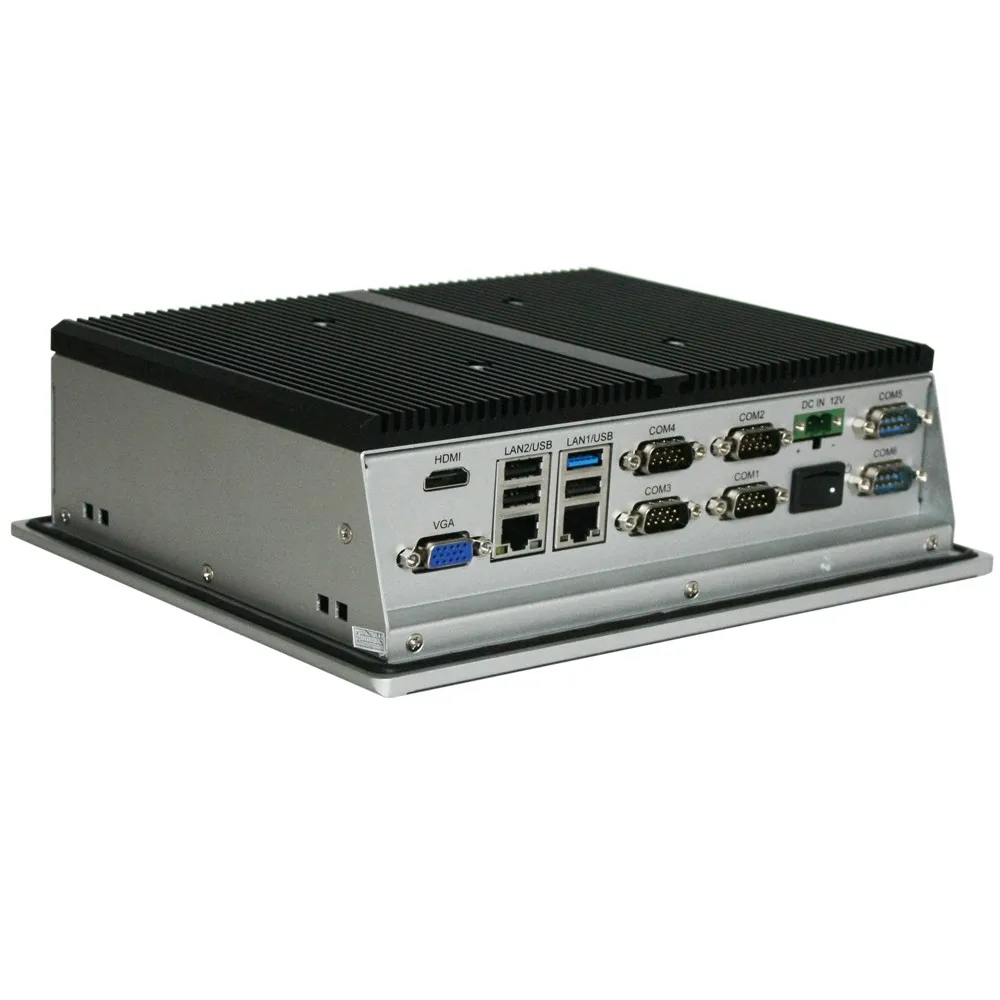

8 inch Bay Trail J1900 Resistive touch screen PC with win7 Win8 Win10 Linux system

FOB Reference Price:Get Latest Price
$359.00 - $699.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
TPC6000-A082-T
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Panel PC
Brand Name:
NODKA
Place of Origin:
Shanghai, China (Mainland)
Size:
8" TFT LCD
CPU:
Bay trail J1900 2.0Ghz
RAM:
DDR3L 2GB,4GB, 8GB
HDD:
SATA/mSATA
OS:
Win7,Win8,Win10,Ubuntu
COM:
6RS232(optional 2RS485)
USB:
1USB3.0,3USB2.0
Extension:
Mini-PCIe(WIFI,3G)
IP degree:
Front panel IP65
Mounting:
Panel Mount and VESA Mounting
Supply Ability
Supply Ability:
8000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Safe,New,Firm carton
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description
Processor
Onboard Bay trail J1900 quad-core processor,clock 2GHz
Chipset
Bay trail SOC(TDP10W)
Memory
Support DDR3 2G/4G/8G memory
Disk
Support SATA 2.5 "SSD, HDD and mSATA
Display
Integrated Graphics,support VGA&HD-MI
Watchdog
Programmable from 1 to 255 seconds
OS
Support Win7/Win8/WES7/Linux
LAN
2 Realtek RTL8111F 1000 Mbps Ethernet port
USB
1 USB 3.0 and 3 USB2.0 ports
COM
6 RS232 (COM,COM5 and COM6 optional RS485,COM5 and COM6 need add modual)
Speaker
Built-in small Speaker
Expansion
1 Mini-PCIe slots,scalable 3G,Wifi card
Other I/O
Power switch, DC IN, VGA, HD-MI
Front panel
Aluminum alloy, cover with PET film
Mounting
Panel mounting and VESA mounting
Box structure
High-strength sheet metal structure
Cooling system
Large area designed finned heat sinks
Mounting
Panel Mounting and VESA mount
IP degree
Front panel IP65 degree of protection
Front Color
Silver (plus PET film)
Overall size
236×188×69mm(W×H×D)
Case size
216×168×63mm(W×H×D)
Cut Size
219×171mm(W×H)
Weight
2.4kg
LCD Size / Type
8"TFT LCD
Resolution
800x600
Backlit
LED
Backlit MTBF
30,000 hours
Bright
250cd/sqm
Display area
162x121.5mm
Touch Size/Type
8 inch five-wire analog resistive
Resolution
4096×4096
Click life
250g efforts, 35 million times
Stroke life
250g efforts, 5 million times
Transmittance
More than 81%
Working temp.
-20~+60℃
Storage Temp.
-30~+80℃
Relative humidity
10~95%@40℃(No condensation)
Vibration
50~500Hz,1.5G,0.15mm Peak to peak
Shock
10G/peak(11ms sec)
EMC
CE/FCC
Power
DC12V
Consumption
16watt
Ordering information
Our Service

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

ODM OEM service

Set up with excellent design and development capabilities of customized services team.

Assurance Supplier

I am an Alibaba.com Trade Assurance Supplier.You can place an order with me on Alibaba

Our Company

WHO WE ARE

Nodka was founded in 2001 in Shanghai, after 16 years development, Nodka becomes a leading Chinese industrial solution manufacturer, and has Mainboard (R&D) center in Shenzhen, and precision sheet metal machinery machining center in Suzhou.
With branch offices in 14 major domestic cities in China and 1 European sales and service center in the Netherlands.

WHAT WE DO

Nodka is specialized in Industrial solutions, including:

Industrial Panel PC

Touch Monitor

Industrial computer (Mini PC)

OEM and ODM service

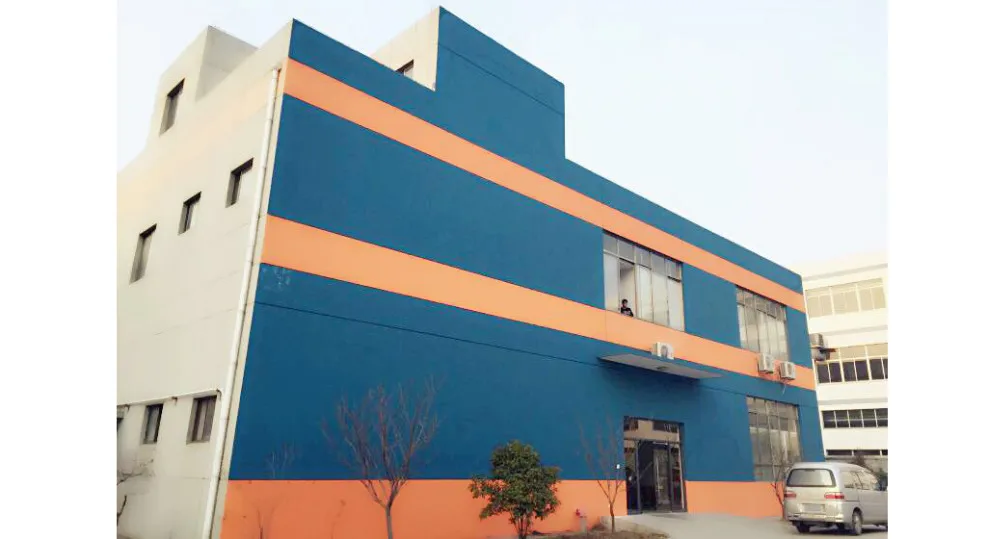

Factory

Our Factory located in Suzhou city, about 5000 sq.m.

Workshop

5 production lines and 1OEM production line

Team

This is a vibrant team, believe we can do it

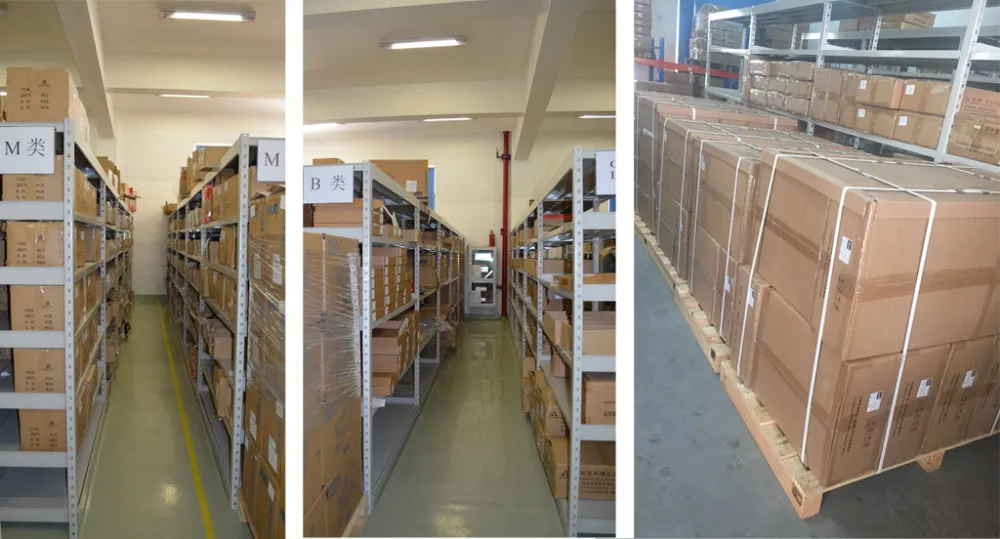

Warehouse

Include materials, semi-finished products, finished products and samples

Packing & Delivery

Packing Details  : Carton

Delivery Details : 3-30 days after received the payment

1. Mini pc, Panel PC, Monitor
2. Box of accessories

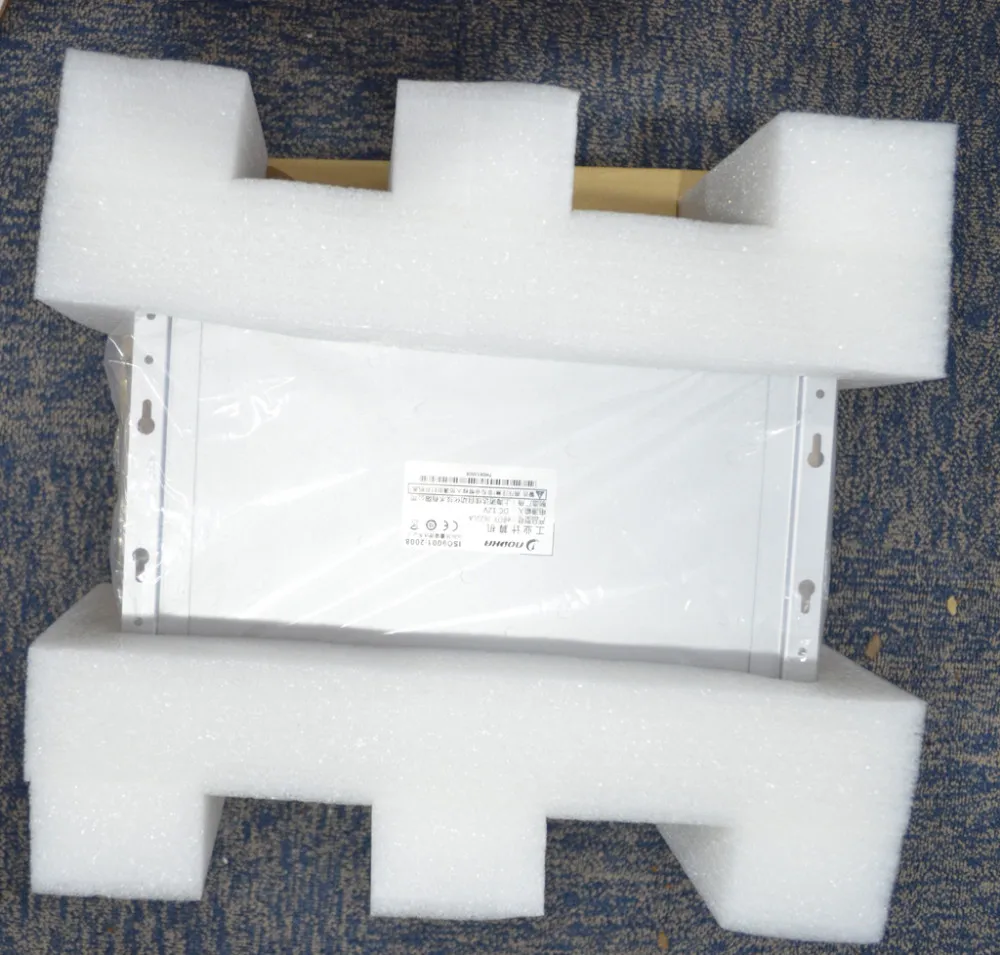

3. Fixed shock absorber foam
4. Put into the carton
5. Carton sealing
6. Complete package

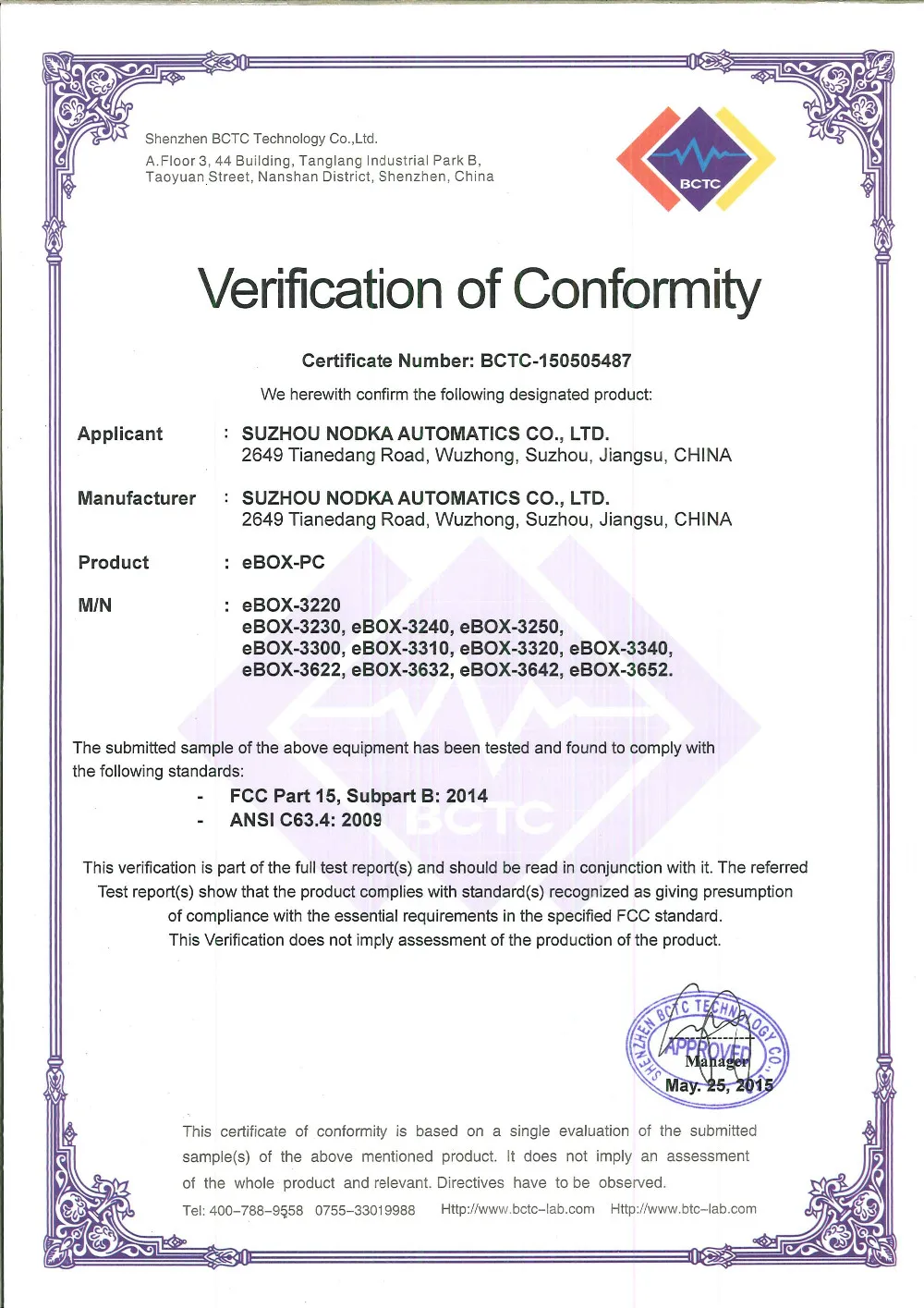

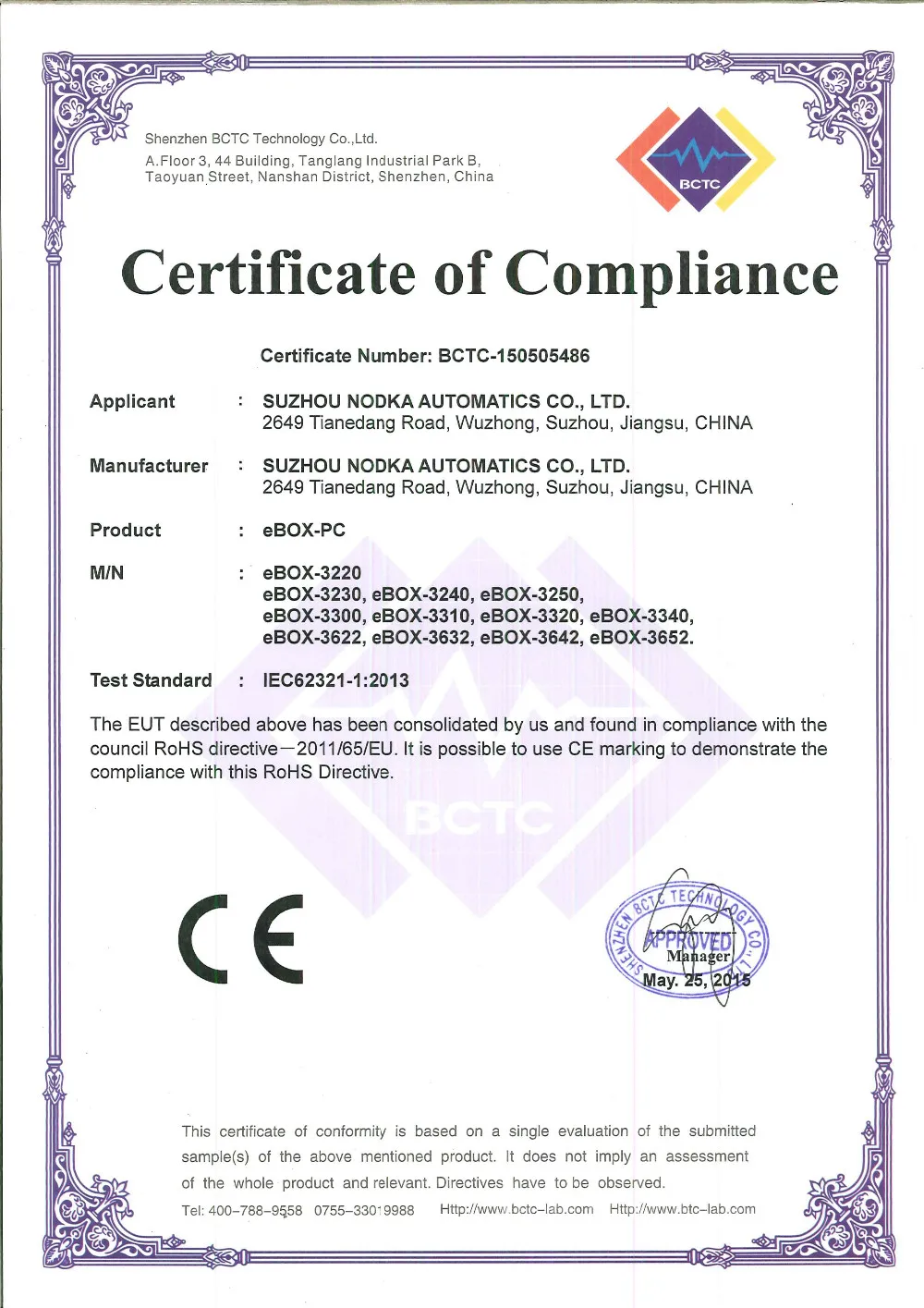

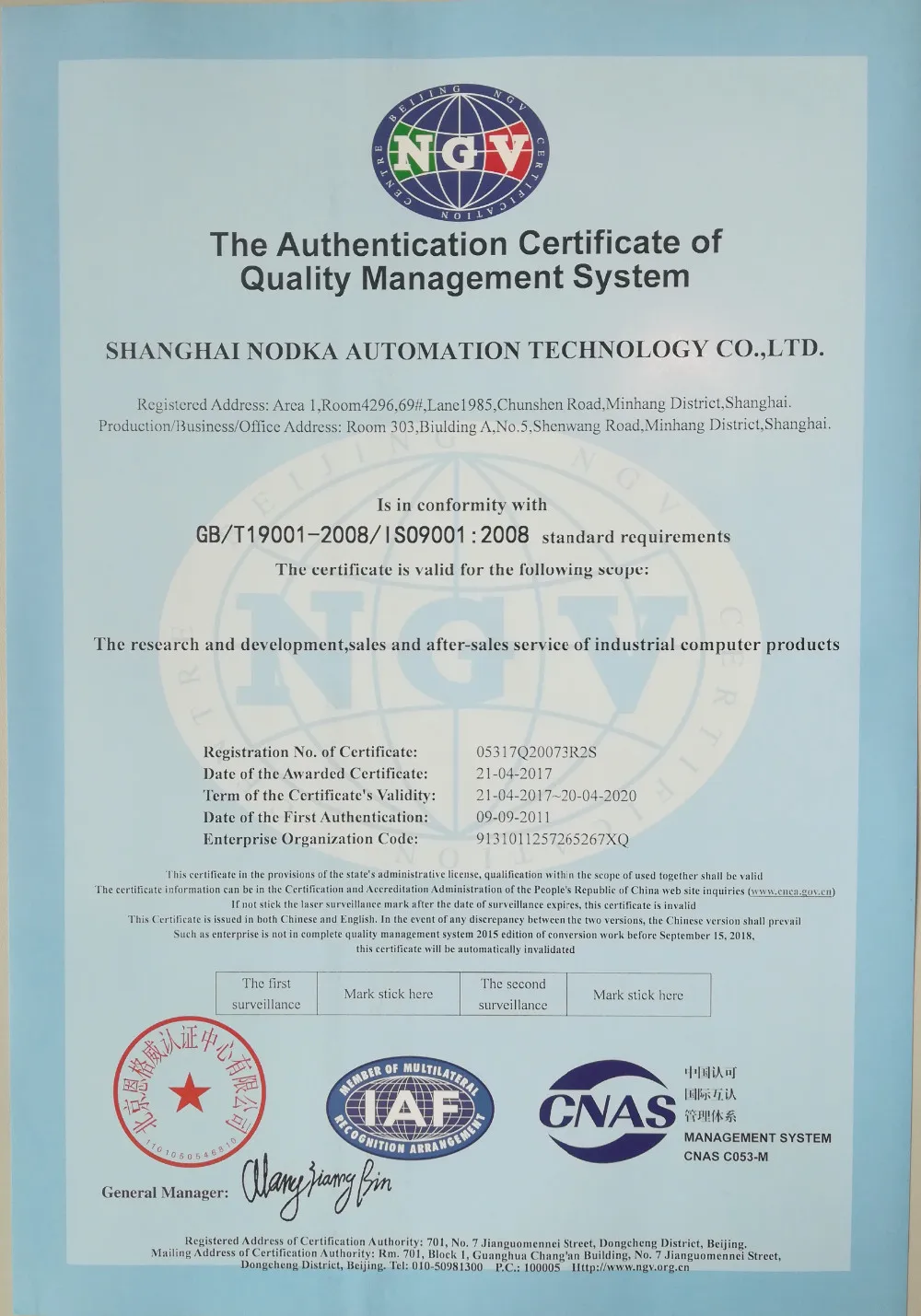

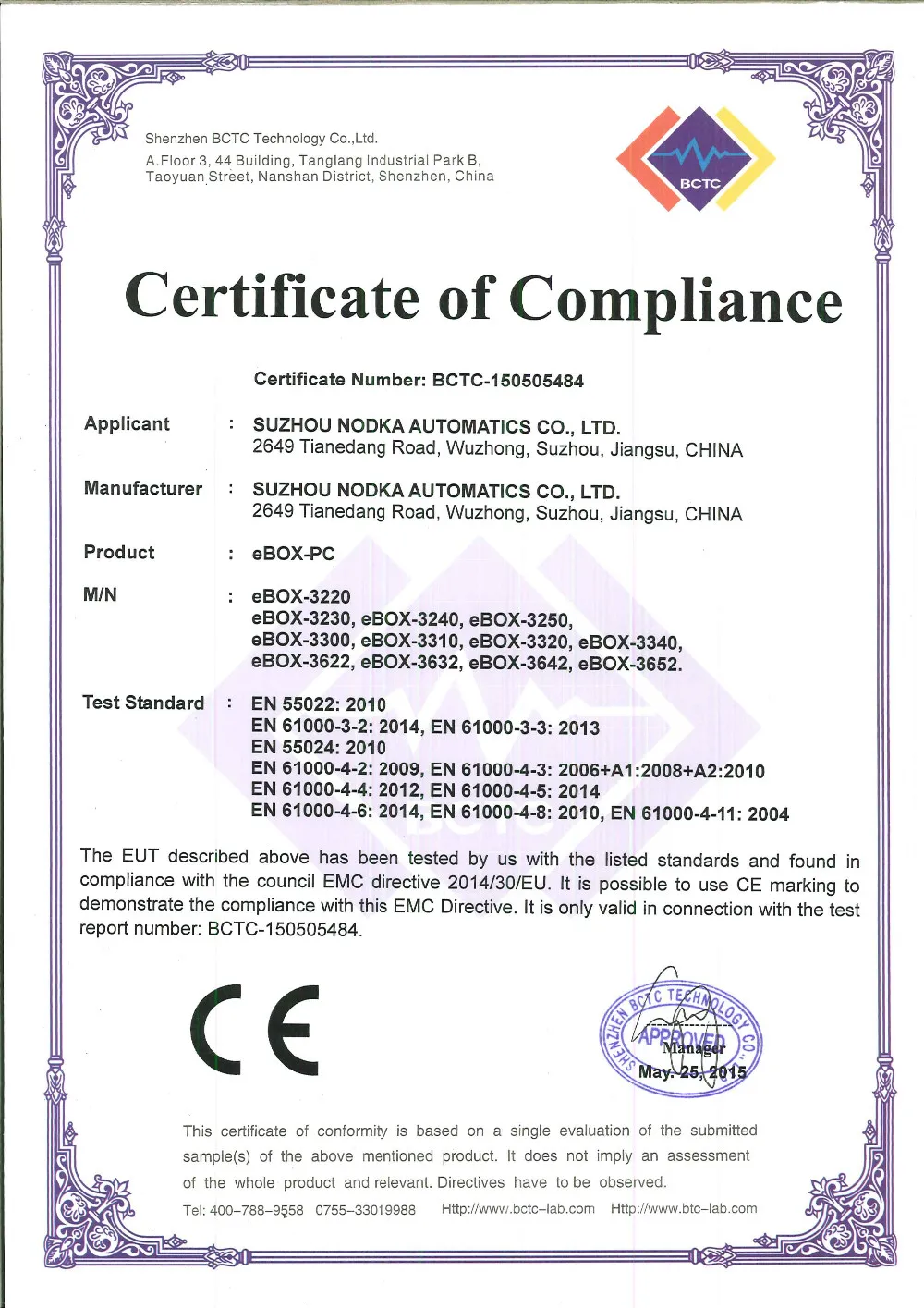

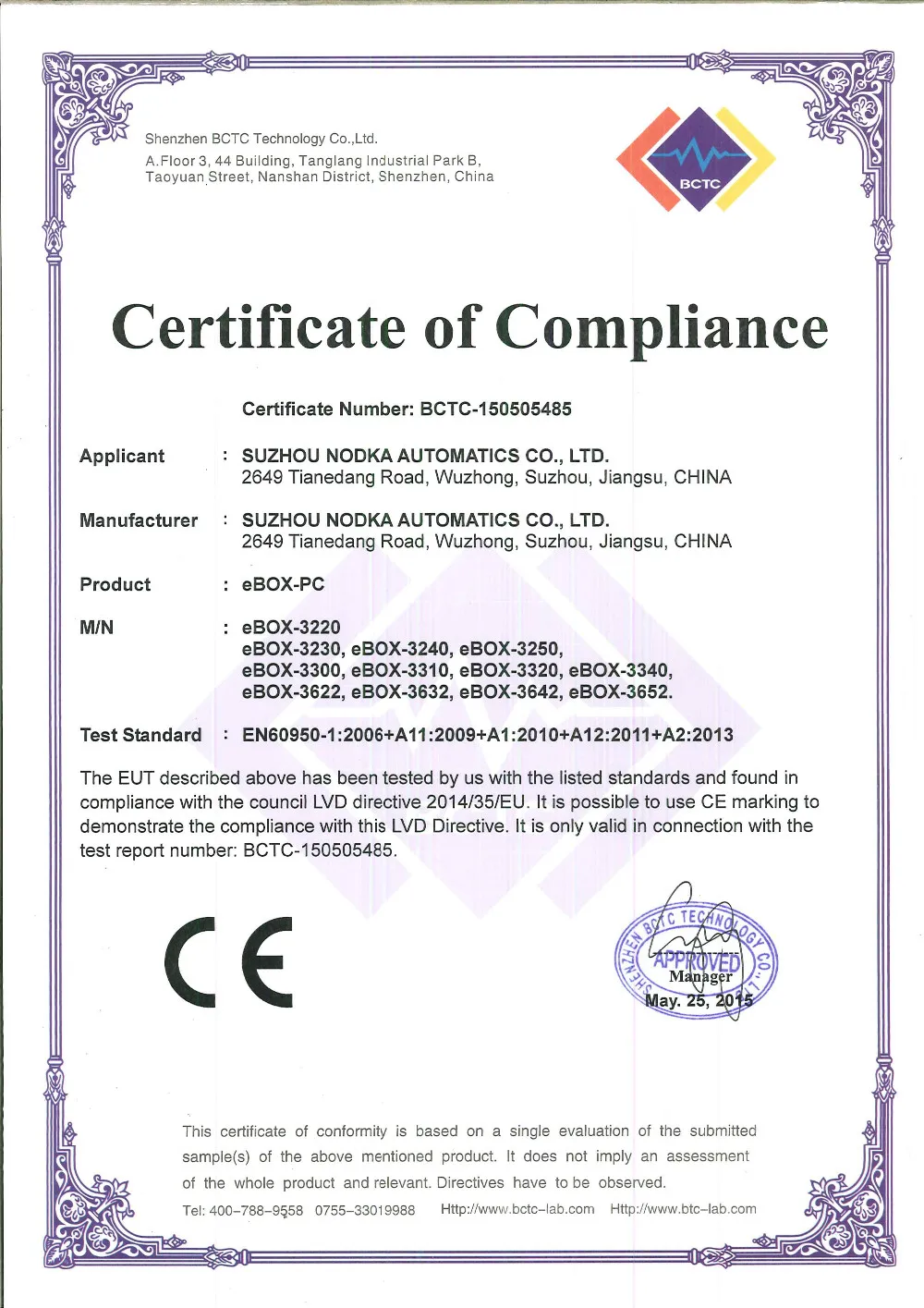

Our Certifications

Achievement

NODKA is qualified enterprise for ISO9001 quality management system, and products not only to obtain various certifications in China, but also be involved with promotion and development for various Industrial applications

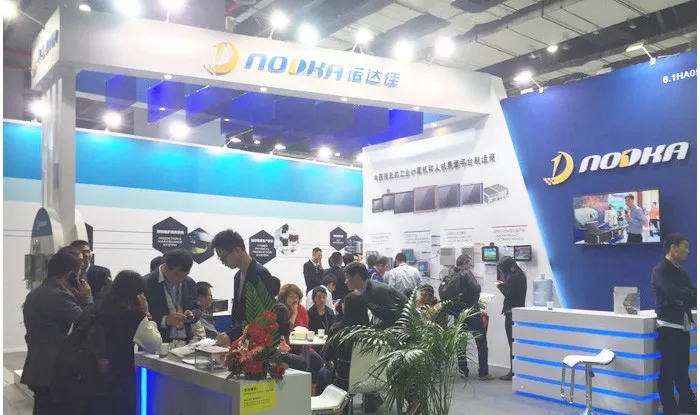

Exhibition Photo

Embedded World

Embedded world show was hold in March in Nuremberg, it gathered from all over the world in the field of embedded professional manufacturers, agents,and attract visitors.Nodka is a professional manufacturer which has established a good reputation and quality in China market,to enter the overseas market is the inevitable trend of the development of the company.Shower:Panel PC,LCD Monitor,Mini PC,Industrial PC

Industrial Automation Show

CIF was hold on November in Shanghai National Convention and Exhibition Center every year, and Nodka attend the exhibitions every time since 2012.Shower:Panel PC,LCD Monitor,Mini PC,Industrial PC

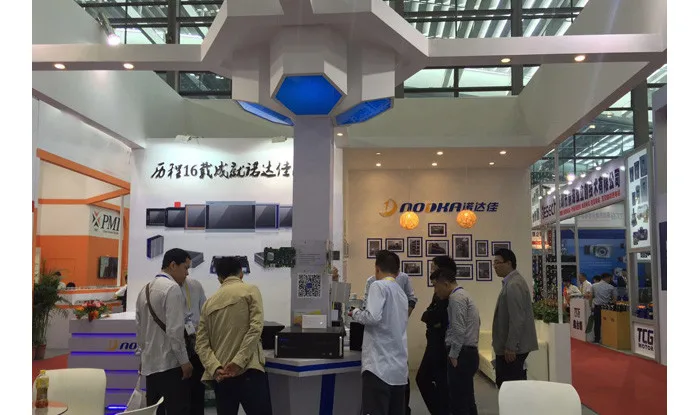

SIMM in Shenzhen of China

The 18th Shenzhen International Machinery Manufacturing Industry Exhibition (SIMM) held in Shenzhen Convention and Exhibition Center.This is the 1st time that Nodka show on SIMM, and the new product based on Skylake-U platform is the first show in China market.Shower:Panel PC,LCD Monitor,Mini PC,Industrial PC

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample but not for free charge.

Q: What is your terms of payment ?

A: Payment<=100000USD, 100% in advance.
If you have another question, pls feel free to contact us as below:
