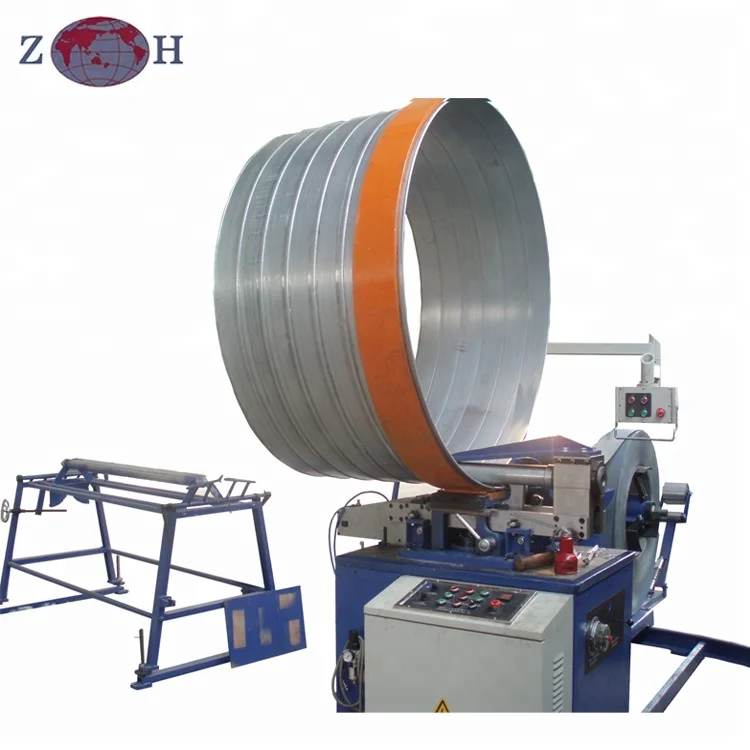

80-1500mm Spiral Duct Forming Machine for ventilation purpose

  • 1 - 1 Sets
    $18,800.00
  • >=2 Sets
    $18,000.00
Model Number:
ZHTF-1500II
Samples:
$5.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Customization:
Inverter could be customized (Min. Order: 1 Sets)
Diameter could be customized (Min. Order: 1 Sets)

More

Motor voltage could be customized (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
PLC, Cutting blade
Certification:
ISO
Brand Name:
Zhenhuan
Condition:
Brand new
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
Weight:
2500kg
Place of Origin:
Jiangsu, China
Power:
11kW
Dimension(L*W*H):
3500mm x 2800mm x 2580mm
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Video technical support, Online support, Free spare parts, Field maintenance and repair service
Sheet Thickness (mm):
0.4-1.2mm
Production Capacity:
38m/min
Key Selling Points:
Flexible Manufacturing
Control type:
PLC control
Finished tube diameter:
80-1500mm/100-1600mm
Max. material thickness:
0.4-1.0mm/0.4-1.2mm
Steel strip width:
137mm
Cutting method:
Saw cutting/roller shear
Driven type:
Motorized/hydraulic
Unloading rack:
Manual/pneumatic
Motor power:
5.5kW/11kW
Tube length:
8-12m
Mold type:
Spring steel adjustable/ fixed mold
Supply Ability
Supply Ability:
4 Set/Sets per Month
Packaging & Delivery
Packaging Details
spiral duct machine will be packed in wooden case, size is about 2900x1700x1900mm (L X W X H), one 20' container
Port
shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated

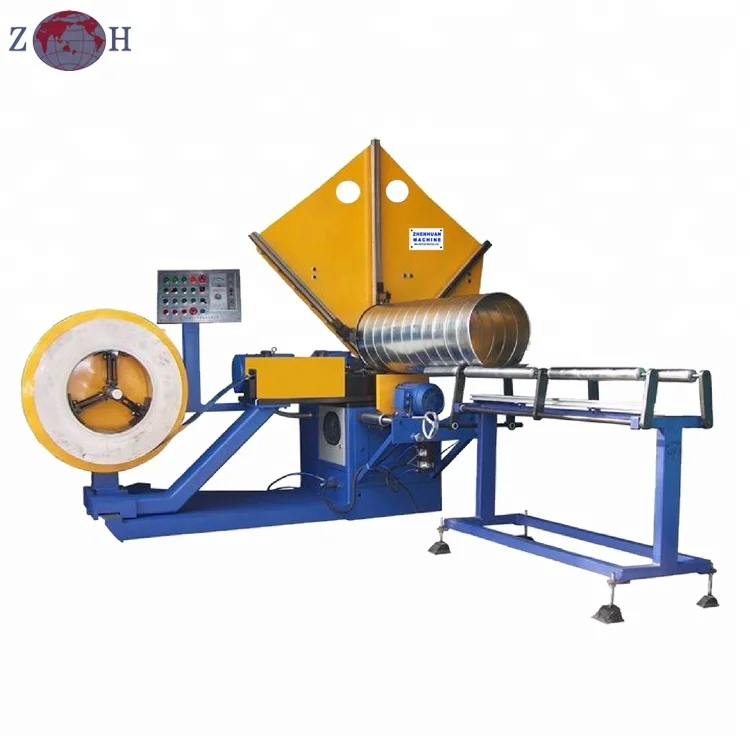

MACHINE DESCRIPTION
This spiral duct forming machine is for producing round air duct for various uses, such as for HVAC round ducts, oval ducts, chimney flue, etc.
MAIN FEATURES
-- Large diameter range, 1500mm for special structure, and could extend to 2000mm -- Pipe thickness up to 1.2mm for galvanized steel, could extend to 2mm and 0.8mm for stainless steel -- PIpe length up to 12m with automatic saw cutter or slitter - PLC control, convenient operation -- Light and small, suitable for site work
MACHINE SPECIFICATION
1
Diameter range
100-1600mm (2000mm)
2
Wall thickness
0.4-1.2mm
3
Duct lenght
6-8-12meter
4
Strip width
137mm
5
Strip feeding speed
1-38m/min
6
Main motor power
11KW
7
Cutting motor power
4.0KW
8
Air pressure
0.8MPa
9
Dimension
3500x2800x2580mm
10
Weight
about 2000KG
