80-315A Pipeline kirloskar Centrifugal Pump

FOB Reference Price:Get Latest Price
$50.00 - $1,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TECHO
Model Number:
80-315A
Structure:
Single-stage Pump
Usage:
Medium
Application:
Convey medium or liquid
Power:
7.5KW
Fuel:
Electric AC Motor
Pressure:
Low Pressure
Product name:
80-315A Pipeline kirloskar Centrifugal Pump
Pump Material:
Stainless Steel or Iron Cast
Pump Impeller:
Stainless Steel or Iron Cast
Seal:
Mechanical Seal(SS/Viton/SIC/Alloy)
Bearing:
C&U, (NSK/SKF for choice)
Shaft:
45# steel +SS304
Pump Flow:
45.8m3/h
Pump Head:
105m
Pump screw and nuts:
Stainless Steel Or Electroplate
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Closed Wooden Cast, Lined with Plastic Film Bags for 80-315A Pipeline kirloskar Centrifugal Pump
Port
Ningbo, Shanghai, Guangzhou
Lead Time :
Within 1-4 weeks after deposit
Product Description

80-315A Pipeline kirloskar Centrifugal Pump

1. Feature:

Stainless Steel Single Suction Single Stage Centrifugal PumpStrictly produced according to ISO 2858 standard, the ISO 2858 centrifugal pump is a kind of Vertical single stage and single suction pump, based on professional design.


2. Applicaton Area:
Water Supplier: boosting of main pipeline, boosting in high-rise buildings,
Industrial boosting: Process flow water system, cleaning system, high-pressure washing system,
fire fighting system.
Industrial liquid conveying: Cooling and air-conditioning, system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.
Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.

3. Advantages
1).Directly coupled, vibration proof and low noise.
2).Same diameter of inlet and outlet .
3).C&U bearing ,which is the most famous brand in China.
4).Circulating flow cooling ensure mechnical seal long life .
5).Small foundation required that will saving construction investment by 40-60%.
6).Excellent seal that is no leakage

4. Specifications:
1) PH valve:  4~10
2) Medium temperature: ≤100°C
3) Pressure: ≤1.6MPa Packing: Carton / wooden case

5. Working Condition:
1). GDL pump has capacity to delivery pure water or liquid with same physical and chemical character
2). Medium temperature: -15°c-+120°c
3). Working pressure: max pressure<2.5MPa, (System pressure=inlet pressure+pump operating pressure when valve closed<2.5MPa)
4). Ambient termperature should lower than 40°c, the competitable humidity should less than 95%
5). When convery corrosion and heat medium, please advise with order, in convenient to adopt special material to meet with usage.

Caliber Size
80mm
Impeller Size
310mm
Flow
45.8m3/h
Head
105m
Max. Temperature
<120℃
Rotating Speed
2900/1450/980, or 3500/1700/1180rpm
Products Show

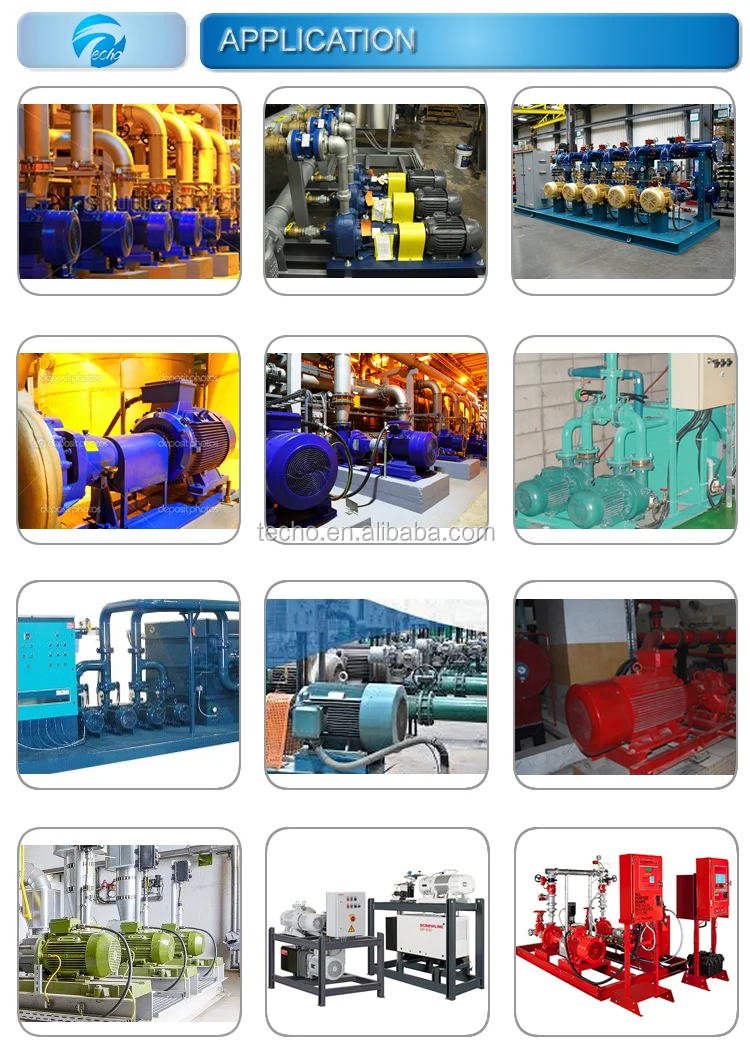

Our Application

1. Constructional engineering: Clear Water transportation, pressurization system, air condition water circulation system, fire extinguishing system,swimming poll and water circulation system.
2. Industry: Circulating cooling system, process water for paper making and paper pulp.steel production, shipbuilding, sea transportation, and other manufacturing industry.
3. Mining industry: water supply, mine drainage, generating station etc.
4. Others: municipal water supply, agricultural irrigation, and some others.

Packing & Delivery

Packing Details : Closed wooden cases,  Lined with Plastic Film Bags
Delivery Details : 3-30 days according to the order details.

Our Certifications
Customer Photo
