800x600 pixel 10.4 inch intelligent tft color LCD module support camera function

Feedback Ratings
US $120.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
CJS10402
Type:
TFT
Item name:
800x600 pixel 10.4 inch intelligent tft color LCD module
Color:
TFT color
Voltage:
5V or 9V~26V
Interface:
RS232.RS485.TTL
Viewing area:
212.35x159
backlight:
LED backlight
Brightness:
250cd/m2
Weight:
0.85kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X9X7 cm
Single gross weight:
1.0 KG
Package Type:
1pc/bubble bag
Lead Time :
7

800x600 pixel 10.4 inch intelligent tft color LCD module

Product Description

Model No.:CJS10402

Size:10.4 inch

Resolution:800x600

Active view area:211.2x158.4mm

View display area:212.35x159mm

Module size:247.4mmx177mm

Height:37.5mm

Weight:0.85kg

Display color:64K colors

LED backlight type:LED

Brightness:250cd/m2

View angle L/R/U/D: 70°/70°/50°/70°

Operate temperature range: -20~+70℃

Storage temperature range: -30~+80℃

Picture download mode: USB download mode

Selling Point

support RS232 and RS485, USART (3.3 V TTL) interface, a serial port baud rate 1200 BPS to 115200 BPS

wide VDD input voltage (5 v, 9 v - 26 v)

support the RTC clock

built-in 4 wire resistive touch touch screen controller

supporting RGB display

the built-in 10w audio power amplifier, support (such as mp3, wav audio file format)

support custom voice recording

support real-time transmission image display (embedded video decoder)

support the SD card

attached gbit 2 or 4 gbit Nand flash

support USB download images

Many pages memory

Color - color depth: 65 k

controlled PWM backlight

10.4 lcd display.png

   10.4 lcd module.png

  10.4 tft color lcd.png

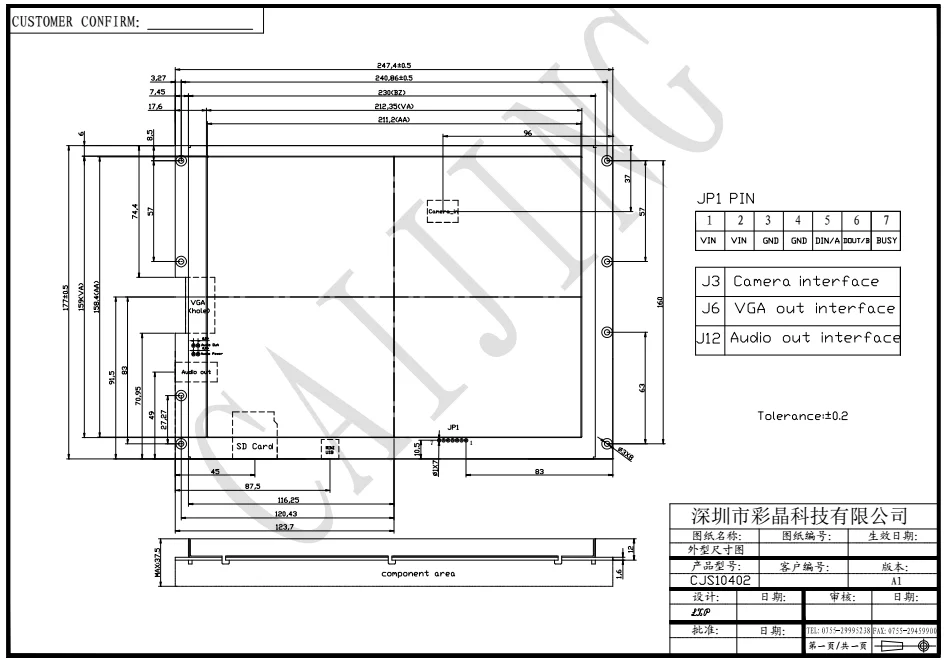

Drawing for 800x600 pixel 10.4 inch intelligent tft color LCD module

10.4 inch TFT lcd module display.png



Product Certificates

800x600 pixel 10.4 inch intelligent tft color LCD module

8 characters 2 lines lcd module certificates.png

Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

Our equipment.png

Product usage

Shenzhen Brilliant Crystal Technologic Co.,ltd  lcd module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .




Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

Related Product

800x600 pixel 10.4 inch intelligent tft color LCD module

Other related size is below

10.1 inch TFT intelligent LCD Module with touch panel and SD card

8 inch TFT color lcd module display support RS232 RS485 TTL

7  inch HMI smart terminal  tft lcd module display

5.6 inch TFT color lcd display module

5 inch tft color lcd module display

4.3 inch tft lcd module

We also have two kind style command list style and CGUS style .

To know more about us ,contact us ,please .



Display contentModel No.Outline size
L x W x H (mm)
V.A
L x W(mm)
Dots Size
L x W(mm)
VOltage     Interface
480x272RGBCJS04301120.4x68.6x8.098.5x57.30.066x0.1985V/9V-26VRS232/RS485/TTL
800x480RGBCJS05001143.5x80.9x17.5109x65.80.045x0.1355V/9V-26VRS232/RS485/TTL
640x480RGBCJS05602143.5x105x17115.9x87.670.0588x0.17645V/9V-26VRS232/RS485/TTL
800x480RGBCJS07001190x112x18154.9x93.90.0635x0.19055V/9V-26VRS232/RS485/TTL
800x480RGBCJS07002190x112x18155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
1024x600RGBCJS07006190x106.6x37.5156.2x92.60.0635x0.19055V/9V-26RS232/RS485/TTL
800x480RGBCJS07008203x112x21155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
800x600RGBCJS08001199.4x148.9x15163.5x123.50.0675x0.20255V/9V-26VRS232/RS485/TTL
1024x768RGBCJS08003199.4x148.9x37.5163.5x123.50.0675x0.20255V/9V-26RS232/RS485/TTL
1280x800RGBCJS10101248x150.7x37.5219.46x138.10.0635x0.19055V/9V-26RS232/RS485/TTL
800x600RGBCJS10401247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
800x600RGBCJS10402247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
