8080 6800 and I2C 7 inch 800x480 dots matrix tft lcd display module

Feedback Ratings
US $45.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
CJT07001BT
Type:
TFT
Item name:
7 inch TFT lcd module
Color:
TFT color
Resolution:
800X480
Size:
178x108.8x11.4mm
Viewing display area:
154.9x93.9mm
Dot pitch:
0.0635x0.1905mm
Color arrangement:
RGB-strip
LED backlight color:
White
MOQ:
1pc
Place of origin:
China

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X9X3 cm
Single gross weight:
0.5 KG
Package Type:
1pc/paper box
Lead Time :
7

8080 6800 and I2C 7 inch 800x480 dots matrix tft lcd display module

Product Description

Specification

Dot matrix: 800 x 3 (RGB) x 480 pixels
DD RAM: embedded 768KB
Input voltages: 5.0 and 3.3V DC
Interface: 8,080/6,800/SPI/IIC
Viewing angles: 70/70° (L/R) and 50/70° (U/D)
Contrast: 500:1
Backlight: high-brightness LED backlight
Minimum lifespan: 20,000 hours
LCD brightness: 350cd/m2
Operating temperatures: -20 to 70°C
Storage temperatures: -30 to 80°C
Module dimensions:
178.3 x 108.8 x 11.4mm
VA: 154.9 x 93.9mm
AA: 152.4 x 91.44mm

   CJT07001 TFT lcd module



Drawing for 7 inch TFT lcd module

7 inch TFT lcd module







Product Certificates

8080 6800 and I2C 7 inch 800x480 dots matrix tft lcd display module

8 characters 2 lines lcd module certificates.png

Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

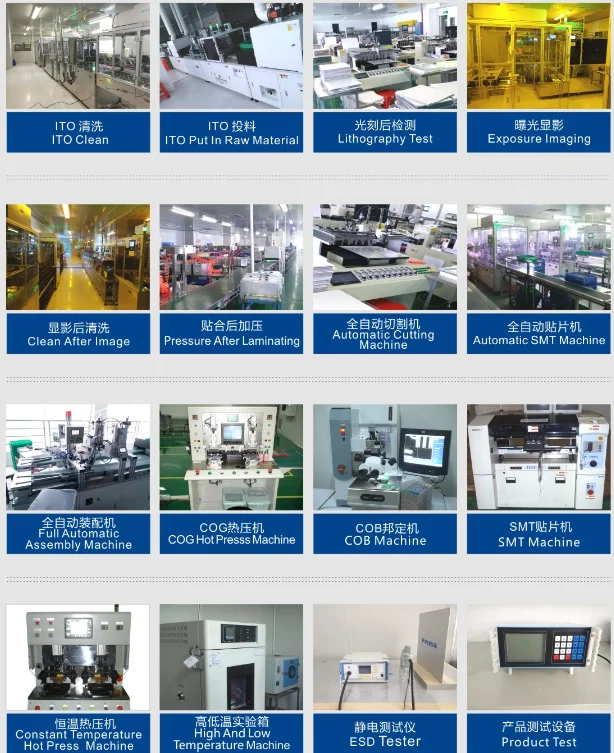

Our equipment.png

Product usage

 Our lcd module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .




Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

Related Product

8080 6800 and I2C 7 inch 800x480 dots matrix tft lcd display module

We also have 3.5 inch ,4.3 inch,5 inch,5.6 inch,7 inch tft lcd module .

Display contentModel No.Outline size
L x W x H (mm)
Viewing area
L x W(mm)
Dot size
L x W(mm)
VoltageInterface
320x240CJT0350192x69x9.572.4x54.90.073x0.2193.3Vserial/parallel
480x272CJT04301119×72×7.598.5×57.30.066×0.1983.3Vserial/parallel
640x480CJT05001132×93×13.2105.6×80.20.0529×0.15873.3Vserial/parallel
640x480CJT05601141×105×10.2115.5×87.270.0588×0.17643.3Vserial/parallel
800x480CJT07001178×108.8×10154.9×93.90.0635×0.19053.3Vserial/parallel
800x480CJT07002178×108.8×10156.4×89.30.0635×0.19053.3Vserial/parallel
