8CH free software 4G LTE live video GPS tracking full hd vehicle blackbox dvr mobile

FOB Reference Price:Get Latest Price
$1.00 - $200.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Certification:
CE
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
JH8-Hybrid
Warranty:
15 Months
Functions:
vehicle cctv
Product name:
Mobile Digital Video Recorder
Type:
Mobile AHD DVR
G-sensor:
Built-in G-sensor
Video resolution:
1080P/720P/960H/D1 Flexible
Video format:
H.264
Resolution:
1.3MP IPC/ 720P AHD/ Analog camera optional
Screen:
external 7" LCD Monitor
View Angle:
2.1mm/2.8mm wide angle cameras optional
Lens:
2.1mm/2.8mm etc lens optional
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
8pieces per cartons
Each unit net weight is about 2.5KG
Per unit box gross weight is about 3KG
Per carton box gross weight is about 22KG
Port
Shenzhen
Lead Time :
Within 1~10 working days based on order quantity
Video Description
Product Description

8CH free software 4G LTE live video GPS tracking full hd vehicle blackbox dvr mobile



JH8-HYBRID-GFW (GPS + 4G FDD +5.8G WIFI)


★8 x 960H / D1 / HD1 / CIF + 4 x IPC(720P)
★Built-in Switch 4 x POE(12V) Ethernet Ports
★HDMI Video Output

★ accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB) for backup(at 3G/4G/Wi-Fi model option)
★ Internal G-Sensor, with GPS, 4G FDD and Wi-Fi (5.8 Ghz)
★ 2 WIFI Antennas (download speed up to 3Mb/s)
★ Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)
★ Hard drive automatic heating startup in cold weather
★ On board UPS 8 seconds delay power-off for data protection
★ Operating temperature -40℃ ~ +80℃
★ 8V-36V wide voltage power supply

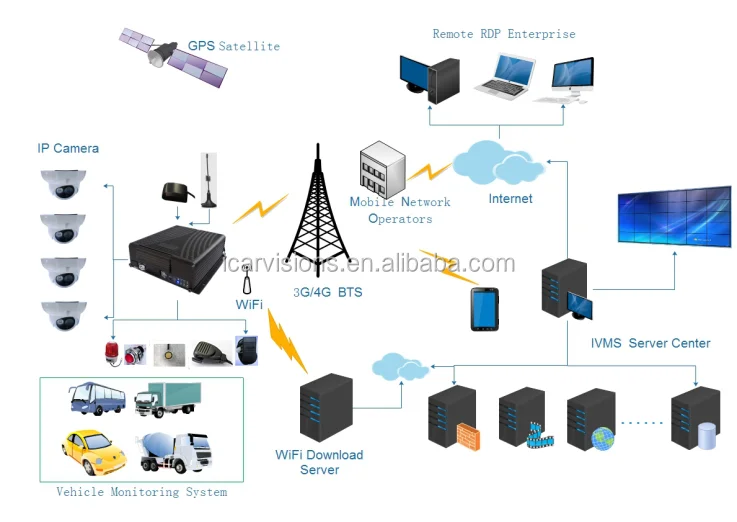

Our Mobile DVR with 3G / 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking
3G / 4G: For real-time video and monitoring
Wi-Fi: For automatically downloading video file


JH8-Hybrid series model names:

Model Name
JH8-Hybrid-NNN
JH8-Hybrid-GNN
JH8-Hybrid-GNW
JH8-Hybrid-GWN
JH8-Hybrid-GWW
JH8-Hybrid-GFN
JH8-Hybrid-GFW
Details
N/A
GPS
GPS
WIFI 5.8G
GPS
3G(WCDMA)
GPS
3G(WCDMA)
WIFI 5.8G
GPS
4G FDD
GPS
4G FDD
WIFI 5.8G
Function
JH8-Hybrid
System
Language
English / Chinese
Operation
Interface
Graphical User Interface (OSD menu)
Password Security
2 Levels: Administrator & User





Video
Video
Input
Supports 8 channels CIF/HD1/D1/960H camera Video input
Supports 4 channels 720P / 2 channels 1080P IP camera Video input Supports 4-CH 720P IPC + 8-CH 960H/D1/CIF Video input


Note: (4x25/30 fps) 4-CH 720P IPC + (8x15 fps) 8-CH 960H/D1/CIF Video input
Video
Output
1 each HDMI (max. 1080P), 2 CVBS (Analog);
1 each 3.5mm Jack on Front Panel and one connection on the 24 pin I/O port
Video
Display
Single picture, 1~12 pictures
Signal
System
PAL / NTSC ( PAL@200 frame 720P/sec; NTSC@240 frame 720P/sec )
Compression
H.264 Main profile
Audio
Audio
Input
8 Channels
Audio
Output
2 Channels (Front Panel 3.5mm Jack, 1 in the 24pin connector)
Record
Format
Synchronized A/V recording





Recording &
Storage
Resolution
CIF / HD1 / D1 / 960H / 720P /1080Poptions
Video
Coding
ISO14496-10 Industry Standard



Video
Bit Rate
CIF: 1536Kbps ~ 128Kbps,
HD1/D1: 2048Kbps ~ 400Kbps,
960H: 2048Kbps ~ 400Kbps,
720P:4096Kbps ~ 400Kbps
1080P:4096Kbps ~ 400Kbps
Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
Audio Bit
Rate
40Kbps
Storage
Up to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G/WIFI model option)
Alarm
Alarm Input
8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
Alarm Output
1 Channel, 12V output
Communication Ports
RS485
1 Port for PTZ control or Data Device usage
RS232
2 Port for communication or data usage
RJ45 Network
4 Ports of RJ45, For connection to an IP camera with maximum of 1080P
USB
2 Ports of USB 2.0, the front is used to export record file. The rear panel is used to mirror
Wireless Communication*
3G*
3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module
4G*
4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier
Wi-Fi*
Internal Wi-Fi 802.11b/g/n ( 2.4 / 5.8 Ghz) optional
GPS
Int'l Standard GPS*
Internal GPS module. Real-time geographic coordinates, speed information
G-Sensor
Internal G-Sensor
Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software
PC Playback
A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
IVMS
Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade
Local or Remotely
Upgrade through the front USB2.0 or remotely via IVMS platform
Voltage Input
+8~+36V
8~36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output
12V
12V(+/-0.2V),Max 3A
ACC Detection
≤4V
Power Off
≥6V
Power On
Video Input Resistance
75Ω
75Ω
Video Output Voltage
2Vp-p
2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O port
<1V
Low voltage trigger
>5V
High voltage trigger
Operation Temperature
-40℃~80℃
Install in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions
192x184x
61mm
Including Security Cover 248x184x61mm

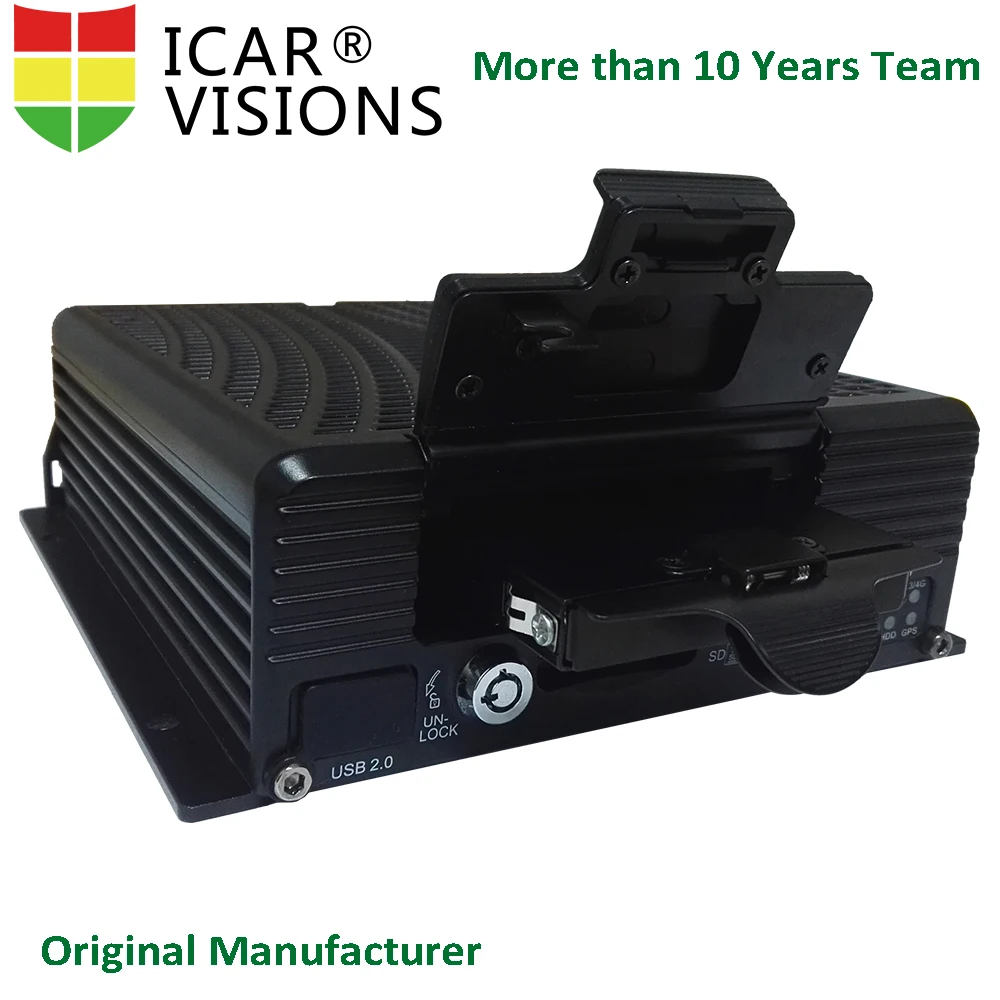

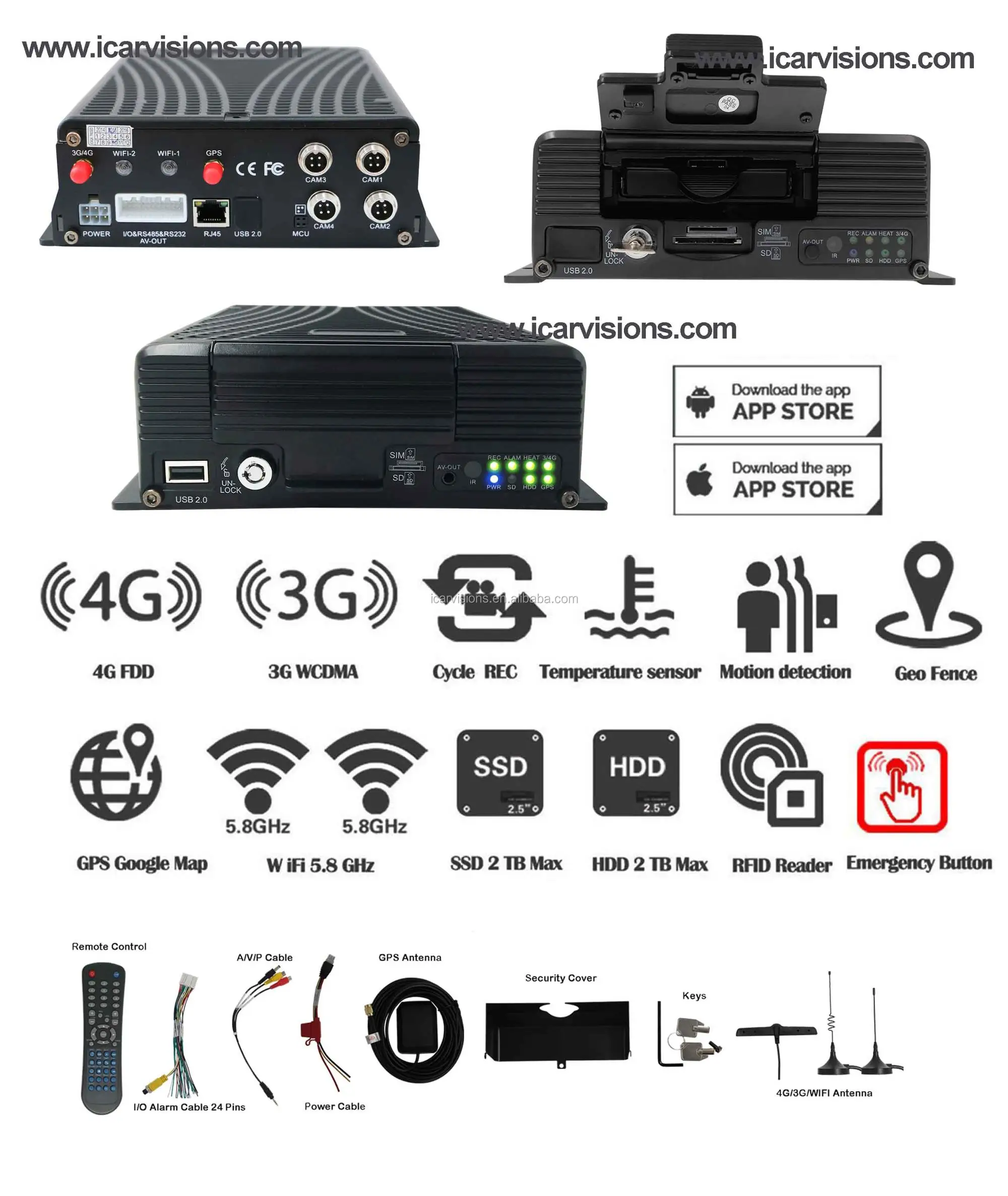

Detailed Images

Standard Package including:

Mobile DVR

Remote Control

I/O alarm cable 24pins

A/V output cable

Power cable

GPS antenna

Security cover

Keys

3G/4G/WiFi anternna optional

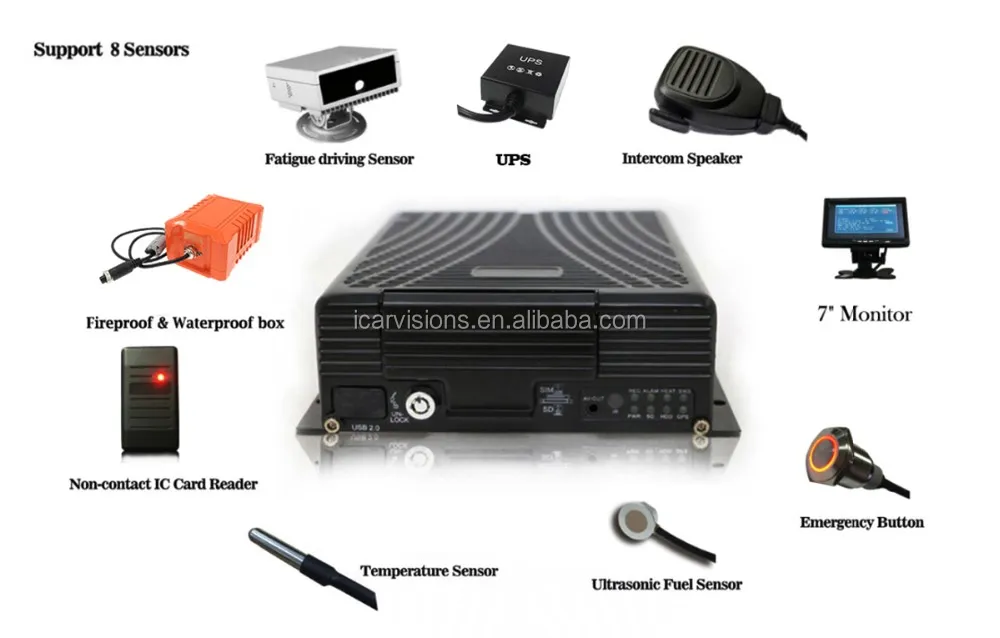

Optional Accessories which able to add with MDVR

Intercom Speaker

7" LCD Monitor

Panic button for driver

Ultrasonic fuel sensor

Temperature sensor

Non-contact RFID reader

Fireproof black box

Fatigue driving alarm sensor

UPS

Related Products

Customized IVMS Server,Client and APP are all available,which developped by ourselves.

ICARvisions is a solutions based, global leader specializing in vehicle related hardware and software design, manufacture and deployment of Mobile Digital Video Recorders (MDVR), Mobile Network Video Recorders (MNVR) and Sensors, Cameras, Cables, and Accessories.And we have a strong RnD team so we have developped our own server and software for any OEM & ODM projects.

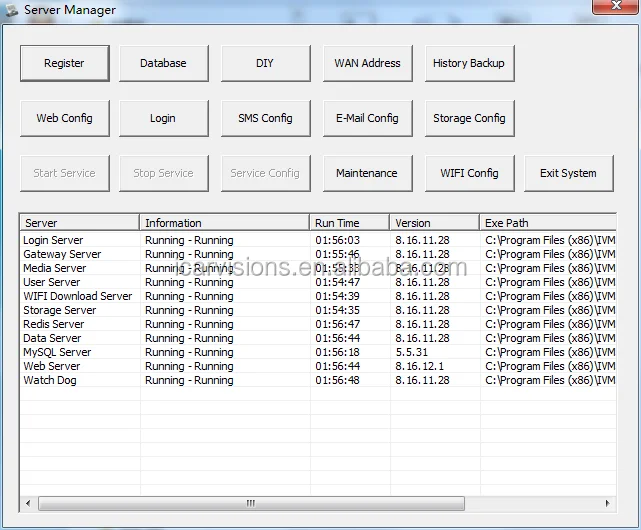

Intelligent Vehicle Monitoring System Server --IVMS Server

Users have the option of deploying 1 or 2 of the 7 Functional Servers stated above such as, Login Servers, Multiple Gateways Servers, Multiple Media Streaming Servers, Multiple Users Management Servers to provide Mobile DVR and Remote Client Services and features as GPS Location, Video and Alarms.
Description of Main Functional Servers
Database Server
Login Server
Gateway Server
Media Server
User Server
Storage Server
WIFI Download Server
Web Server

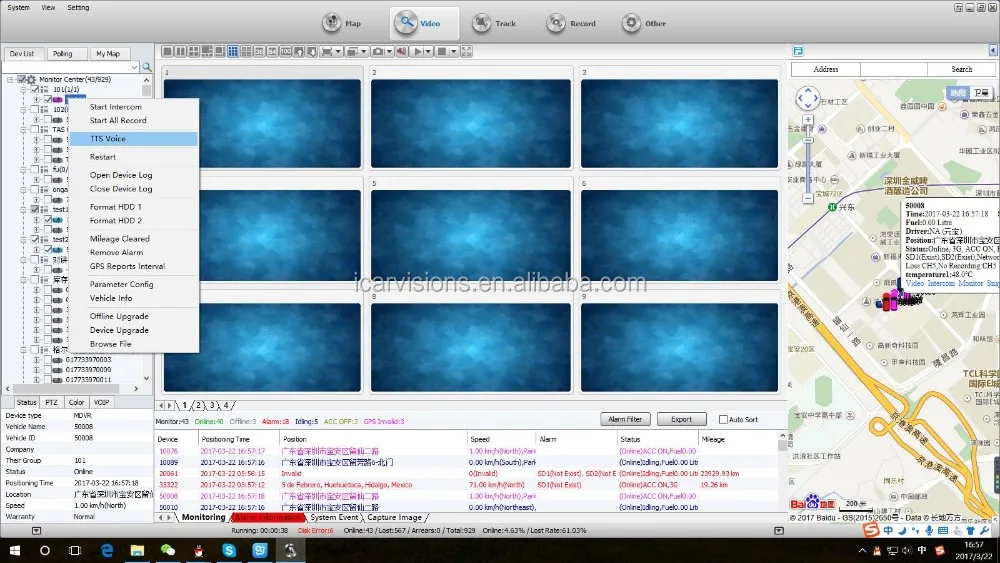

IVMS Client (Intelligent vehicle monitoring system)

Through this platform, wireless remote real-time video monitoring, GPS map positioning, historical track playback, voice intercom, alarm linkage, remote video recording, remote video downloading,remote video playback, equipment area management and remote upgrading can be realized.

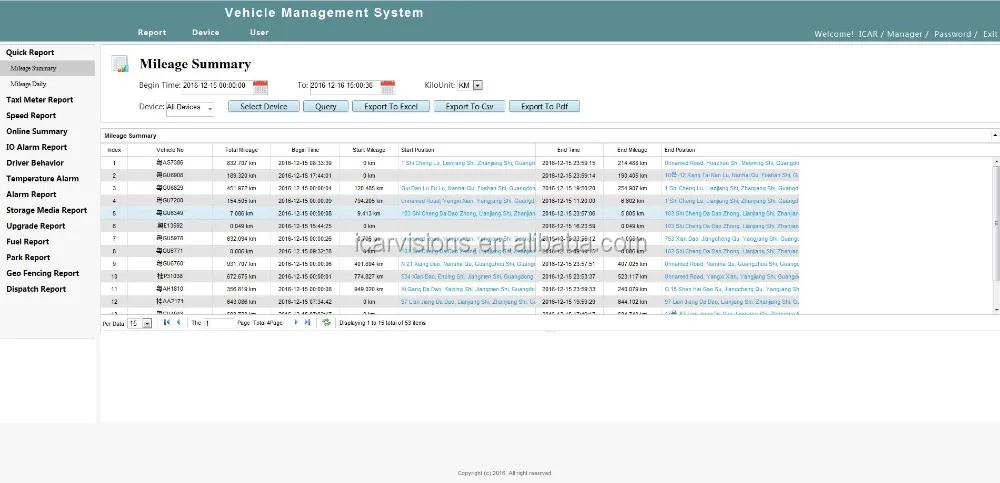

Intelligent vehicle monitoring system --WEB Client

Web client supports uers to check:
Mileage Report

Speed report

Online Summary

IO Alarm Report

Driver Behavior

Temperature Alarm

Alarm Report

Storage Media Report

Upgrade Report

Fuel report

Park Report

Dispatch Report--TTS Detail

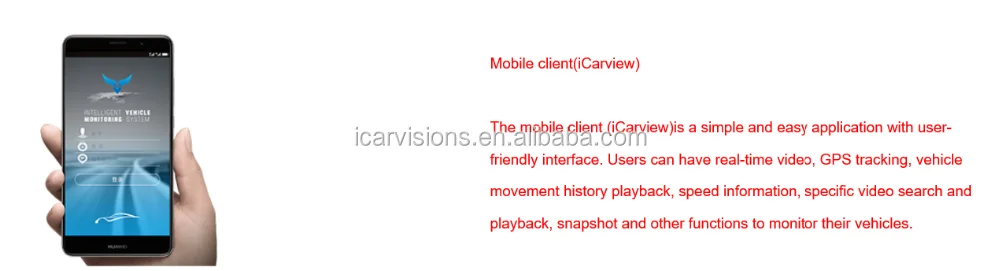

"ICarView" APP for Android&IOS system

User-friendly and easy control intergace,the ICarView APP help users to remote check:
Real-time video

GPS tracking

vehicle movement histroy playback

Speed information

Specific video research

Playback

Snapshot

Other functions

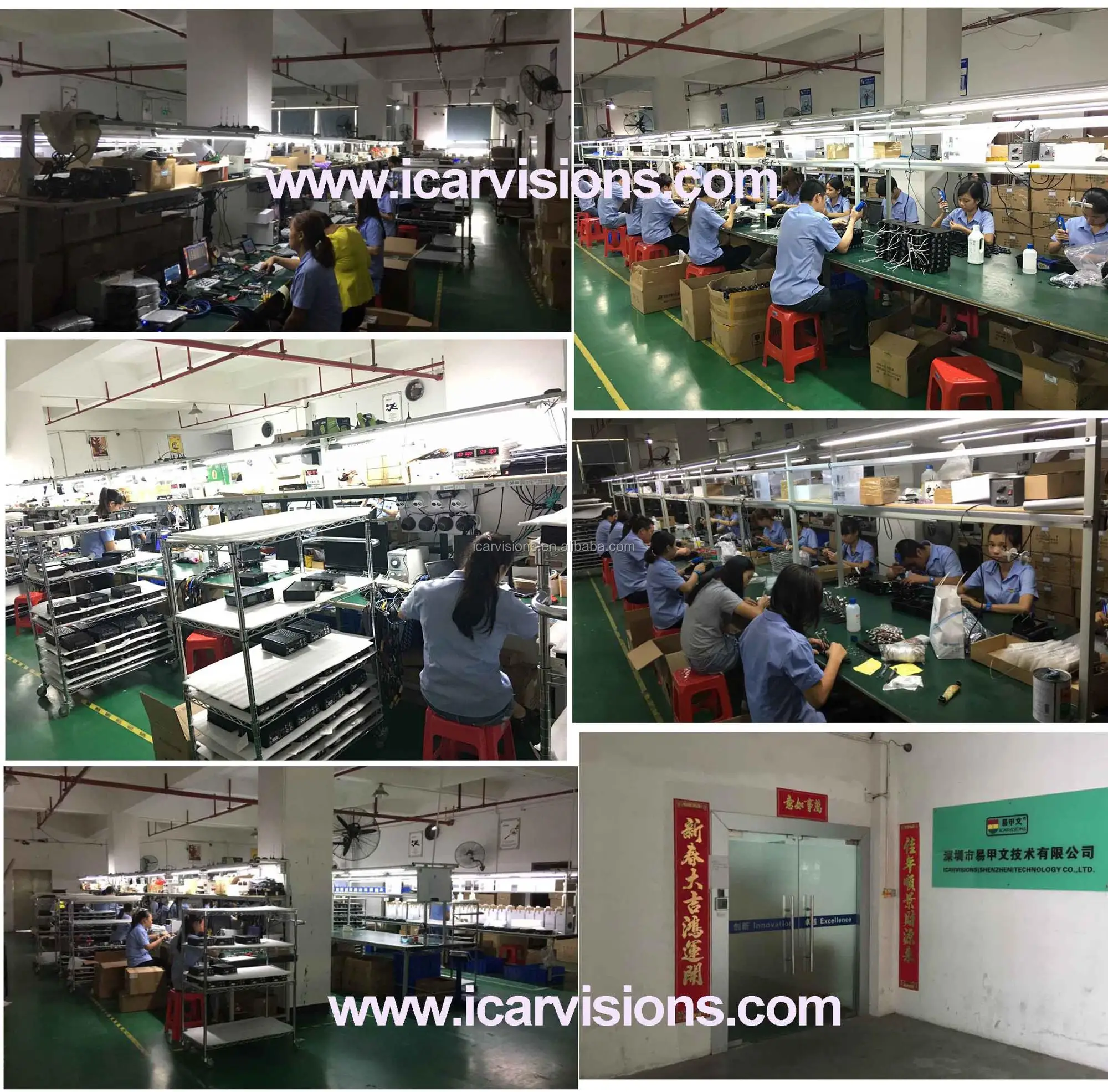

Our Company

ABOUT ICAVISIONS

ICARvisions was established by a group of senior R&D software and hardware engineers who have specialized in MDVR development internationally for over 10 years with one goal in mind; we are a solutions based, global leader specializing in vehicle related hardware and software design, manufacture and deployment of Mobile Digital Video Recorders (MDVR), Mobile Network Video Recorders (MNVR) and Sensors, Cameras, Cables, and Accessories.

Contact us today for a comprehensive solution tailored to your company’s need.

Certifications
Our Service

Free Service for technical support, OEM and ODM service

As our customers, you will always provided you with best services, which including
---One to one free technical support,
---Free repair to our faulty manufacture products during the warranty (MDVR WARRANTY PERIOD :15 MONTHS; CAMERA WARRANTY PERIOD: 12 MONTHS)
---Free and fast upgrade on software,
---OEM cooperation on customized requirement
---Confidential agreement


Since we are the original designer, developer and manufacture of our MDVR, also we design and develop all our software, we have the core original source code of software in hand, so we can add and change any new function on hardware and software flexibly if there is any demand on your OEM project.

FAQ

How to order from us
1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.


Payment Terms: T/T,
1. Under T/T, there will be USD35.00 bank charge for each individual remittance.
2. If order value less than 10,000USD, we should get 100% payment before production;
If order value more than 10,000USD, we accept 40% deposit before production and the balance should be paid off before delivery.


Lead Time
Normally 1~15 working days based on order quantity.



Technical Support
We have ONE to ONE FREE technical support after you take the goods, and if you have any question for the technology of our products, please email to us, reply will be sent to you immd;
