90W 19V 4.74A ac charger universal laptop adapter

FOB Reference Price:Get Latest Price
$6.80 - $8.00 / Pieces | 500 Piece/Pieces Samples within 10pcs (Min. Order)
Plug Type:
AU Other EU UK US
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JYH
Model Number:
JYH1904740
Usage:
Laptop
Output Type:
DC
Connection:
Desktop
Color:
Black
Certification:
CE FCC ROHS CB cULus GS
Warranty:
24 Months
Input:
AC 100-240v 50-60hz
Output:
19V
Product Name:
90W 19V 4.74A ac charger universal laptop adapter
Efficiency:
VI
Protection:
OVP OCP OTP SCP

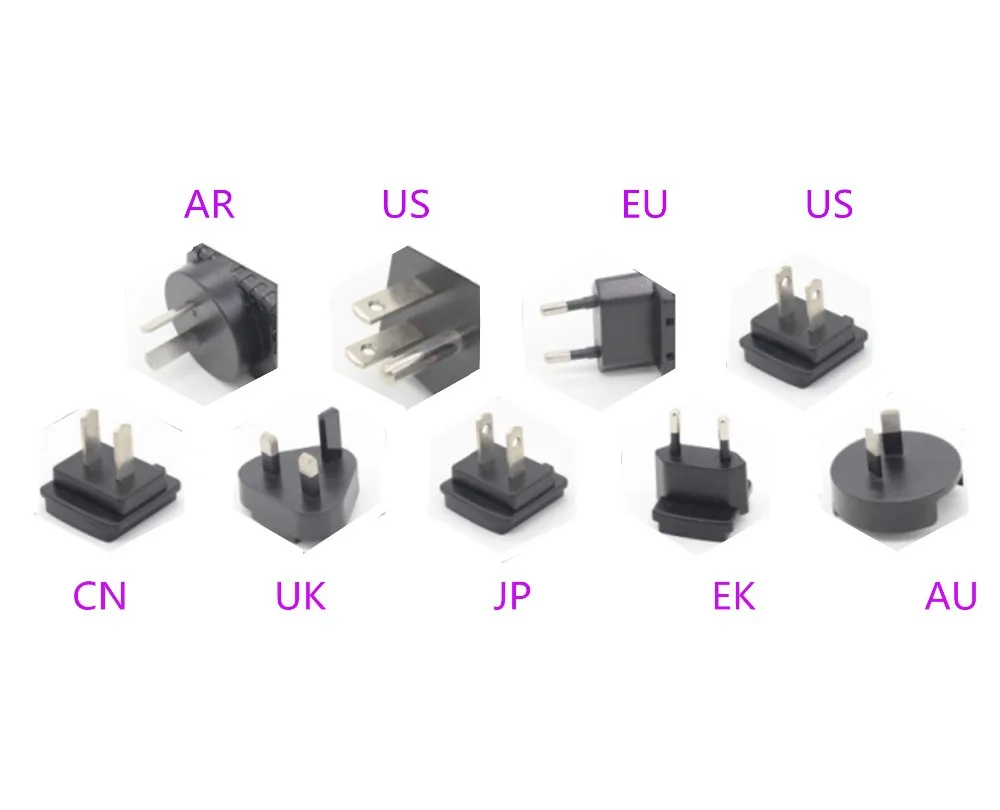

Wall plug type:
EU, US, UK, AU, optional
Supply Ability
Supply Ability:
15000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Size:41.5*37*17CM (opp bag)
Qty:50PCS/Carton
Weight:11kg/ Carton
Package : Carton and White Box
or OEM Package Design
Size:42.5*32.5*23.5CM
Weight:9KG
Qty:50PCS/Carton
Package : Carton and White Box
or OEM Package Design
Size:37.5*35*30cm
Weight:13KG
QTY:30pcs/carton
Port
shenzhen
Product Details

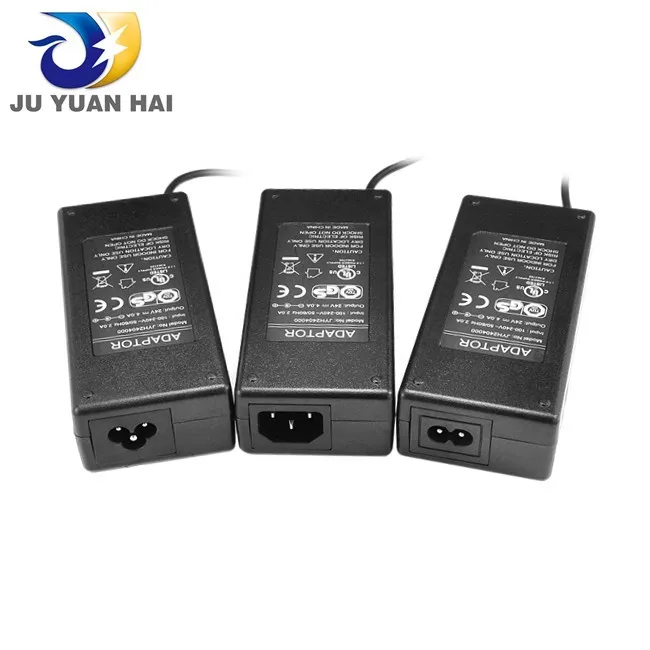

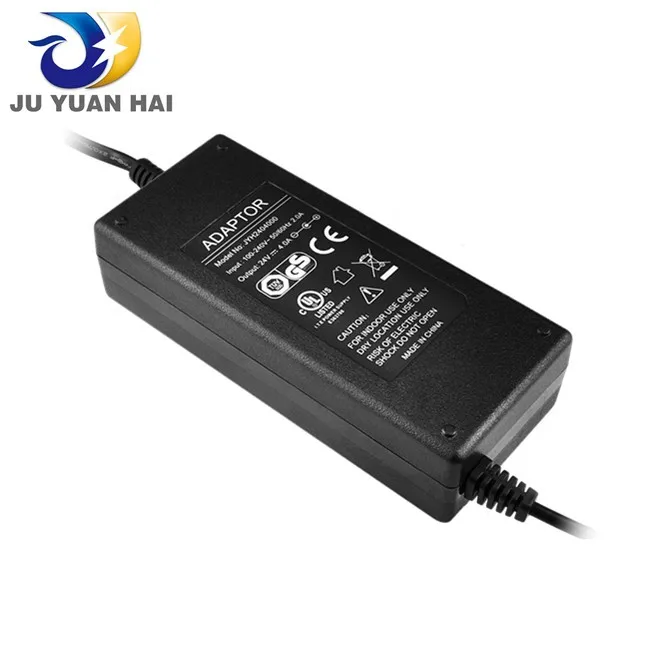

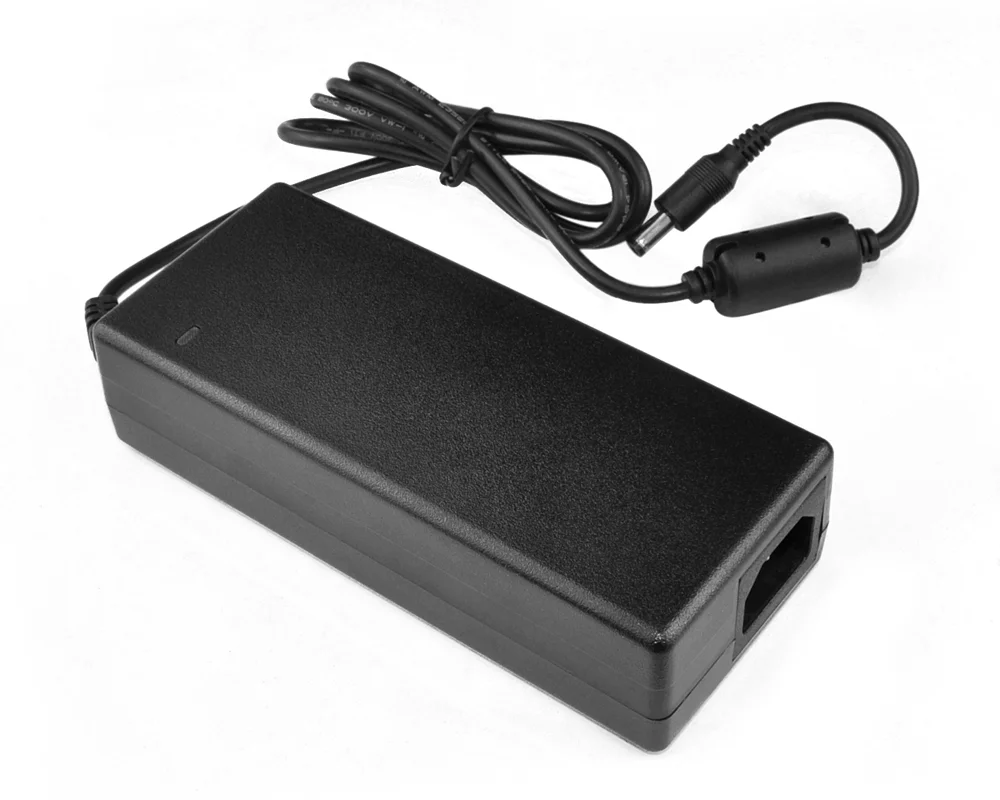

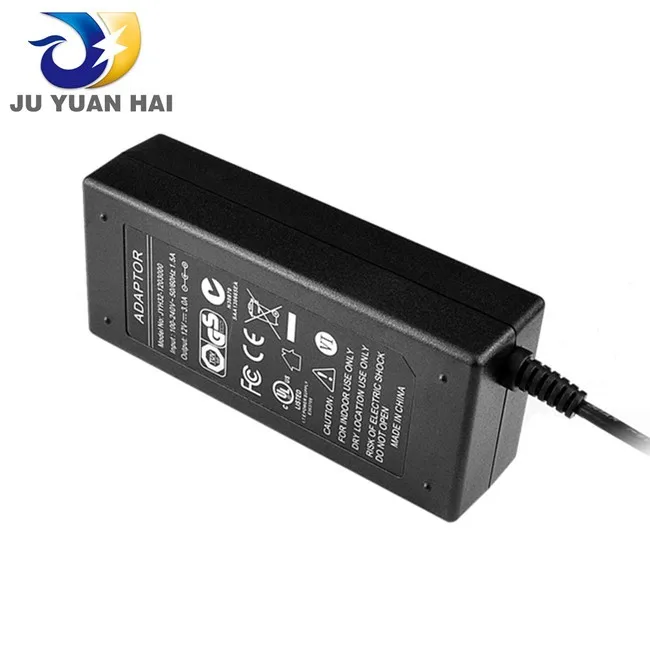

90W 19V 4.74A ac charger universal laptop adapter


This single output 19V 4.74a desktop power adapter, 90w output power. Power adapter cable length, from 1.2m-3m is optional for choice, DC plug, we have other unconventional DC pugs, except standrd specifications. This 90w power adapter has many mainstream certifications, such as UL, FCC, CE, SAA, DOE VI etc, power adapter quality has good quality guarantee, all customers can trust it. If you need customized service for package, we can also complete it according to your requirements.



Input voltage 100Vac240Vac 50/60 Hz 0.5A
Output Voltage 5V-48V
No load power consumption <0.21W
Output loading precision ±5%
Dielectric withstand 3,000Vac primary-secondary
Leakage 0.25mA@2 pin
Operating temperature 0℃-40℃
Storage temperature -20-80℃

Protection
Short circuit protection
Overload protection
Over voltage protection
Over current protection

MTBF  30,000 hours

Certification approvals UL/CUL/FCC/CCC/CB/CE/SAA/C-Tick/ROHS/CEC.DOE VI
Product Details Show
Product Parameters
 Temperature Coefficient
±0.05%/℃
Voltage Accuracy
±2%
Adjustment Range
None
Min. Load
None
Total Regulation
±5%
Ripple & Noise
120mV
Short Circuit Protection
Continuous - hiccup mode
Over Voltage Protection
110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load
88% min
Operation Temperature
0 to +60℃, derating linearly to 50% load above 40℃
Storage Temperature
-10 to +85℃
Humidity (non condensing)
10-90% RH
Cooling
Convection
Withstand Voltage
Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)
Vibration (non condensing)
23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock
< 196.1 m/s2 (20G)
Safety Agency Certifications
UL60950-1, CB/TUV/GS:EN60950 IEC60950-1, CE: EN55032, FCC:PORT 15 VOC
DOE Regulation
VI
Off-Load Power Consumption
<210mV
Conducted & Radiated EMI
EN55023-B, FCC Class B
Immunty
EN55024
Weight
---
Size(WxLxH)
60.5*140*34.5mm
Cable Length and Thickness
1200mm

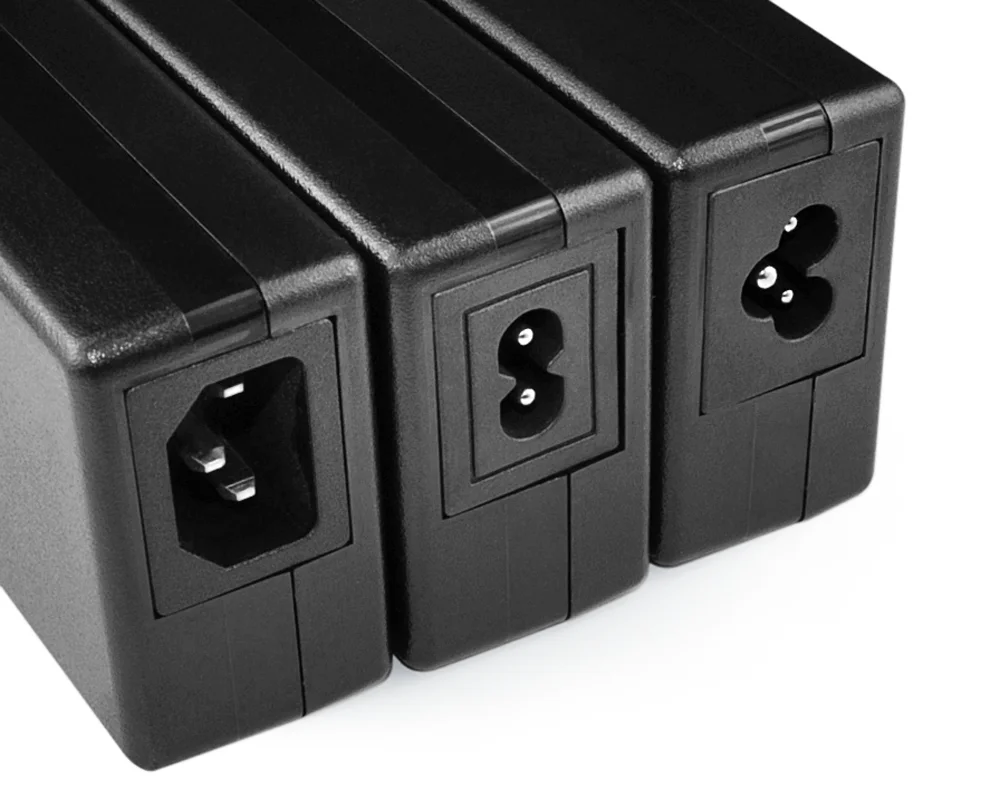

AC Input Connector
Wall / Interchangeable / Desktop
Output Connector
5.5x2.1mm (Accept more request)
MTBF 100%, 25℃
30,000 hours
Warranty
2 YEARS
Why Choose Us

About us

Shenzhen Juyuanhai Electronics Co.,Ltd is leading manufactor of power supplier in China

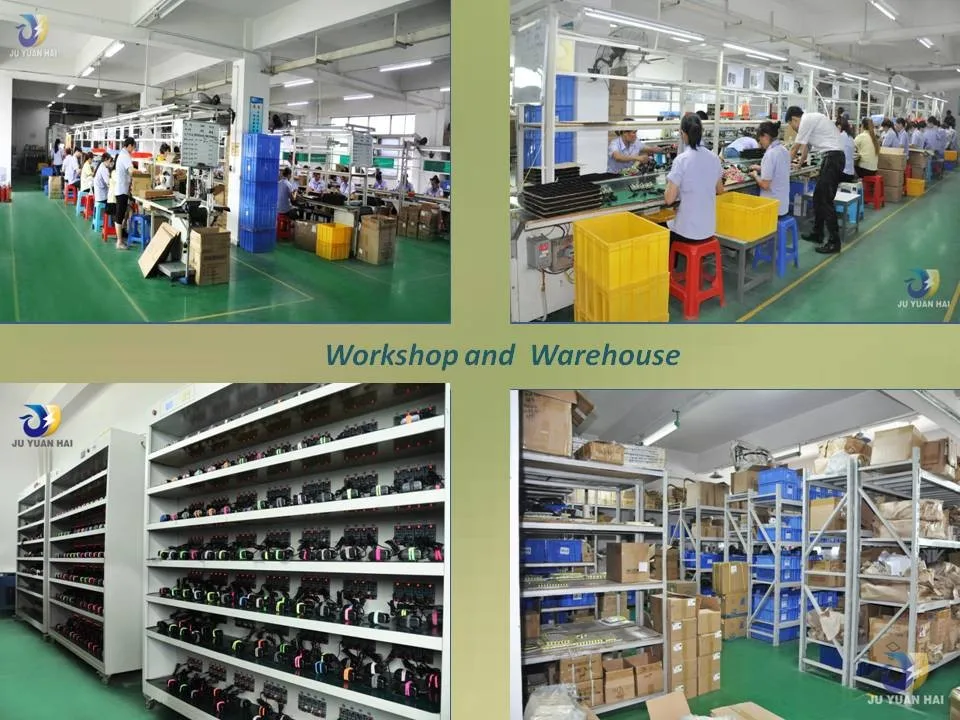

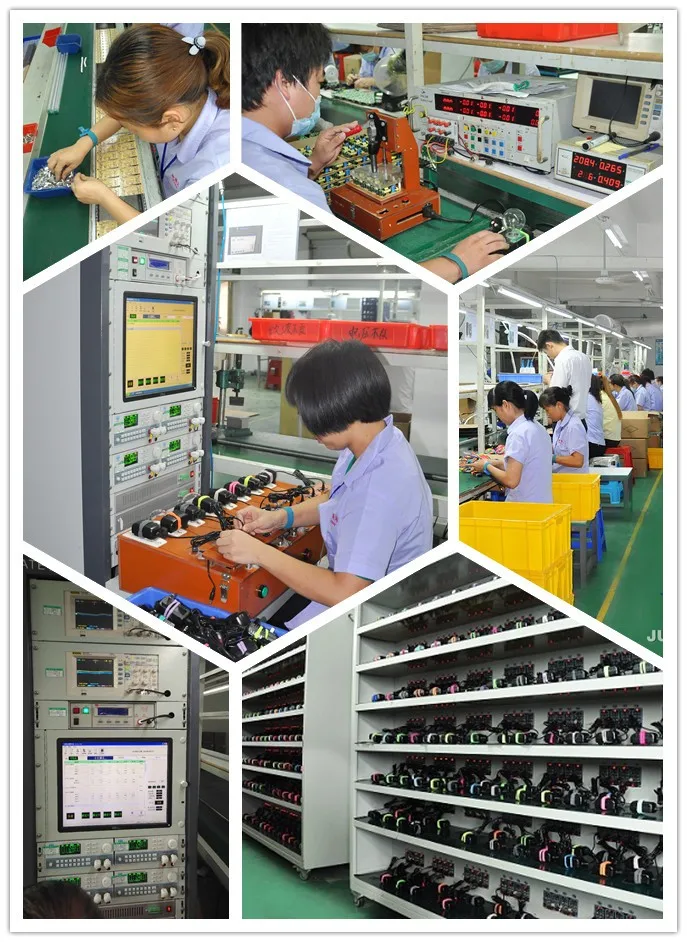

Workshop and Warehouse

Global certification, ISO9007 Quality management

Service

OEM/ODM acceptable

Samples are avilable

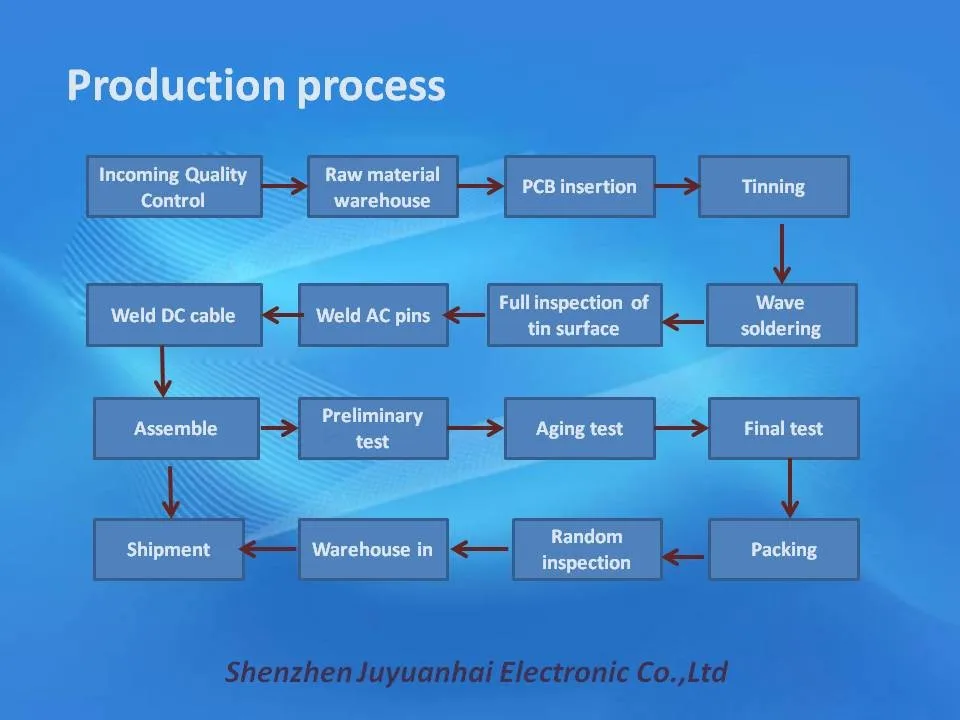

Product Processing
Product Packing
Certifications

FAQ

1. Q: Can you offer samples ?
A : Yes,we can offer samples for testing.Please contact our sales for details about the cost.

2. Q : Can we print our logo on the products?
A : No problem. If the order is above 500pcs,it is free of charge to print customer’s logo.

3. Q : What kind of payment terms do you accept?
A : Paypal, T/T, Western union and Trade assurance.


4. Q: How about the lead time ?
A : 5~7 workdays for MOQ,3workdays for samples.


5. Q : How long does the warranty?
A : 24 months.

Main Products

Multiple interchangeable plug switch adaptor 12v 1a 2a 3a 4a 5a ac dc power adapter

Model: JYH36-xxxyyyy-Bz

Min. Order: 500pcs

FOB Price: US 3.3-3.8/pcs

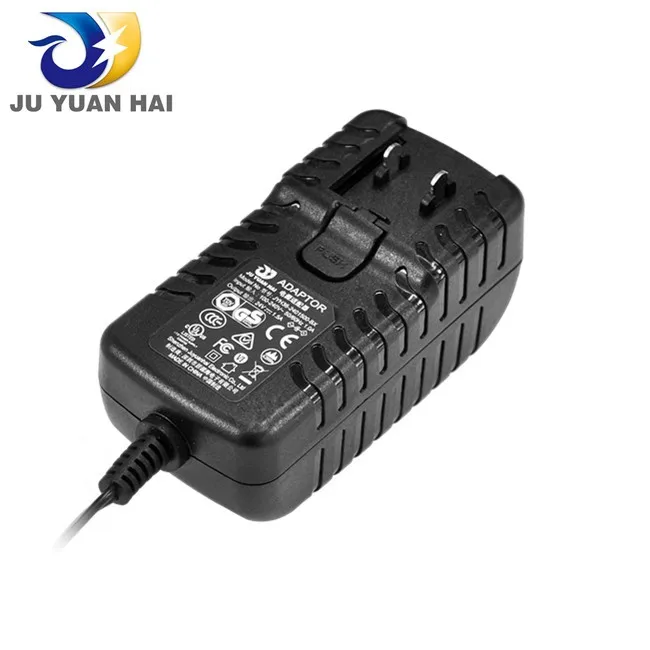

UL VI GS SAA input 100-240v output  5~24V 0.01~1.1A UK wall mount travel adapter
