92mm 9225 15v dc fan 5000 rpm DDW9225HH12B 12v brushless axial cooling fan 92x92x25mm

FOB Reference Price:Get Latest Price
$4.60 - $8.50 / Piece | 100 Piece/Pieces (Min. Order)
Power:
13.2W
Air Volume:
100.44CFM
Speed:
5000RPM
Samples:
$10.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Customization:
Customized packaging (Min. Order: 1000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Type:
Axial Flow Fan, Axial Flow Fan
Electric Current Type:
DC
Mounting:
FREE STANDING
Blade Material:
PBT
Place of Origin:
Guangdong, China
Brand Name:
TKFAN
Model Number:
da9225-b
Voltage:
12V
Certification:
ce, RoHS
Warranty:
2 years
After-sales Service Provided:
Online support, Overseas service center available
Size:
92*92*25mm
Bearing Type:
Dual Ball Bearing
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
K=K cartons
Port
SHENZHEN



Product Description

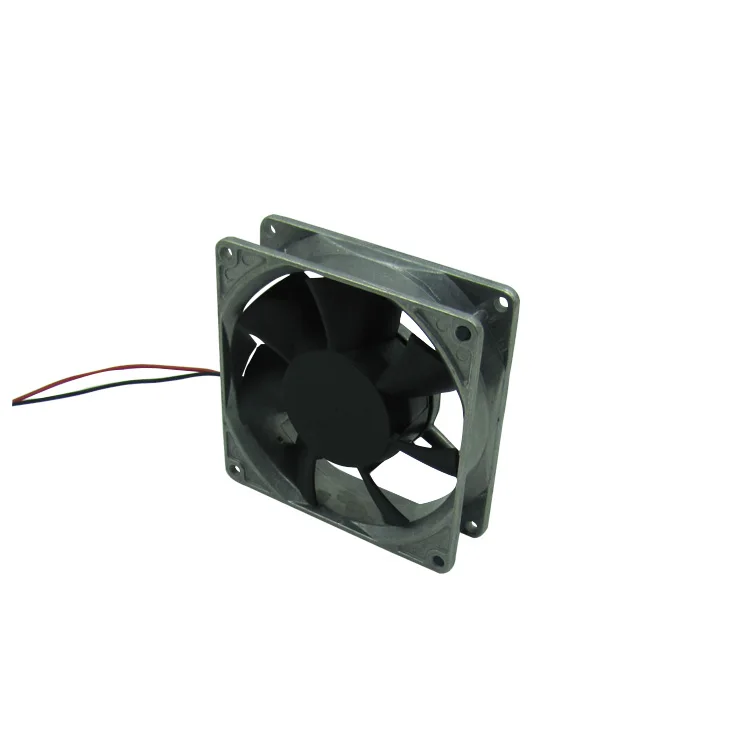

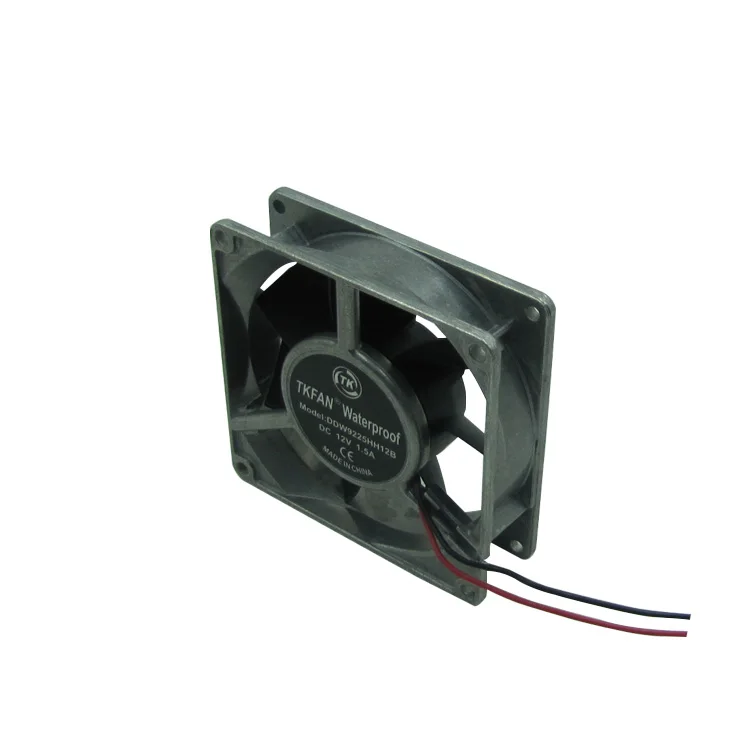

 Wholesale 92x92x25mm 12V   DDW9225HH12B DC Brushless COOLING  AXIAL FAN

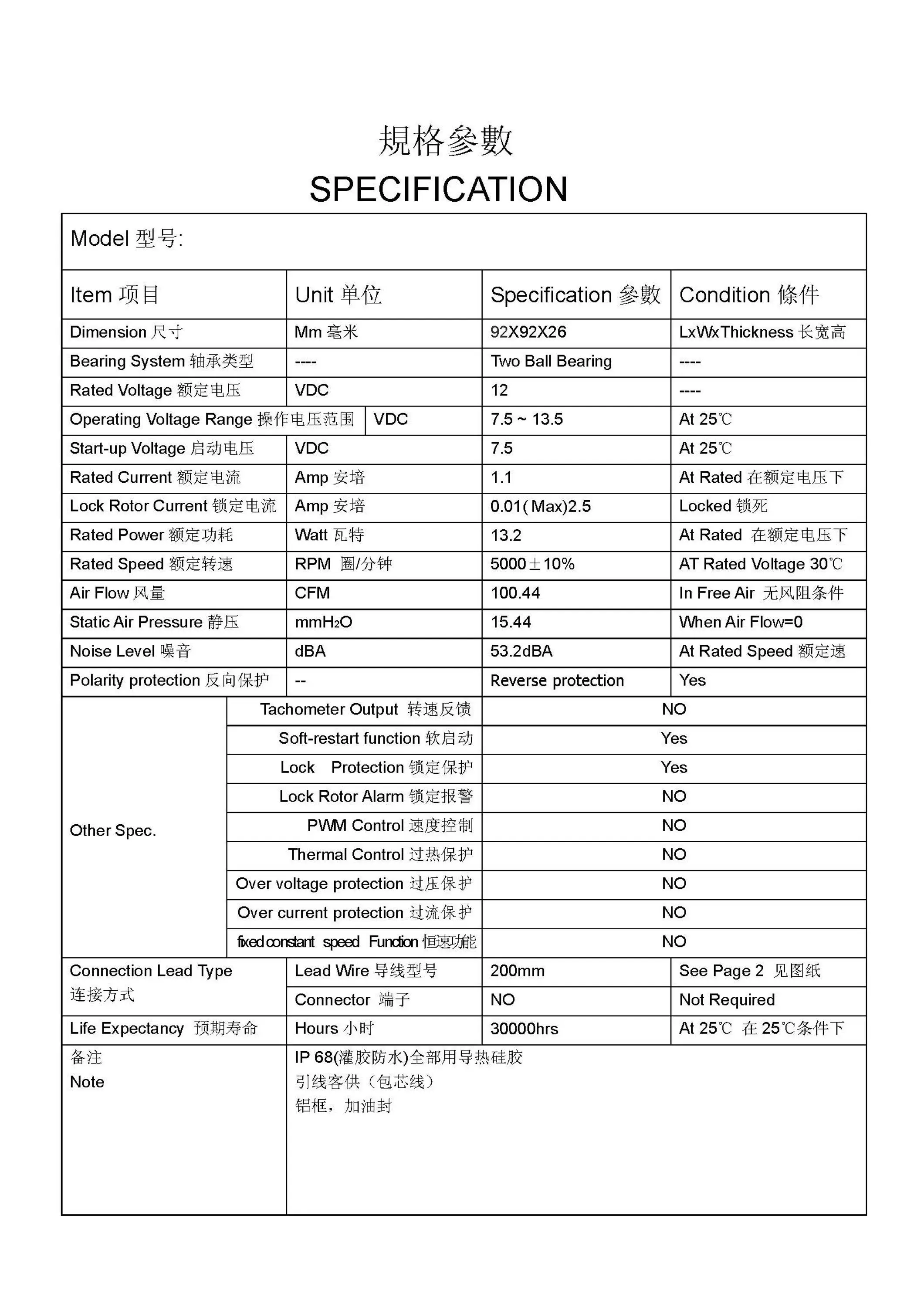

Model: DDW9225HH12B
Voltage: VDC 12V
Current: 1.1 Amp
Speed: 5000rpm/min.




 More products,please click:

https://www.alibaba.com/product-detail/Hot-selling-Top-Quality-High-Performance_60422092947.html?spm=0.manage.list.7.1125d08777Z410



Motor Protection

 (Selective purchasing):

1.Automatic Restart.
2.Reverse Polarity Protected.

Soft-restart function.

3.Water proof for IP55 IP65
4.IC function RD ,FG and PWM control are available

5.Metal Grid.Plastic Grid


Company Information

Shenzhen tenkai group limited is a brushless motor product related enterprises in shenzhen city, the registered capital of RMB10.2 million, registered trademark TKFAN and TENKAI,has safety certification such as UL, CE, ROHS,Through the ISO9001:2008 quality management system certification, no bad credit records.
       TKFAN mainly make high-quality brushless fan, brushless motor .Product series are tiny fan ,quiet fan,waterproof fan,high power fan,high voltage fan,long life fan,etc.
       Mini fan, generally refers to less than or equal to 3 cm length of brushless dc fan.Smallest size fan of TKFAN is 15 x15x4mm axial flow fan, the smallest size blower of TKFAN is 18 x18x4mm blower (2017).Throughout the industry, the smallest size fan is 9x9x3mm made by Taiwan SUNON, the size is only small as your thumb.
       Quiet fan, which are widely used in household appliances, car navigation, looked up lights, portable handheld devices, etc.Because of these devices application environment tend to be quiet, so this kinds of fan have to quiet with enough airflow.It is generally believed to solve this problem from three directions.Can promise the airflow and reduce the noise by change impeller structure, an important example is EBM company from Germany make a speacial low noise fan according to the principle of the owl feathers which is using in building ventilation;Second, we can reduce electromagnetic noise by using circuit drive with sine wave . Third,use special bearing, few years ago,TKFAN has already started to test and use ceramic bearing, pure copper oil bearing, special plastic bearing, various bearing is applied in special field, slowly get some success, hope we can do better in the future.
       Waterproof fan, is applied in some special fields.Such as sea cruise light heat dissipation, high power LED lights, outdoor household humidifier, industrial humidifier, etc.General component is IP55 moistureproof and IP68 waterproof waterproof level.IP68 waterproof generally divides nano coating process and two kinds of epoxy resin sealing process.Details refer to my company waterproof fan is introduced.

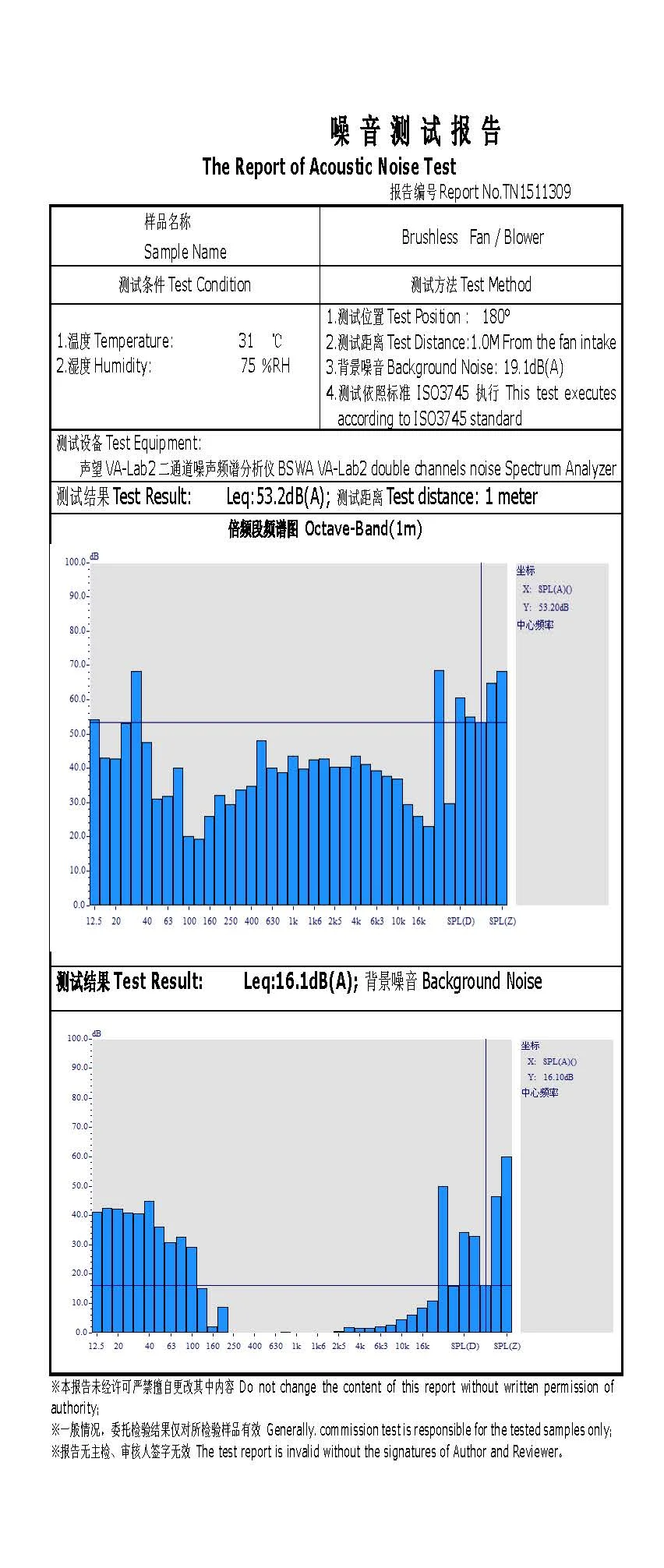

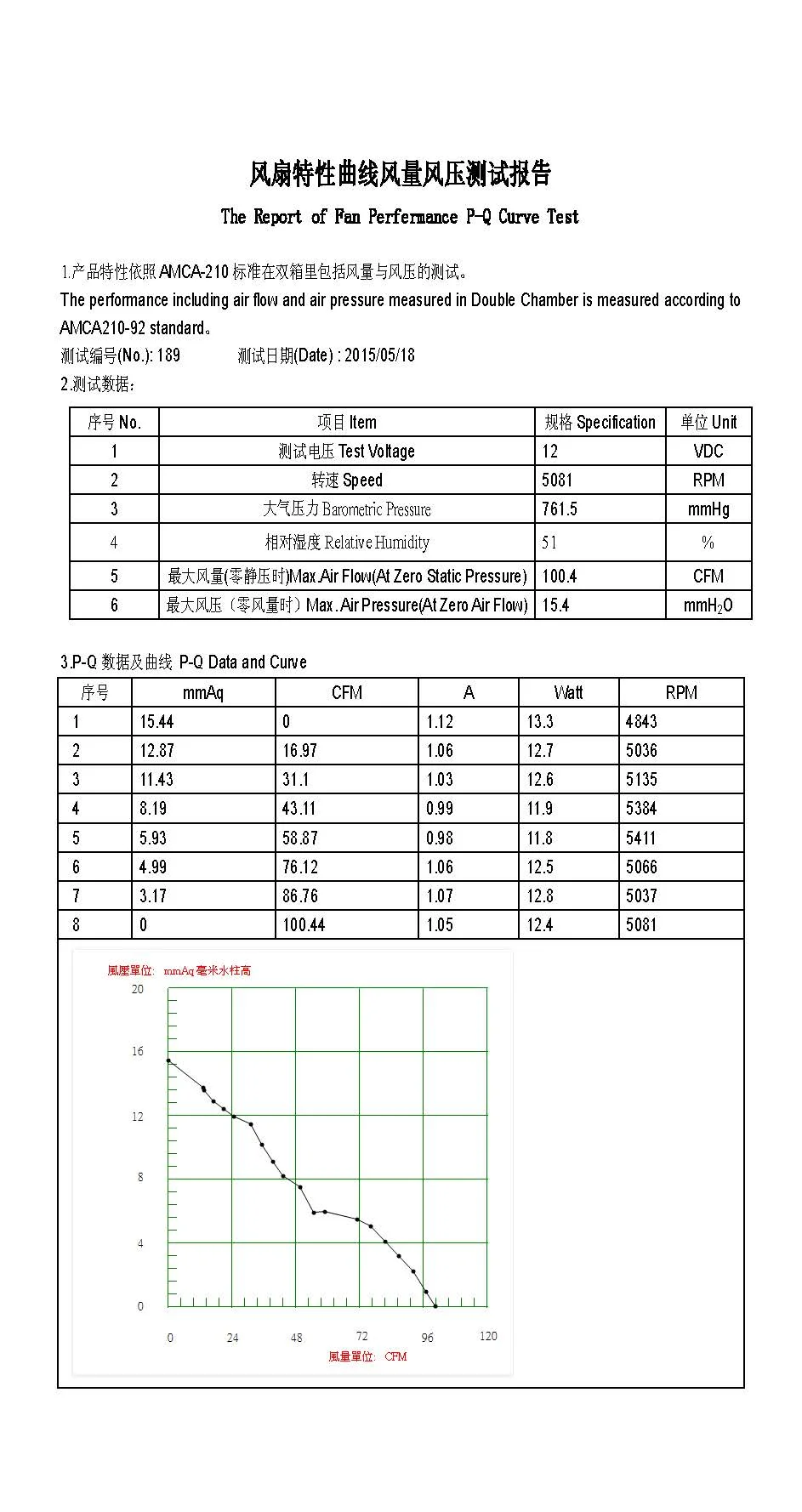

      We have large air volume/pressure test system, and 16db background noise test room.These test system can be used for your final product testing,and it's for free.If you have other questions, please contact us, always welcome your guidance.





FAQ

Q: What information do you need to provide in order to get a quotation?

A: Generally, information about Size,Air Flow,Voltage of required fans

    is needed in order to select a right fan for you and provide you a quotation.

Q: Can I have samples for testing before ordering products?

A: Yes, we sincerely suggest that customers should have some samples

of required fans for testing because the truly performance of fans can be

fully demonstrated after testing is conducted.

Q: Can I have a discount for the quoted price?

A: The quoted price is based on annual usage quantity. If annual usage

quantities increase, please provide the information to our sales.

We will provide you a further discount.
