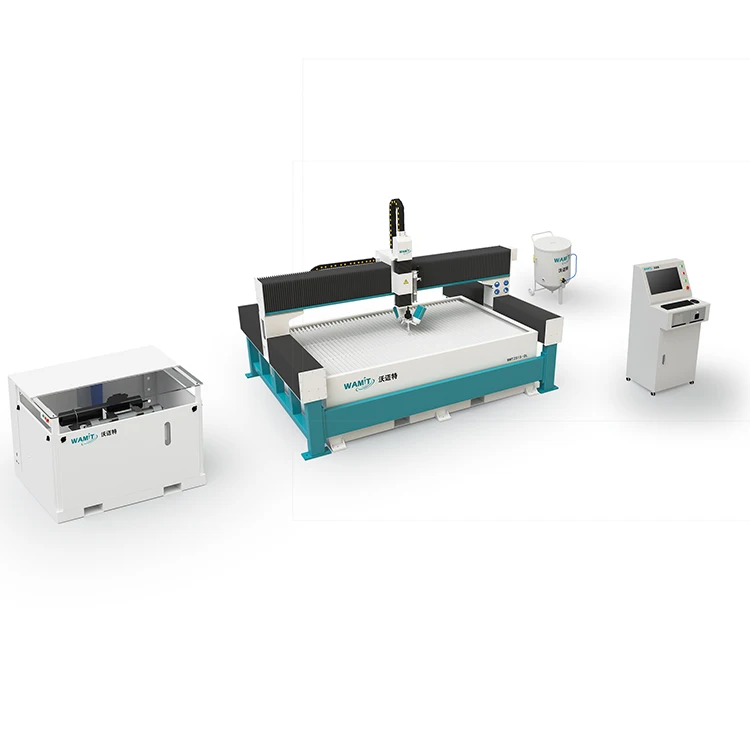

AB 5 axis marble granite tile water jet cutting machine

  • 1 - 1 Sets
    $46,990.00
  • 2 - 4 Sets
    $41,990.00
  • >=5 Sets
    $37,990.00
Model Number:
WMT2515-DL marble water jet cutting machine
Working Area:
1500*2500MM marble water jet cutting machine
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
marble water jet cutting machine (Min. Order: 1 Sets) Less
Samples:
$37,990.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Advertising Company, marble water jet cutting machine
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
turkey, UNITED KINGDOM, United States, VIET NAM, peru, Mexico, RUSSIA, malaysia, Australia, Morocco, argentina, CHILE, south africa
Showroom Location:
turkey, UNITED KINGDOM, United States, indonesia, INDIA, Mexico, RUSSIA, Morocco, CHILE, malaysia, Australia
Condition:
New
Type:
Stone cutting machine
Use:
Marble
Production Capacity:
100%
Place of Origin:
Shandong, China
Brand Name:
WAMIT
Voltage:
380V/220V/415V
Dimension(L*W*H):
1700*2700*1000MM
Weight:
3765KG
Certification:
CE, ISO
Warranty:
2 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
ENERGY SAVING
Application:
marble, granite, and stone cutting, can cut nearly all materials
Product name:
water jet cutting machine
Cutting accuracy:
0.05mm
Cutting thickness:
0-200mm
Max pressure:
420mpa
continuous working pressure:
350-380mpa
Power Requirement:
(415v/50hz), 380V/50HZ, ( 220v/60hz), 3 phrase
Intensifier Assembly:
imported from USA
linear guider:
imported from TAIWAN HIWIN
cutting size:
1500*2500mm
Power(W):
37000W
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
soft packing in 20'FCL container
Port
QINGDAO
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description
Marble granite tile cnc cutting machine water jet cutting machine
our direct drive pump can save your 60%-70% electricity cost!

ADVANTAGES:

1. we promise 2 years( 2000 hours) warranty always. and have got CE certificate
2. we use flow type ECL cutting head, the cutting efficiency is at least 10% higher.
3. the abrasive sand hopper beside the cutting head is also FLOW design.
4. we have new technology that can make the machine moving speed is to 30m/min. normal speed is 6m/min as you see. if this
technology used in pure water cutting, the cutting cost will reduce 50%. if using other materials cutting like glass , marble,
steel, the cutting cost will also 20-30% reduced. but of course , the machine with this function price will be a little higher.
5. we use soft cover of the linear guider, can prevent dust away from the linear guider, so keep the linear guider keep precision
longer.
6. we assemble an auto oil feeding to linear guider, so customer needn't maintenance the linear guider always.
7. seperated body.
8. we will send a remote control pendent.
9. we have the world most convenient abrasive sand removing system. it can be used for any brand water jet cutting machine, maybe
you can promote this system in your country and other countries. please check the attachment.
11. we supply 420mpa pump with 37KW motor, but the price of the whole machine is very competitive now
12. we use variable pump, so can reduce electricity cost for customers.
13. we can do 220V and 415v also.
14. like height tracking system, positioning system , we can also provide.
15. all our components are SCHNEIDER brand
16. the motor and PLC are SIEMENS brand.
17. we can provide AB 5 axis with 10 degree and AC 3D 5 axis with 60 degree.
18. use 10mm steel for water tank supporter and use 8mm steel for beam, keep the machine working more stable.
19. use JAPAN YASKAWA servo motor.
20. imported TAIWAN HIWIN ball screw and linear guider
21. imported America intensifier and TAIWAN accumulator and high pressure assembly and low pressure assembly. if you have special
requests, we can also do.

22. we can provide 80Kpsi and 90KPSI intensifier pump and 60KPSI direct drive pump.
23. can make Touch screen
24. automatic calibration gantry perpendicularity

Can nearly cut all material:

Alloy Steel
Aluminum
Armor Plate
Brass
Boron
Bronze
Cast Iron
Cobalt
Copper
Exotic Alloys
Hastalloy
Hardened Steel
Hot Rolled Steel
Inconel
Kevlar
Magnesium
Mild Steel
Nickel AlloysStainless Steel
Steel Alloy
Steel Hardened
Steel Hard Rolled
Steel Mild
Steel Tool
Tantalum
Tin
Titanium
Tungsten
Wrought Iron
Zinc
Acrylics
Ceramics
Composites
Foam
Fiberglass
Kevlar
Mylar Laminates
Nylon
Plastics
Plexiglass
Porcelain
PVC
Rubber
Thermoplastics
Teflon
Urethane
Vinyl
Armor Plate
Bullet Proof Glass
Glass,Mirror Glass
Ceramic Tile
Granite
Limestone
Marble
Porcelain
Terrazzo
Hardwood
420MPA INTENSIFIER PUMP
1.Type of pressurization is hydraulic. (The water is pressurized by using the fluid pressure intensification principle).
2.Max. oil discharge is 90 L/min
3.Max. water discharge is 3.8L/min
4.Max. diameter of orifice is 0.33mm
5.Max. operating pressure is 420MPa(60000 psi)
6.Continuous operating pressure is 350-380MPa
7.Power requirement : 37KW, 3 phrase, 380V/50HZ, can do 220V/415V.
8.Type of shift is electronic
9.Maintenance free accumulator is originally imported from TAIWAN.
10.Intensifier assembly are imported from USA
11.With SIEMENS motor and SIEMENS PLC and the motor is variable pump so that can reduce using cost.
12.all electric components are Schneider brand.

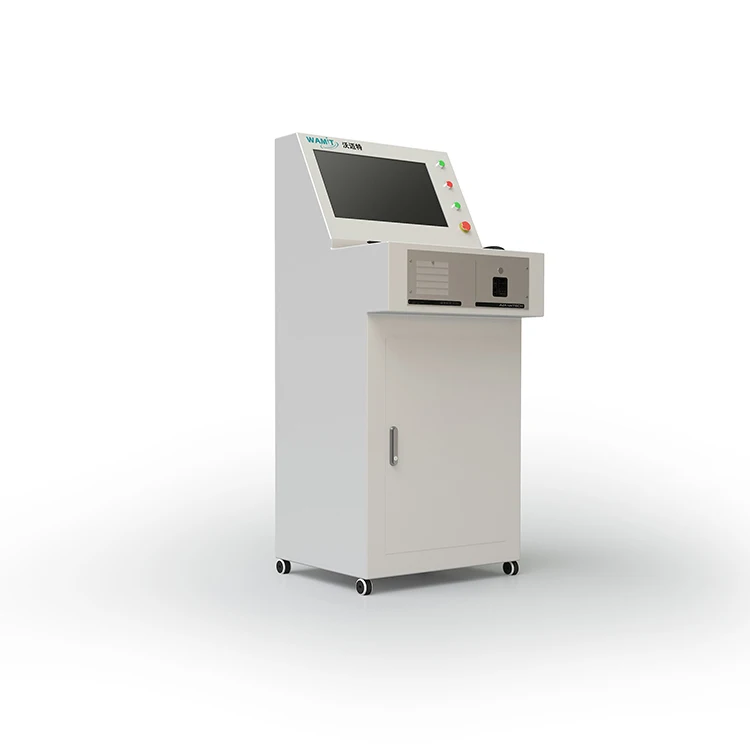

CNC CONTROLLER
Dedicated water jet cutting software with graphic simulation running function, graphic input automatic programming function.
•Support for DXF files.
• Support forward and reverse processing functions.
• Uniform speed control function. • Two modes of segmentation and smooth machining.
• Automatic processing with small arc speed. • Coordinate recovery function after power off. •Double lift speed parameter function.
• With cycle processing.
• Convenient pause to continue and start machining in any segment.
• Free time delay setting.
• Apply SIEMENS PLC instead of relay, buttons are Schneider.

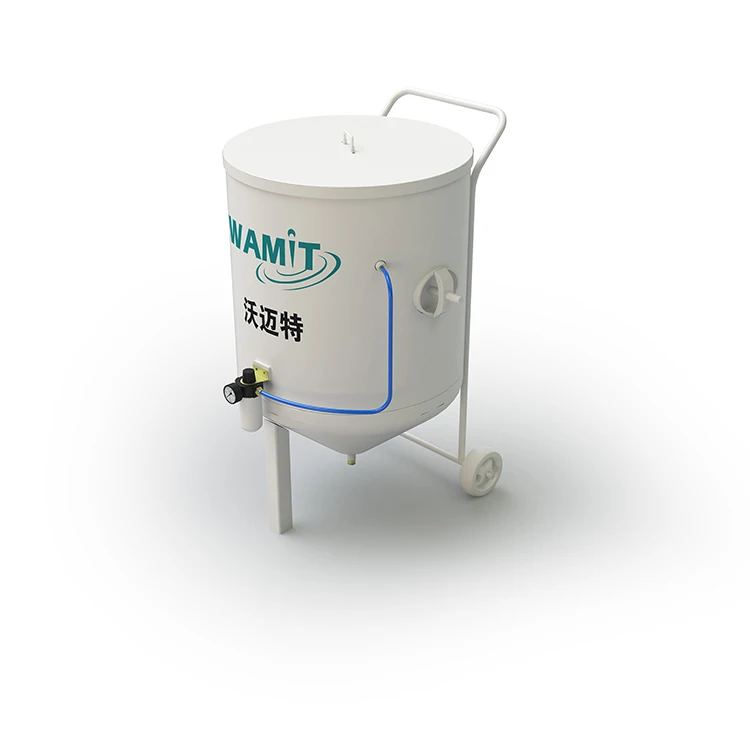

ABRASIVE SAND FEEDING SYSTEM
• 170 liter capacity • High-precision sensors alert operators when they need to replenish sand • Safety relief valve
• Working pressure: 0.2-0.3MPa • Water separator

No need electronic control, simple operation, reliable, maintenance-free. Can supply the cutting sand quantity . Need less than
0.2Mpa compressed gas pressure. Provide sand storage for the water jet cutter and automatically transfer the sand to the sand
bucket. Can increase the automation of the equipment and reduce the labor intensity of the operator.
AB 5 AXIS
The biggest angle of inclination is 10 degrees and can accurately adjust the degree of the rotation ,the angular accuracy of
rotation axis is 0.01 degrees.

This 5 axis is widely used in marble mosaic cutting and glass hole drilling.

Other optionals

AC 5 AXIS

420MPA KMT PUMP

REMOTE CONTROLLER

OIL CHILLER

60000PSI DIRECT DRIVE PUMP

WATER SOFTENER

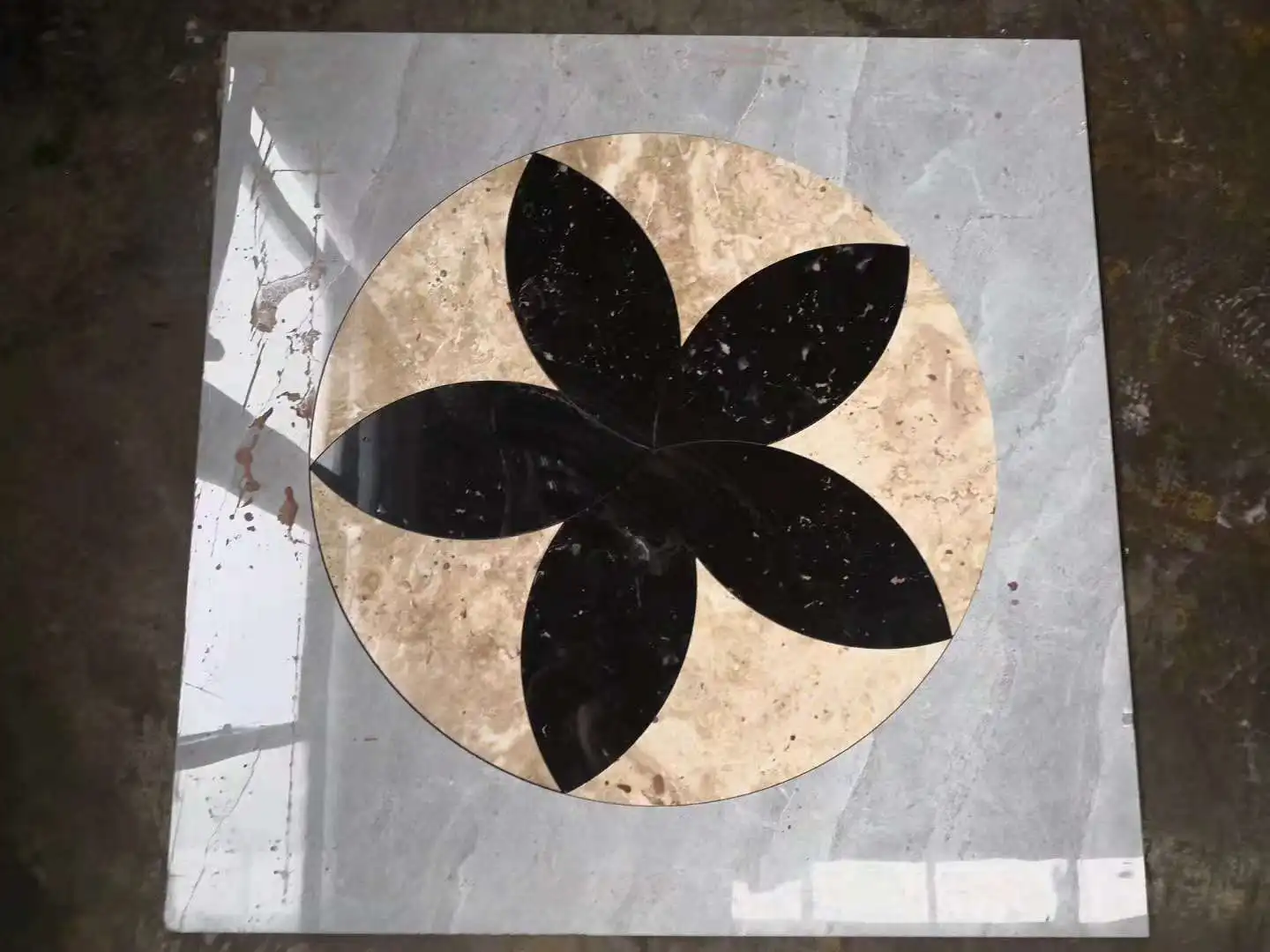

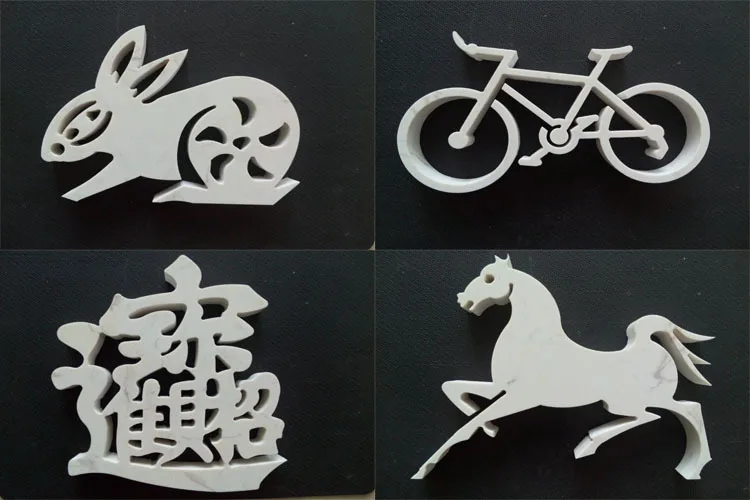

Cutting samples
Related Products
Packing&Shipping
After Sales Service
we can provide local service in some countries like USA, MEXICO, MOROCCO, INDIA,FRANCE,RUSSIA,CHILE,ECUADOR and so on, we can
arrange engineer to customer's factory and on line service is within 12 hours.

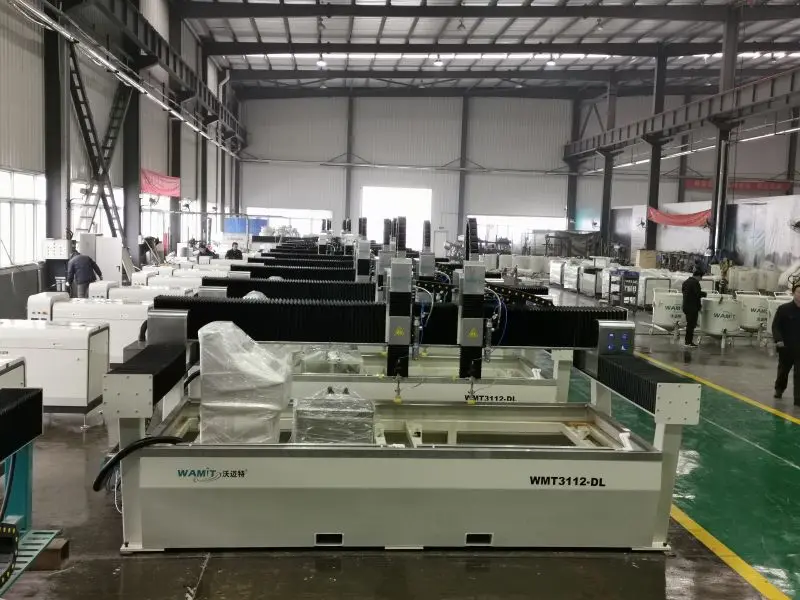

Company Introduction
SHANDONG WAMI CNC TECHNOLOGY CO.LTD are professional supplier of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine. Our
factory is located in JINAN city, SHANDONG province, China. we have 420Mpa intensifier pump, 80KPSI and 90KPSI intensifier pump ,
60KPSI direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5
axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with
excellent quality efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers.
All the machinery delivered by us come with first class after-sale service.
FAQ
1. Are you manufacturer or trading company? We are manufacturer of water jet cutting machine in JINAN city, Shandong, China.
2.What kind of material does your water jet cutting machine can cut? There are plenty materials our water jet cutting machine can
cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel,titanium, inconel and cast alloy.
3. What's your CNC water jet cutting machine's max. cutting thickness? Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut no more than 150mm for smooth
cutting. Now our Z axis distance is 170mm, we can customize for customers. Regular thickness please refer to: Marble is 0-120mm;
granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm.
4. How we supply after-service?
Some countries we have after-service department, we will
provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation
and training time is generally 7-10 days. And we also can provide installation videos.
5. What's your delivery time? Generally
speaking is 30 days. if have stock, 7-15 days.
