ABS PVC smd sign injection led driver module with lens

  • 1 - 199 Pieces
    $0.28
  • 200 - 1999 Pieces
    $0.25
  • 2000 - 4999 Pieces
    $0.22
  • >=5000 Pieces
    $0.20
Color:
Multi
Model Number:
4 led injection module
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 2 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Chip Material:
Gaas
Emitting Color:
WW,NW,PW,CW,R,G,B,Y
Luminous Intensity:
High Bright
Luminous Flux(lm):
60lm
Optical Attenuation(%):
0.5
Power:
3W
Power Dissipation:
2w
Viewing Angle(°):
160-180
Color Rendering Index(Ra):
80
Color Temperature:
3000-13000k
Operating Temperature(℃):
-40 - 60
Storage Temperature(℃):
-40 - 80
Place of Origin:
Shanghai, China
Brand Name:
Ublen
Certification:
ce, RoHS
Item:
LED Injection Module
Application:
advertising signs mini lighting words
LEDChip:
SMD 2835
Voltage:
12V
Warranty:
3years
Led QTY:
3led/pcs
Module QTY:
200pcs/bag
MOQ:
1 Bag
Color:
Addressable
IP Grade:
Waterproof IP68
Supply Ability
Supply Ability:
10000 Bag/Bags per Day
Packaging & Delivery
Packaging Details
200pcs/bag
1.5kg/bag
Antistatic packing.
Port
Shanghai port
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 2 To be negotiated
Video Description
Product Description

12v dc white led Injection module 1700k-15000k outdoor

LED Injection Module
LED Chip
SMD 2835
SMD 3030
LED Quantity
1 led/pcs
2 led/pcs
3 led/pcs
4 led/pcs
1 led/pcs
3 led/pcs
Size
31*20mm
45*15mm
70*14mm
50*40mm
50*30mm
75*20mm
Rated Power
0.7W/pcs
1.2W/pcs
1.8W/pcs
2W/pcs
1.5W/pcs
3W/pcs
Luminance
60lm/pcs
96lm/pcs
144lm/pcs
200lm/pcs
100lm/pcs
300lm/pcs
Package
200pcs/bag
100pcs/bag
Beam Angle
160°
180°
Rated Voltage
12V
Circuit Material
Aluminum plate
Outer Skin Material
PVC / ABS
Working Temperature
-40°~80°
Waterproof IP
Waterproof IP68
Color
Support color customization (CW,WW,PW,NW,R,G,B,Y,Orange,Pink,,Ice blue,etc)
Warranty
3 years
Delivery Time
Within 3-5 days after receiving payment
Packing Weight
1.5kg/bag
MOQ
1bag

Feature:

1.Small size, easy to install.

(Waterproof module with 1~4pcs led chips is convenietly used for advertisement signs mini words)

2.Soft and easy to be bended,It doesn't block the light.

(Use silica gel wire,high quality,won't rebound)

3.Low temperature with long life cycle.

(Single chip module power is only 0.15w,the calorific value is only 1/2 or1/3 of the normal size group)

4.Color can be changed.

(Take the leading in developing colorful small module,realize the function of color discoloration)

5.Good waterproof performance.

(Adopting nanometer waterproofing technology,not only doesn't increase the size,but also can isolate rain water)

Product Details

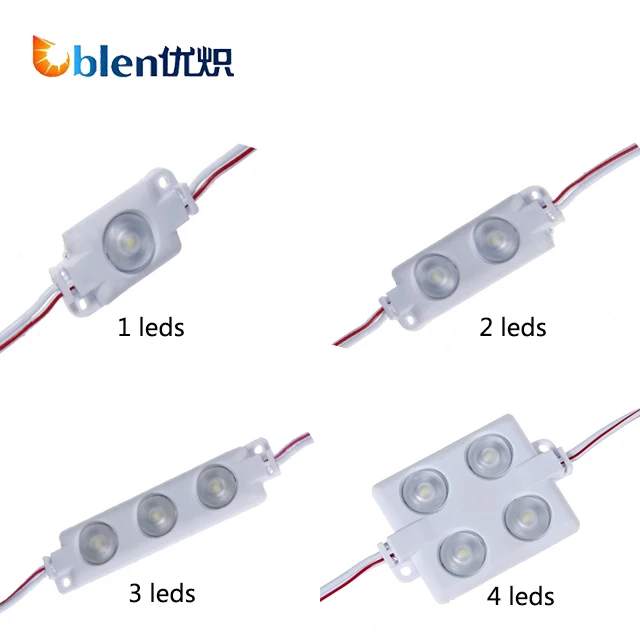

※ We have 1 led, 2 leds, 3 leds, 4 leds for LED Injection Module.
※ Outer skin material has PVC & ABS two types.
※ Size between 1~4 leds has some differences in length, but the width and thickness are basically the same.

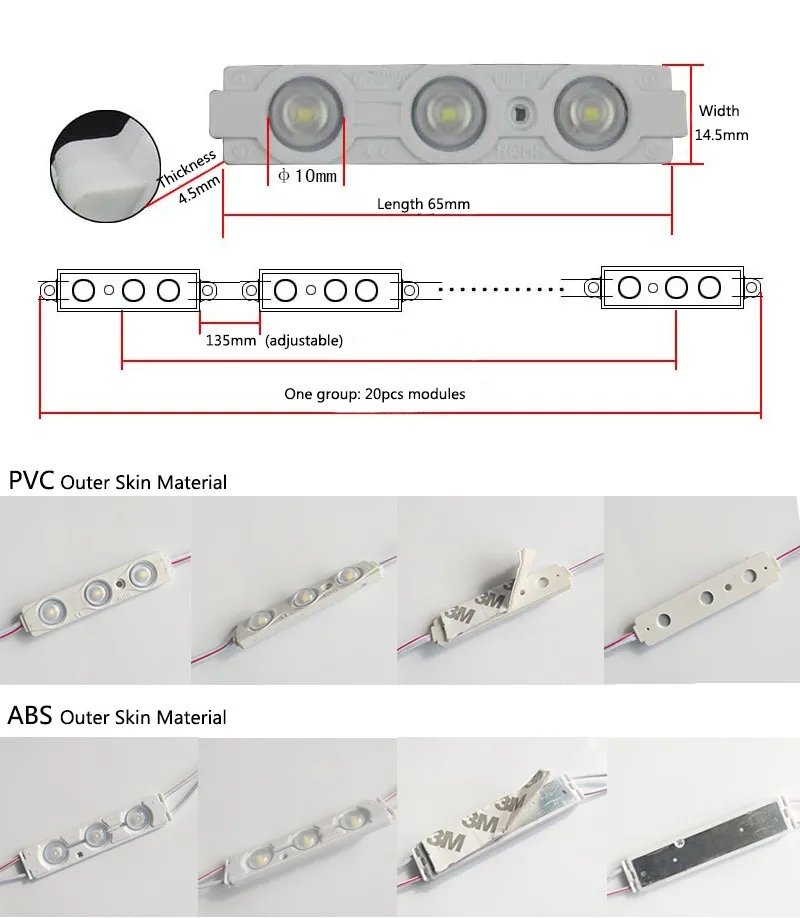

★ We Take PVC 2835--3 leds Injection Module As an Example:
