ABT SERIES SMALL MINI RICE COLOR SORTER MACHINE RICE SORTING MACHINE FOR RICE MILL

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ABT- CS5
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
SUNGREAT
Production Capacity:
6-13 T/H
Voltage:
220V 50Hz
Power(W):
1.4 - 3.5KW
Weight:
700kg
Dimension(L*W*H):
2314*1562*1897
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Our products use professional wooden cases within PE plastical bag.
Package size will depend on each model size.
Port
SHANGHAI
Video Description
Product Description

Product Application

ABT CS series is a multi-purpose color sorter newly designed and developed by Hefei Obote Automation Equipment Co., Ltd. With robust whole machine structure, stable sorting performance, consistent yield and ease of operation,it's suitable for the sorting of various application, such as rice, beans, nuts, seeds & grains, dried vegetables, plastic etc, for your wiser, smarter and superior sorting.

SPECIFICATIONS
Model
ABT-CS5
Output (T/hr)
6 -13
Channels (big/small)
64/320
Chute
5
Valve (PCS)
320
Filter Brand
SMC
Main control CPU
Altera
Pixel of camera
2048
Camera Brand
Nikon
Camera Quantity(PCS)
10
Light source
LED light
Sensor
Toshiba
Color sorting accuracy
>99.99%
Carryover rate
>10:1
Host power(KW)
1.4  - 3.5
Air pressure(Mpa)
 ≥0.6Mpa
Air consumption (L/min)
1500-3000
Power supply
220V/50HZ
Dimension(mm) L x M x H
2314*1562*1897
Machine weight (kg)
700
Feature

1. More high-end CCD camera, can distinguish flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.
2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.
3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.
4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.
5. Humanization true color screen, visual effect is more clear, operation is more easier.
6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.

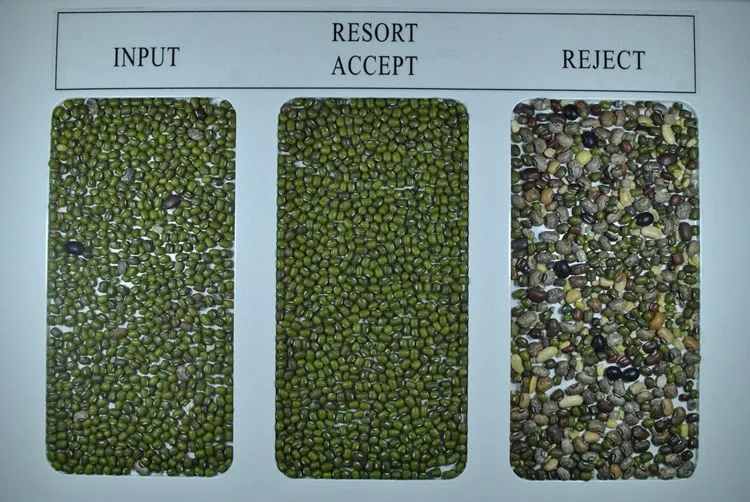

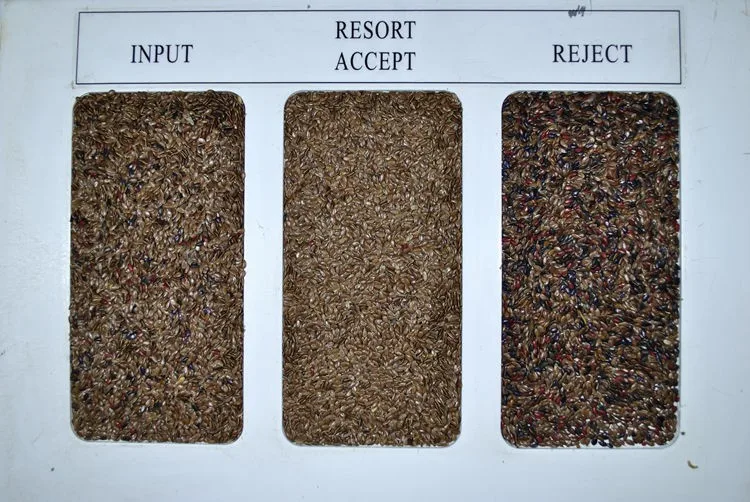

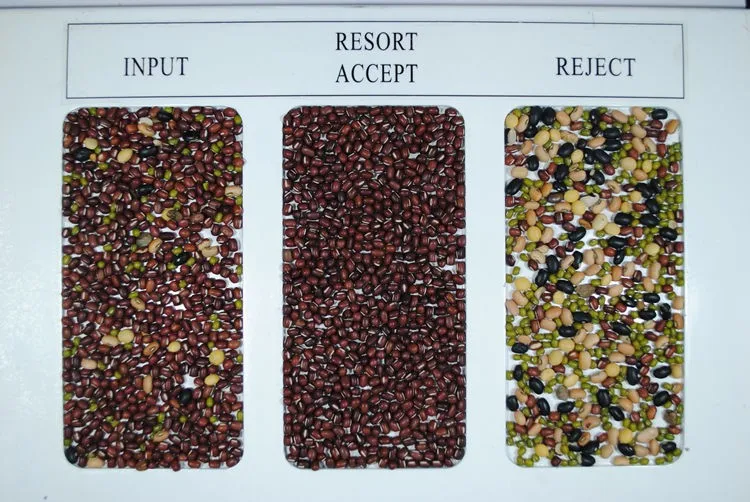

Sample
Detailed Images

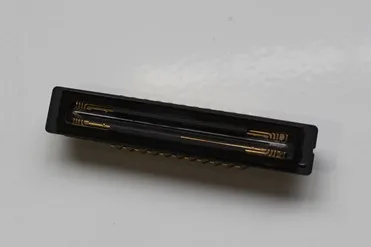

Toshiba Sensor

Imported Toshiba sensor,high frequency scanning and high resolution to identify tiny spot/defects.

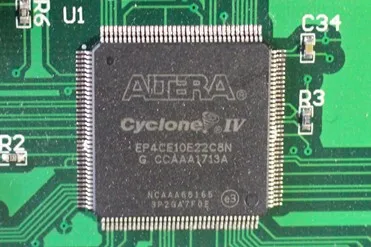

ALTERA processing unit

New generation of one million logic processing units from ALTERA, quicker speed of FPGA processing , faster and more stable.

LED light

The perfect matching of LED and precise optics equipped with powerful fan, brighter and more consistent illumination.

Tailor-made camera

Tailor-made cameras , scan, identify , and  eject precisely to remove micro defects and foreign materials.

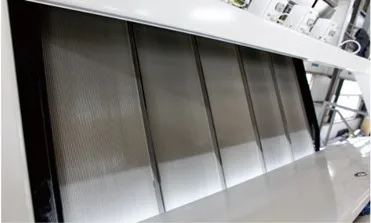

Optimized anodized chutes

Optimized anodized chutes , long-lasting and more smooth for the falling of materials.

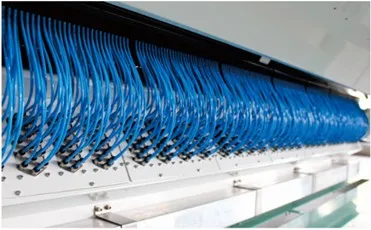

1000Hz high frequency ejector

1000Hz high frequency ejector with one million times of shooting life, less air consumption , more quickly for response; big capacity and less carryover.

State-of-art photograph processing system

State-of-art photograph processing system,able to identify, capture and analyze the materials automatically, which realizes the function of One Key Intelligence systematically.

Feeding and Outlet structure

Direct feeding design , improving the processing capacity.                    Optimized outlet structure , to prevent the possible issue of materials jamming.

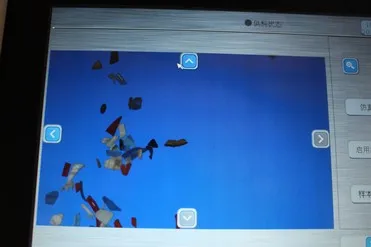

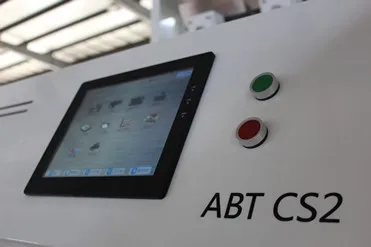

Touch Screen

New generation touch screen, multi language, quicker response , plenty of sorting mode memories.

Packing & Delivery

Packaging Details:

Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.

Delivery Detail:

Within 15 - 20 days after received the 30% deposit.

Our Service

Before sale

We will provide detailed solutions for your special requirement and help you know more about our color sorter.

After sale

We will test your products at your plant, training your stuff, set every file for customer to serve all round service, so as to ensure your machine                   working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected,                           excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.
