Features
·100 to 240VAC Universal Input
·Single Output to 24W Maximium
·Regulated Output with Low Ripple Noise
·Safety Agency Requirements and EMI EMC Certified
·Modified and Custom Design Available
·3 Year Warranty
·White or Black Color
Input
Voltage:100 to 240 VAC
Line Frequency: 50/60 Hz
Current:0.6A Max
Protection:Internal Primary Current Fuse,Inrush Limiting
Configuration: Vertical case
Output
Load: ±5%(Typical)
Ripple:1-2% Vp-p Max. For Output Voltage@ Full Load
Transient Response:0.5mS for 50% Load Change Typical
Hold-up Time:10mS @Full Load
Protection:Short Circuit Protection,Over Voltage Protection,Over Current Protection
DC Plug According to Customer Requirements
DC Cord: Flat or Round
Ferrite Core:Optional
Safety Approvals
UL/cUL/FCC/PSE/LPS/CB
UL60950-1,CAN/CSA-C22.2 No.60950-1,IEC60950-1
J60950-1 and J55022
Electrical
Topology: Swicthing Flyback
Dielectric Withstand: 3000VAC Primary - Secondary
Leakage Current:0.25mA
Efficiency: CEC,DoE Level VI,NRCan,Certified
EMI Conduction & Radiation: Compliance to FCC Part 15B
EMC Immunity: Compliance to FCC Part 15B
MTBF: 100,000 Calculated Hours at 25℃,by Telcordia SR-332
Environmental
Operating Temperature: 0 to +40℃
Storage Temperature:-20 to +80℃
Relative Humidity:Operating:20 to 80% RH,Storage:10 to 90% RH
Cooling:Natural Convection Cooling
Mechanical
Weight:Adapter:135g,White Box:20g
Dimension:For Case:L74*W34*H25 mm; For White Box:L100*W41*H90 mm; For Carton:L350*W320*H320 mm(72 pcs / Carton)
| Phenomenon | Standard |
| EMC | EN 55022:2010 |
| EN 55024:2010 | |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| CE | EN 60950 |
| EN 61558 | |
| EN60335 | |
| GS | EN 60950 |
| CB | EN 60950 |
| UL/cUL | UL 60950 (UL No.: E361658) |
| FCC | 47 CFR FCC Part 15 Subpart B:2013 |
| ANSI C63.4:2009 | |
| PSE | J60950 / J55022/J55023/J55024 |
| SAA | AS/NZS 60950 |
| IRAM | IEC60950 / IRAM 2063/2067:2009 |

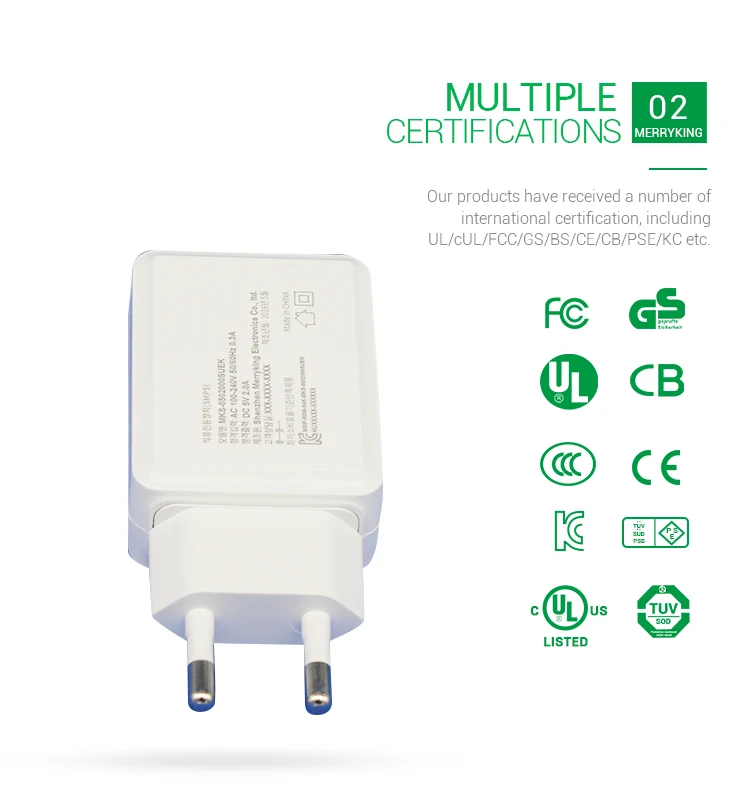

Our products have passed most safety approvals in the world, including
UL, cUL, FCC, PSE, GS, CE, BS, RoHS, REACH, SAA, CCC, C-tick, CB, IRAM, S mark, NOM, EAC, etc.
Professional
14 years’ experience of Power Adapters Production
Merryking is a professional factory specializing in R&D and production of power adapters only,which doesn’t supply any other hot selling electronic products. That is why we can keep advanced skills and stable quality all the time.
Dedicated
Comprehensive Explanation of AC DC Power Adapters
With so many years experience,it took many years for our team to creat a standard book which is used to help our clients to find suitable adapters quickly. The particular specification of each model can help you fully understand what products you need.
Rigorous
·Top Quality Management System
We have a complete quality assurance system and solutions for the products in questions to ensure products quality and our outstanding after sale service.
Reliable
·SGS Certification and Assessed Supplier on Alibaba
We have already passed SGS third-party factory inspection and have been an Assessed Supplier on Alibaba.
·AQL Acceptance Standards
The final inspection shipments will be in strict accordance with the AQL acceptance standards.The power adapter shall be burnt for 4 hours under normal input and 80% rated load at 40°C +/- 5 °C
·Your smart choice
We believe that we can meet with success only if our clients did it. We sincerely hope that we can achieve a win-win situation together.

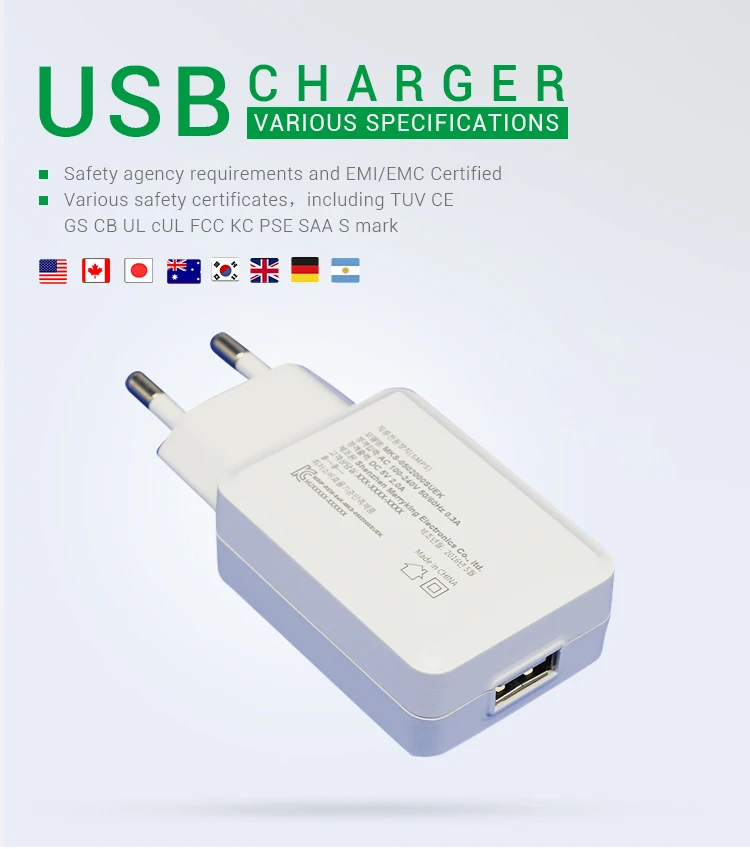

AC DC Adaptor 5V 3A USB Charger Adapter For Smart Home
AC DC Adaptor 5V 3A USB Charger Adapter For Smart Home
AC DC Adaptor 5V 3A USB Charger Adapter For Smart Home
Q: What is the main product of your company ?
A: 1. AC DC Power Adapters 2. USB Smart Charger 3. QC charger
Q: What certificates do you have ?
A: Our products have completely been approved UL,cUL,FCC,CCC,GS,CB,CE,TUV,SAA,KC,ROHS,PSE,etc. In order to make you fully understood the quality of our products,we would provide you with related certifications on your request.
Q: What`s your MOQ?
A: There is no MOQ and you are welcomed to order any amount.But you will get discount price for bulk order.
Q: Would you give me more details about the price of your products ?
A: We believe our quality and price are very competitive in worldwide market and We promise to offer you best cost-efficient products with higher quality.
Q: How can I get the matched adaptor production with only requirements/description ?
A: Ok Dear client, We`ll introduce you the matched products
according to your descriptions. Please kindly CLICK HERE to describe your requirements with following necessary tips :
a. What's the input please? Example:100-240VAC, 50/60Hz2
b. What's the output, please? Example: 5V DC 2A
c. What certificates do you need ?Example:UL+FCC needed
The more details you provide,the faster we could provide you with the corresponding products.
Q: I saw your company is with much experience in adapter field.Will I get better products than I expected under your guidance/suggestions ?
A: We aim to support our dear clients ,to achieve Your successful business with products quality and competitive price ,as well as 3 years warranty (longer warranty in this filed).
Also, we will offer you more necessary experience for free. For example,a.If your product working current is 1A ,we suggest you to use 12v 1.5A model ,so the adapter can keep good working status and long life ,and the working temperature is very low ,the 12v 1.5A adapter's price is nearby with 12v 1A .b. If your product belong to medical device ,the quality standard should be IEC 60601 ,if your product belong to IT device ,the quality should be IEC 60950.
Q: What payment term do you accept please ?
A: We accept T/T,L/C,D/P,Western Union paypal etc.
