AC Speed Reducer YN80-25 with gear head same as LINIX motor

Feedback Ratings
  • 1-4 Pieces
    $65.00
  • >=5 Pieces
    $60.00
Output Power:
25W
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized packaging (Min. Order: 1 Pieces)
Contact Supplier
Samples - $68.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
VTV
Model Number:
YN80-25
Type:
reversible
Frequency:
50Hz, 50/60 Hz
Phase:
Single-phase
Certification:
CCC, CE, UL
Protect Feature:
Drip-proof
AC Voltage:
208-230 / 240 V
Efficiency:
IE 1
Power:
25W, other power can be selected
Voltage:
220 V
No. of Pole:
4 poles
Current:
0.16 A
Starting Torque:
70 mN.m
Rated Torque:
46 mN.m
Rated Speed:
1250 r/min
Capacitor:
0.8/450
Item:
Precision Gear Motor

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
2.5 kg
Package Type:
carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Product Description

AC Speed Reducer YN80-25 with gear head same as LINIX motor

Application fields:
steel, chemical, oil, drink, food, electronic, process hides, pharmacy, and textile.
They are widely used in various low-speed transmissions, which are general basic parts of mechanical transmission.


Note :We have reversible motor ,induction motor and three-phase motor , a wild range of speeds and torques for you to choose ,please send us inquiry for more details .If you tell us the supply voltage ,output power and output speed,we can recommend the model and quote accordingly soon .

For example: 220V,25W,1000rpm

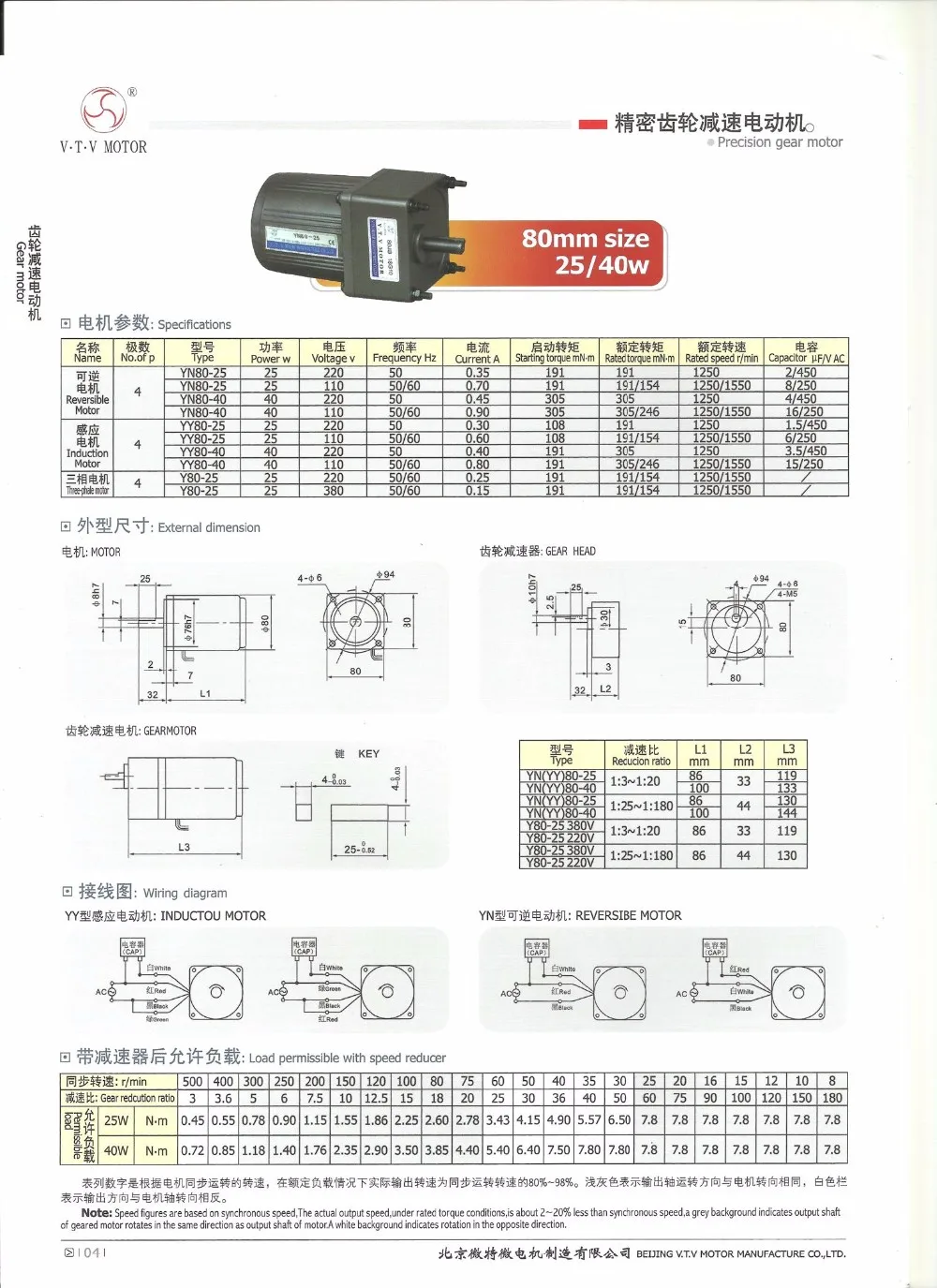

Note:Speed figures are based on synchronous speed,The actual output speed,under rated torque conditions is about 2~20%less than synchronous speed,a grey background indicatesoutput shaft of geared motor rotates in the same direction as output shaft of motor.A white background indicates rotation in the opposite direction.



AC Speed Reducer Gear Motor.

Reducer gear is integrate gear box and motor. This integrated body would normally be called a gear motor or gear motor.

1, gear motor with international technical requirements for manufacturing, high technology content.
2, space-saving, reliable and durable, withstand high overload capacity, power up to 95KW or more.
3, low energy consumption, superior performance, speed reducer efficiency up to 95%.
4, small vibration, low noise, energy, high-quality forged steel, steel cast iron box, gear surface after HF treatment.
5, precision machining, to ensure parallel shaft and positioning accuracy, all this constitutes a gear drive gear motor assembly configured various types of motor, forming a mechanical and electrical integration, fully guaranteed product quality characteristics.
6, the product uses a series, modular design, a wide range of adaptability, this series has an extremely multi-motor combination, mounting position and structure of the program, according to the actual need to select any speed and a variety of structural forms.

Related Product

VTV-05SC 12V/24V Mini DC Gear motor

VTV YN90-60 220V 90*90mm AC Gear Motor

VTV VDM10 90*90mm 12V/24V Mini DC Gear motor

VTV US52 AC Gear Motor Speed Controller

CALT PD30 Mini incremental rotary encoder Apply for DC motor

CALT GHS38 incremental rotary encoder

Packing & Delivery

Packing Details  : carton packed for each reducer or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.

1. Ziplock packed

2. Box Packing

3. Packed with good conditions with shipping mark.

Our Company


Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
