ACE 30 Bbl Conical Stainless Steel Beer Fermenter For Laboratory Micro Beer Brewery Equipment

FOB Reference Price:Get Latest Price
$100.00 - $1,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ACE-FJG-190227
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ACE
Processing Types:
Alcohol
Voltage:
220V/380V/415V
Power(W):
Customized
Dimension(L*W*H):
User Requirements
Weight:
100KG---1000KGS
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Material:
Stainless Steel 304
Cooling:
Miller board or Ice water belt
Welding:
Argon Arc Welding
Polishing::
0.4 micron
Insulation:
Polyurethane/rockwool 100mm
Control system:
Semi-automatic
Application:
Brewpub
Cooling jacket:
Miller board or Ice water belt
Function:
Brewing Beer Brewing Equipment
Fermenter cone:
60-75°
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export standard Wooden/Veneer case for LCL
Plastic film wrapped and steel frame fixing for FCL
Port
Ningbo/Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Section One
    We specialize in manufacturing beer brewing equipment,
Quality is the Assurance of Orders,
We are Wenzhou ACE machinery.

China Supplier Microbrewery Stainless Steel Fermenter

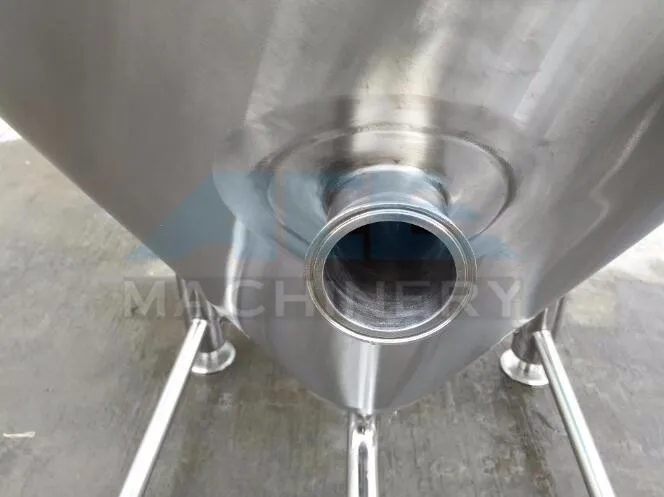

Fermenters – Uni-fermentors - These tanks are typically used for the entire fermentation process, they're advantage is that you can naturally carbonate the beer after 80% of the fermentation has taken place. Generally, they have a 60 or 72 degree angle cone. There is a valve at the bottom that allows the tank to be completely emptied.

Fermenters typically have the following essential components:

1) Pressure release valve

2) Mechanical safety valve

3) Slight glass

4) Sample valve

5) Pressure gauge

6) Titanium rod

Some are outfitted with side manway doors, others with top manway doors. Often they have a cooling jacket around body and a separate cooling jacket on the cone. The advantage of this setup is the lower jacket can be used alone when the beer is gone and you simply wish to cool the wort. These tanks are generally insulated and clad. Cladding and insulation are expensive. If a clad and insulated tank is beyond your budget, un-insulated tanks can be used in a temperature-controlled room, (Glycol, or walking airflow cooled) which will maintain a constant temperature.

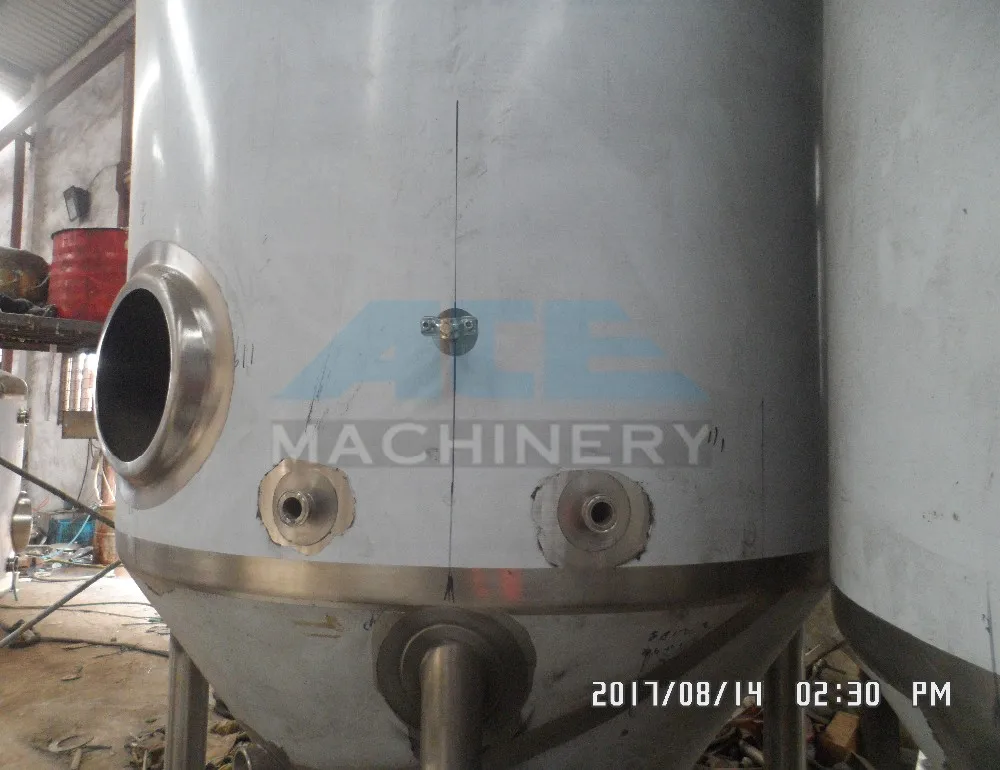

Stainless steel fermenter

Company introducation
We ACE machinery is a production enterprise of dairy, food and beer-making equipment, alongside biological engineering, chemical containers, and bespoke products. Our products are widely used in beer production, pharmaceuticals, beverage industries, biotechnology and other fields.
Usage
It is used for Wine fermentation & brewing. It applies in brewing industry.
Material
Stainless Steel 304 or 316L








Technology & Design
1). It is made of double jackets with dimple jacket and insulation layer filled with PU which is imported from Japan.

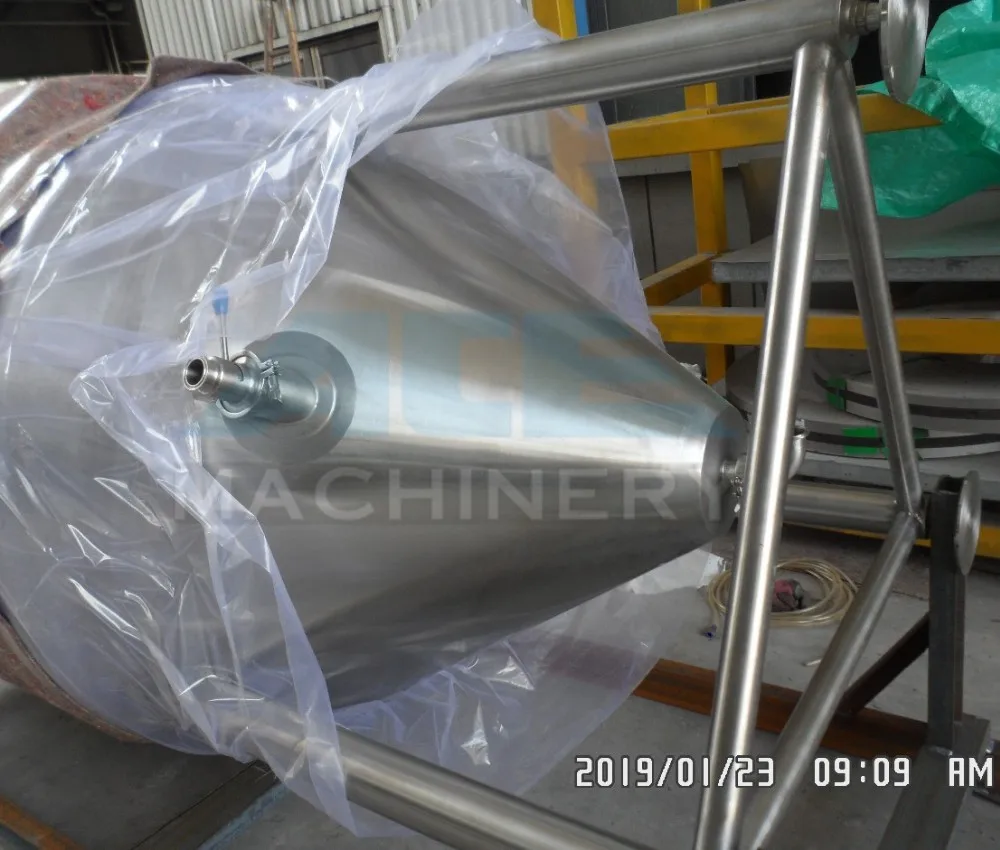

2). Dish top, conical bottom for good fermenting, improving the quality of beer as well as breeding yeast, cylinder body.
3). As to polish, interior layer and dish top will adopts mirror polish while exterior layer and conical bottom adopts 2B satin polish.

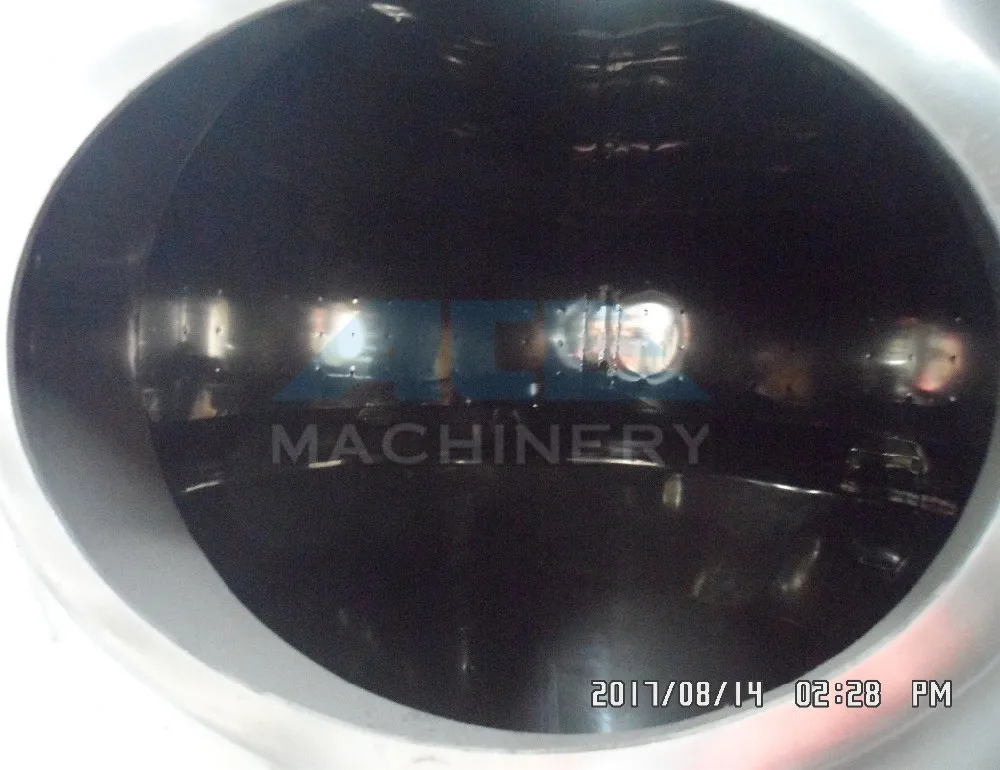

4). As to transition of interior, we will adopt arc to make sure that there is no dead corner of sanitation.
5). 10-30% headspace, 60 degree cone, rotating racking arm is designed according to your demands
6). All clamps valve and fittings except for cold water inlet and outlet which is Tri-clamp.
7). As to the thickness, we can make it according to your requirement.
8).etc
Volume
2000L

Advantage
1.Configuration details can be designed as your requirements
2.Competitive price and also higher quality tank.
Working Volume (L)
Dimension of Tank (D*H) mm
Total Height (H) mm
Diameter of Inlet&Outlet (mm)
Diameter of Inlet&Outlet (mm)
Diameter of Inlet&Outlet (mm)
500
Dia 800*800
1750
Dia 38
50
440*320
1000
Dia 1000*1200
2200
Dia 38
50
440*320
1500
Dia 1100*1400
2500
Dia 38
50
550*430
2000
Dia 1200*1500
2700
Dia 38
50
550*430
3000
Dia 1400*1700
3150
Dia 51
50
550*430
4000
Dia 1500*2100
3450
Dia 51
50
550*430
5000
Dia 1600*2200
3590
Dia 51
50
550*430
6000
Dia 1700*2200
3650
Dia 51
50
550*430
8000
Dia 1800*2700
4350
Dia 51
50
550*430
10000
Dia 2000*2800
4450
Dia 51
50
550*430

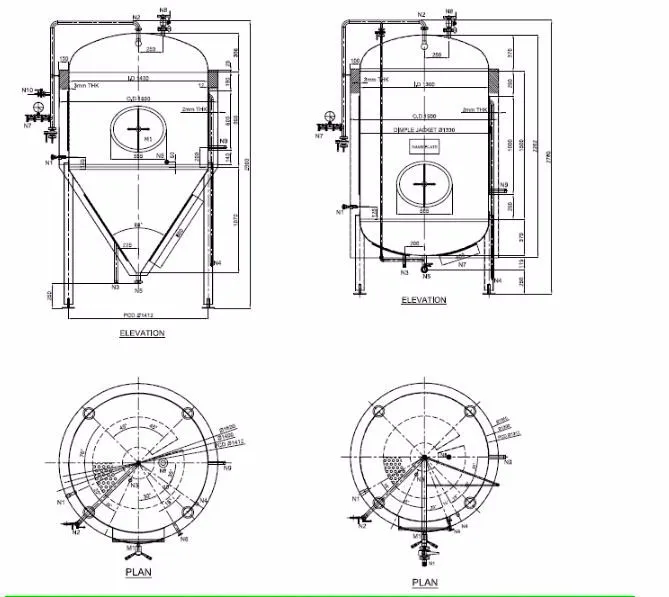

Technical drawing

Mashing:
In brewing, mash is the process of combining grain and water, and step heating. Mashing allows the enzymes in the malt to break down the starch in the grains into sugars. Mashing involves pauses at certain temperatures(notably 45-62-73℃ or 113-144-163℉), and take place in a mash tun.
Lautering:
In brewing, lauter is the spearation from the grains.The fales bottom in the lauter tun has thin slits to hold back the solids and allow liquids to pass through.The mash it self functions as a sand filter to capture mash debris and proteins through recirculation, and sparging also take place in the lauter tank after the first wort run-off, trickling water through the grain to extract sugars.
Boiling:
After mashing, the beer wort is boiled with hops( and other flavourings if used). The boil on average lasts between 45 and 90 minutes, depending on its intensity, the hop addition schedule and volume of water the brewer expects to evaporate.

Whirlpool:
At the end of the boil, solid particles in the hopped wort are separated out in the whirlpool tank. The wort will be cooled through the plate heat exchanger into the fermenter tanks for fermentation.

This process can be done within one vessel or two vessels, three vessels or four vessels, it's a variety of combinations.

Section Three

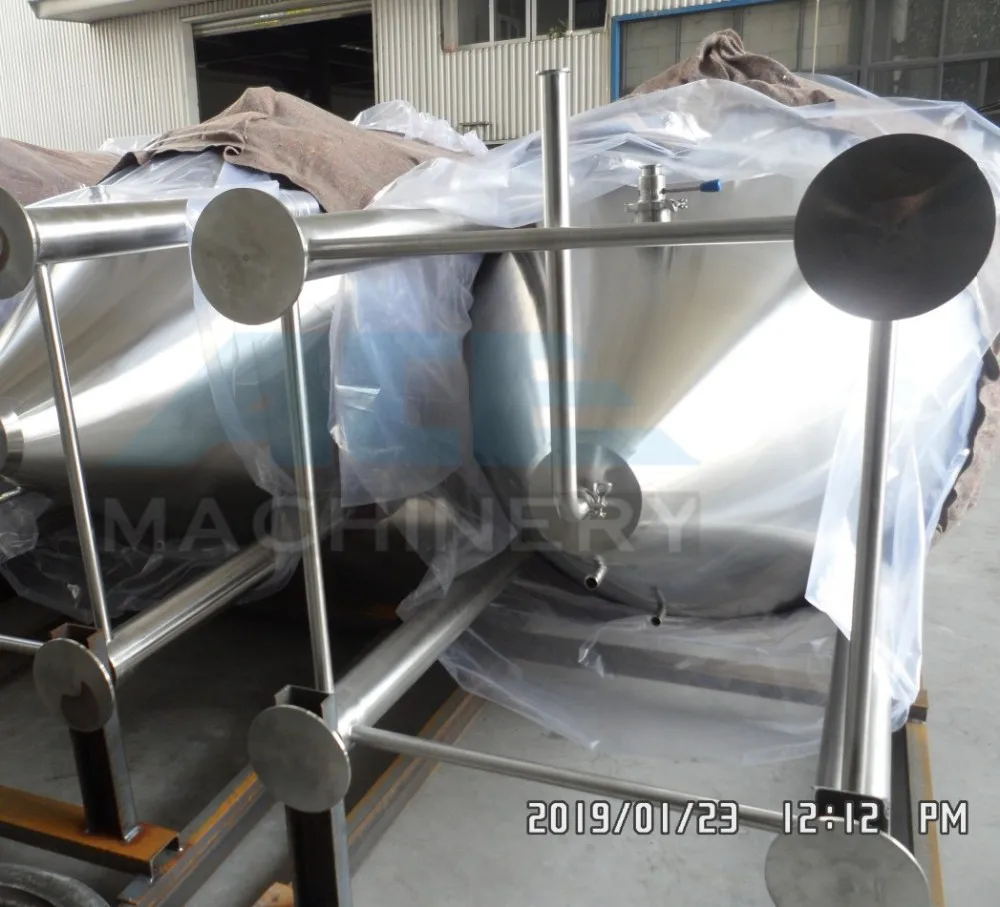

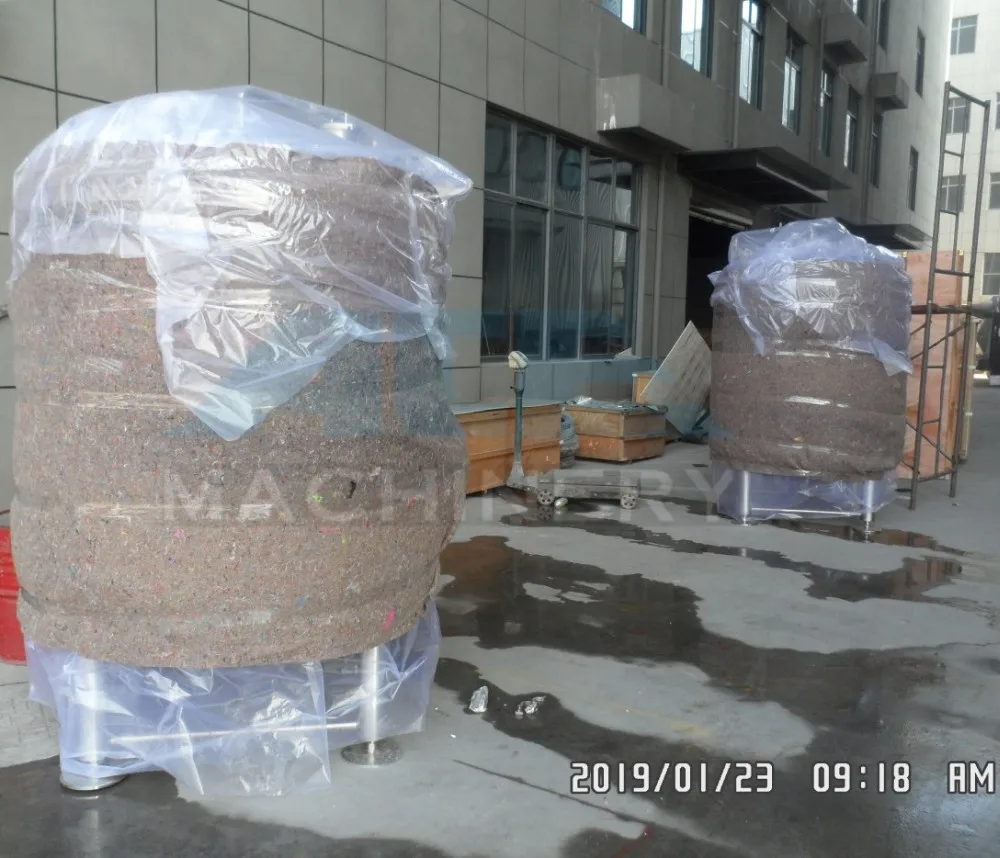

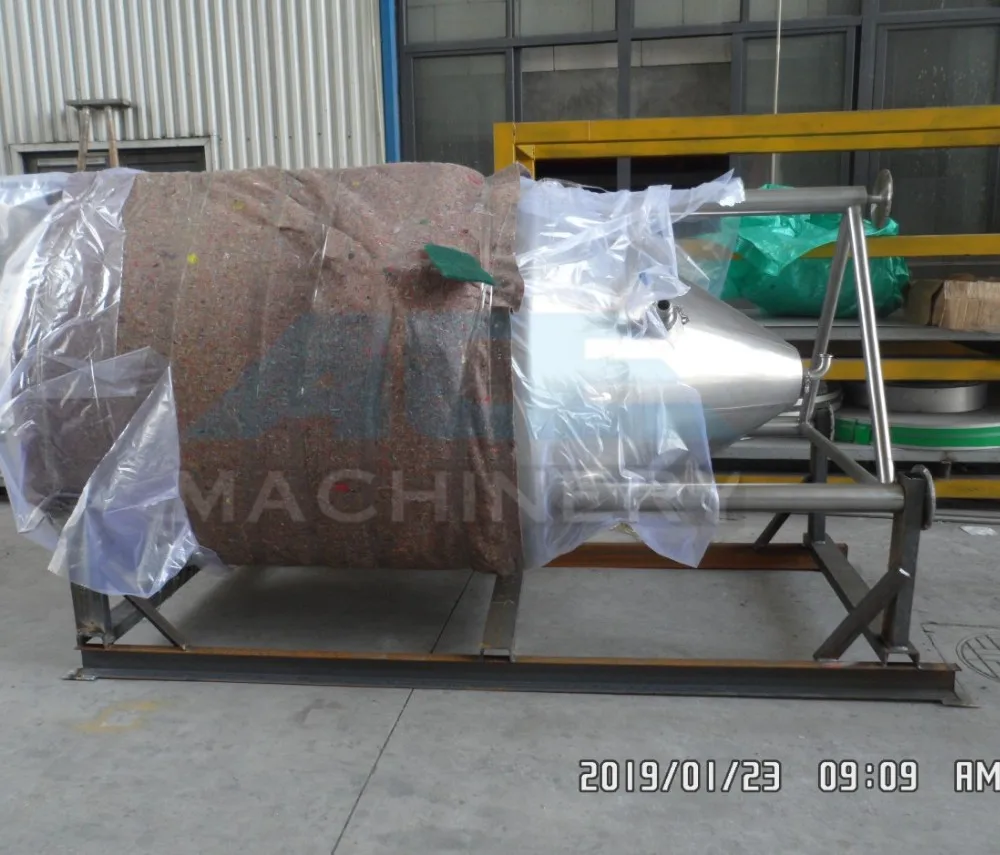

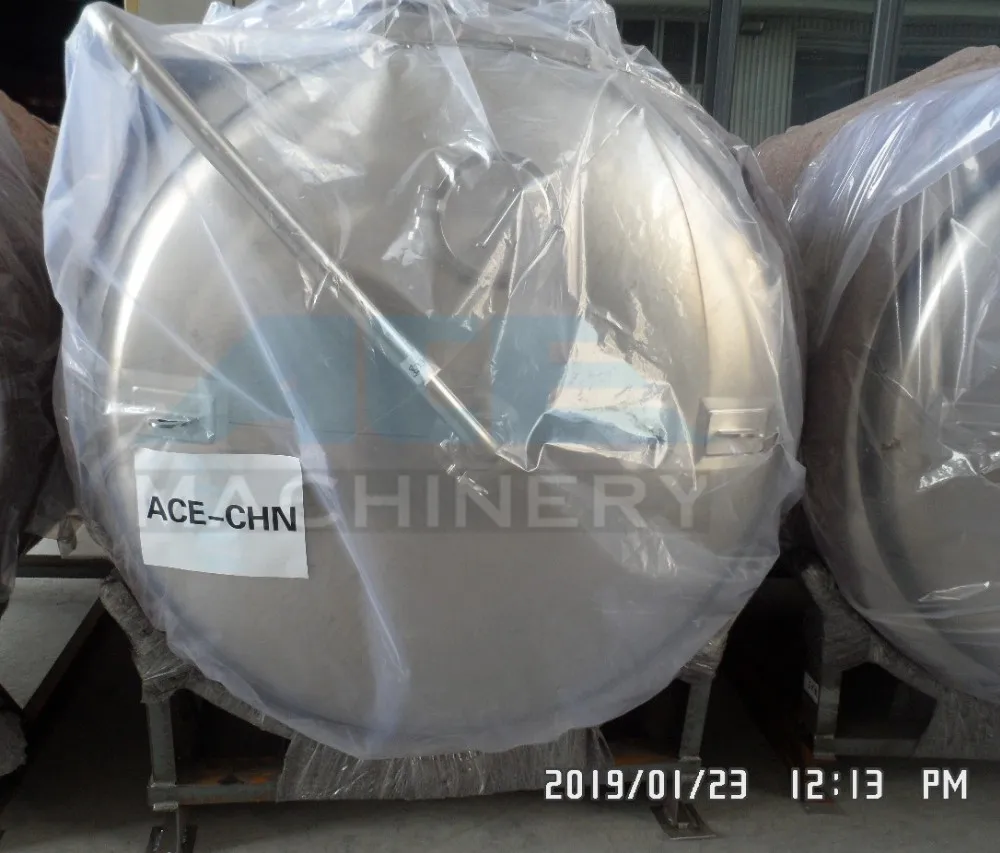

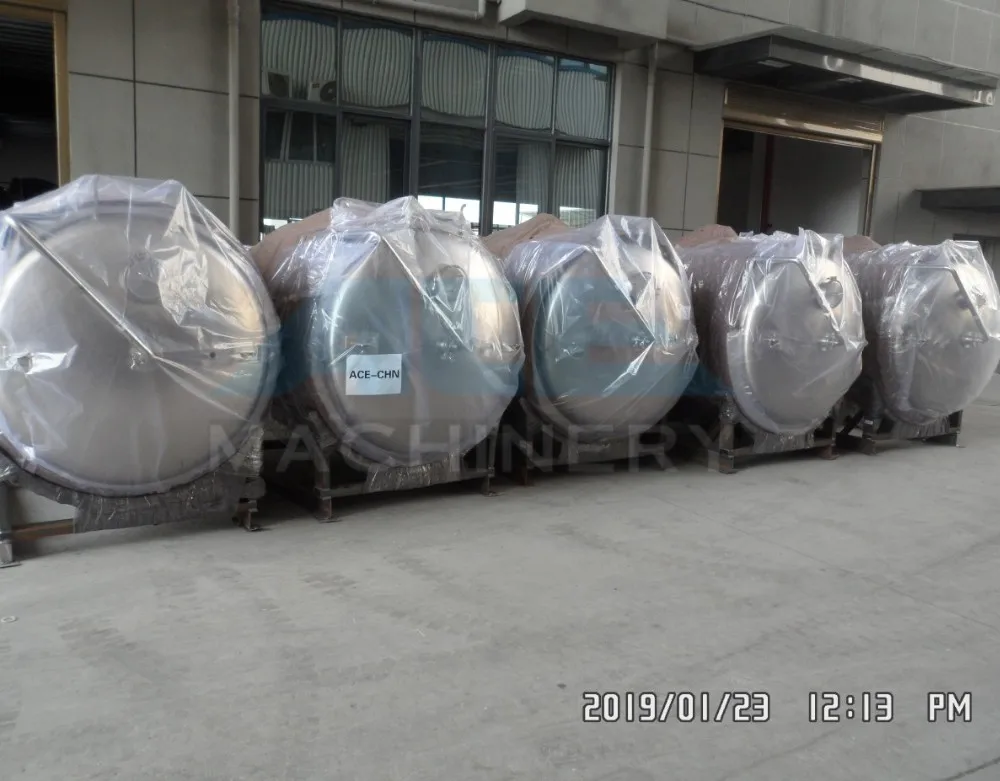

  1). Main tanks, vessels and machines will be packaged with painted steel frames.
 2). All spare parts, accessories and fittings will be packaged with painted steel box.
 3). All items wrapped with soft package for protection.
 4). Standard shipping containers will be used for general purpose.
 5). All equipments will be loaded into containers according to exact container layout drawings.
 6). After loaded into containers, all equipments will be well fixed to the containers.
FAQ

Why choose ACE Machinery

   1).Specialist manufacturer

    We have own factory. We get CE certification.We specialize in manufacturing beer brewing equipment.


    2).Quality and price
    We have professional purchasing team. Comparing multiple vendors,choose

best raw materials and the most preferential price. We have skilled worker and
strict quality control system,provide the best quality products to our customers.


    3).Convenient transportation
    Our company is located in Wenzhou Zhejiang. It just takes 15minutes from Longwan Internation airport to our factory or 50 minutes from the Train Station.

    4).Clear order process
    We have clear order process. From mails &calling→Order confirmed→Make advance payment→Workshop produce→Pay the balance→ Arrange goods delivery→Buyers receiving confirmation→Satisfaction survey.

5).Quality of service
We will provide photos make our customers to know the order status.Of course,we welcome our customers to our factory to inspect any time!Why choose us?
