ACE Copper Brewery Equipment Used Brewery Nano Brewery 50l Microbrewery Equipment

FOB Reference Price:Get Latest Price
$1,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ACE-THG-10036
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ACE
Processing Types:
Beer
Voltage:
440)v/50 (60)Hz, 3phase/380(220,400,415,440)
Power(W):
15-70Kw Depends
Dimension(L*W*H):
User Requirements
Weight:
200KG-2000KG
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support
Material:
SUS304/316, red copper
Application:
Brewery, Pub, Bar, Restaurant
Control method:
semi-auto control/PLC control
Inner surface treatment:
welds grinded to Ra 0.6um
Jacket Pressure:
design pressure 0.3 MPa, working pressure <0.2 MPa
Temperature way:
Double metal thermometer
Function:
beer brewery house
Heating method:
Steam(Electricity, gas) Heating
Rawmaterials:
Wheat;Barley
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plwooden box or as customers' requirement for Brewery Equipment.
Port
Ningbo
Basic Overview

$Product Name$
     At the present, Craft beer is popular in the whole world.No matter you are a beginner or a skilled brew master.Only if you have passion for beer, then you could have your own one.Why choose ACE? Because We know what you want, We know how to help you brew beer, We know brewer's need best.
Choose ACE, Choose the finest beer.
Product Description

    1. Introduction

     ACE brewery system is for beer making factory. We can take full responsibilities for designing, manufacturing, installing, commissioning, and produce according to your requests. The machine can be used for producing
different beer and cavas.

                                                                                         $keyword$
    2. Top Quality Components

    1) All product are leading parts in stainless steel.
    2) Complete per-fabricated unit, well welded, fine surface, prolong the service life of the equipment;
    3) Perfect design, top quality accessories, to minimize the equipment’s bug rate.

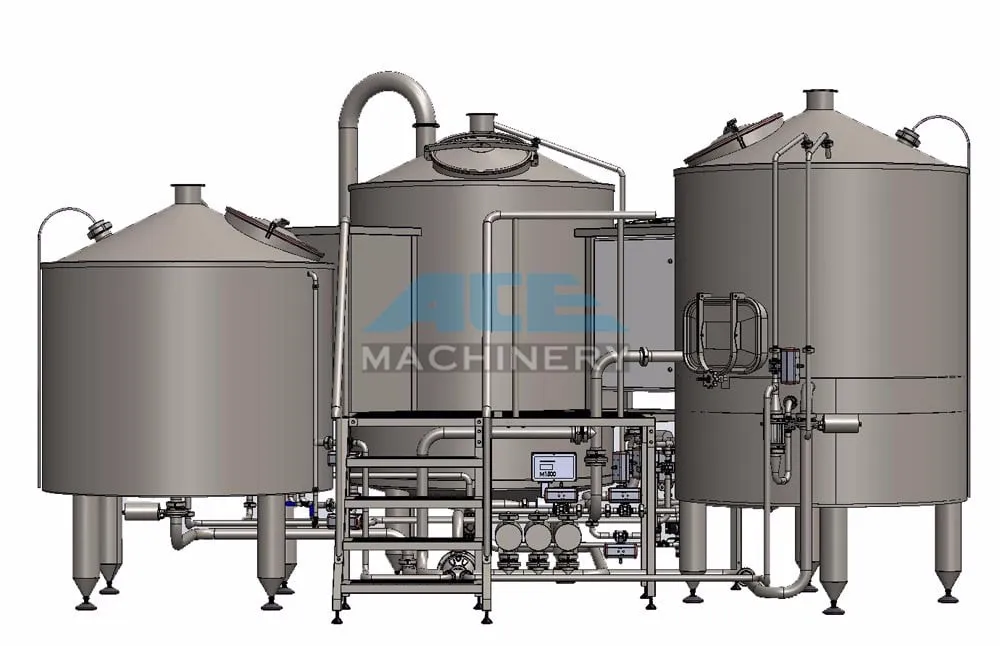

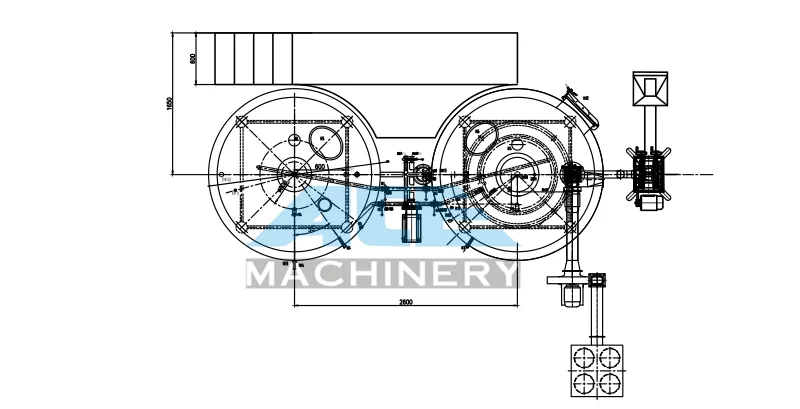

Design Drawing

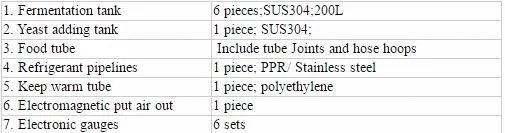

Available Capacity: 100L-20000L or 1bbl-150bbl

1- 100% TIG welded joints with Certified stainless steel 304

2- Interior shell 3mm-8mm, Exterior shell 2mm

3-test pressure 0.3Mpa, working pressure 0.2Mpa

4-60 degree cone bottom, with an average of 20%-25% head space

5- 100mm Polyurethane insulation

6- Dimple cooling jackets (two or three sections according to the size)

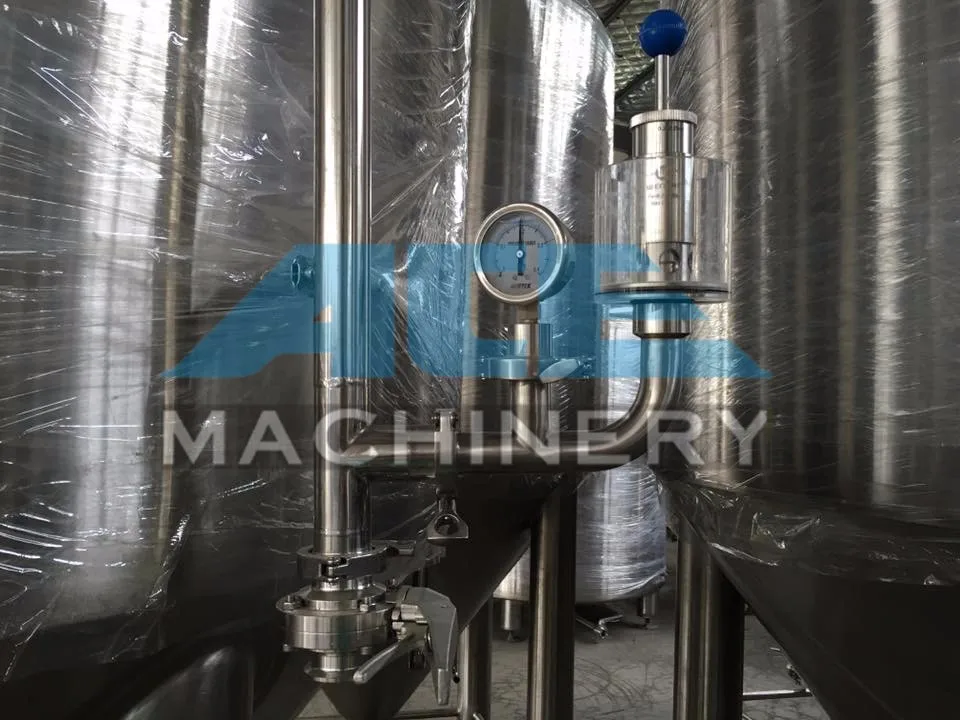

7- Perlick sample valve, SMC solenoid valve, water seal pressure valve.

8- Side manway, dry hops port, rotating racking port

9- CIP arm and rotary spray ball, sanitary tri-clamp connections,

10- Carbonation port and Level gauge for serving tank

$keyword$

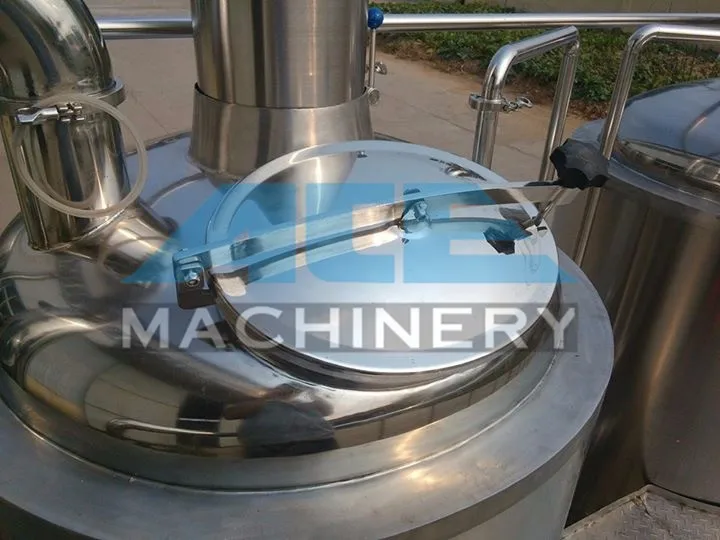

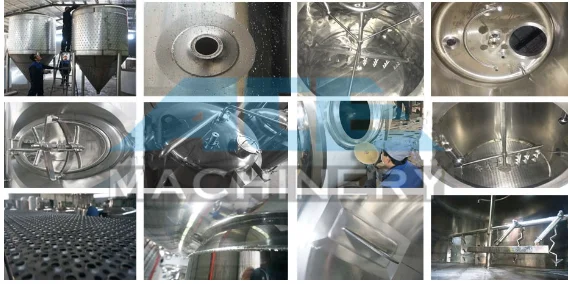

Detailed Image

What's the Advantage of our beer brewery equipment?


1). Automatic program sterilization, programmable sterilization process control;
2). Choose automatic program control, accurate sterilization temperature, range: 100 °C ~ 130 °C;
3). Reduce the labor intensity of sterilization;
4). No sanitary dead corner, non-pollution;
5). Aseptic system.

6). Complete, newly, and high quality configuration.

7). All the equipment and fittings are adopted SUS304/316, applicable beer equipment to ensure the safety of food grade.
8). Stable quality, Superior performance, Strict quality control.

$keyword$

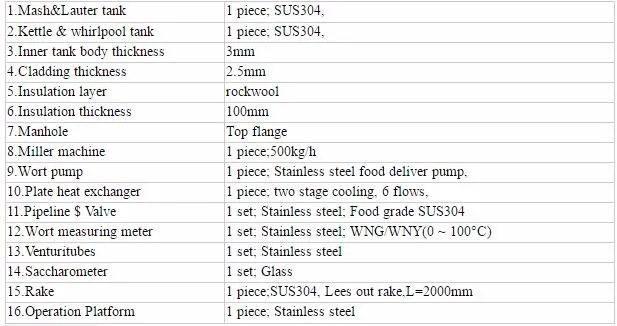

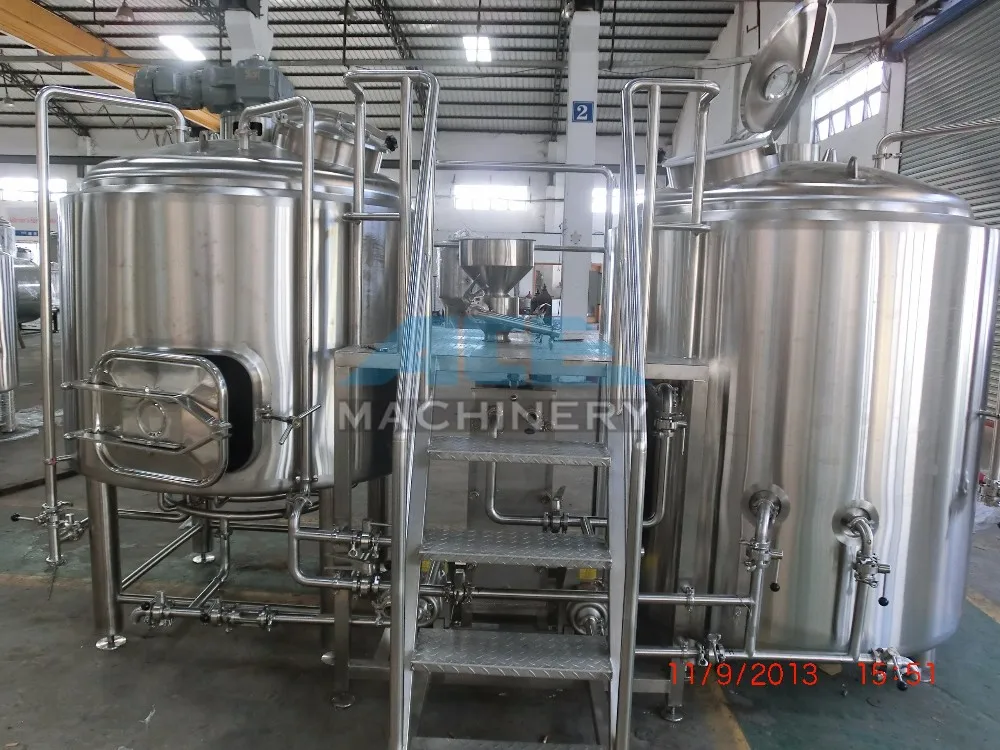

Two vessels: Mash/Lauter+Brew kettle

Three vessels: Mash+Lauter+Brew kettle

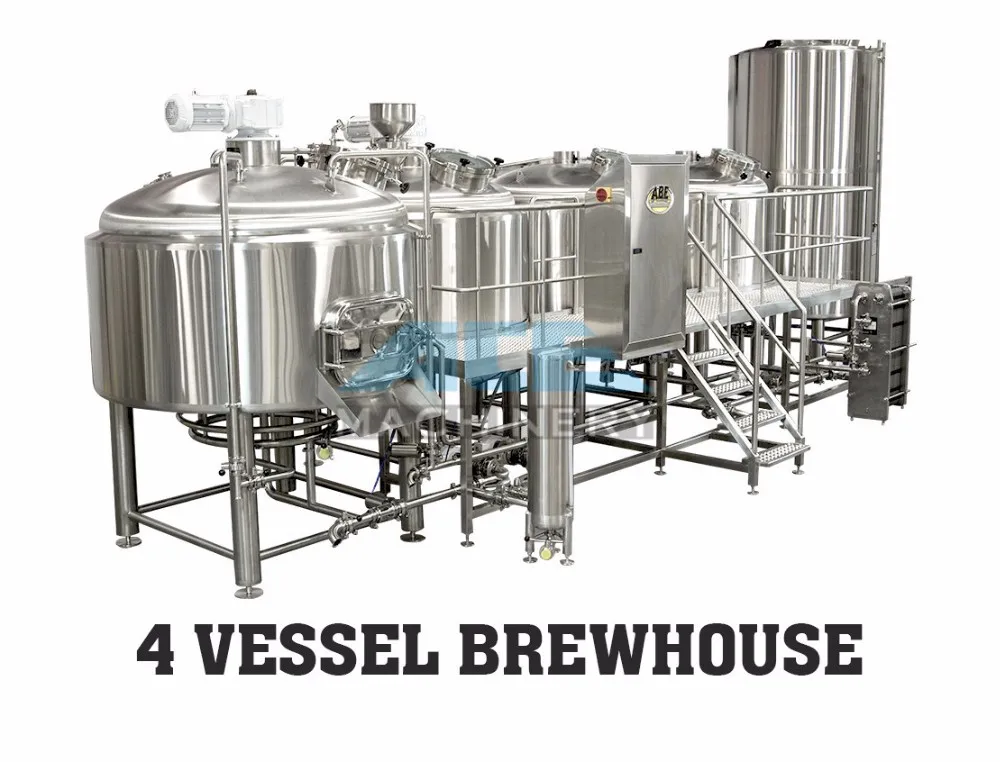

Four vessels: Mash+Lauter+Kettle+Whirlpool

Combined system: Mash+Lauter&kettle

Double brew length hot liquor tank



1-Certified stainless steel 304

2-Mash and brew kettle with steam jacket or directly heated by electricity

3-Lauter with side grain out doors and variable speed controlled rakes

4-Sanitary wort pumps, hot liquor pumps with variable speed control

5-Sanitary plate heat exchanger and wort aeration system

6-Mash Hydration

7-Lights with all the tanks

8-Big-size glass manway in all the tanks

9-work platform with sanitary process piping & sanitary valves

10-wort buffer tank and hop filter

11- and CE certification available

12-Siemen control system

13-Option: Double roller miller, grist hoper, auger.

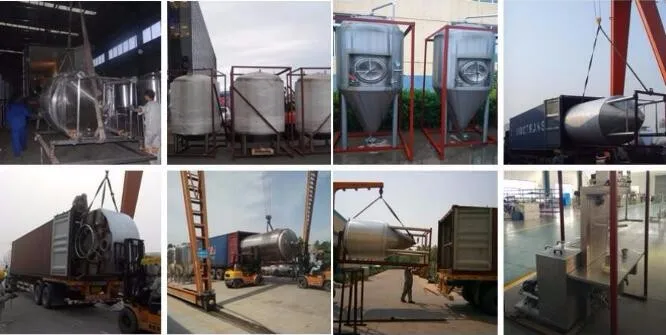

Package & Shiping



    1. Main tanks, vessels and machines will be packaged with painted steel frames.
    2. All spare parts, accessories and fittings will be packaged with painted steel box.
    3. All items wrapped with soft package for protection.
   4. Standard shipping containers will be used for general purpose.
   5. All equipments will be loaded into containers according to exact container layout drawings.
   6. After loaded into containers, all equipments will be well fixed to the containers.

  $Product Name$

Our Service



    Pre-Sales Service



    1).Some clients are new in this field, they also no have ideas about how to confirm the configuration list, since we have experience, we can give some suggestions and also other clients for reference, then they will know what they will need exactly.
    2).We also have the process video for the brewing equipment, if the client do not know the process, the video will be sent.
    3).We will give the layout according to the client’s floor plan or their requirements.3D layout also can be provided. This can help the client to get a better understanding about the project.
    4).We will give the detailed diagram of the tanks, this can help the client to know whether this is what they need and also can modify them before placing the order.



    After-Sales Service



    1).1  years warranty


    2).Inner and outer of the tanks have been mirror polish

    3).The materials of the tanks can be SUS304 Stainless
Steel with higher quality and affordable price

   4).The capacity can be 50L---Customized per batch

   5).Professional engineers going abroad to assist you setup the brewhouse
Other Products

    We specialize in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer,pharmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services.

1.Fermentation Tanks.

2.Sanitary Valves,such as butterfly valves,check valves,diaphragm valves,ball valves,pneumatic reversal valves,ect.

3.Sanitary Pumps,such as Sanitary Centrifugal Pumps,Sanitary Rotary Lobe Pumps

4.Sanitary Manhole Covers,such as square/round/elliptical manhole covers.

5.And so on.Welcome to visit our factory, to win, cooperate and develop together in the future.
