ADTECH vertical multi-joint cheap price SCARA industrial robot arm 6 axis

FOB Reference Price:Get Latest Price
$8,000.00 - $10,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Elevation Speed:
600° /s
Application:
Load
Model Number:
ADT-SD700
Lead Time:
Quantity(Pieces) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 5 7 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Vertical Travel(mm):
170-360°
Horizonal Travel(mm):
170-360°
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ADTECH
Weight:
28kg
Dimension(L*W*H):
150*150mm
Power(W):
1-3KW
Certification:
CE
Warranty:
12 Months, 12 Months
After-sales Service Provided:
Field installation, commissioning and training
Axis:
6 axis AR Series Scara Robot
Payload:
2/5KG
Power Source:
AC220V
Function:
Handling,assembling,screwing,loading,transportation
OEM:
Available
ODM:
Acceptable
Installation Method:
Desktop
Color:
White
Material:
Metal
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Reinforced Carton.
Port
Shenzhen, China
Lead Time :
Quantity(Pieces) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 5 7 10 To be negotiated

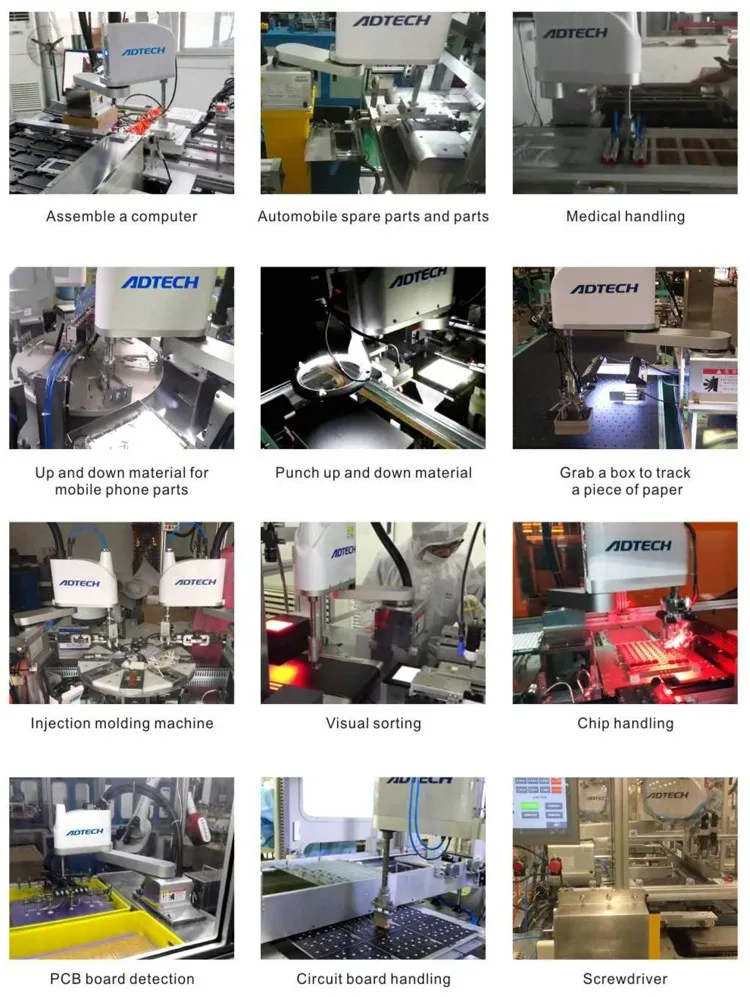

Application
Click for Videos

Sorting

Drawing

Burring

Scanning

Labeling

Assembling

Hot Selling
Product Description

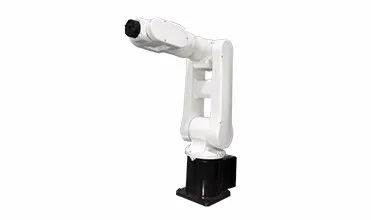

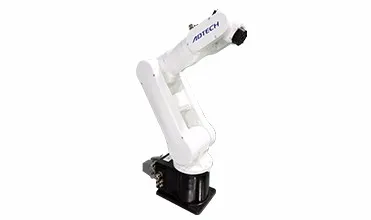

SD SERIES SIX AXIS ROBOT


SD series Robot adopts 6 axis design,with the features of simple structure,easy operation,low consumption,high efficiency, high reliability,low maintenance cost and saving space.


Suit for small unit robot's assembly to complete materials loading,dismounting,sorting and assembling in high speed and high accuracy.


SD500 industrial robot has the characteristics of high working performance, light weight and low installation condition. Small and exquisite appearance for a variety of processes automation in the limited production space.

Model
SD500
SD700
Species
Vertical multi-joint
Vertical multi-joint
Number of axes
6
6
Arm length
500mm
700mm




Range of motion
J1
±170°
±170°
J2
±115°
±115°
J3
+40°~ -220°
+40°~ -220°
J4
±185°
±185°
J5
±125°
±125°
J6
±360°
±360°




Maximum speed
J1
375 °/s
250 °/s
J2
375 °/s
185 °/s
J3
430 °/s
290 °/s
J4
460 °/s
460 °/s
J5
460 °/s
460 °/s
J6
600 °/s
600 °/s
Repeat positioning accuracy
±0.02mm
±0.03mm
Wrist load
Rated
3kg
3kg
Maximum
5kg
5kg
Maximum allowable instantaneous torque
J5
35Nm
35Nm
J6
24Nm
24Nm
User signal line
0.14sq * 16 lines
0.14sq * 16 lines
User pipe
φ 4 * 4 root
φ 4 * 4 root
Installation
Loading, flip, side
Loading, flip, side
Limit protection
1, software limit
2, mechanical limit
1, software limit
2, mechanical limit
Weight
26Kg
28Kg
Company Profile

ADTECH / STEP (Stock Code:002527)

ADTECH (SHENZHEN) TECHNOLOGY CO., LTD. was established in 2002 and become one of the wholly-owned subsidiaries of STEP in 2014. ADTECH specializes in motion control system including motion controller, stepper & servo driver, motor and industry application software and industrial robot that have been sold into over 103 countries and enjoy a good reputation worldwide.
