AH2 12/24v mini gasoline fuel dispenser for oil truck tank mounted

Feedback Ratings
  • 1-9 Pieces
    $680.00
  • >=10 Pieces
    $535.00
OE NO.:
N/A
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
FIMETER
Warranty:
1 Years
Certification:
ISO 9001
Car Model:
ALL
Engine Code:
N/A
Size:
550*480*500mm
Model Number:
BJJ-20-AH2
Voltage:
12/24V
Availabl range:
Diesel/Gasoline/Methanol/Water
Accuracy:
0.2%
Materal:
Al+Stainless steel
Flow range:
20-60L/Min
Lift/Suction:
10m/4m
Inhalation caliber:
25mm
Discharge caliber:
20mm
Single gauge number:
1-9999.9L

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X55X55 cm
Single gross weight:
60.0 kg
Package Type:
1 Piece by Non-fumigation wooden case
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

Product Application

    Owns many patents, which is developed by Anhui ruiling meter manufacturing co.,ltd. This model of fuel dispenser is widely used in industrial and mining enterprises, middle and small oil depot, gas station for transporting diesel and kerosene etc. This Anti- Explosion fuel dispenser owns many advantages, for instance, reasonable design, compact structure, small and fine, convenient for carry, high accuracy, big flow rate convenient for usage, easy for maintenance, and so on.

 Our design is much more compact, layout is more reasonable,increasing the operation efficiency.

SPECIFICATIONS FOR GASOLINE FUEL DISPENSER
Model No.:
AH2
Accuracy:
±0.2%
Flow range:
20-60L/min
Max.pressure:
4 Bar
Voltage:
DC 12v/24v
Single Range:
0.0-99999.9L
Suction/Lift:
 25m/25m
Accumulative Range:
0-99999L
Total weight:
 48kg
Range of Price:
0.00-$99.99
Temperature range:
-20°c-50°c
Total Amount Range:
0-$99999
Inhalation caliber:
25mm
Measure Minimum:
5L
Discharge caliber:
20mm
Size:
550*450*380mm
Medium
Gasoline, Petrol, Diesel, Kerosene, Water, Methanol and other liquid.

Main Features

For the reason that our First generation mechanical fuel dispenser has been copied, our company updated the products series with 10 updated points under the price not increased.

1. More attracting appearance;
2. Increasing the thickness of the shell;
3. Good at Resistant high temperature:
50℃ Test;
4. With functions of integer and non integer quantitative refueling;

5.The standard of excellent accuracy measuring accuracy can reach 0.2%;
6. Professional All of our fuel dispenser are Anti-Explosion type design;
7. Two way control valves to ensure the precise control of a small amount of fuel;

8. Our design is much compact, layout is more reasonable, increasing the operation efficiency;
9. With Double-layer steel wire mesh, wear-resisting, corrosion resistance, pressure resistant tubing;
10. Choosing new type electromagnetic switch,greatly enlarging using safety and stability and prolong the using life.

Factory Show
Canton Fair

120th Canton Fair

Meet every year of Canton Fair

121th Canton Fair

and Still to be continued......

122th Canton Fair


Detailed Images

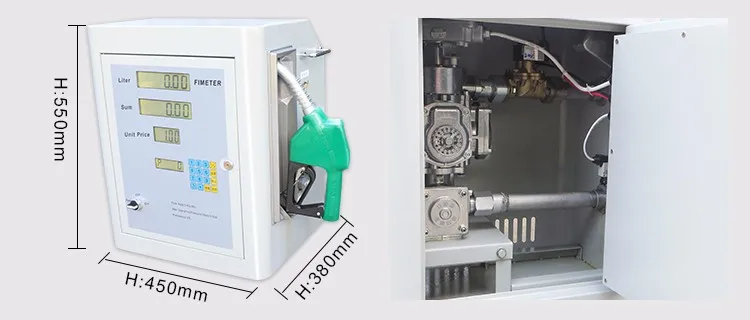

No Pump Gasoline Fuel Dispenser Size Map and Internal Structure Show.



Machine Parts

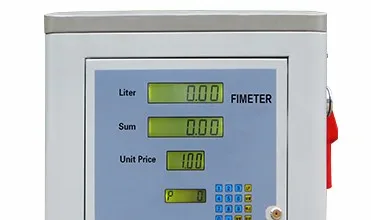

Name: Anti-Explosion No Pump Gasoline Fuel Dispenser;

Brand: FIMETER;

6 Digits LCD Display;

Show Unit Price, Total Amount, Total Volume.



Machine Parts

Lift Handle;

All English and Arabic Numeral Panel;

3 Version of Computer Motherboards, Work Independently;

All-Round Visual Mirror, Monitoring Fuel Volume At Any Time.

Machine Parts

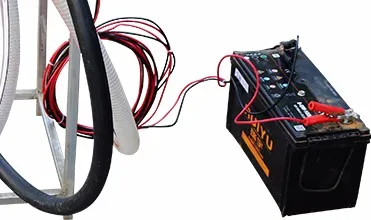

12V 24V Battery Power;

Use with Truck Battery also.

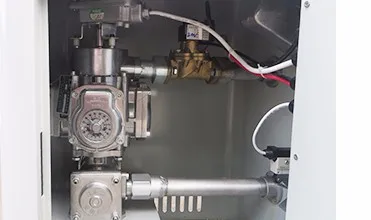

Internal Structure

F Class Insulation;

Without Pump Design;

Solenoid Valve Control System;

High Accuracy 4 Cylinder Piston Flowmeter.

Standard Configuration


1 Set Manual;

5M Inlet Pipe;

5M Output Pipe;

1 Set 11A Automatic Fuel Nozzle.


Packing & Delivery
Packaging
Size
61  * 75  * 98 CM
Weight
86 KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated. Package also can according to customer special requirements.
By Sea
Delivery from Any seaport of China if customer has special requirements
By Air
Departure from Any Airport of China if customer has special requirements
By Express
By any Express of China if customer has special requirements
Payment




Payment Term



T/T
EXW
100% T/T in advance
FOB
30% T/T in advance, paid the balance before shipment
CFR
30% T/T in advance, paid the balance against copy of B/L
CIF
30% T/T in advance, paid the balance against copy of B/L
L/C
L/C amount above 10,000 usd, we can accept L/C at sight
West Union
Amount lower than 5000 usd
Delivery Time
7~10 working days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:


100% Product quality protection;
100%
On-time shipment protection;
100%
Payment protection for your covered amount.
