AKZ1612 vibrating knife cutting machine with pressure roller cutting on paper board leather knife cutter

FOB Reference Price:Get Latest Price
$7,000.00 - $11,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
AKZ1612
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
ACCTEK
Voltage:
220V/380V
Dimension(L*W*H):
1600*1200mm
Certification:
CE
Warranty:
18 Months
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Working area:
1600*1200mm/ OEM service
Model Number:
AKZ1612, cnc oscillating knife cutter
Tool configuration:
Multiple cutting knives head
Guide rails:
Taiwan Hiwin square guide rails
Control system:
China Trocen TC-6828
Cooling Mode:
Industrial chiller
Driving mode:
Taiwan Delta servo motor and drivers
Materials Fixed Mode:
9.0kw vacuum pump adsorption
Work Table:
Aviation aluminum vacuum countertops and felt
Power(W):
8kw machine
Supply Ability
Supply Ability:
200 Set/Sets per Month vibrating knife cutting machine with pressure roller
Packaging & Delivery
Packaging Details
strong plywood package box. vibrating knife cutting machine with pressure roller
Port
Qingdao
Product Description

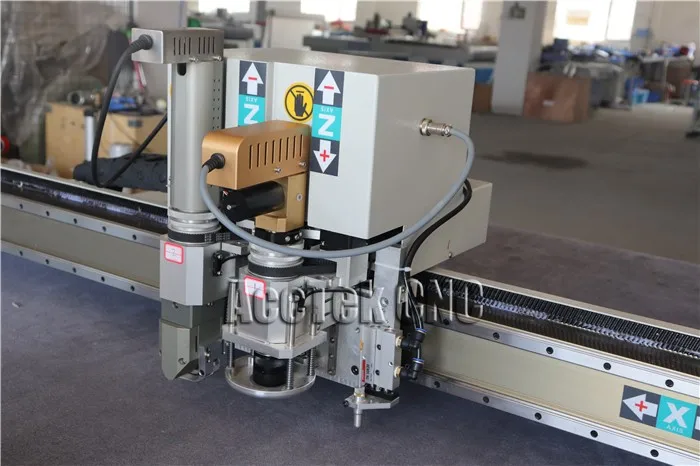

Cutting head change system

AccTek knife cutting machine equipment comes standard with a tool quick change module, which is extra mely versatile and easy to change.

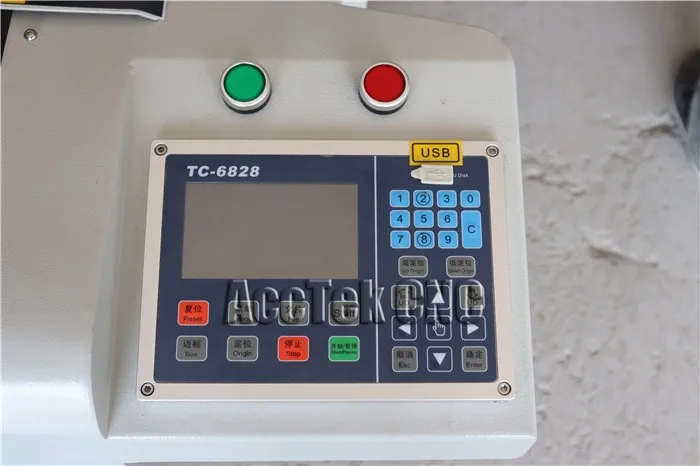

Control panel

Compatible with AI, BMP, PLT, DXF, DST and other graphic formats; simple graphic drawing, text editing functions,and support for editing and layout of imported data.

Safe operating environment

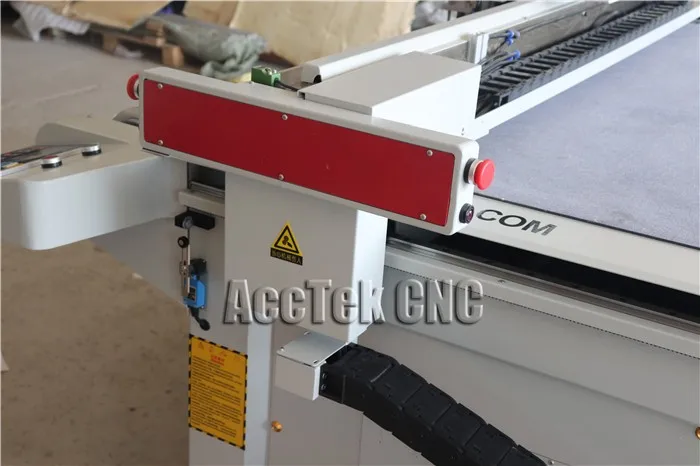

Infrared anti-collision device and infrared blocking device ensure maxium safety during operating.

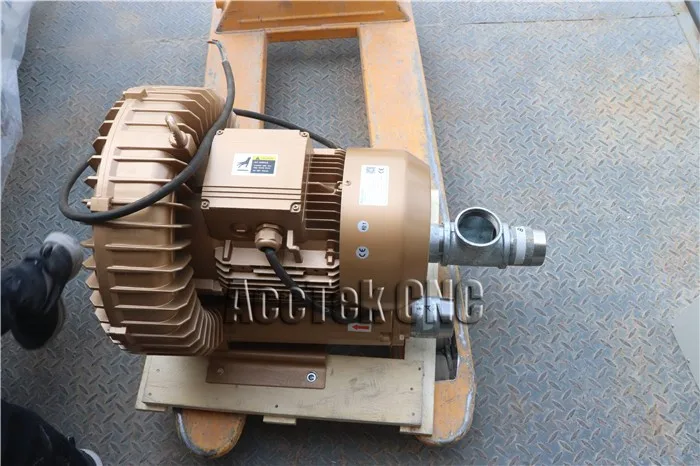

9.0kw Vacuum pump come with silencer.

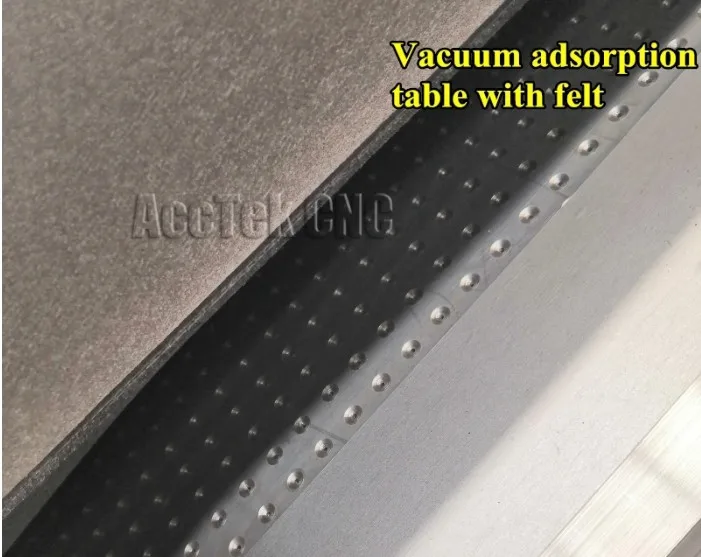

magnesium alloy adsorption table

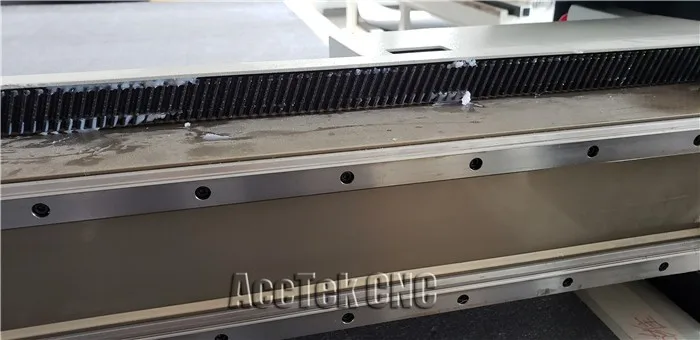

Gear rank transmission
Imported Hiwin Taiwan square linear guide ensure high accuracy and fast cutting speed and stable working performance;

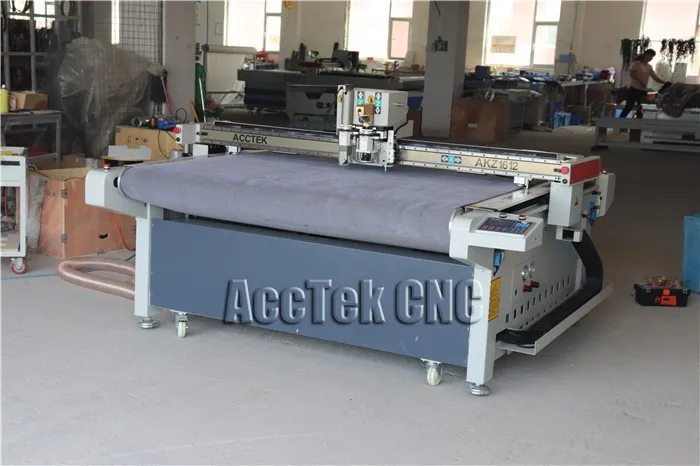

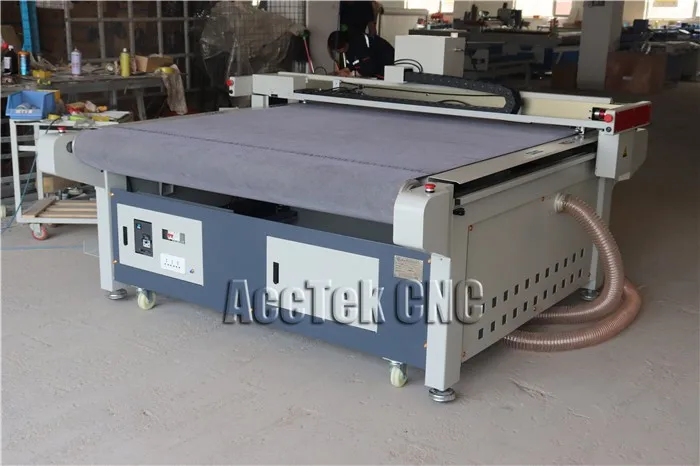

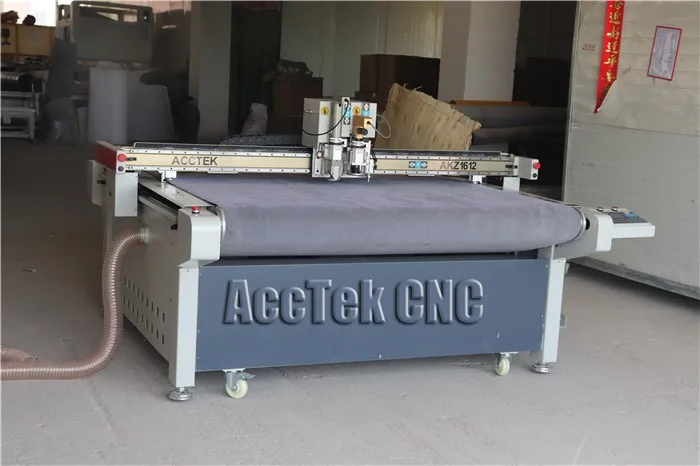

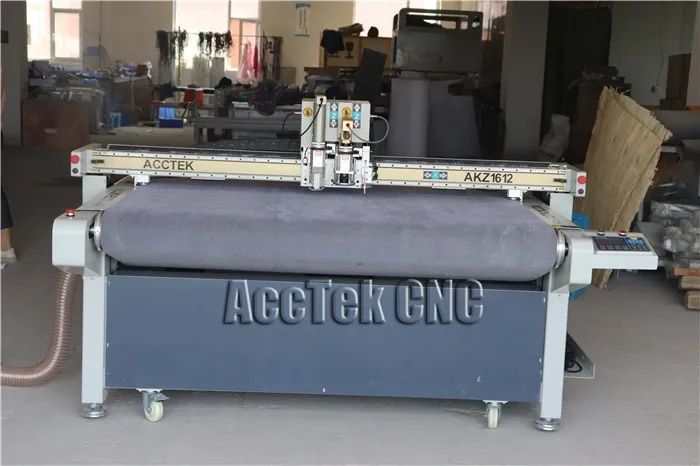

AccTek cnc oscillating/vibrating knife cutting machine

Automatic Oscillating Knife Flatbed Fabric Cutting Machine Plotter Cutter for Corrugated Cardboard

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable  working performance;
2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;
3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. Digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;
6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;
Detailed Images
Parameters:
Working area
1600*1200mm / 1500*1500mm, 1600*1000mm, 1800*2500mm option)
Multi-functional Tool Head
Thorough cutting/Kiss cutting/Creasing/Plotting/Lasor Locating/Automatic Table-level measuring
Security configuration
High sensitive infrared induction
Travelling speed
Max. 1200mm/s
Cutting speed
Max. 800mm/s (Depending on different material type)
Repeated positioning accuracy
Maximum 0.01mm
Mechanical Precision
Maximum 0.02mm
Drive system
Steel wire synchronous belt , AC servo motor, linear guideway
Control system
China TROCEN 6828 + large scale programmable logic array
Display mode
Chinese and English liquid crystal touch screen

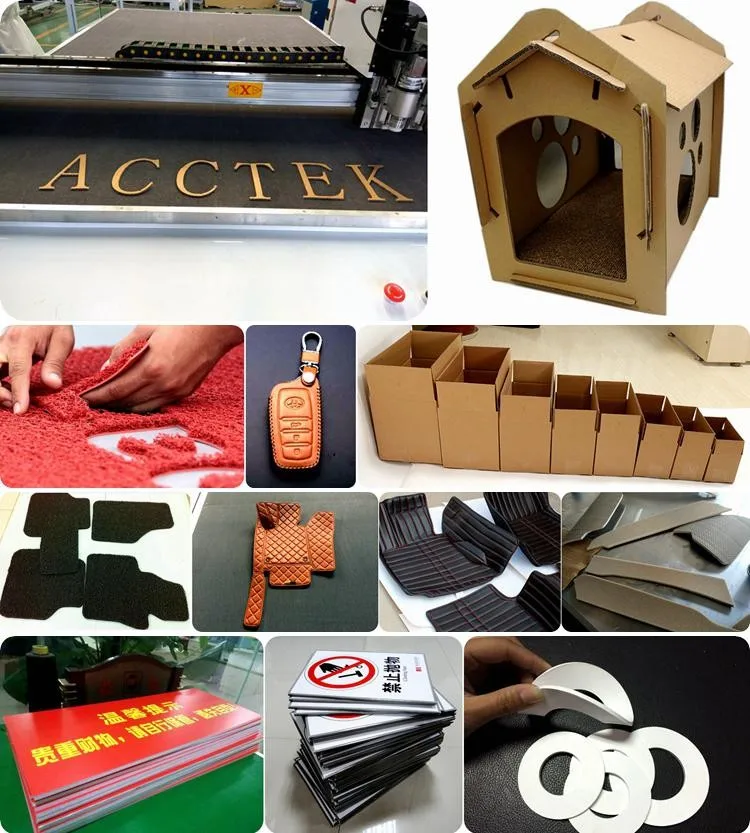

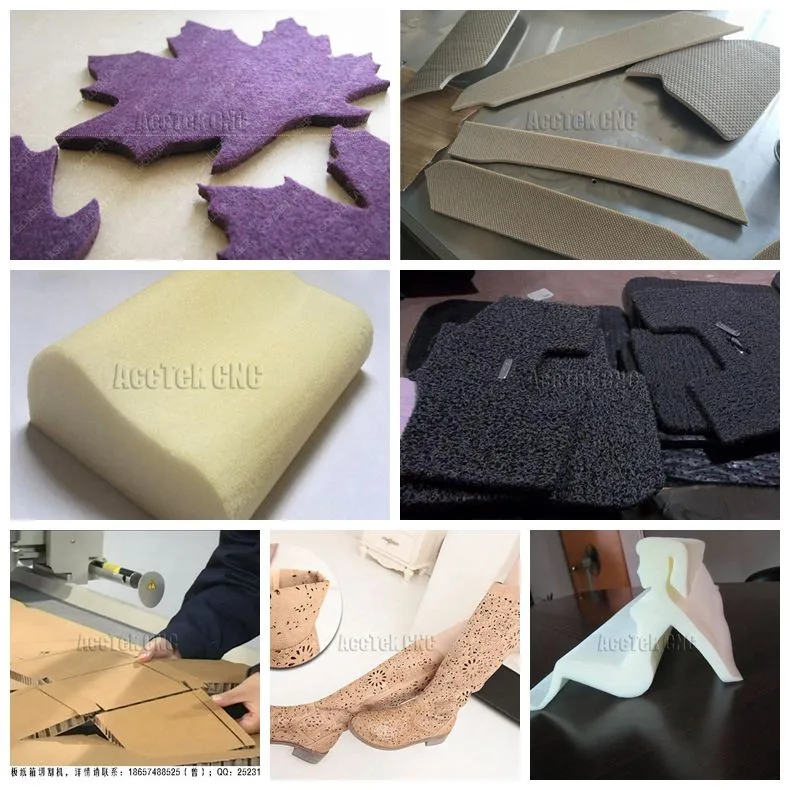

Applications:

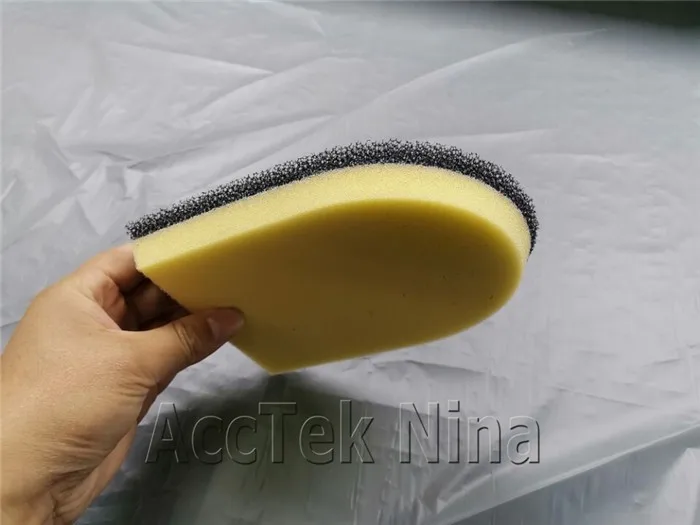

AccTek digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam boardrubber,cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Packing & Delivery

Pacakage

The package is tandard exporrt plywood box,customized for every size machine.

Our Service

After sale service:
We will try to know your requests about what work you will do and help you choose the most suitable machine specification & give you the best solution.

1. 18 months guarantee of the whole machine.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our staff can be sent to your company to install or adjust if necessary.
