ANSI standard cast iron double flanged pipe joint with seal ring

FOB Reference Price:Get Latest Price
  • 1 - 49 Sets
    $360.00
  • 50 - 99 Sets
    $350.00
  • >=100 Sets
    $345.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
hengzhong
Model Number:
2"-72"
Type:
Flange
Material:
Carbon Steel
Technics:
Forged
Connection:
Flange
Shape:
round
Head Code:
round
Name:
flanged pipe joint
Product name:
flange type steel expansion joint
Application:
Pipeline valve axial displacement caused by heat bilges cold shrink
Standard:
DIN,ANSI,JIS,BS
Color:
Blue, gray, white
Size:
50mm-3200mm
Certificate:
ISO 9001,The production license
Surface treatment:
Plastic spraying, 250-400μm
Usage:
Connection pipe valves
Pressure standard:
Germany standard
Supply Ability
Supply Ability:
29000 Set/Sets per Month
Packaging & Delivery
Packaging Details
ANSI standard cast iron double flanged pipe joint with seal ring:wooden cases (mix packing or every size packing:in usually the size of 1100mm*1100mm*1100mm ,the 20 feet container can hold 18 wooden cases .)
pack all goods in wooden case or pallet and cover it with plastic sheet,to avoid carton damage and rain and container condensation water
Port
tianjin,shanghai,qingdao,ningbo,yiwu,China's major ports,dalian.
Product Description

ANSI standard cast iron double flanged pipe joint with seal ring

ANSI standard cast iron double flanged pipe joint with seal ring, pipes and other devices connected to the pipeline of new products, connected by the bolt, making it a whole, and has certain displacement, convenient installation. Can withstand axial stress of pipeline. So you can at the time of installation and maintenance, according to the on-site installation size adjustment, at work, not only improve the work efficiency, but also for pump, valve, pipeline equipment play a protective role.

ANSI standard cast iron double flanged pipe joint with seal ring main features

1. Easy and convenient installation, convenient valve installation, affordable pipeline axial tension.
2. compensator bellow is casting or welding metal, loose tube parts choose trapezoidal rubber seal, under the action of gland and bolt.
3. The principle of using rubber compression elastic deformation. Forced sealing ring deformation on the outer wall of pipe joint ontology between static seal.
4. Metal and seal strictly according to the using performance and user requirements. External coating material high strength anti-corrosion paint, by connecting bolts for high strength carbon steel or stainless steel. Because of a certain gap between ontology and telescopic tube, make it has a certain axial and radial displacement.
5. Effective compensation and relief pipe in the course of pipeline and blind thrust, and facilitate water pump, valve replacement, installation and maintenance is a pipe installation in the shipping industry is the most ideal accessory products.

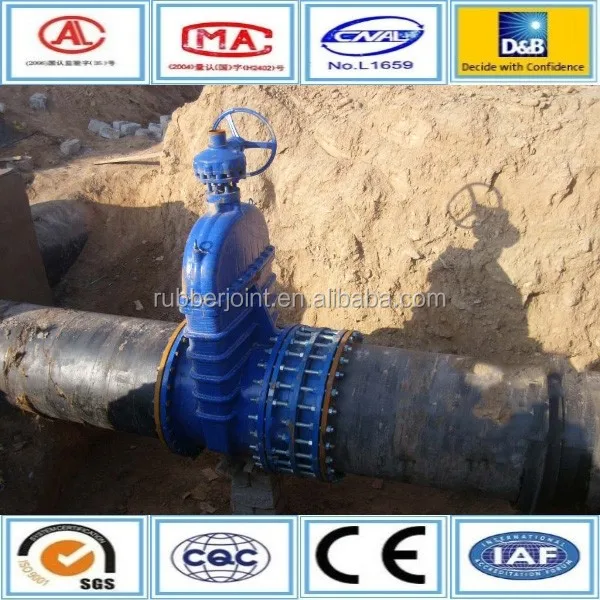

Certifications

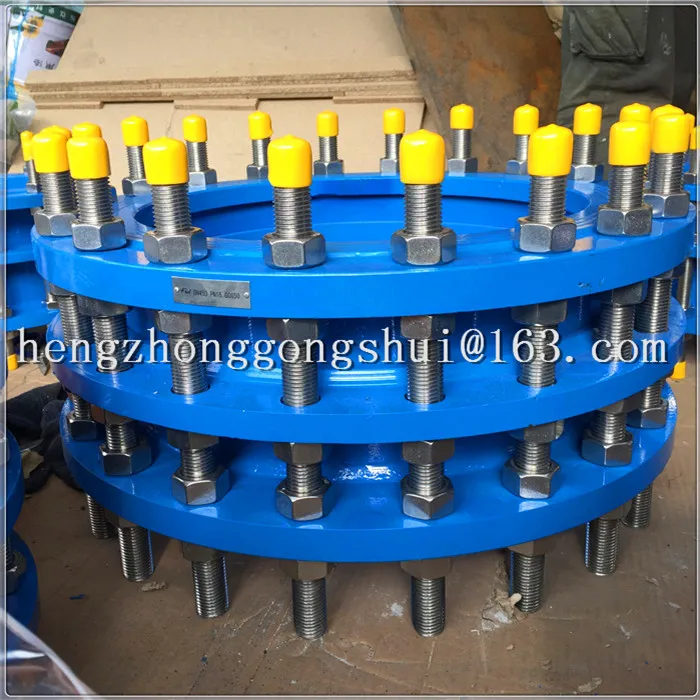

Detailed Images


Name:ANSI standard cast iron double flanged pipe joint with seal ring

Brand: hengzhong

Main materiall: Nodular cast iron, carbon steel, NBR


ANSI standard cast iron double flanged pipe joint with seal ring Main Features

1. ANSI standard cast iron double flanged pipe joint with seal ring installation is simple and convenient.
2.compensator bellow have high tensile and compressive strength, soft sealing performance is superior, convenient handling, and other functions.
3. compensator bellow in pipeline operation has certain multidirectional displacement effect.
4. compensator bellow can alleviate the blind thrust in pipeline operation, play a protective role of pipes.
5. compensator bellow to avoid thrust to focus on a pipe or proximal impact injury of pump equipment.

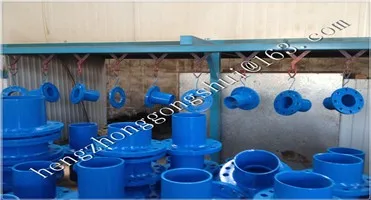

ANSI standard cast iron double flanged pipe joint with seal ring Plastic spraying field

1. Before handling: oil removal, rust removal, phosphating, passivation of workpieces.
2. Electrostatic spraying, powder coating evenly sprayed onto the surface of the workpiece
3. Powder curing: using powder curing process is 180 ℃ bake for 15 minutes, belongs to the normal maintenance


Coating thickness can reach the effect you want!

Our Service

ANSI standard cast iron double flanged pipe joint with seal ring

* support your research and consulting.
* support the sample test.
* welcome you to visit our factory.

ANSI standard cast iron double flanged pipe joint with seal ring After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
12''
Weight
76kg

Packaging Details

With plastic film winding layer first, in use bubble film winding layer.
Packaging
Size
1100 (L) * 1100 (W) *1100(D)Depending on the product size can adjust the size in wooden cases
Weight
1.2 T



Packaging Details
First export transportation distance is long, with shipping, more bumpy, so packaging requirements are secure, moisture, rust, mouldproof, waterproof, etc. And export for wooden pallets using composite board class fumigation-free material or wood fumigation processing. According to different countries, there are some religious beliefs, packaging materials selection should consider the factors.
