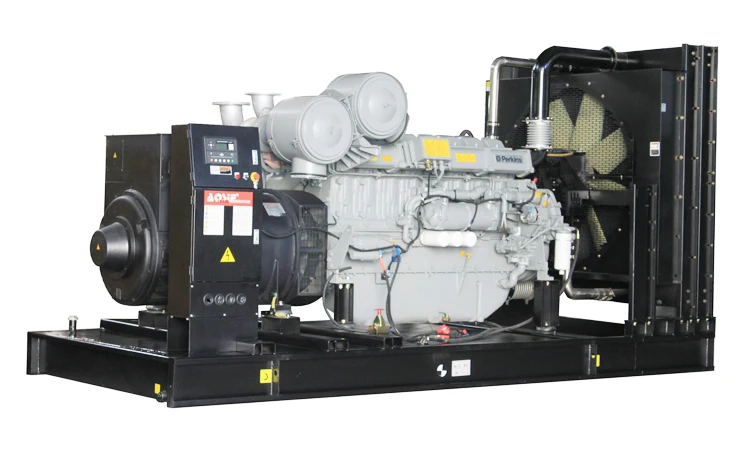

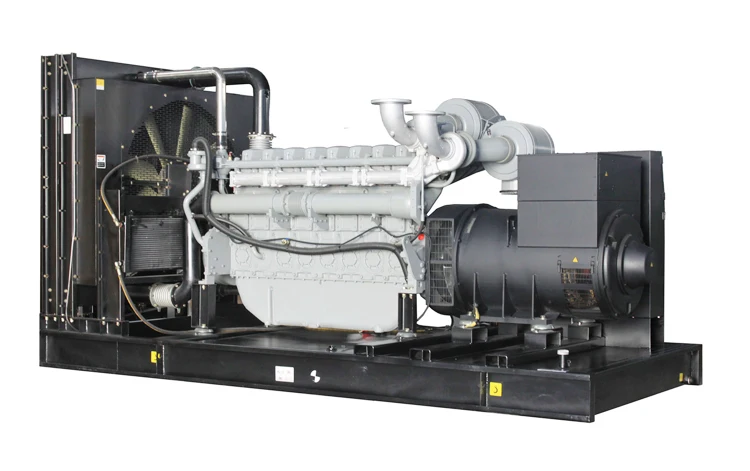

AOSIF generator 1000KW 1250kva with Perkins engine

Feedback Ratings
  • 1-4 Sets
    $141,828.00
  • >=5 Sets
    $133,360.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
60 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Aosif
Model Number:
AP1375
Rated Power:
1000KW/1250KVA
Output Type:
AC Three Phase
Rated Voltage:
220/380V,230/400V,110/220V,240/415V, 254/440V, 277/480V
Rated Current:
Depend
Speed:
1500/1800rpm
Frequency:
50/60HZ
Engine:
with Perkins engine
Alternator:
Leroy Somer
Type:
open
Warranty:
12 Months/1000 Hours
Controller:
Deep Sea 6120
Color:
option
Options:
ATS
Control panel:
made with Deepsea 6120
Certificate:
ISO
Product Name:
Diesel Genertor 1000KW

Packaging & Delivery

Selling Units:
Single item
Single package size:
5100X2100X2750 cm
Single gross weight:
10150.0 kg
Package Type:
foam and PE films
Picture Example:
package-img
package-img
Lead Time :
60

More Information ABOUT US Please Click Here


Product Description



GensetAP1375
Voltage220/380V,230/400V,110/220V,240/415V, 254/440V, 277/480V
Engine4012-46TWG2A
Prime Power/Standby Power1000KW/1100kw
AlternatorLeroy somer LSA50.2M6
ControllerDeepsea,Comap
Circuit BreakerABB/SCHNEIDER
TypeOpen/Silent
Fuel TankBase Tank,External Daily Fuel Tank
Optional supporting productsMoveable/Trailer Type Diesel Generator /Synchronization System   Automatic Transfer Switch /Dummy Load  Day Tank



AOSIF Generator Supply Scope

1. Engine:   Brand-new engine.
2. Alternator:  Brand new brushless alternator, single bearing, IP23, H insulation class.
3. Base Frame:Heavy duty steel channel base frame.
4. Radiator: With safety guard.
5. Vibration DamperVibration damper between Engine/Alternator and base frame
6. Breaker: 3-pole output manual circuit breaker as standard,  4 poles for option
7. Controller:    DSE6120, DSE7320, DSE8610 and other deepsea models, Comap MRS10, MRS16, AMF20, AMF25 for option.
8. Silencer:  Heavy duty industrial type silencer with flexible bellow,elbow.
9. Battery:    Varta Brand,high capacity sealed maintenance free battery c/w battery cables.
10. Fuel Tank: 8 hours base fuel tank
11. Tool Kits & Manuals:Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.



Powered by Perkins Engine

Genset
Model
Prime power/
Standby power
Engine modelFuel
consumption
CylinderDisplacement (L)Genset
 Dimension
(mm)
Weight (kg)
KVAKWL/h
AP880800/880640/7044006-23TAG3A172.06L22.94080×1700×22305600
AP990900/990728/8024008TAG1A195.08L30.64600×2040×22306600
AP11001000/1100800/8804008TAG2220.08L30.64600×2040×22306650
AP12501125/1250900/10004008-30TAG3230.08L30.64500×2200×22307300
AP13751250/13751000/11004012-46TWG2A262.012V45.84900×2200×25307600
AP14851350/14851080/11884012-46TWG3A285.012V45.85000×2200×25307850
AP16501500/16501200/13204012-46TAG2A305.012V45.85000×2200×25308100
AP1875168818751350/15004012-46TAG3A354.012V45.85200×2200×253010000
AP20001850/20001480/16004016TAG1A383.016V61.15750×2800×330010500
AP2250-I2000/22501600/18004016TAG2A434.016V61.15750×2800×330010500
AP2250-II2000/22501600/18004016-61TRG2422.016V61.15500×2900×312010500
AP25002250/25001800/20004016-61TRG3470.016V61.15700×2900×312011300
