APCOM Factory Wholesale 100 m 100m small water well drilling machine man portable borehole tripod down-the-hole drill rig

  • 1-9 Sets
    $1,690.00
  • 10-99 Sets
    $1,490.00
  • >=100 Sets
    $1,390.00
Model Number:
KT100 KT70 KF180 KT120 KF200
Power(W):
3KW
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
one year
Place of Origin:
Shanghai, China
Brand Name:
APCOM
Usage:
Water Well
Voltage:
380V
Weight:
26kg
Certification:
ISO900
Type:
Rotary Drilling Rig
Power Type:
Electric
Dimension(L*W*H):
66*25*20cm
Applicable Industries:
Construction works
After-sales Service Provided:
Overseas third-party support available, Online support
Model:
KT70
Drilling depth:
25m
Drilling diameter:
76mm
Moter power:
3kw
Max Drilling Depth:
55m
Air Consumption:
4.5m3/min
Drilling Pipe OD:
42mm
Similarity 1:
KT100
Similarity 2:
KT120

Packaging & Delivery

Selling Units:
Single item
Single package size:
66X25X20 cm
Single gross weight:
26.000 kg
Package Type:
Standard export wooden box
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Video Description

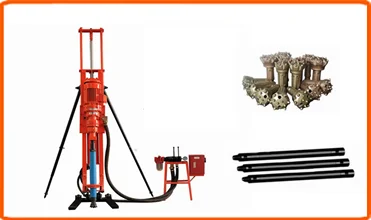

Small drill rig

1. Applications

(1) widely used in drilling large diameter blast hole in mining, road, national defence,water conservancy and so on
(2) necessary drill equipment for prophase surface mine project
2. Characteristics
(1) light weight
(2 )Suitable for the place where large and medium rock drill can not work
(3) Flexible, electric motor,noiseless and powerful
(4) Fast Drilling speed horizontal and vertical

3. Parameter
Model
HD70
HD100
HD120
Price
$1550
$1850
$2050
Drilling Diameter
60-80mm
80-100mm
100-150mm
Drilling Depth
≤25m
≤35m
≤50m
Power
3KW
4KW
5.5KW
Drilling Pipe  OD
42mm
50mm
60mm
Drilling Pipe  Quantity
15pcs
20pcs
20pcs
Impactor OD
70mm
100mm
120mm
Air Consumption
4.5m3/min
6m3/min
10m3/min

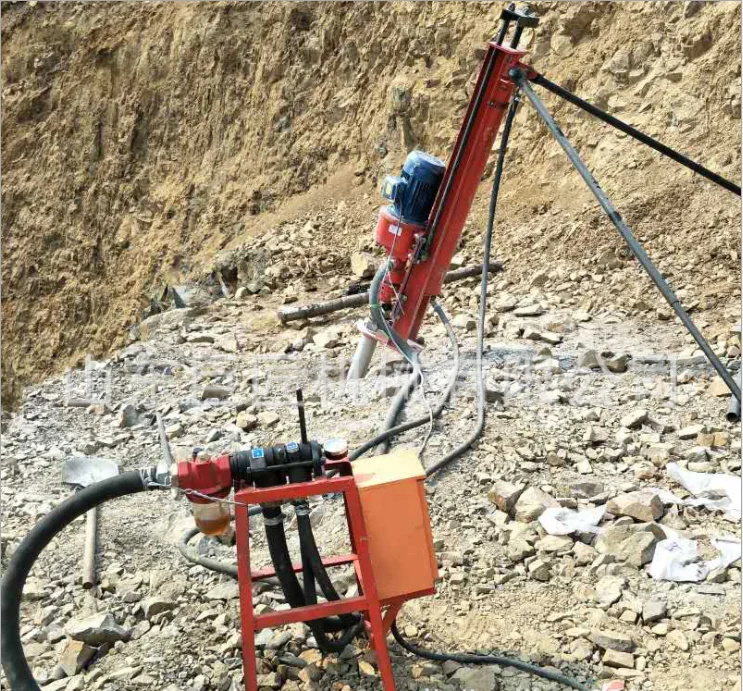

Working scene

Related Products
Model
Moter power
The hole diameter
Drilling depth
KT70
3 KW
Φ76 mm
25 m
KT100
4 KW
Φ90 mm
35 m
KT120
5.5 KW
Φ90 - 115 mm
55 m

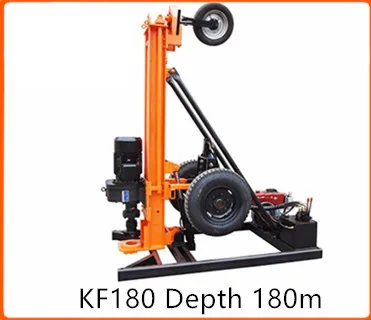

KF180D
7.5 KW
Φ100 - 219 mm
180 m
KF200D
11 KW
Φ100 - 219 mm
200 m
Electric motor drive small water well drilling rigs
Large Drilling Rig

SJ200
SJ300
SJ450
SJ600
SJ800
Drilling depth (m)
200
300
450
600
700
The hole diameter
(mm)
Ф140-305
Ф140-325
Ф140-350
Ф140-350
Ф140-400
Equipped capacitor
(kw)
65KW
75.8KW
92KW
115KW
140KW
One-time advance
length (m)
3.4
3.4
6.6
6.6
6.6
Walking speed
(km/h)
2.5
2.5
2.5
2.5
2.5
Climbing angles (°)
30°
30°
30°
30°
30°
Using air pressure
(bar)
17-30
17-30
17-35
17-35
17-35
Air consumption
(m3/min)
17-30
17-30
17-35
17-35
17-42
Drill pipe diameter
(mm)
Ф76 Ф89
Ф89 Ф102
Ф76
Ф102 Ф108
Ф89
Ф108 Ф114
Ф102
Ф108 Ф114
Ф102
Drill pipe length
(m)
1.5/2.0/3.0
1.5/2.0/3.0
1.5/2.0/3.0/6.0
1.5/2.0/3.0/6.0
1.5/2.0/3.0/6.0
Rig lifting force (T)
12
16
24
28
30
Swing torque (N.m)
3500-4800
5700-7500
7000-10000
8500-11000
8850-13500
Weight (kg)
58000
70000
11000
12000
13000
Dimension L*W*H
(cm)
400*175*245
410*195*260
590*215*285
600*220*285
610*220*290
