ASME Code Stainless Steel 2:1 Elliptical Dished heads Conventional Tank Heads Tank ends Tank covers Pressure Vessel and Boilers

FOB Reference Price:Get Latest Price
$10.00 - $500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
SZPM
Model Number:
Customized
Dimension(L*W*H):
1300mm
Capacity:
Depend
Weight:
Customized Max Weight 600tons
Standard:
ASME
Inner diameter:
1300mm
Min.Thickness:
16mm
Material:
ASTM SA240 TP 316L
Certificate:
U
Outter Surface treatment:
Sand Blasting
Inner Surface treatment:
Acid pickling
Heat Treatment:
Normalizing
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
Steel Frameworks
Port
Qingdao,Tianjing,Shanghai Port
Lead Time :
1 to 4 weeks
Product Description

ASME Code Stainless Steel Elliptical Dished heads Conventional Tank Heads Tank ends Tank covers for Pressure Vessel and Boilers

da = Outer diameter

di = Inner diameter

h1 = Stepped-edge height

h2 = Dish height

h3 = Total height inner

r1 = Dish radius

s = Wall thickness

Produce Capabilities

Process

1,Cold Formed

2,Hot Formed Welded (U stamp  partial data report)

Welding Processes

Stick-Electrode    Semi-Automatic    Submerged Arc    Gas Shielded

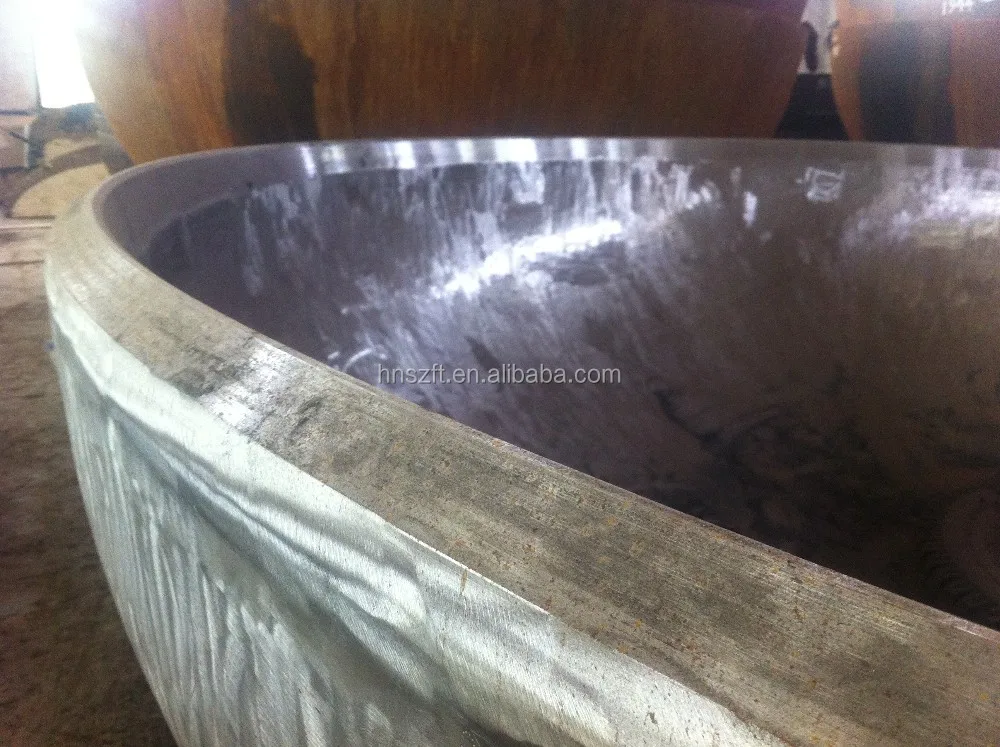

 Edge Prepped

Trimmed /Untrimmed /Beveled / Tapered



Material

carbon, alloy, and low alloy steels, stainless clad, titanium, nickel, Aluminum, Tantalum etc.

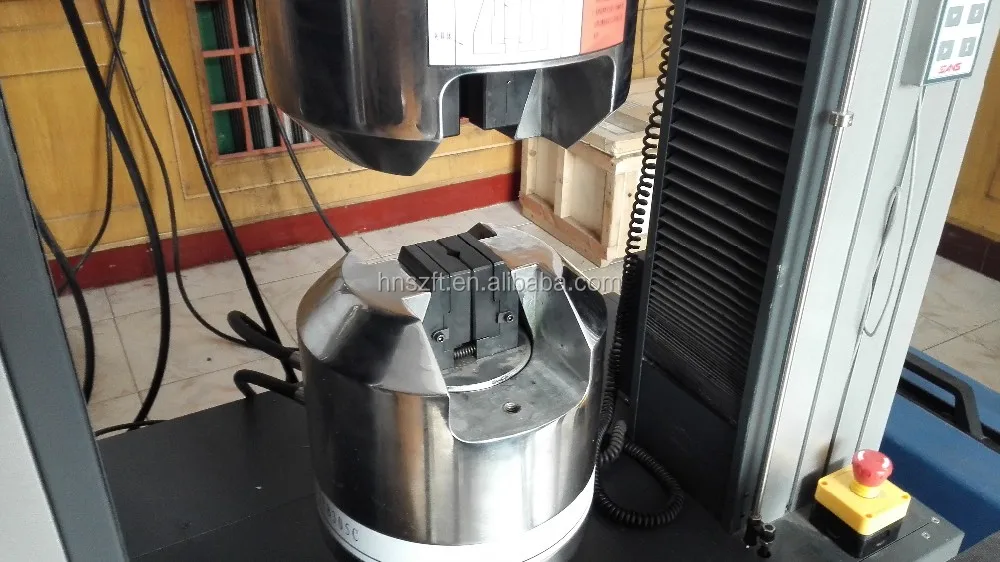

Testing & Inspection

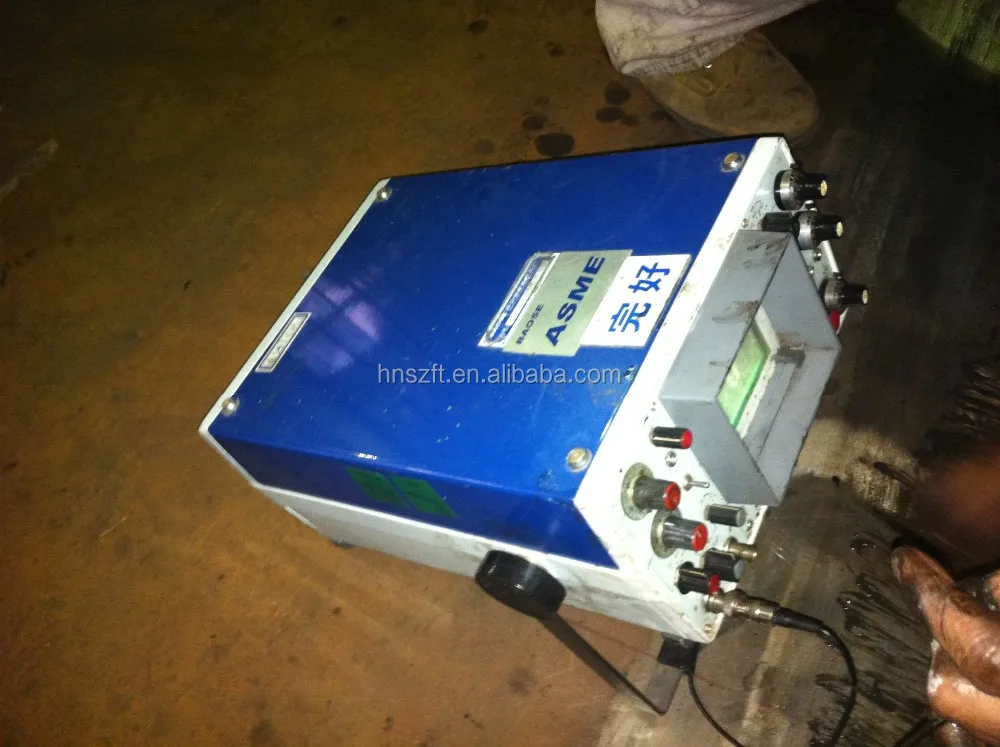

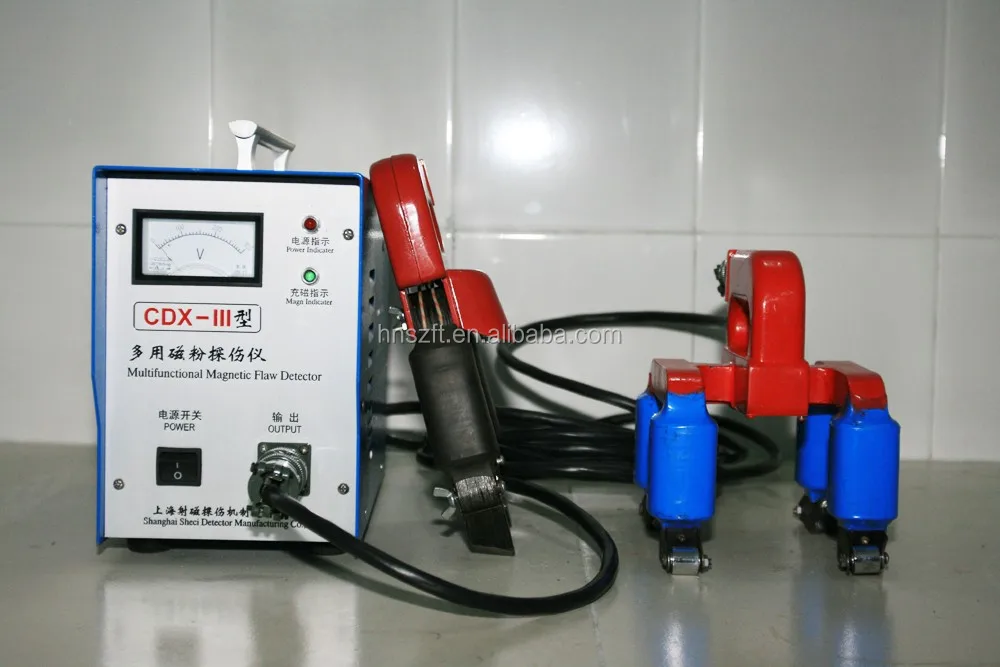

1,Radiographic Test 2,Ultrasonic Test 3,Liquid Penetrant Test 4,Magnetic Particle 5,Charpy V-Notch Tests 6,Brinell Hardness



1,Radiographic Test 2,Ultrasonic Test 3,Liquid Penetrant Test 4,Magnetic Particle 5,Charpy V-Notch Tests

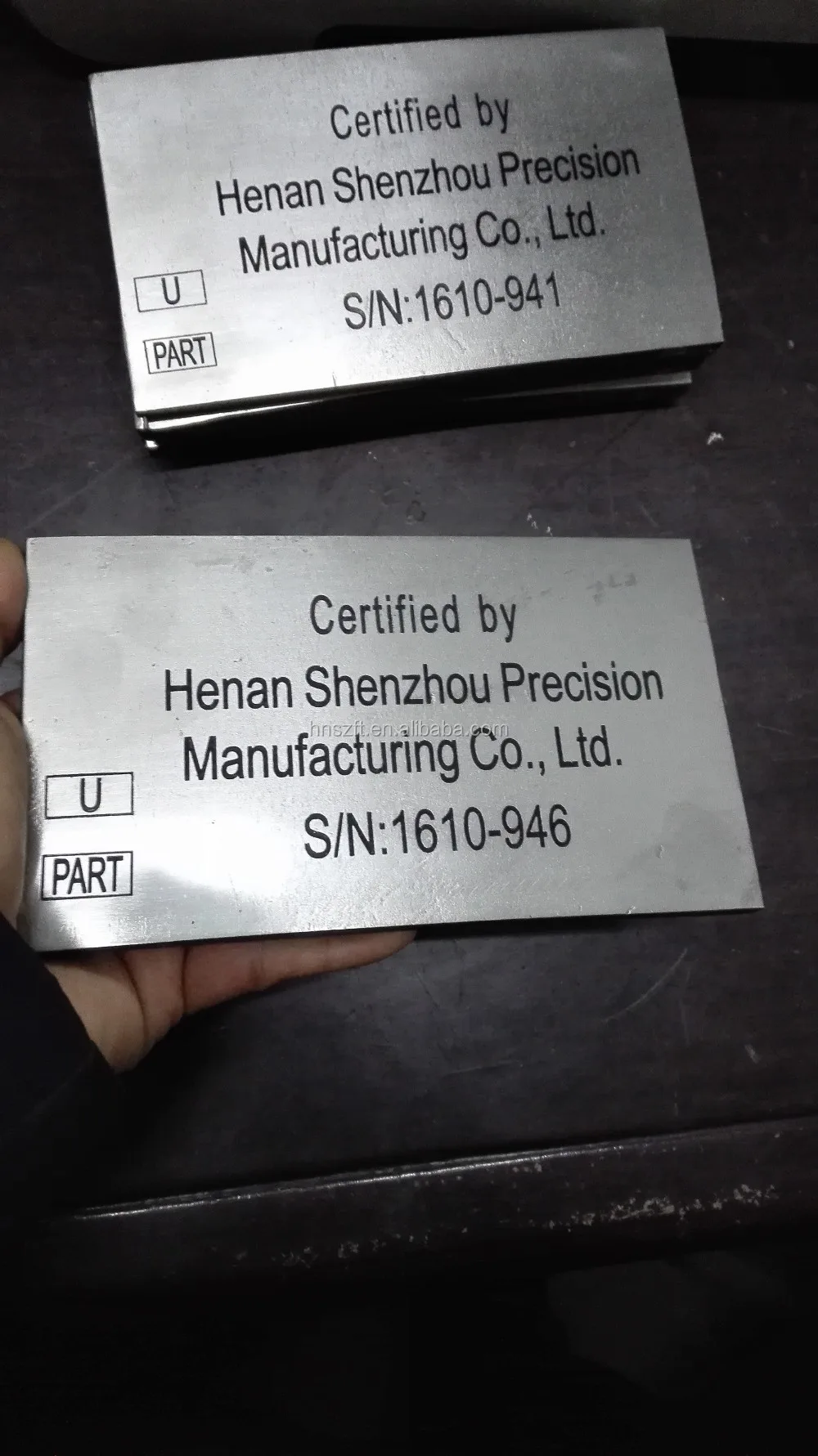

Partial Data Report

ASME U

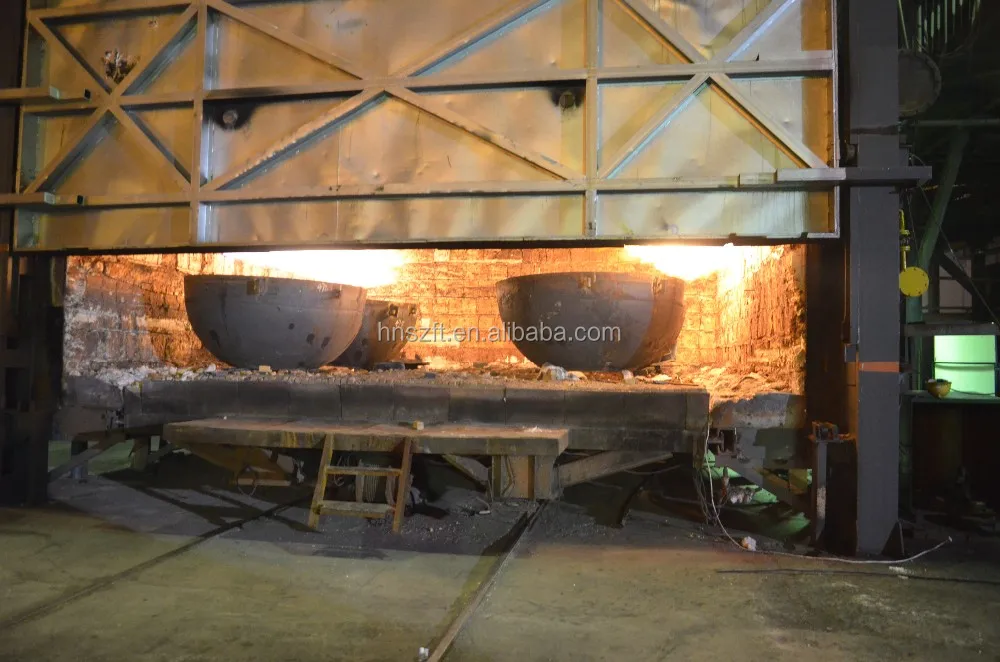

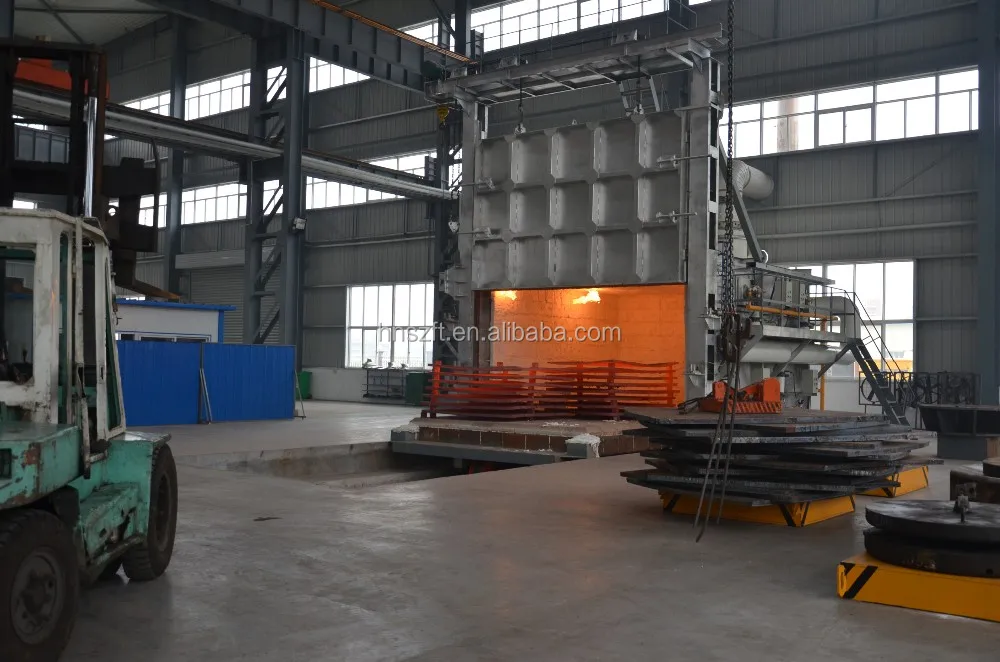

Heat Treatment

1,Normalized

2,Annealed

3,Quenched and Tempered

4,Normalized and Tempered

Surfacce Treatment

 Carbon Steel---Sand Blasting     Stainless Steel----Acid Pickling

Industry Standards

ASME Section VIII, Division 1 (U stamp)

GB/T25198-2010

DIN28011 28013

Diameter

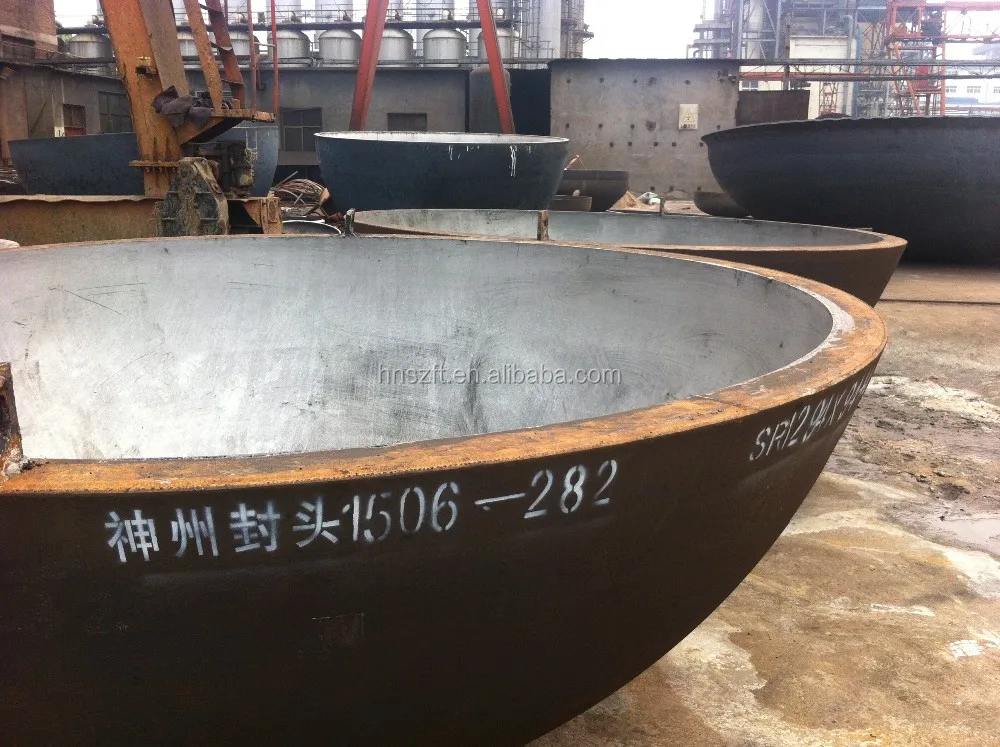

Manufacturing CONVENTIONAL TANK HEADS Com--- Diameter from 89mm to 7000mm,thickness from 3 to 40mm

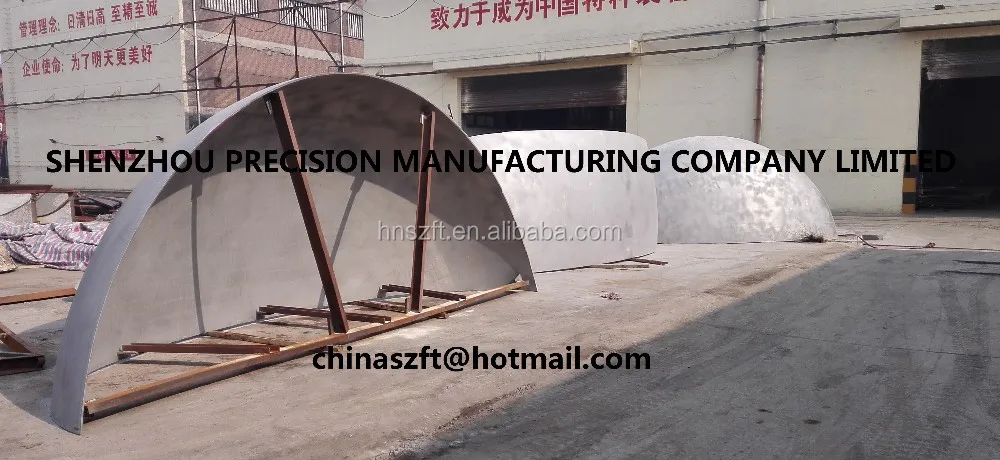

SEGMENTS HEADS ----Diameter from 3000—20000mm, thickness from 4 to 300mm

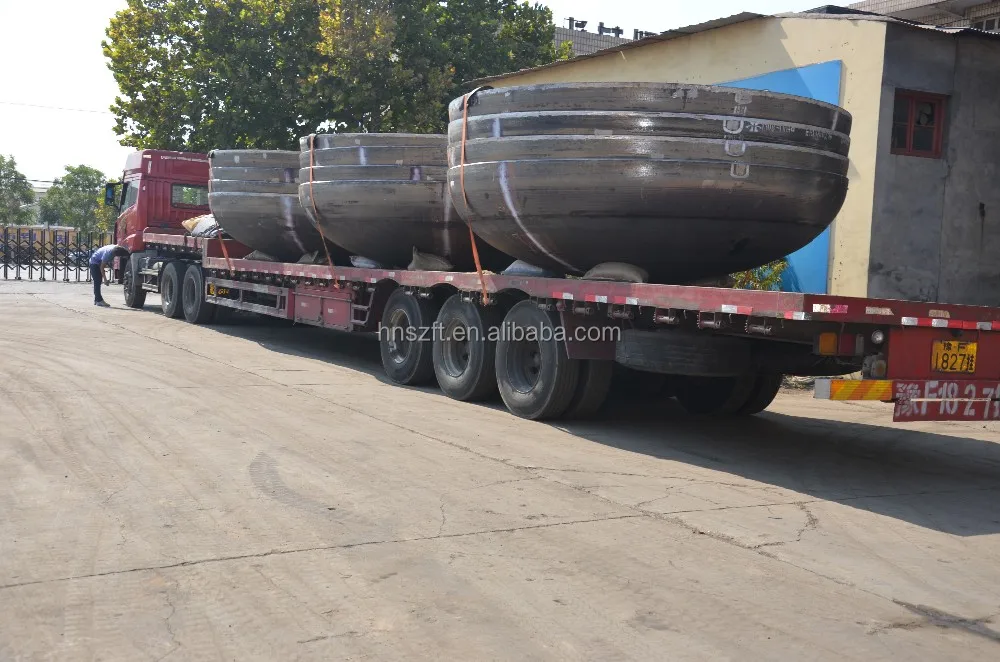

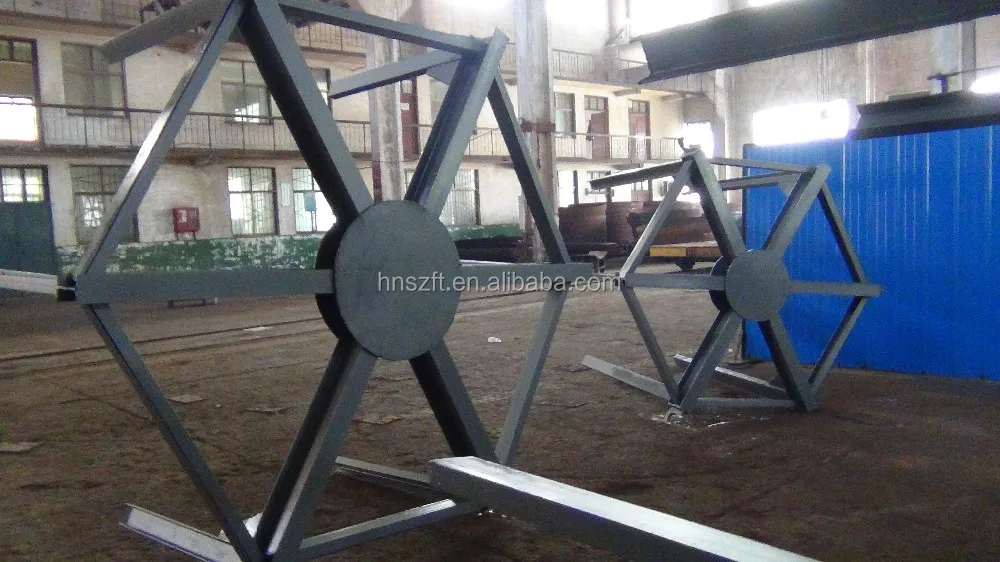

Packing & Delivery




Professional Team
