ASTM B338 50.8mm Titanium Square Tube Grade 2 Seamless

FOB Reference Price:Get Latest Price
  • 50 - 199 Kilograms
    $31.90
  • 200 - 799 Kilograms
    $28.90
  • >=800 Kilograms
    $27.50
Samples:
$35.70 /Kilogram | 1 Kilogram (Min. Order) | Buy Samples
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Kilograms) 1 - 10 >10
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 50 Kilograms)
Customized packaging (Min. Order: 50 Kilograms)

More

Graphic customization (Min. Order: 50 Kilograms) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
Changsheng
Model Number:
Titanium Tube
Material:
Gr1 Gr2 Gr5 Gr9
Outer Diameter:
4mm - 300mm
Length:
100~6000mm
Standard:
ASTM B338
Application:
Industrial
Technique:
Seamless
Grade:
Gr1 Gr2 Gr5 Gr9
Wall Thickness:
0.5-30mm
Inside Diameter:
Custom
Processing Service:
Bending, Welding, Decoiling, Cutting, Punching
Name:
titanium square tube
Certificates:
ISO9001:2015
advantage:
The Chinese Titanium Valley"-Baoji
Surface:
Pickling Surface
MOQ:
10KG
Supply Ability
Supply Ability:
30 Ton/Tons per Month
Packaging & Delivery
Packaging Details
standard export wooden case
Port
Shanghai/Qingdao/Tianjin
Picture Example:
package-img
Lead Time :
Quantity(Kilograms) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Product Description

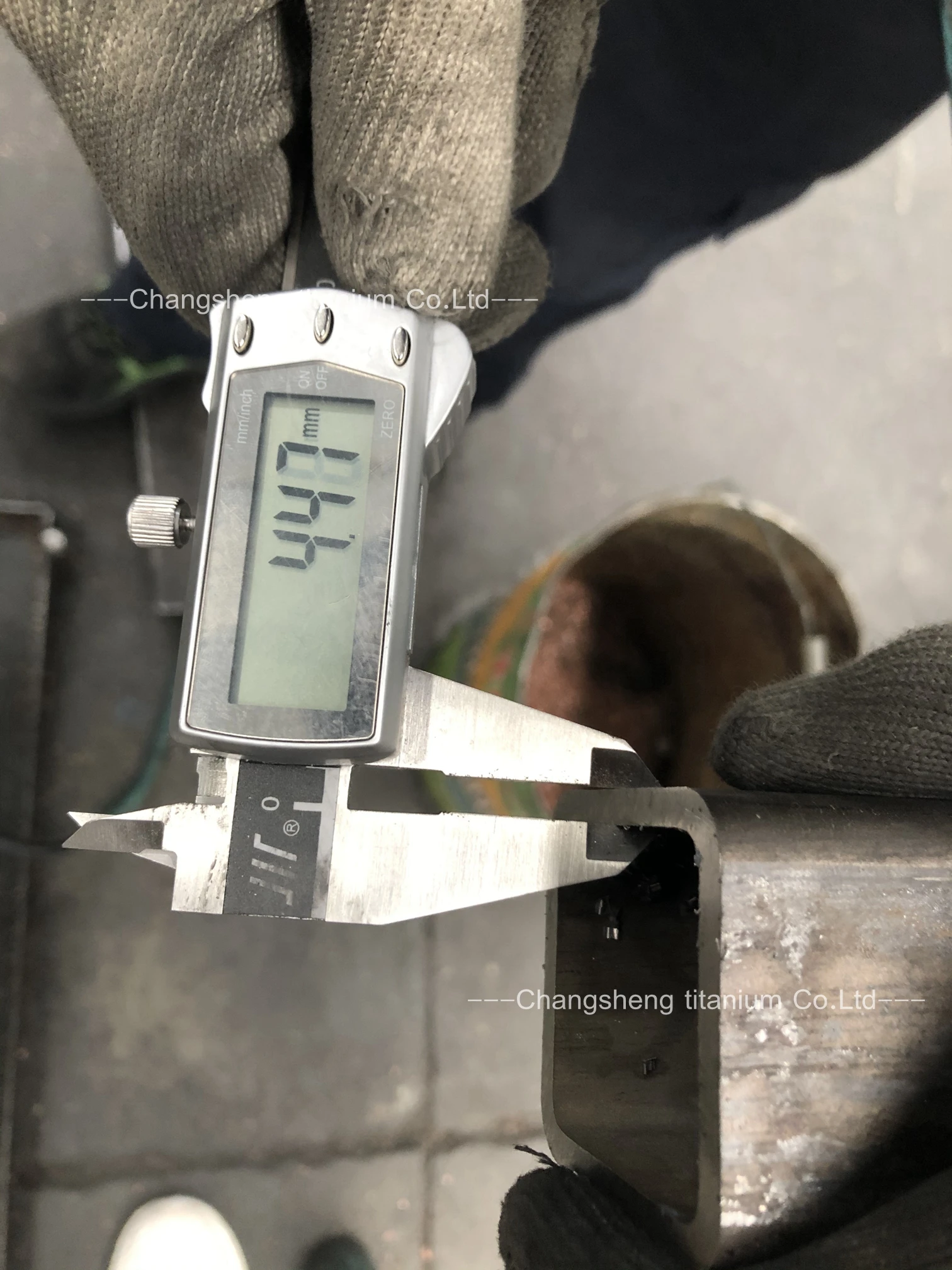

Gr2 Titanium Square Tube

Standard:ASTM B338
Size: 2 Inch /50*50*4mm
Qty: 50 kg
Unit price:$ 31.8/kg based on EXW.
Hs code:810890

--- Titanium Grade 2 ---


Titanium Grade 2 has good strength to weight ratio, maintained at high temperatures. titanium Grade 2 square tube
offers excellent corrosion resistance, superior formability and strength between grades 1 and 3. It’s a widely used grade that offers a yield strength of 275MPa (40ksi) minimum.

--- More Titanium Grade ---

STANDARD
CHEMICAL COMPOSITION (weight %, max or range)
ASTM B363
UNS No
N
C
H
Fe
O
GR 1
R50250
0.03
0.08
0.015
0.2
0.18
GR 2
R50400
0.03
0.08
0.015
0.3
0.25
GR 5
R56400
0.05
0.08
0.015
0.4
0.2
GR 7
R52400
0.03
0.08
0.015
0.3
0.25
GR 12
R53400
0.03
0.08
0.015
0.3
0.25
ASTM B363
UNS No
Al
V
Pd
Mo
Ni
GR 1
R50250
GR 2
R50400
GR 5
R56400
5.5-6.75
3.5-4.5
GR 7
R52400
0.12-0.25
GR 12
R53400
0.2-0.4
0.6-0.9
STANDARD
MECHANICAL PROPERTIES (min)
ASTM B363
Tensile
Yield
El.
Red.
Mpa
Mpa
%
%
GR 1
240
138
24
30
GR 2
345
275
20
30
GR5
895
828
10
10
GR 7
345
275
20
30
GR 12
483
345
18
25

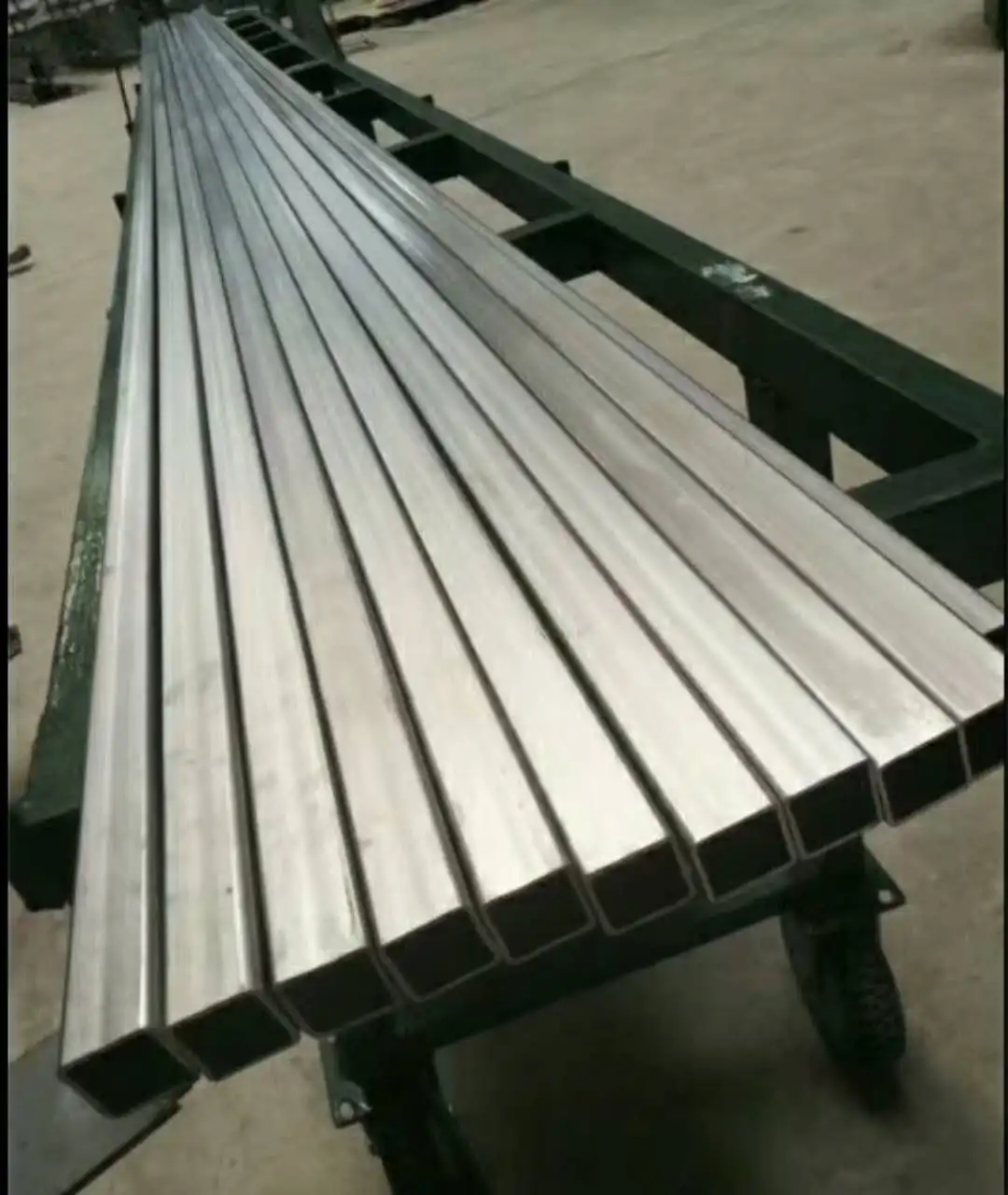

--- Square Tube Technology ---


A square tube is a name for a square tube, that is, a titanium tube with the same side length. It is rolled into a square tube from a round tube and then cut to the required length. Square tubes are seamless and welded. Conventional round pipe size: outer diameter is less than 114mm, wall thickness is less than 8mm, which can be directly rolled by a rolling mill, and then rolled into a square pipe from a round pipe, which is a seamless square pipe. Conventional square tube size: side length 10mm-100mm. Generally, the thick-walled square pipe is more than 8mm in diameter and cannot be rolled into a round pipe. It is made by bending and welding a titanium plate. The standard for titanium plate is ASTM B265, and the standard for square tube is also ASTM B265. Non-destructive testing after welding.

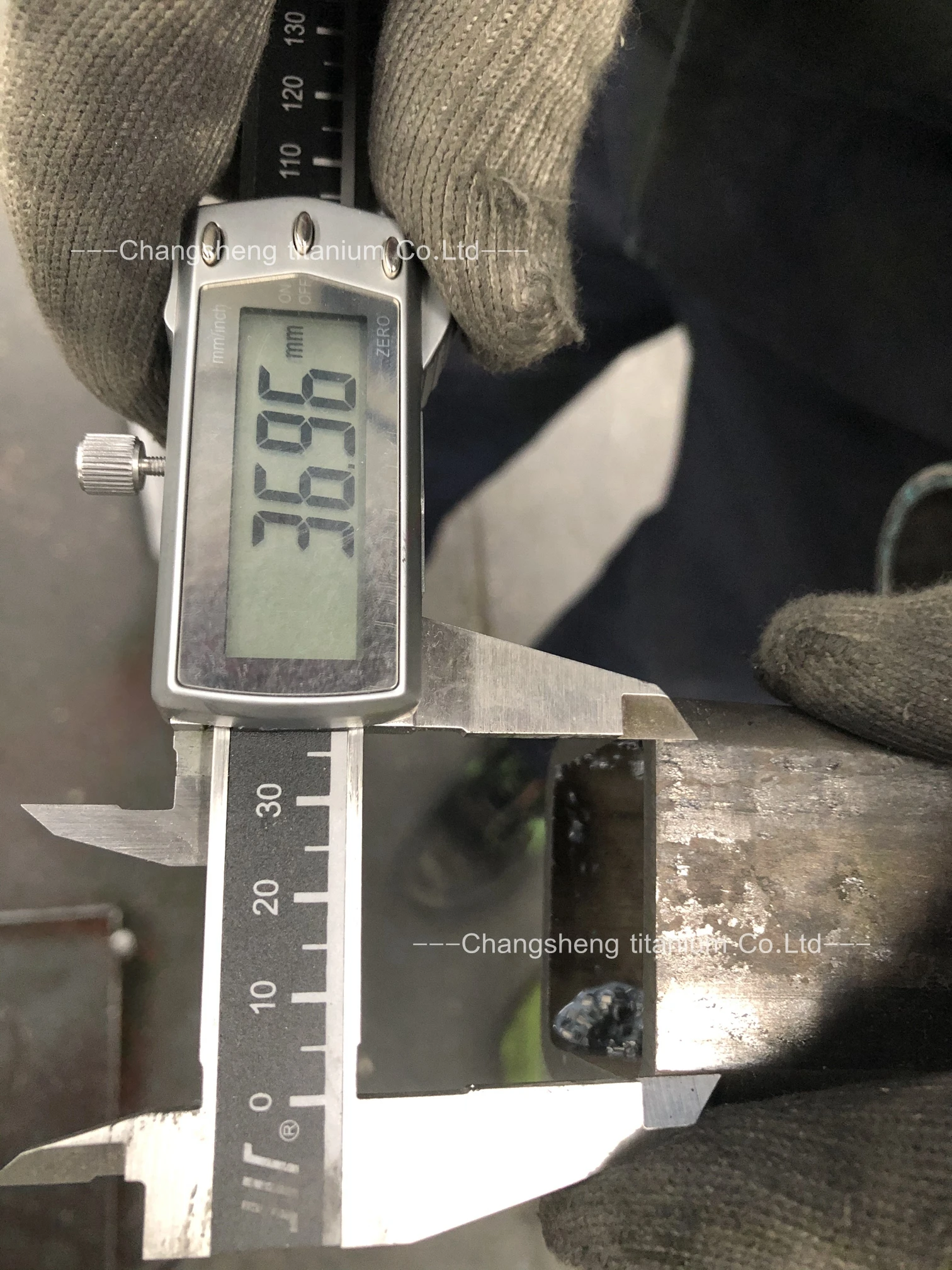

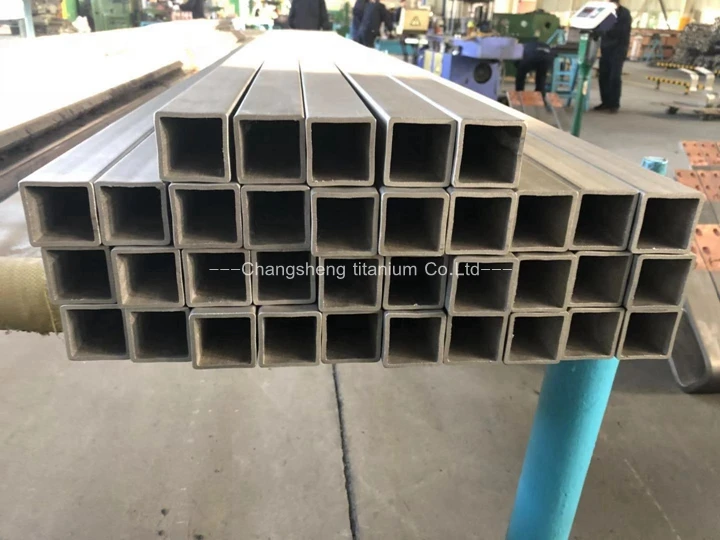

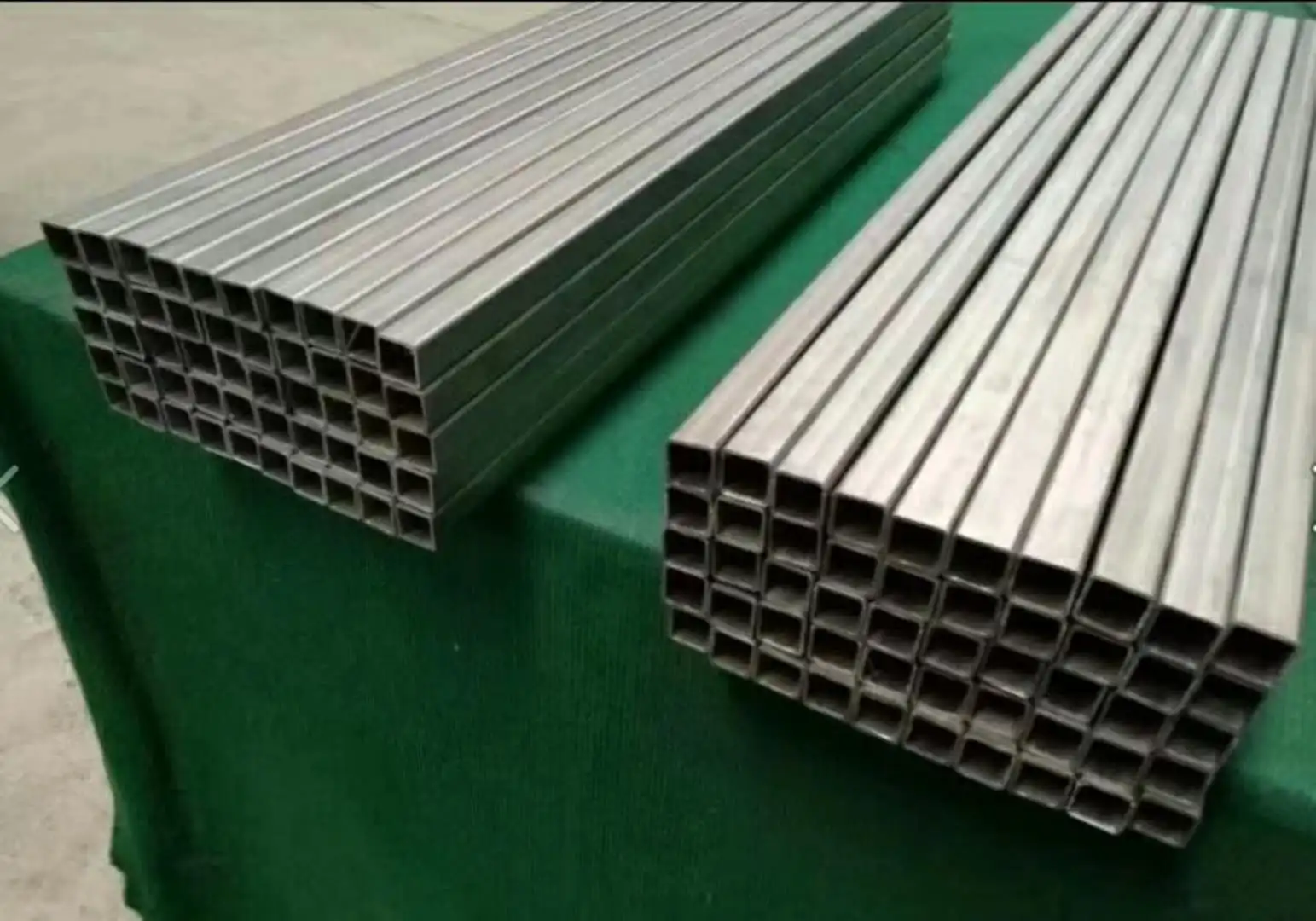

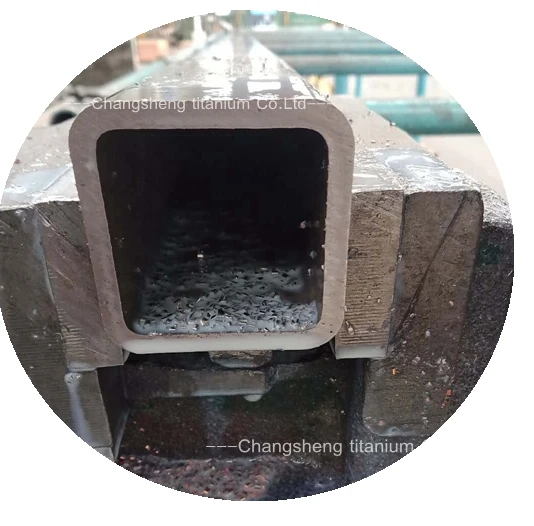

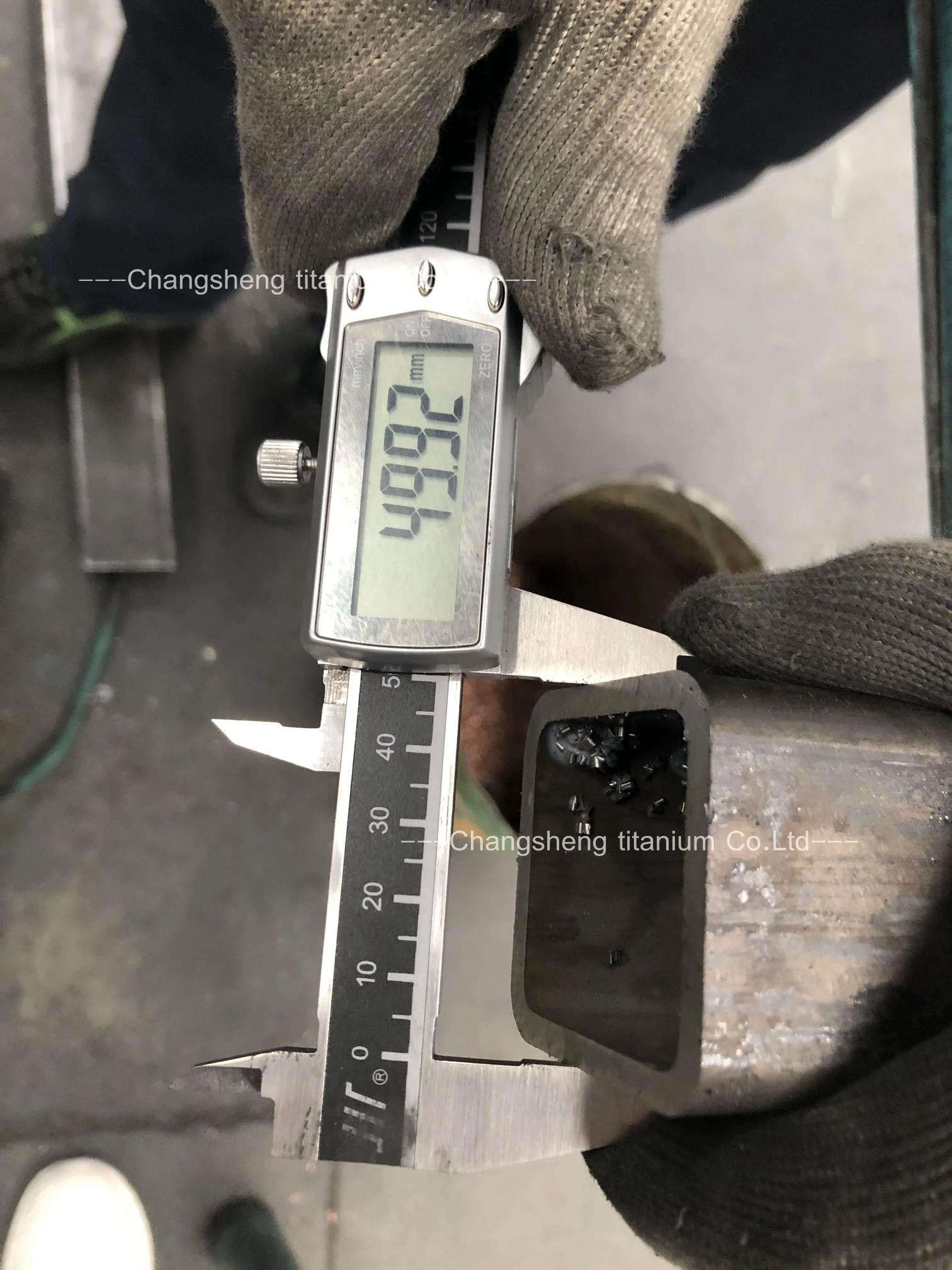

Detailed Images
Related products
Certifications

We possess advanced processing technology ,newly-developed products and scientific cultural ideals.We have an independent R&D department. In tube production line, we have achieved a great deal. Our spinning technology of big seamless tube is advanced in China.We have acquired own patent certificate. Our Gr5 tube production line is top three in the world. The production equipment is introduced from Germany.
Our Company

Baoji City Changsheng Titanium Co., Ltd.  is established in 2006, located in Baoji City which is know as the"Titanium City". At present, we have complete production lines of metallic titanium and titanium alloy materials with 9 engineers, 20 advanced artificers, and 30 production artificers. .  As a professional manufacturer, specialized in Titanium and Titanium alloys. Our main products are Titanium bars, forgings; Titanium tubes, bicycle frame, heat exchangers; Titanium large diameter seamless pipes and other nonferrous metals.

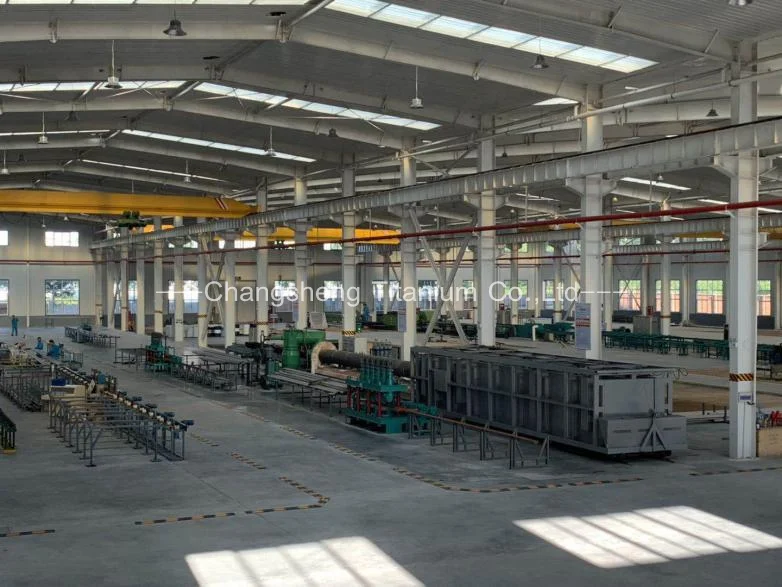

Workshop

Production site: 13,000 m2 .
Workers: 64 people.
Capacity: 30 tons per month
Production equipments: 17 Sets

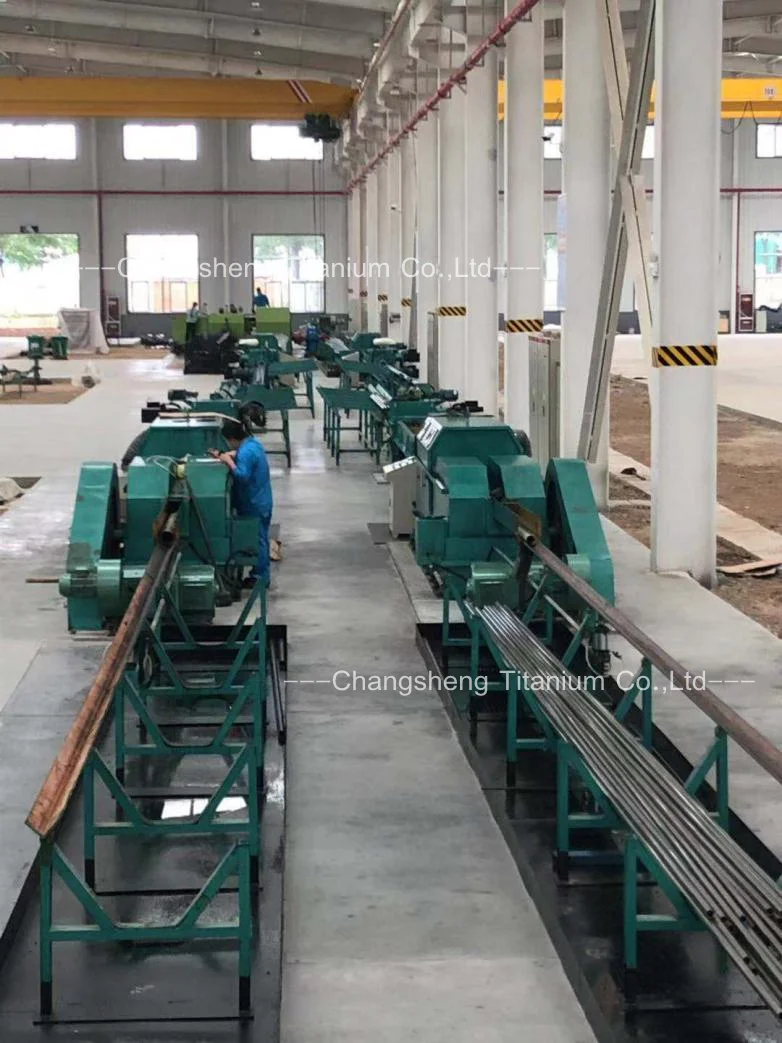

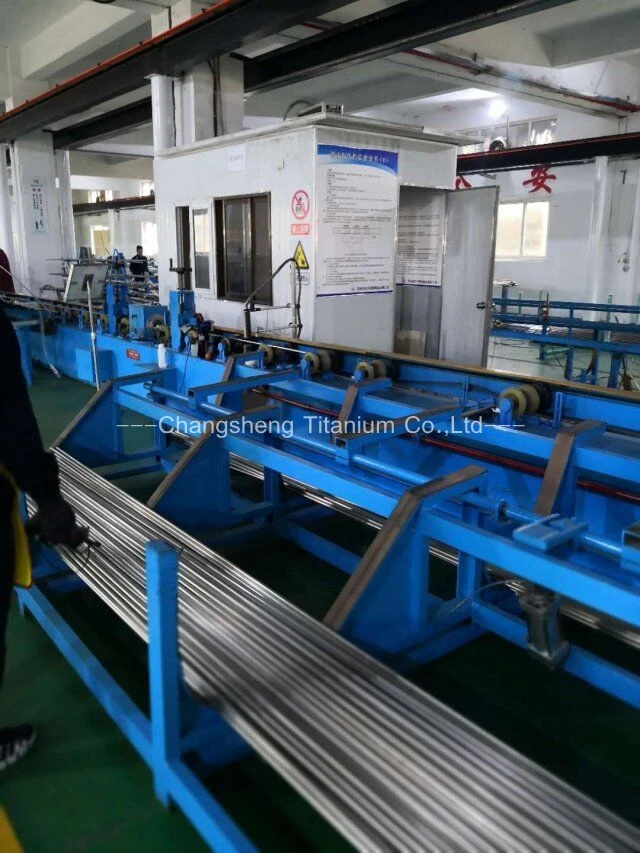

Production Line

Rolling mill: 6 sets
Annealling furnace: 1 set for 9m tube
Acid washing pool: 1 set
Straightening machine:3 sets
Flat end chamfering equipment: 2 sets

Titanium tube Test line

Surface treatment equipment:1 set
Ultrasonic fault detector: 1 set
Mechanical property testor: 1 set
Eddy current test equipment: 1 set

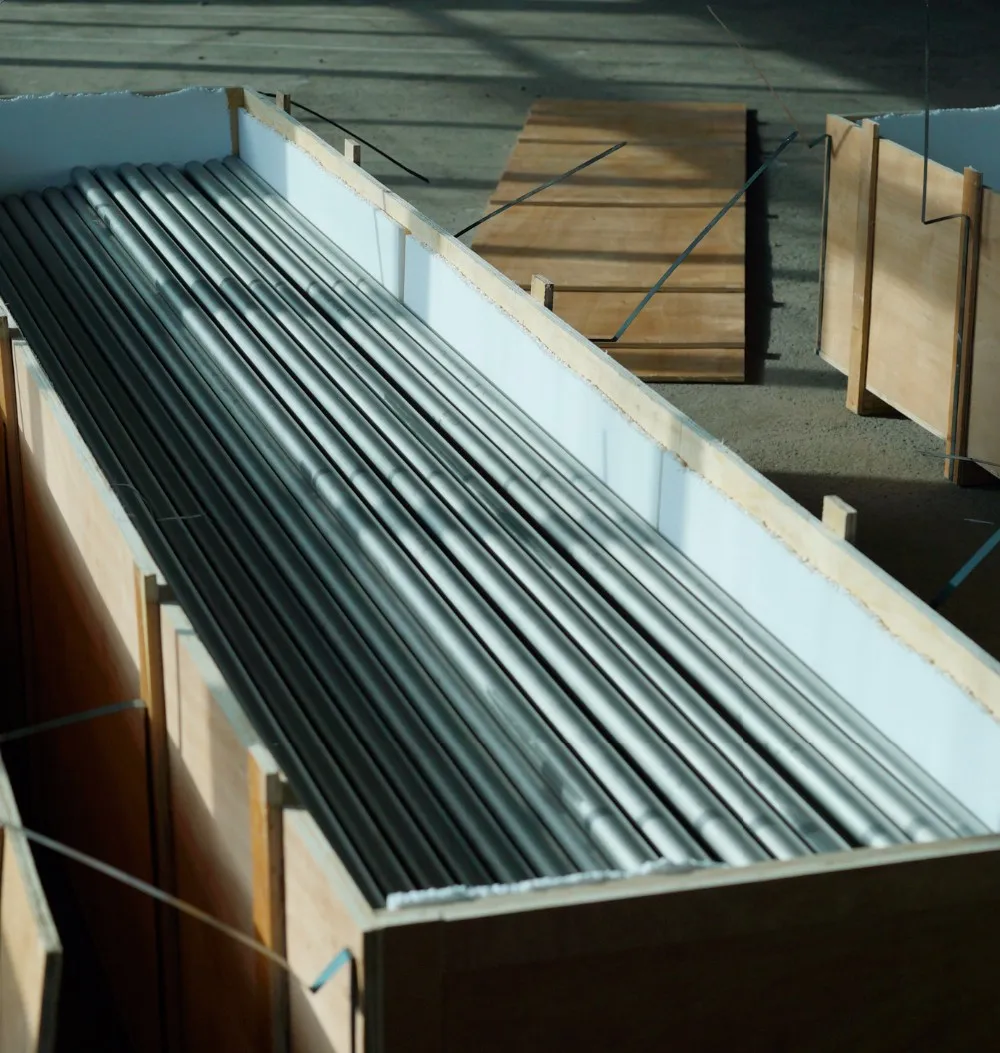

Packing & Delivery

First Step

* Wrap titanium tube with soft stuff

Second Step

* Packing case with foam pad

Final Step

* Standard export plywood case
FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
