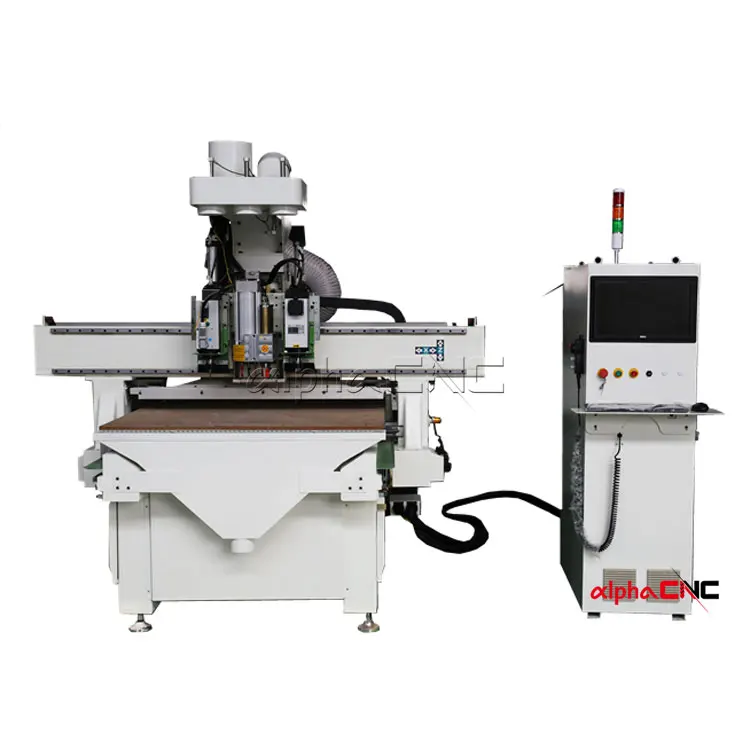

 ATC Router Carved Frame Wood Moulding Machines

Product Application

#If you are looking for a machine for nested-based manufacturing but your choices are limited by budget, then this A2 NESTING will be your perfect investment for great growth.
#The adoption of the world's top-grade components as a result of our constant pursuit of quality means you can spend less money but get bigger value in one compact package.

#Equipped with two spindles, this machine allows you to carry out cutting and grooving without having to change tools. It also carries a drill bank that will give you the versatility for your work.
#When combined with Cabinet Vision Advanced to optimize the machining process, this machinemarries productivity and flexibility, enabling you to carry out nesting and drilling in all kinds of shapes and responding to every need.
#This machine comes with a pusher/sweeper that pushes the worked pieces off the main work table and cleans the surface at the same time, which allows the operator to remove the pieces with ease and dramatically reduces down time.
#Can be used as a stand-alone solution or part of the automatic panel furniture production cell-choose from our range of processing centers to lift your game and remain competitive.
#Option: Automatic loading system


Main Features

# 2 pcs of spindle---More spindle capacity, more tools

# 6KW HQD/CC air cooling spindle---Good quality with reasonable price, powerful and fast speed(Italian HSD for option)

# Taiwan Syntec Controller----more stable, better performance

# Leadshine Servo Motor --- More powerful with high precision(Japan Yaskawa digital servo motor)

#Japan Shimpo gear reducer--- Powerful with high torque, low noise; high precision, high efficiency

#The whole machine frame machined by cnc center--- One time fix to finish all milling, drilling work to make sure the machine with high precision

#Taiwan PMI square rail 25mm--- High bearing capacity, low frictional resistance and high precision

#German WMH Herion helical rack pinion --- Harder and more wear resistant

#Fuling inverter--- Fast response, strong anti-interference ability, more stable performance(Taiwan Delta inverter)

#German Igus cable--- High softness, signal shielding, strong resistance to oil, UV, water and abrasion

#Double layer vacuum table--- Stronger vacuum adsorption power

#Position cylinder--- Align the material faster and easier, save time

#Automatic tool calibration--- easy and accurate "Z" zero position for single and multiple tool changes through the program.

#7.5kw vacuum pump--- More suction, less noise, and no maintenance.

#France Schneider Low-voltage electrical components--- Safer and more durable

#Loading roller--- Easier to load the material

#Taiwan AirTAC electromagnetic valve---- Famous brand for electromagnetic valve, more durable

#Machine structure tempering process--- More rigid and less deformable

#Machine structure sandblasting process--- Smoother surface, better paint adhesion and more nice appearance

#Automatic lubrication system--- Automatic lubrication, saving time and effort, good effect

#Dust collector--- 5.5KW Double bag, stronger suction and bigger capacity.



Descriptions
                                                                     Parameters
Model
A2-9
Working area
2440*1220*50mm
Traveling Size
2500*1260*200mm
Table Size
2440*1228mm
Accuracy
±0.03mm
Unloading Speed
15m/min
Transmission
X/Y PMI Rack and Pinion;Z TBI Ball Screw Drive
Table Structure
Vacuum Table
Drilling bank
Italian FAM
Spindle Power
6.0KW*2
Spindle Speed
18000r/min
Traveling Speed
40m/min
Working Speed
18m/min
Drive System
Leadshine servo motor(Japan Yaskawa for option)
Voltage
AC380/3PH/50HZ
Controller
Syntec

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

1325 4*8 feet wood panel mdf particleboard door cabinet furniture aluminum woodworking cutting milling carving ATC cnc router
Sample
Detailed Images

Gantry

The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.

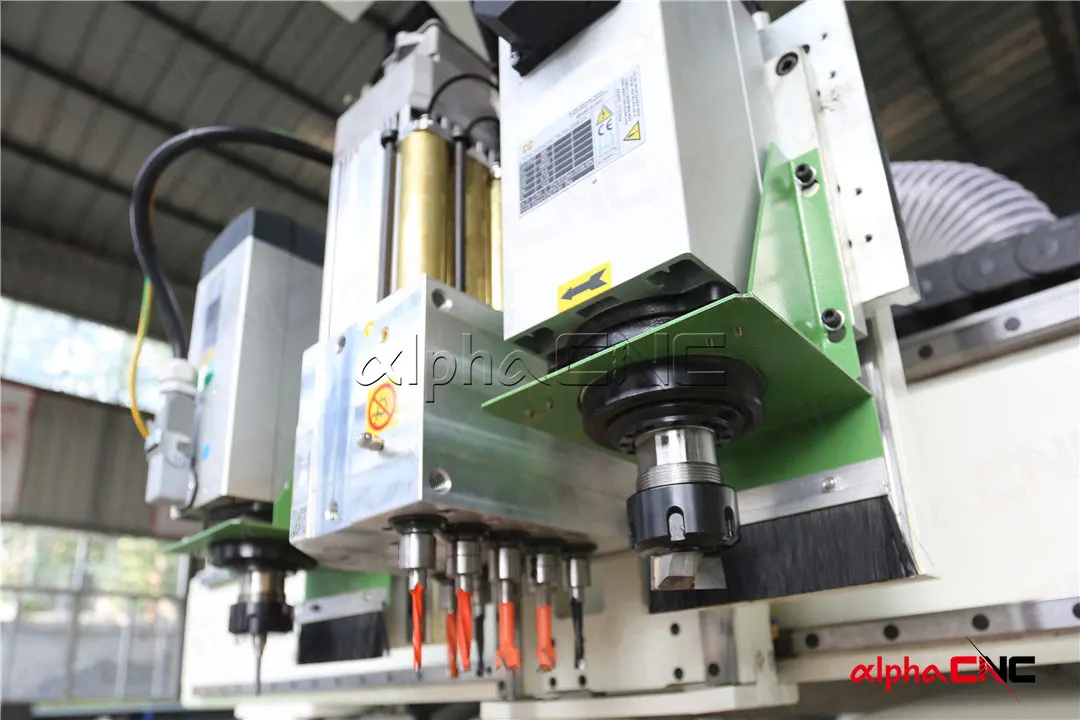

9kw High Frequency Automatic Tool Changer Spindle

The Alpha ATC CNC Router machine comes standard with a 9kw high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.


Drive Motors

Brand: Yaskawa  Servo Motor
Origin: Japan

The Alpha ATC Series CNC Router utilizes digital AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance - therefore, reducing any maintenance downtime.

Syntec 6MD Bus Communication Controller &Hand-held Pulse Generator

-Better than Syntec 6MB, not easy to get broken

.-Support high resolution axis motor

-Simple distribution -Easily install

-Better performance


CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

Pneumatic Material Alignment Stops

The Alpha Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.

PMI square rail&High quality helical rack pinion


The machine adopts Taiwan PMI square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.


Automatic lubrication system

The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail, ballscrew and the rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.


Optional Parts


Becker Rotary Vane vacuum pumps

Alpha offers Becker Rotary Vane vacuum pumps which are quiet, clean, and require minimal maintenance.

4-Axis Rotary Axis

The addition of  4-axis rotary table assembly adds greater functionality to the machine's capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

HSD Aggregate Tool

Alpha CNC offers the HSD Aggregate Tool. Aggregate heads allow you to expand the capabilities of your CNC Router.
