ATOP middle duty 8.0T flat bed rollback car carrier truck with 700P NPR full air brake chassis flat bed wrecker tow truck

Feedback Ratings
  • 1-3 Units
    $36,600.00
  • >=4 Units
    $36,000.00
Model Number:
ATOP5080TQZCP-AB
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Units)
Graphic customization (Min. Order: 1 Units)

More

Mark (Min. Order: 1 Units)
Color (Min. Order: 1 Units) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Fuel Type:
Diesel
Emission Standard:
EURO 5
Condition:
New
Transmission Type:
Manual
Dimensions (L x W x H) (mm):
7690mm(L)x2300mm(W)x2350mm(H)
Place of Origin:
Shandong, China (Mainland)
Brand Name:
ATOP
Product name:
flat bed wrecker tow truck
Tow Trucks Chassis:
Isuzu NPR 700P
Wheelbase:
3,815mm
Chassis Engine:
4HK1-TC51; 5,193cc
Max. Output Power:
141Kw (190Hp)
Max. Output Torque:
510N.m
Drive Train:
4 x 2
Brake System:
Full Air Brake, Dual Circuit
Cab Style:
Single Cab
Steering Wheel:
Left Hand

Packaging & Delivery

Selling Units:
Single item
Single package size:
750X240X235 cm
Single gross weight:
5400.0 kg
Package Type:
Spray Wax
Picture Example:
package-img
Lead Time :
Quantity(Unit) 1 - 1 >1
Est. Time(days) 30 To be negotiated

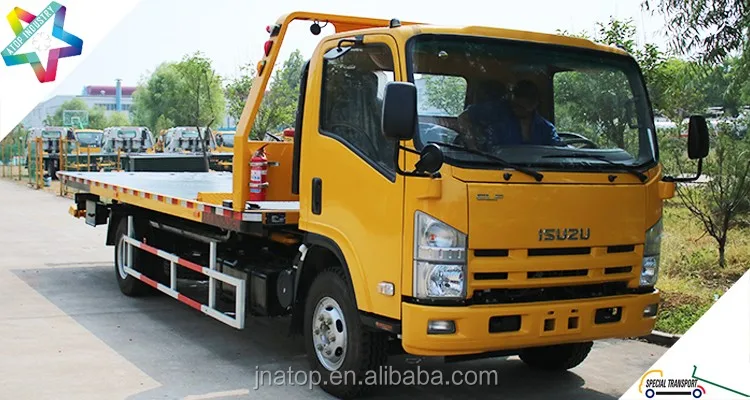

Flat Bed Tow Truck
ATOP Middle Duty 8.0T Flat Bed Rollback Car Carrier Wrecker Tow Truck
Vehicle Overall Outer Dimension:
7690mm(L) x 2300/2400mm(W) x 2350mm(H)
G.V.W.
8,675Kgs
Crub/Tare Weight:
5,380Kgs
Approach Angel:
21o
Departure Angel:
9o
Front Overhang:
1,110mm
Rear Overhang:
2,535mm

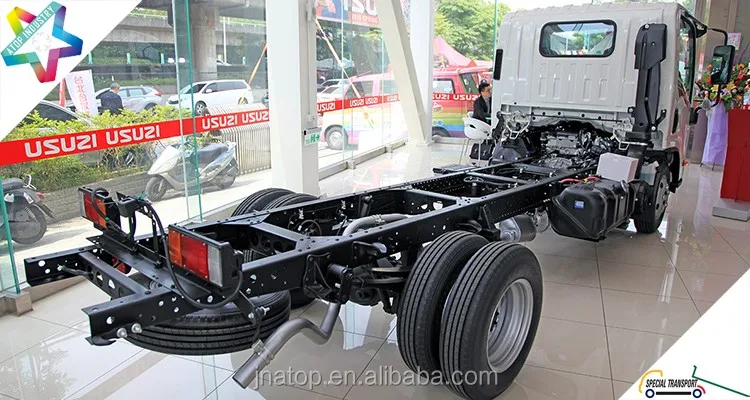

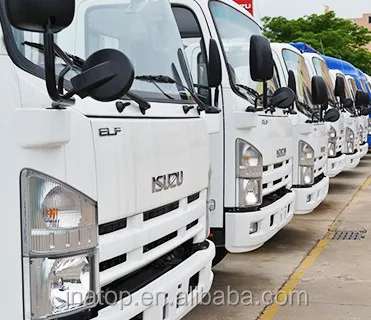

Tow Truck Chassis
Wrecker Tow Truck Chassis Brand
Isuzu
Wrecker Tow Truck Chassis Model
NPR 700P
Steering Wheel:
Left Hand Drive
Drive Train:
4 x 2 rollback truck tow truck

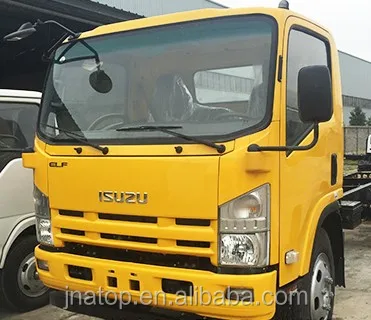

Cab Style:
Single Cab
Seating Capacity:
rollback truck tow truck
Wheelbase:
3, 815mm
Rim/Tires:
8.25R16 (6+1)
Brake System:
Full Air Brake, Dual Circuit

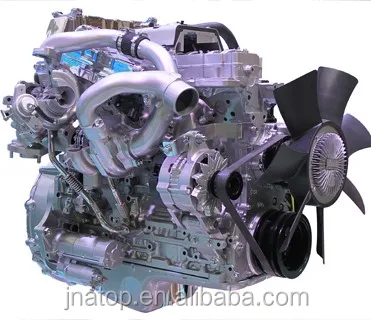

Engine Brand
Isuzu
Engine Model
4HK1-TC51 wrecker tow truck
Engine Emission
EURO 5 wrecker tow truck
Displacement
5,193cc wrecker tow truck
Max. Power
141Kw (190Hp) wrecker tow truck
Max. Torque
510N.m wrecker tow truck
Key Features
4-Cylinder, In Line, Inter-cooled; High Pressure Direct Fuel injection; Waste-Gated Turbocharger; Advanced Thermal Engineering;

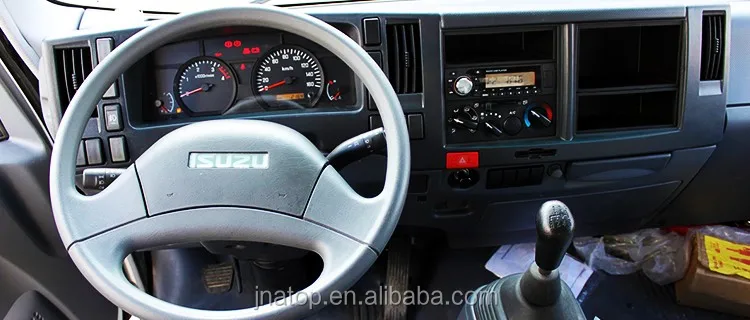

Manual Tiltable & Collapsible Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers;  With 2 Audio Speaker;

Front Suspension: Tapered Leaf Spring 8 Semi-Elliptical Leaf Springs With Shock Absorbers;  F033 Forging I-Beam Drum brake, Axle Capacity: 4,000Kgs wrecker tow truck wrecker tow truck wrecker tow truck  tow truck

Rear Suspension: Tapered Leaf Spring 10+6B Semi-Elliptical Leaf Springs With Shock Absorbers; R066 Pressed Welding Axle Housing Drum brake, Drive ratio: 4.10; Axle Capacity: 7,000Kgs wrecker tow truck wrecker tow truck

Quality durable PTO (Power Take Off) wrecker tow truck wrecker tow truck wrecker tow truck wrecker tow truck

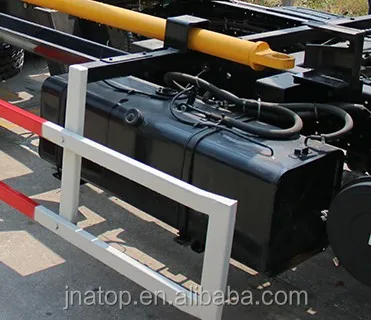

100L Steel Fuel Tank

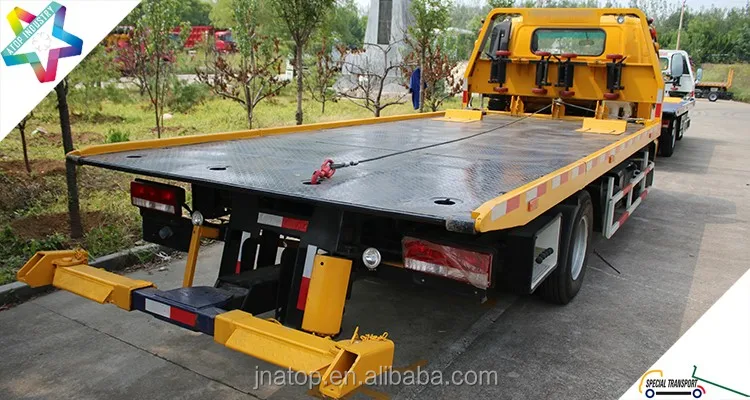

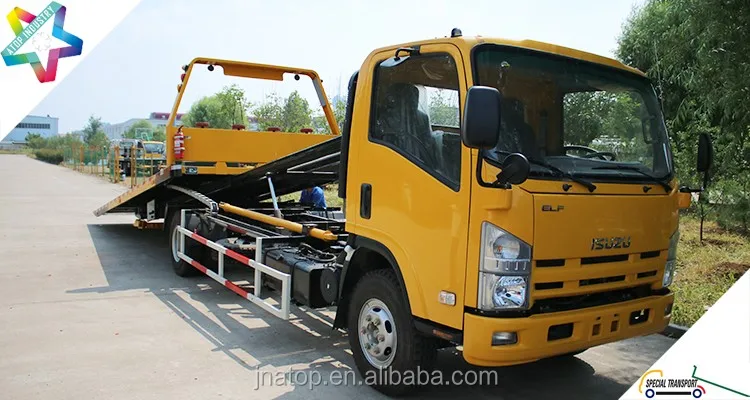

Flat Bed Platform
Rollback Flat Bed Platform System
Flat Bed Platform Length
5,600mm
Flat Bed Platform Width
2200-2380mm
Flat Bed Platform Materials
Steel Checkered Plate
Max. Extension Distance
3,100mm
Min. Loading Angle
8 Degress
Max. Winch Capacity
40 KN
Winch Quantity
1 Set

Max. Flat Bed Platform       Loading Capacity

3,000 Kgs

Dual Control Stations tow truck tow truck tow truck

tow truck tow truck tow truck tow truck tow truck tow truck

Hydraulic Steel Lines With Protective Cover

tow truck tow truck tow truck tow truck tow truck tow truck

Additional Tow Bar Under Deck/Platform

tow truck tow truck tow truck tow truck tow truck tow truck

Steel Toolbox (Aluminum Toolbox Optional)

tow truck tow truck tow truck tow truck tow truck tow truck

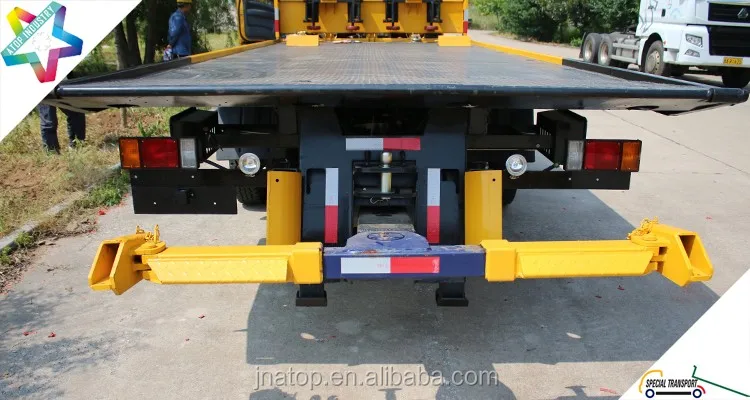

Under Lifting System
Under Lifting System Specifications
Max. Under Lifting System Towing Capacity:
8,000 Kgs
Rated Under Lifting System Hoisting Capacity:
1,500-2,100 Kgs
Max. Under Lifting System All Extended Available Length:
1,705mm
Max Under Lifting System Arm Extension Distance:
1,705mm
Automatic Couplet
Optional

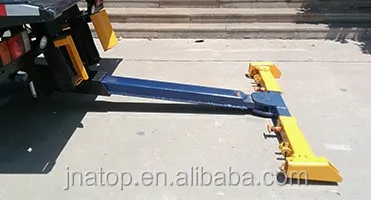

Under Lifting With Galvanized L-Arms


Tail Working Lighting


Optional Items

Hand Wash Water Tank & Liquid Soap Dispenser


Aluminum Toolbox
