AWR2840PC Smart PC diamond cut car wheel repair cnc lathe equipment

  • 1 - 1 Sets
    $14,000.00
  • >=2 Sets
    $13,500.00
Max. Swing Diameter (mm):
720
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 3 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Structure:
Flat Bed Lathe
Condition:
New
Max. Spindle Speed (r.p.m):
2000 r.p.m
Machining Capacity:
Medium Duty
Width of bed (mm):
320 mm
Spindle Motor Power(kW):
7.5
No. of Spindles:
Single
Number of Axes:
2
Travel (X Axis)(mm):
350 mm
Travel (Z Axis)(mm):
1000 mm
Place of Origin:
Shandong, China
Dimension(L*W*H):
2300*1750*2100mm
Brand Name:
HIENCE
Model Number:
AWR2840PC
Voltage:
380V
Certification:
CE, ISO ,SGS
Tool Post Stations:
4
Weight (KG):
2200
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Machinery Repair Shops, Wheel repair and maintenance
Key Selling Points:
Automatic
Local Service Location:
Canada, Spain, Japan, Australia
Showroom Location:
Canada, Germany, Spain, Colombia, South Africa
Name:
Alloy Wheel Repair Cnc Lathe
CNC or Not:
CNC
Automatic Grade:
Automatic
Optional power of chuck or tailstock:
Manuanl , hydraulic or pneumatic
Controller:
PC touch screen controoler
Probe:
Ruby touch type
Function:
Car Wheel Repairing Lathe
Machine Type:
Alloy Wheel Cnc Lathe
Keyword:
Cnc Wheel Repair Machine
Spindle Bore(mm):
82 m'm
Max. Swing Diameter (mm):
720 mm
Max. Length of Workpiece (mm):
750 mm
Product Certification certification
CE Certified.
Valid from 2018-10-24 until 2023-10-23
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Free fumigation wooden cases or fumigation wooden cases.
Port
Qingdao, Ningbo, Shanghai, Tianjin
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 To be negotiated

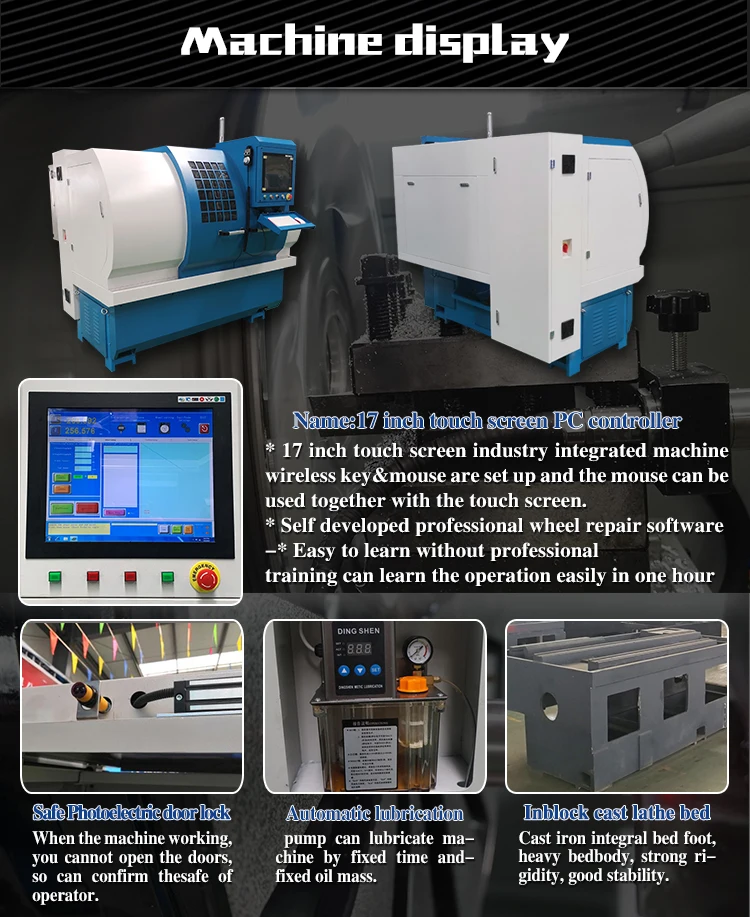

Our company has developed newest PC controller type wheel repair lathe to repair damaged wheel face. The machine use 17'' touch industrial PC, so the machine get rid of complicated operation and many useless CNC controller button. And all steps will finished on PC.

   ITEMS

AWR2840PC

Max. swig over bed (mm)

Φ720(28 inch)

Max. swig over cross slide (mm)

Φ540

Max. Size of alloy wheel

27

Cross slide travel (mm)

350

Width of the rail

330

Length of the rail

1320

Size of the three-jaw chuck

12

Range of spindle speed (RPM)

50~2000

Spindle speed control

Automatic

Spindle bore  (mm)

Φ60

Taper of spindle bore

MT6

Taper of spindle nose

A2-6

Max. size of tool post

25×25mm

Stations of tool carrier

4 station

Min. setting unit of motor

(Z) long    0.001mm,

(X) cross   0.001mm

Moving speed of post

(Z) long     8m/min,

(X) cross    4m/min

Motor power

7.5KW

Mchine base

Whole cast iron base

Machine size(L×W×H) (mm³)

2300×1750×1950

 weight

2200kgs

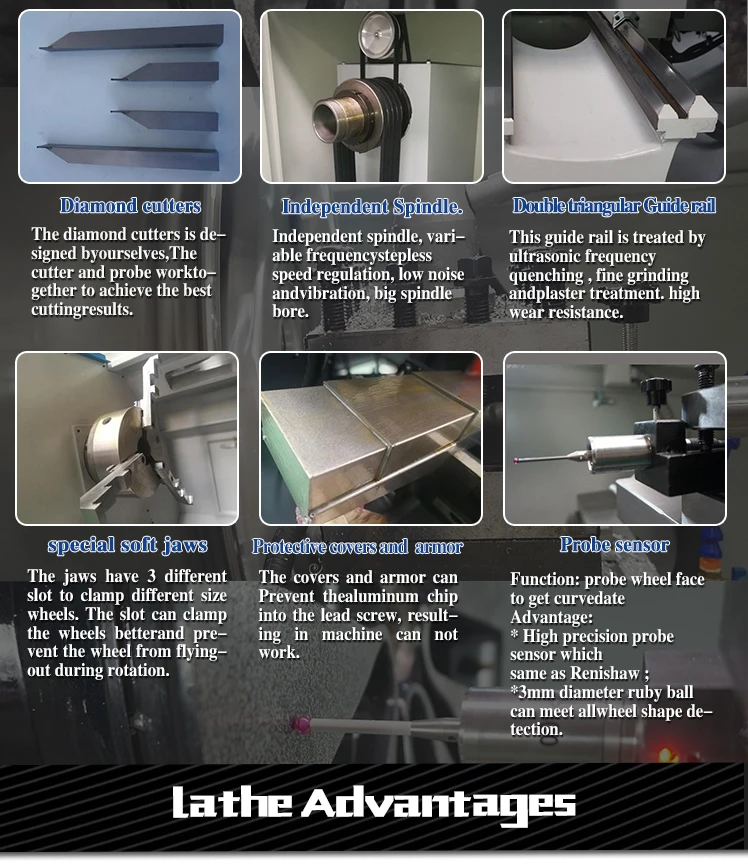

1.Can probe and cutting alloy wheels automatic. Can set start and end detection point by one key.

2.Can probe and cut different difficult deep dish wheels by longer probe and longer cutter.

 3.Can realized different cutting effect according to your request by adjust detection parameters, can realize rainbow line.

 4.Can save program for next save models wheels, so no need to probe again for same model wheels. Can save time and money.

 5.We offer detailed training video and manual with machine,you can learn the machine by yourself.

1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.

2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 1 hours on work days, and within 4 hours on holiday.

3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website according to your request. Or You can let our seller know what is your request specification or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.

4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.

5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.

6)Q: how about warranty?
A: warranty is two year, but we will offer lifetime service for machine.
