Absolute Encoder Applied to Machine Tool Micro Rotary Angle Sensor 8bit NPN

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    $68.00
  • >=50 Pieces
    $53.00
Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 >500
Est. Time(days) 5 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China (Mainland)
Brand Name:
DONGHE
Model Number:
OCP-256-G24C
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Digital Sensor
Color:
Black
Type:
Waterproof
outer dia:
50mm
Product name:
OPC-256-G24C
shaft:
8mm
output bit:
8/9/10/12/customized
Certificate:
ISO9001:2000
Warranty:
12 Months
absolute encoder:
Absolute Encoder Applied to Machine Tool Micro Rotary Angle Sensor
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard paper box, one product in one small box, cartons choosing according to the different size of the products.
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 >500
Est. Time(days) 5 10 To be negotiated
Video Description
Product picture

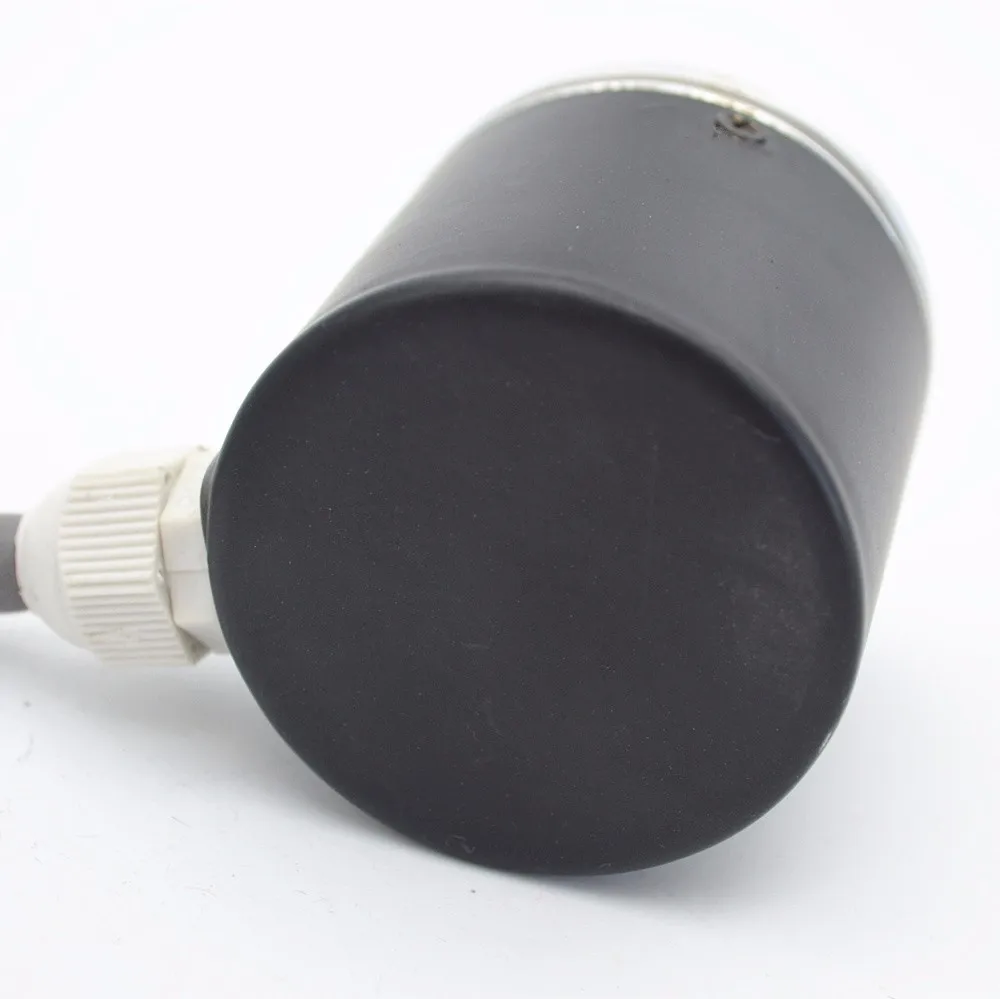

Absolute Encoder Applied to Machine Tool Micro Rotary Angle Sensor 8bit NPN

Product Description
Operating temperture
-10~+60°C
Supply voltage
DC10.8-26.4V
Storage temperature
-25~+85°C
Current requlrements
Below 70mA
Impact resistance
980m/S2(3 times each in X,Y,Z dicections)
Allow the corrugated
Below 3%rms
Resistance to vibration
Displacement amplitude0.75mm,10-55Hz the three axis all 3 back
Axial moment of inertia
2×10-6kg/m2
Starting torque(25°C)
Below0.03N·m(+20°C)
MAX.Allowable load
Radial direction
Axial direction
Allow maxumum mechanical rotation
3000rpm(continuous)
5000rpm(instantaneous)
50N
30N
output code
Binary gray code
Relative humidity
25-85%RH(No condensation)
output form
NPN open circuit electrode output
Maximum response frequency
20KHz
residual voltage
Below 0.4V
Below 1.5V
Output level
Negative logic
inrush current
16mA  32mA
Load supply voltage
Below DC40V
Carry the direction
Look from the axial side clockwise carry
ON/OFF time
2.0uS(load resistance 1KΩ
Output bits
8BIT

Specifications of Connection

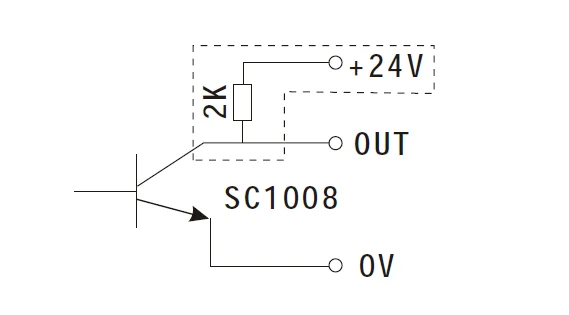

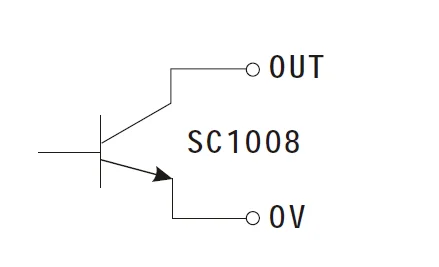

Output ciruit

Output circuit


Detection circuit

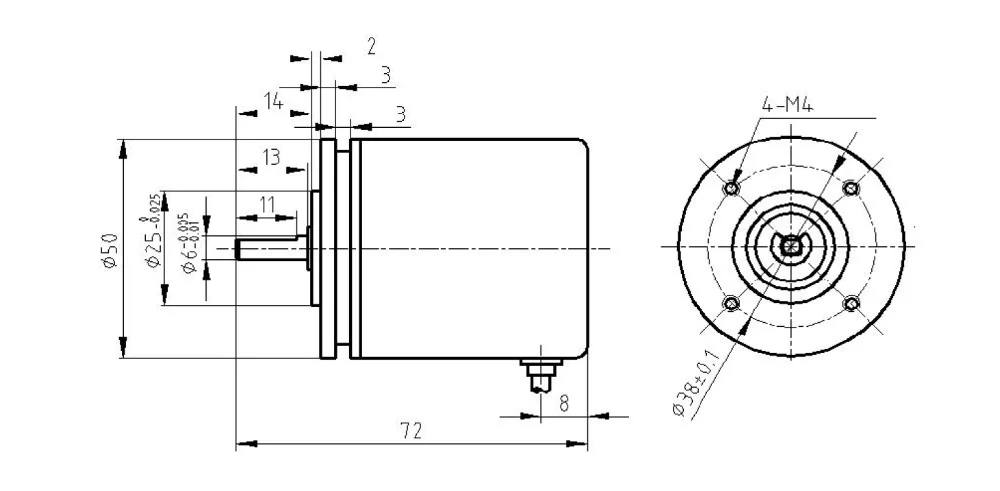

External view
