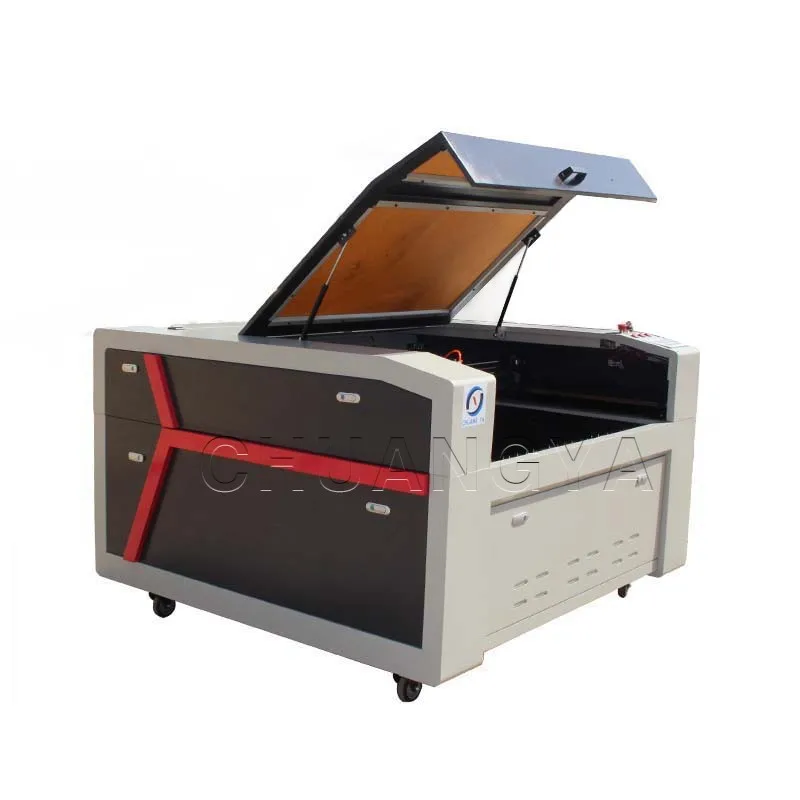

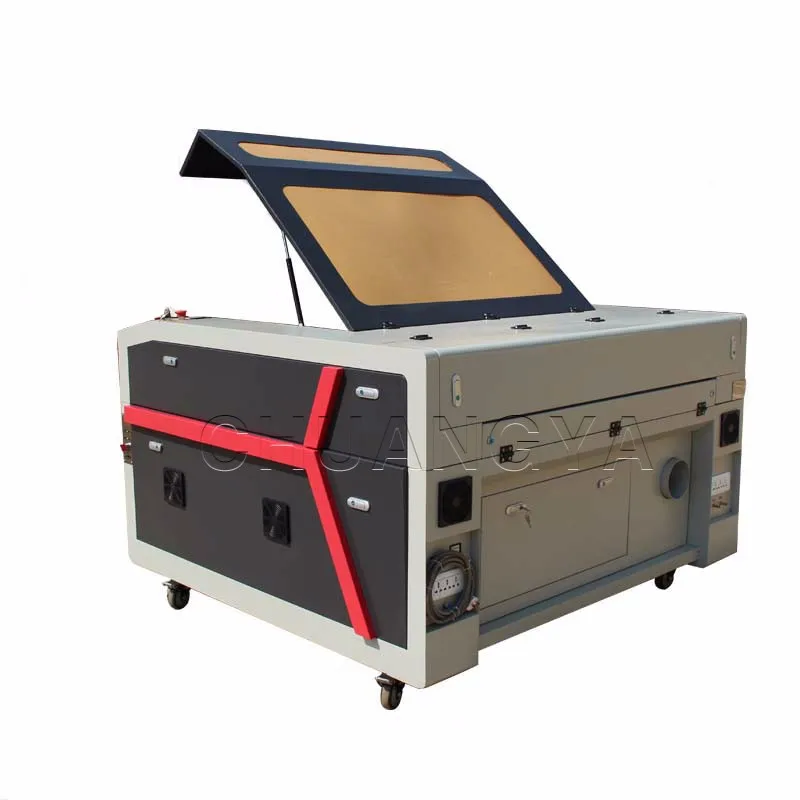

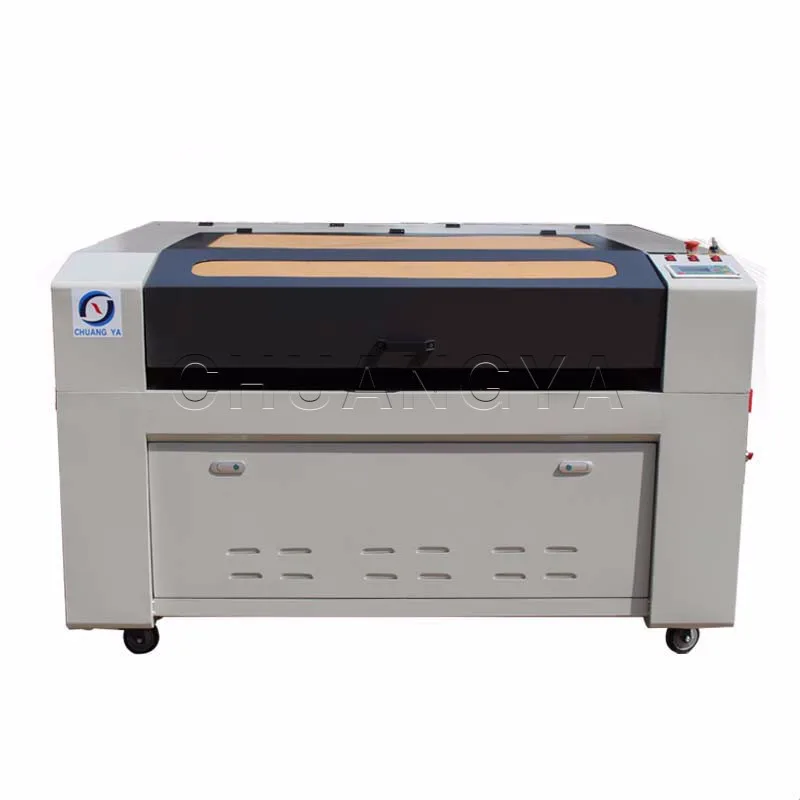

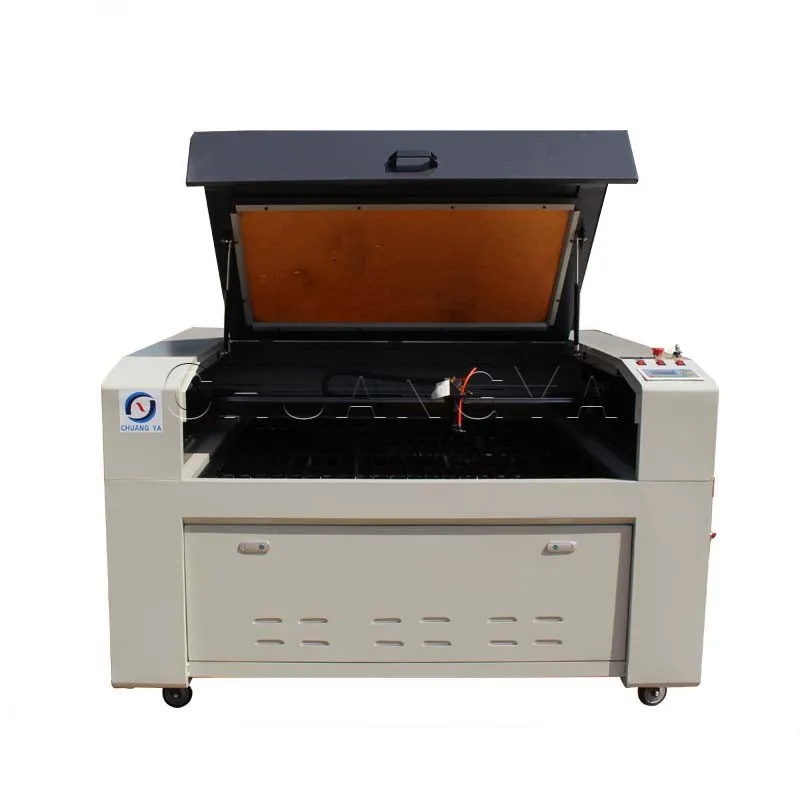

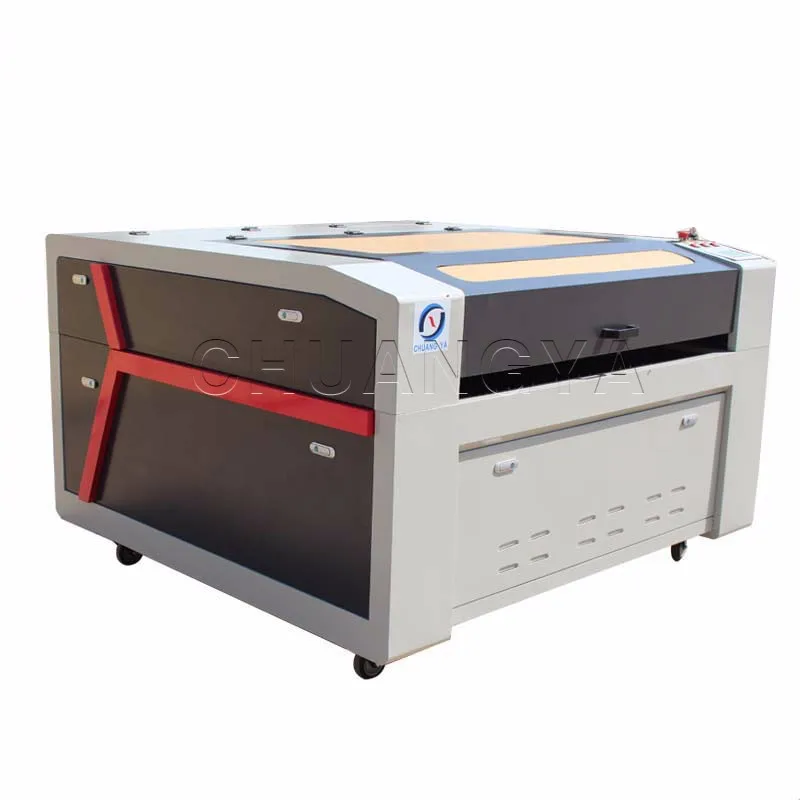

Acrylic Charms/Paper Wedding Card Co2 Laser Cutting Machine

FOB Reference Price:Get Latest Price
$2,500.00 - $2,900.00 / Sets | 1 Set/Sets Acrylic Charms/Paper Wedding Card Co2 Laser Cutting Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Laser Type:
CO2
Cutting Area:
1300*900mm
Cutting Speed:
0-36000mm/min
Graphic Format Supported:
AI, BMP, DWG, DXF, DXP, PLT
Application:
Laser Cutting
Model Number:
1610
Condition:
New
Cutting Thickness:
0-20mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Ruida Topwisdom
Place of Origin:
Shandong, China (Mainland)
Brand Name:
ChuangYa
Certification:
CE, ISO, SGS
Wedding Card Co2 Laser Cutting Machine:
Acrylic Charms/Paper Wedding Card Co2 Laser Cutting Machine
Laser power:
80w 100w 130w 150w
Laser tube:
Reci Laser Tube or Yongli Laser Tube
Power Supply:
AC110V/220V+10%
Function:
Cutting nonmetal and metal
Controller:
Topwisdom controller or RD controller
Rails:
Taiwan Square Rails
Cooling system:
Water Chiller
Motor and driver:
Stepper motor and leadshine driver
Transmission:
Shanghai Fulong Belt
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
40 Set/Sets per Month Acrylic Charms/Paper Wedding Card Co2 Laser Cutting Machine
Packaging & Delivery
Packaging Details
strong plywood case and water-proof film for Acrylic Charms/Paper Wedding Card Co2 Laser Cutting Machine
Port
Qingdao, Shanghai and any port of China
Lead Time :
10 working days
Video Description
Product Description

Product Application of Acrylic Charms/Paper Wedding Card Co2 Laser Cutting Machine

This machine is used for cutting and engraving MDF,paper,wood,acrylic,leather,plastic etc.

NO.
Description
Parameter
1
Working area
1300*900mm
2
Laser power
80w 100w 130w 150w
3
Cutting speed
0-36000mm/min
4
Power supply
220V±10%/10A, single phase
5
Positioning speed
20m/min
6
Controller
RD or Topwisdom
7
Gross Power
1.6Kw
8
Operating temperature
0-45℃
9
Operating humidity
5-80%(free of condensed water)
10
Graphic format supported
BMP,JGP,PNG,DXF, etc.
SPECIFICATIONS FOR  Acrylic Charms/Paper Wedding Card Co2 Laser Cutting Machine

Guarantee and After-sale service

3 years for the whole machine .
1) Technical support by phone , email or MSN/Skype around the clock
2)Friendly English version manual and operation video CD disk
3)Engineer available to service machinery overseas

Detailed Images

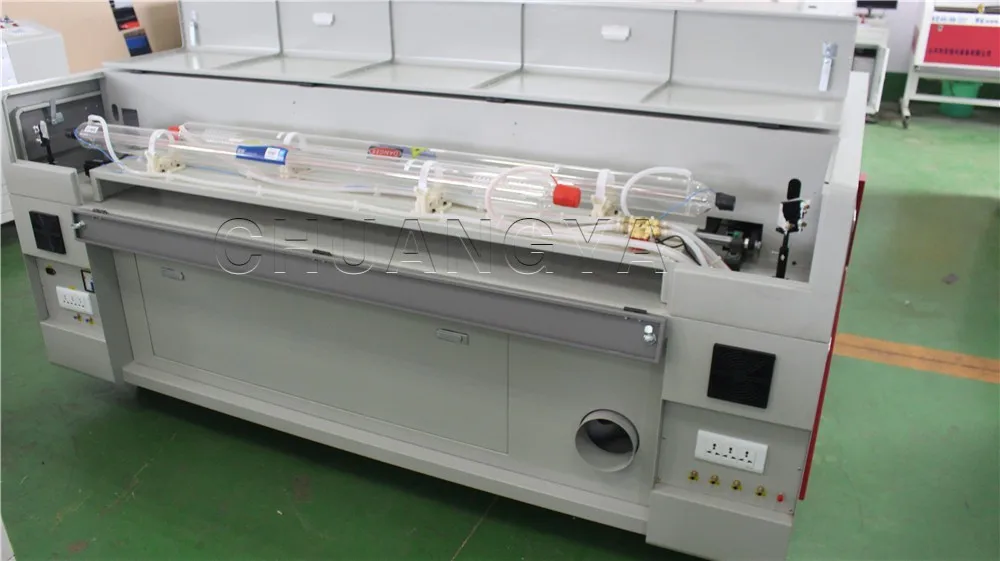

Enhanced CO2 laser tube

1.The machine adopt Reci laser tube, it has 10 months guarantee, it is the whole world joine guarantee, it is can be replced with free if there is any question(Non-human) in the guarantee period.

2. power: total reflection mirror and an output mirror CO2 laser tube used lenses are of US origin, the same length higher than ordinary power laser tube 40℅,

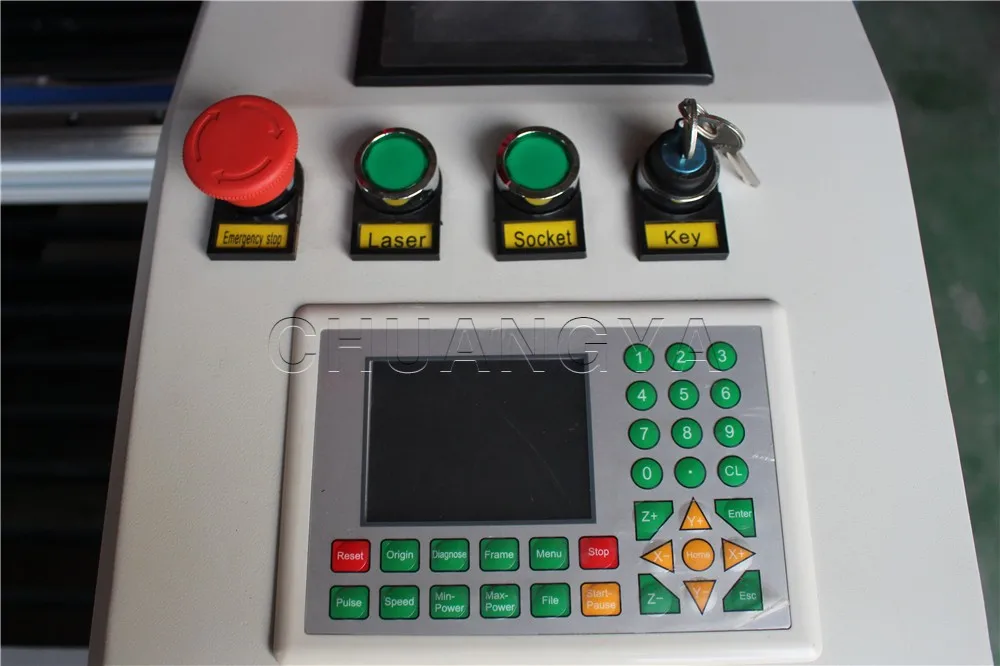

Advanced Control Buttons and Panel

Humanized design,just need to connect the PC or insert U-disk to the laser machine,easy and simple for freshman to learn and operate

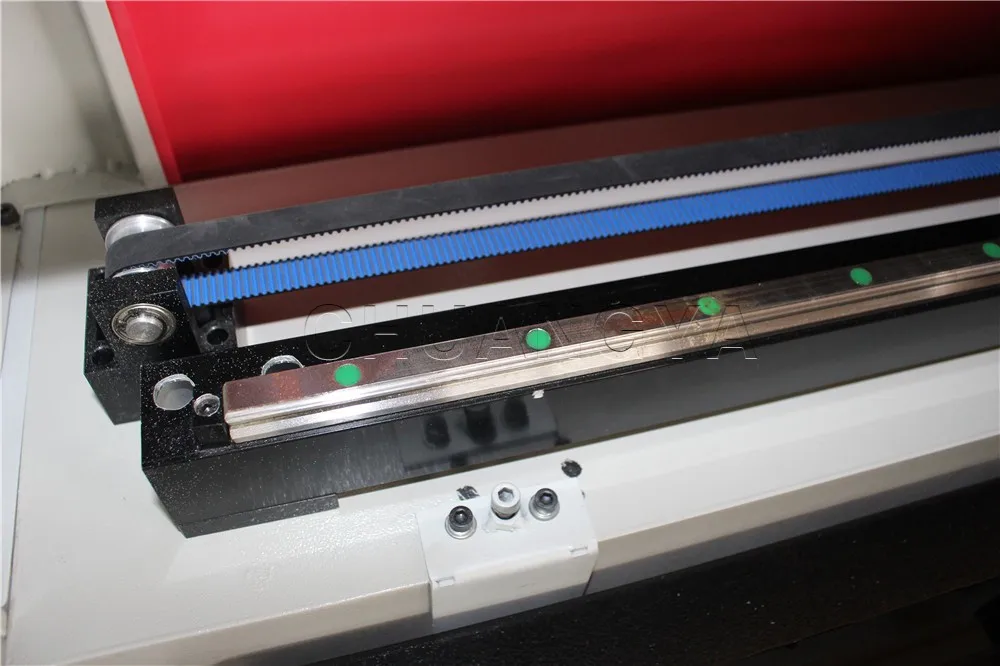

Taiwan Hiwin Square Rail

Dust protected design,high precision and less wear ,with world famous Taiwan PMI self-lubricating sliding block

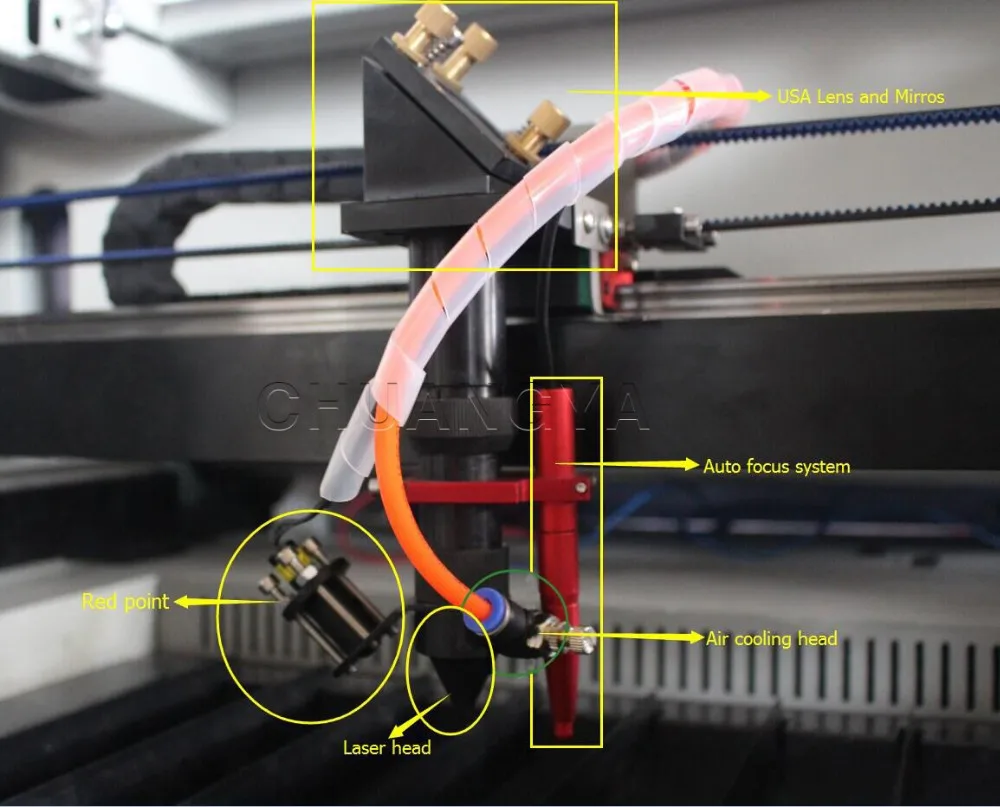

Advanced Laser Head

Laser head includes red point,auto focus system.

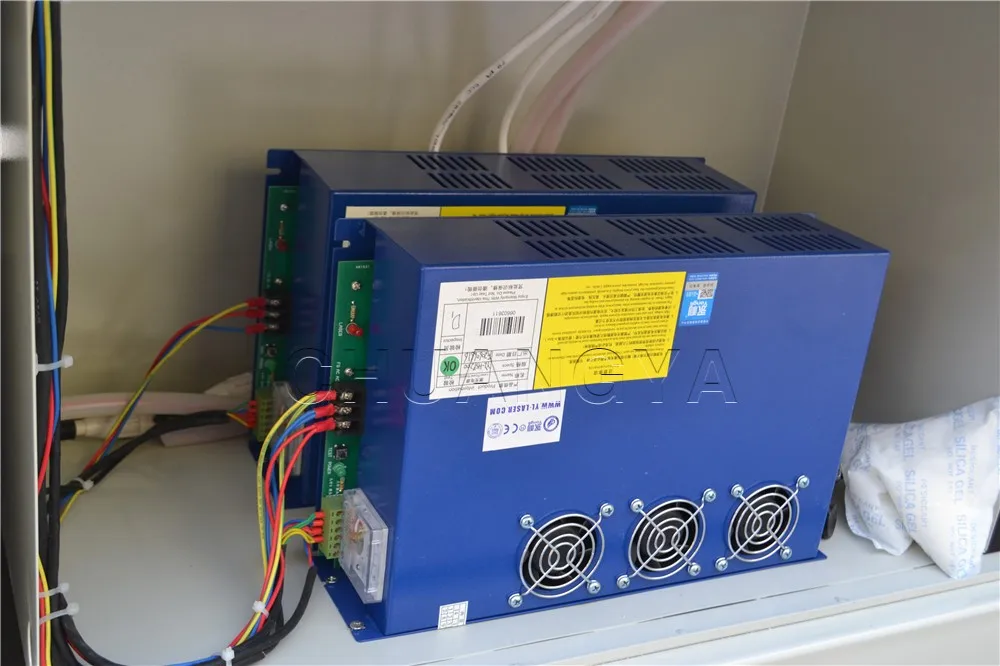

Laser Power for Tube

Designed particular power supply for laser tube,which can protect laser tube even though the voltage is not stable sometimes.

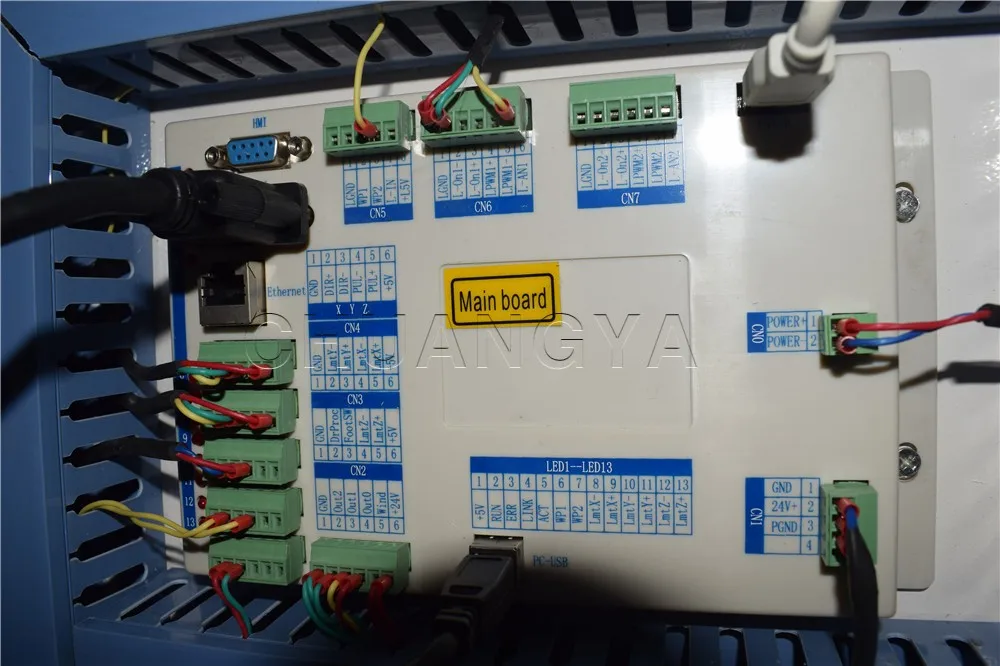

Mother Board

The latest laser engraving & cutting control system developed by Ruida Technology, this control system has better stable hardware with antistatic, resistance to high pressure..

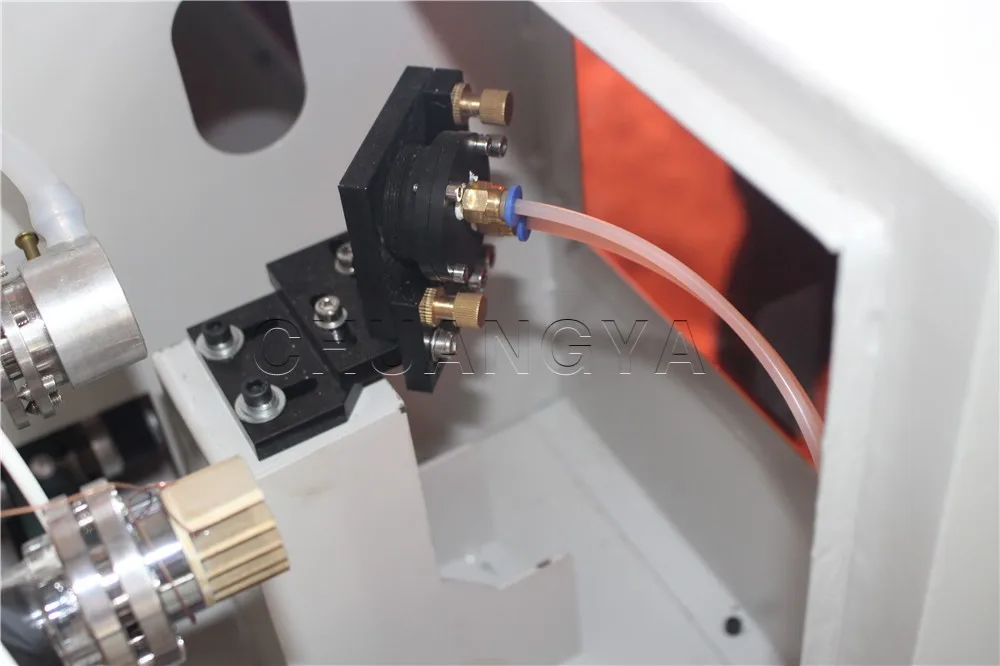

Water-cooling Mirror Holder

High-power laser beam will make mirror high-temperatured and damage mirror.Water can go into the mirror holder to cool mirror.

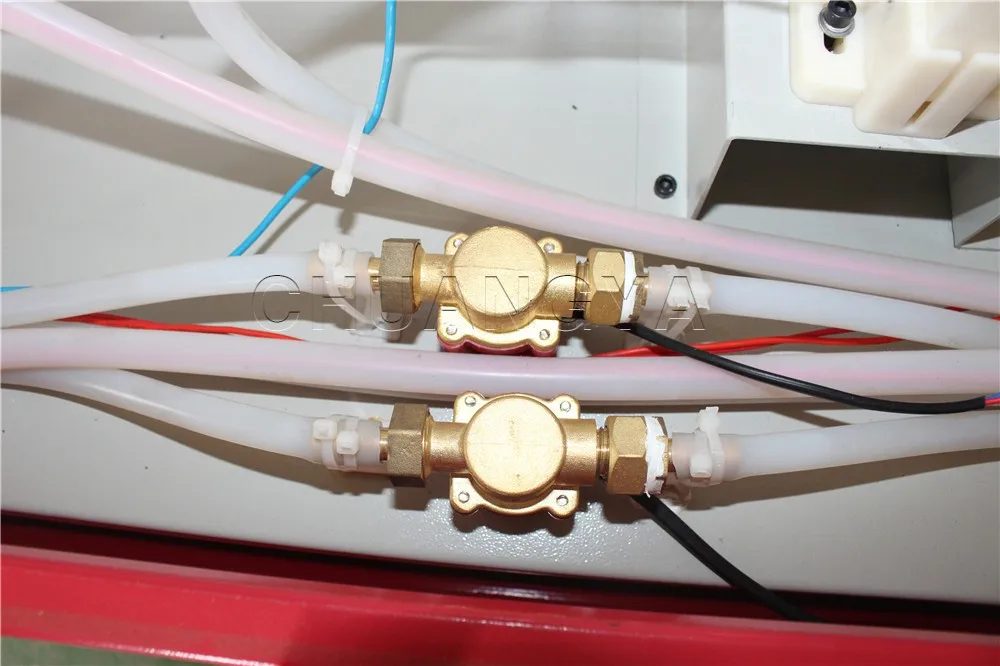

Water Protection

To be safe,laser tube will not work with cooling water from chiller.This part can feel water go through or not.

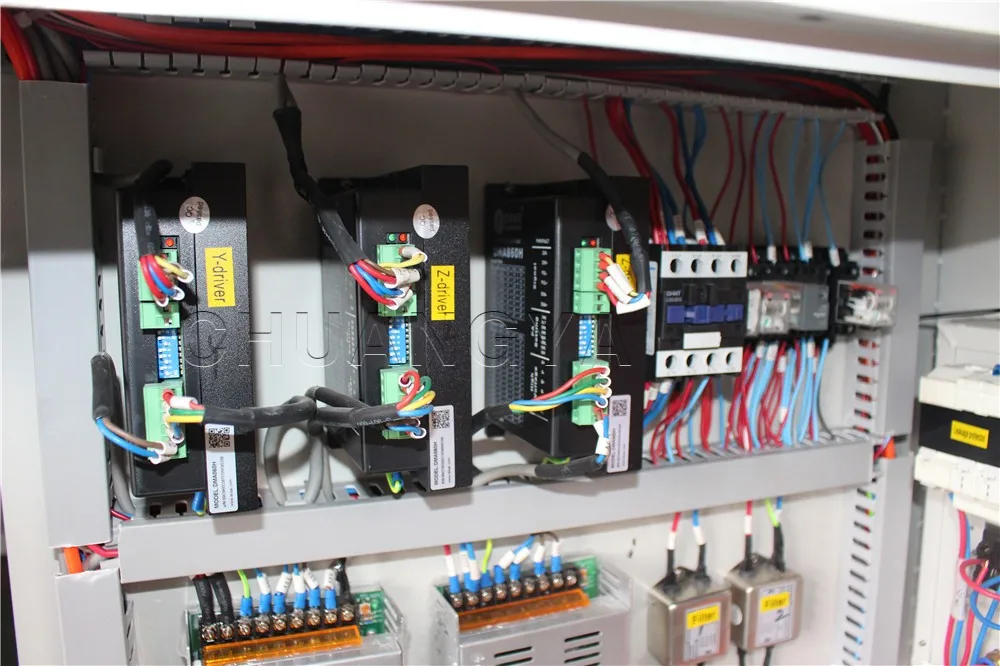

Leadshine Stepper Drivers

Best brand in the world,which can provide big power,enough stability,high speed performance and low noise

Smoke Collecting System

Smoke collecting areas are under table,when laser cut material,they can collect smoke to protect your health.

Honeycomb Table

Used for supporting soft materials like leather,paper,cloth etc.

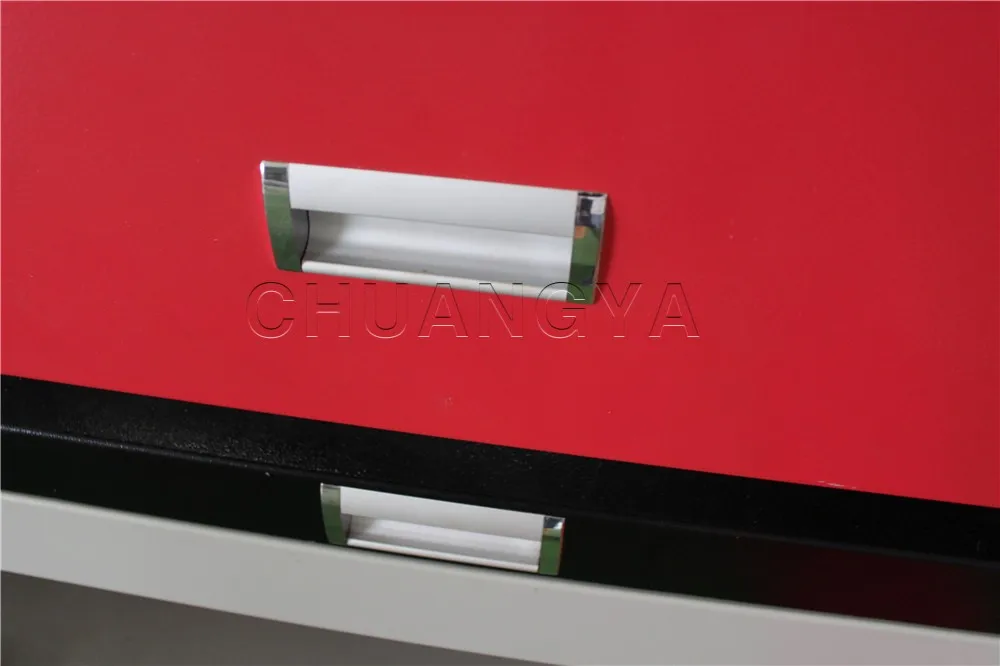

Humanized Parts

They can help you open protective shell and change table easily.

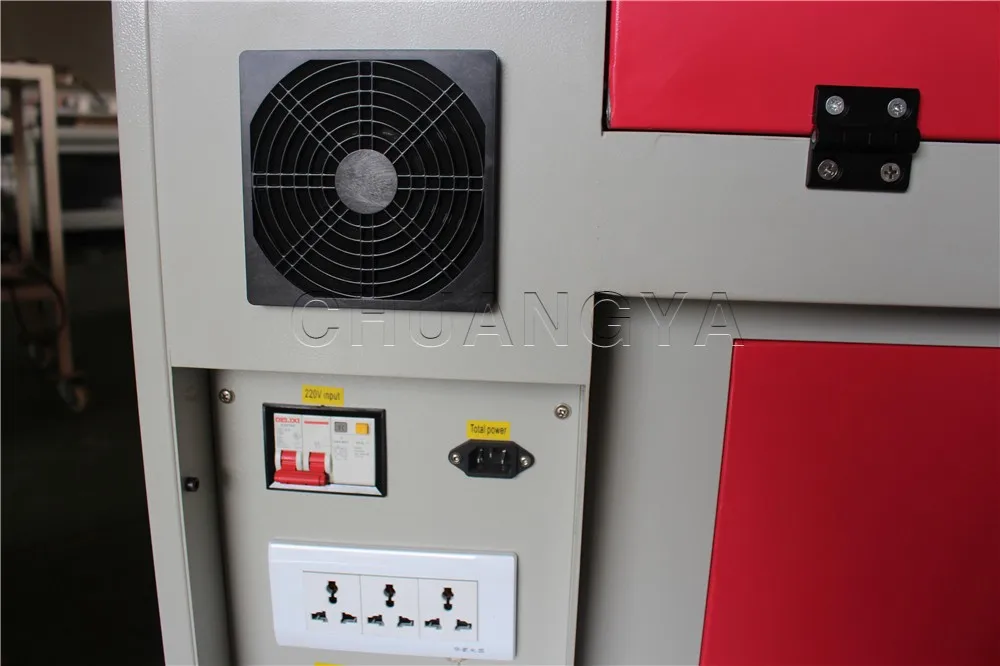

Cooling Fan

They will supply air to cool electronic components in controlling cabinet.

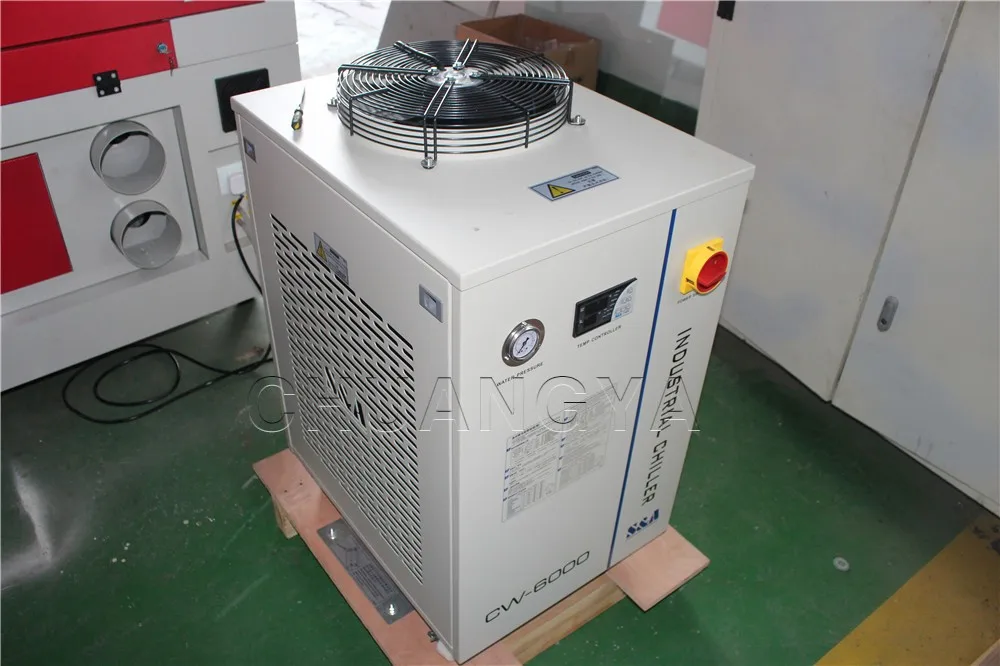

Industrical Water Chiller

When cutting metal or hard materials at long working hours,the tube need a strong water chiller to cool down the tube,so that can keep longer lifetime of laser tube.

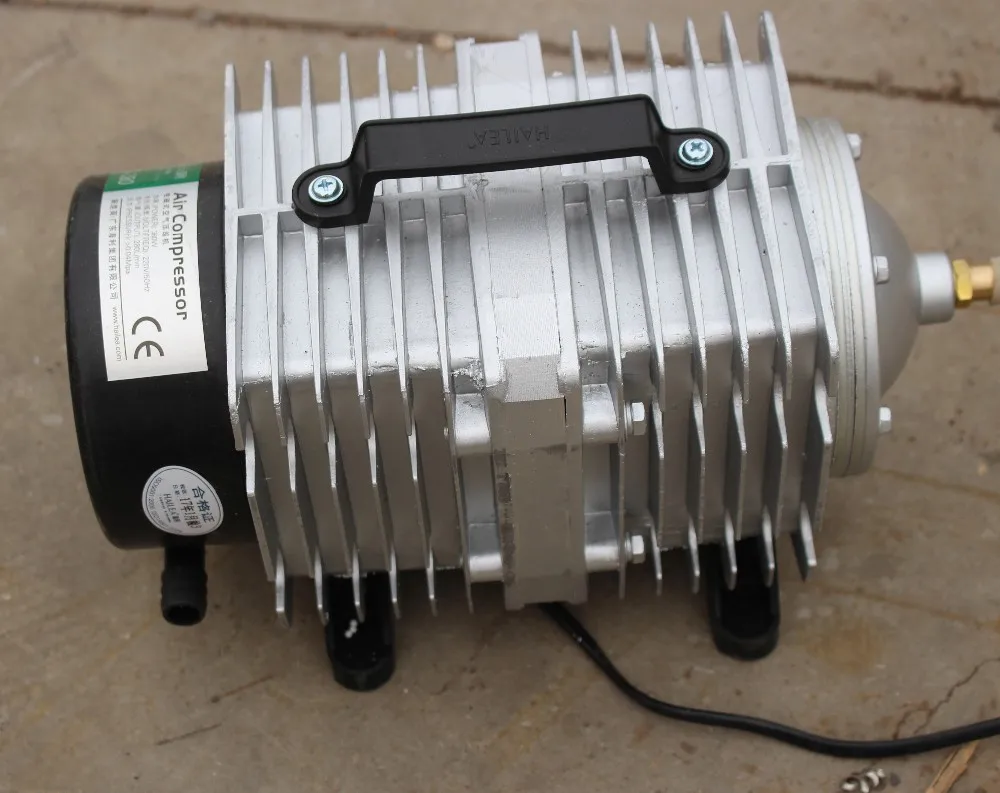

Air Compressor

In order to protect the focus lens,to get better cutting effect,to cool down laser head

Samples
Packing & Delivery
Packaging
Size
1700 (L) * 1600 (W) * 1100 (D)
Weight
400KG



Packaging Details
1.Packed the machine with water-proof film for clearing and damp proofing.
2.Then put the machine in the plywood case for safety and clashing.

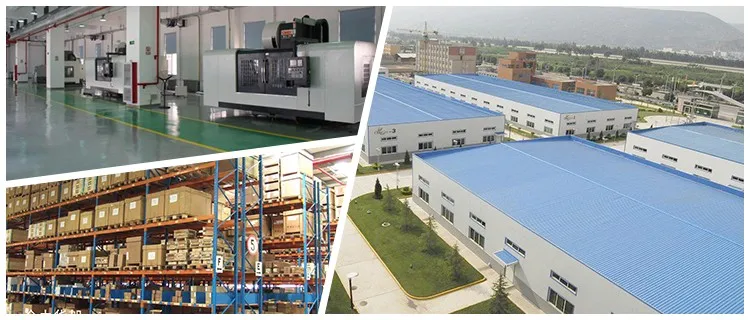

Our Company

Shandong Chuangya Laser Equipment Co.,Ltd. We are located in Qingyun City of China, a manufacturer of cnc router, cnc laser and plasma cutting machines. Chuangya has over 150 employees and a factory with more than 10000 square meters. We has our own design and development department. Each product is strictly examined according to ISO9001 (QCS) and ISO14001 (EMS) standards before it is sent out of our factory.Many laser equipments have acquired CE FDA certificate. Chuangya persist on the mission of "supplying our customers with the best CNC&Laser equipments and solutions".
