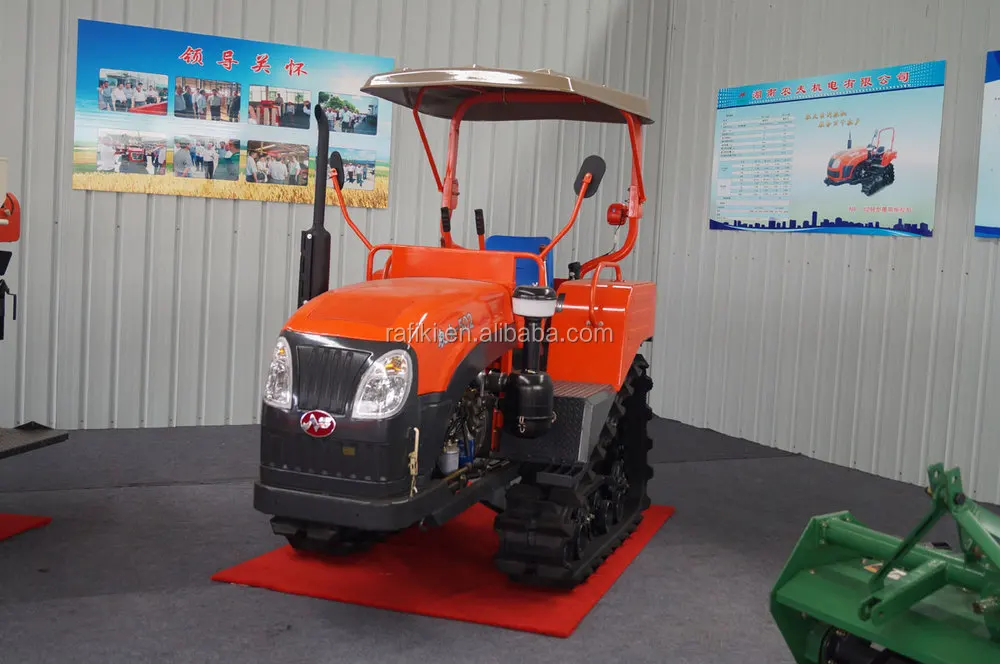

Agricultural equipment small crawler tractor 60HP small tractor for sale

FOB Reference Price:Get Latest Price
US $7,000-9,000 / Set | 1 Set/Sets FOR Agricultural equipment small crawler tractor 60HP small trac (Min. Order)
Supply Ability:
2000 Set/Sets per Month FOR Agricultural equipment small crawler tractor 60HP small trac
Port:
Guangzhou or other port for Agricultural equipment small crawler tractor 60HP small tractor for sale
Overview
Quick Details
Condition:
New
Type:
Crawler Tractor
By wheel:
CRAWLER
Usage:
Farm Tractor
Drive Type:
Gear Drive
Power(W):
70HP
Certificate:
ISO9001
Brand Name:
VOWO
Model Number:
NF-502
Place of Origin:
Hunan, China (Mainland)
After-sales Service Provided:
Engineers available to service machinery overseas
Tillage Width(mm):
1600mm compact utility tractors
Application:
Paddy Field and Dryland
Tillage Depth(mm):
100-180mm Tractor
Color:
Customer Requirements
Engine:
Diesel Engine
MINI GROUND CLEARANCE:
400MM
START:
ELECTRIC
OVERALL DIMENSIONS:
3000*1400*2150MM
Rated Power:
36.8kw
Rated Speed:
2400 r/min
Packaging & Delivery
Packaging Details
Iron packing or based on customers' request for Agricultural equipment small crawler tractor 60HP small tractor for sale
Delivery Time
Shipped in 15 days after payment
Product Description

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.





Brief Introduction:



This machine adopting rubber crawler belt as the walk part, it has the light weight, large contact land area, can reduce the machine pressure greatly. And it has the strongly passage capacity for paddy field, it is different from the roller tractor which will destroy the land. Our rubber crawler type tractor can protect the soil and zoology very well. This tractor not only can work at paddy field, but also can satisfy to dry land for rotary tillage working. If reloading other farm tools, it can finish multiple farm work, such as land formation, furrowing and ridging, fertilizing and seeding etc.





Main Feature:

1. Adopting rubber belt track as the walking parts, it has light weight, large contact land area, and can greatly reduce the intensity of pressure of the machine.

2.The rubber crawler belt make machine has the strongly through of water field, can protect the soil and zoology very well.

3.This machine not only can works at the paddy field, but also can works at the dry land.

4.If reloading other farm tools, it can finish multiple farm work, such as land formation, furrowing and ridging, fertilizing and seeding etc.



Technical Parameters:

MODELNF-502
PRODUCT NAME      LIGHT CRAWLER TRACTORS
OVERALL DIMENSIONSL*W*H(MM)3000*1400*2150
WEIGHT(KG)1240
MINI GROUND CLEARANCE(MM)400
ENGINE SPECIFICATIONSENGINE MODELYD4JT2
ENGINE TYPEDIRECT INJECTION,VERTICAL,WATER- COOLED,4-STROKE
RATED POWER(KW)44.2
 FUELDIESEL
RATED SPEED (R/MIN)2400
STARTELECTRIC
ACCUMULATOR(V.AH)12*100
STEERING ,BRAKE SYSTEMSTEERING TYPEINTERNAL MESHING MULTICHIP
BRAKE TYPE  WET FRICTION PLATE
 TRANSMISSION SYSTEMCLUTCH TYPE  DRY-FRICTION,SINGLE STAGE
GEARBOX TYPE CVT+VARIABLE SPEED (3 GEARS)
GEAR SHIFT TYPEHAND
TRAVELING SYSTEM FRAME TYPE RIGID FRAME TYPE
TRACKPITCH*PITCH NO.*WIDTH90*46*350
        RANGE OF TRANSMISSIONCVT+VARIABLE SPEED(3 GEARS)
TRAVELING SPEED (KM/H)FIRST GEAR(F/R)0-5.5
SECOND GEAR(F/R)0-7.6
THIRD GEAR(F/R)0-9.7
WORKING DEVICEOIL PUMP MODELCBN310
TILLING DEPTH CONTROLHEIGHT ADJUSTABLE
   BORE*STROKE (MM)80*100
  SUSPENSION TYPEPOSTPOSITION3-POINT LINKS,CATEGORY I
  PTO ROTATING TYPENON-INDEPENDENT TYPE
 PTO ROTATING SPEED  (R/MIN)720/1000
PTO ROTATING ROTATION DIRECTION CLOCKWISE(FACE THE SHAFT)
 NUMBER OF SPLINE FOR PTO SHAFT8
SPLINE SIZE FOR PTO SHAFT (MM)38











Packaging & Shipping

Products will be finished in 15-20 working days after payment. It depends on your order quantity. And the shipping time to the port is about 1-2 days.



Our Services



1.Provide professional person to communicate with you and serve you whole course.

 2.Provide strict quality check for each part, each process before export.

3.Provide complete technical guide after-sale services.

4.Providing the best products and all-aspect services are our eternal tenet

Company Information

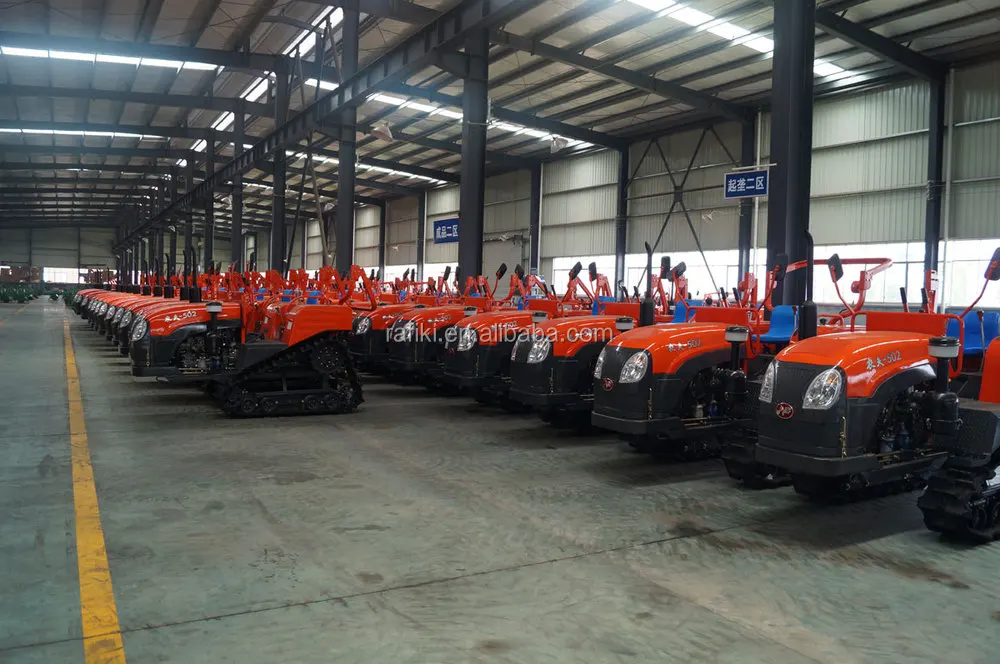

Wuxi Rafiki Tools Co., Ltd., specialized in manufacturing Agricutlture machinery and hand tools over twenty nine years. We have won customers' high praise on outstanding quality & professional service. Wuxi Rafiki Tools Co., Ltd is our headquarters which is located in Wuxi, Jiangsu province. We have sub-factories and produce center located in south and north of China.

We also accept production by buyers' brands, drawings & samples. Warmly welcome all of you to visit our factory. We will provide high quality products and the best service for every customer.

FAQ

Q: Are you a manufacturer or trading company?

A: We are a manufacturer, and have our own factory. All you are warmly welcomed to visit us!
Q : May I take some samples to test before placing the order ?
A. You can test the quality of our sample firstly before you purchase them in mass quantity. But you need pay for the shipping charge.
Q: Do you have any certifications for your products?
A: Yes, We have CE, RoHS certifications for all of our products.
Q: Where is your main market for your products?
A: Our main market including Southeast Asia such as Indonesia, Malaysia, Africa and South America and so on.
