Agricultural mass producing herbage chaff cutter machine with motor

  • >=1 Sets
    $26,500.00
Model Number:
F1000
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Chaff Cutter
Dimension(L*W*H):
6000x3000x2300mm
Applicable Industries:
Farms
Condition:
New
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
Gengze
Weight:
5300 kg
Certification:
CE
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Color:
Green
Motor drive power:
150 kw
Tractor drive power:
90 hp
PTO speed:
1000/ r-min
Crushed length:
30-200 mm
Bearing:
SKF
Tub Diameter:
2.3 m
Screw pusher Length:
1150 mm
Production efficiency:
3-15T / Hay
Customized:
Support
Packaging & Delivery
Packaging Details
Standard container loaded , reliable shipping agent operate
Port
Dalian Port
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Product Description

Gengze Pasture Tub Grinder F1000

The combined tractor power of F1000 is 90~180 hp, the rotational speed of the PTO bearing is 1000/r-min. According to the different crushed lengths, the production efficiency can reach 3-15 tons per hour,  and for grain grinding like corns, it can reach 40-70 tons per hour. Besides meeting the requirement of 5000 heads livestock for self-use, it can also process for other pastures to collect extra fee, thereby improve the utilization rate of the equipment and increase more benefits.


Crushed materials: herbage, rice straw, oat grass, alfalfa, corn straw, rape straw, wheat straw, weeds, etc.
Crushed grains: corn kernels (high moisture content), corn cobs, etc.
Crushed shape: round bale, square bale, loose herbage.
Crushed length: 30-200mm

SPECIFICATION OF GENGZE F1000 PASTURE TUB GRINDER
Model
Gengze F1000
L*W*H (mm)
6500x3200x3200
Weight (kg)
5300kg
Rotor hammer mill
Fly hammer: 64
Fly hammer shaft: 8
Bearing: SKF
Drive: PTO
Combined power
Tractor drive: 90-180 HP
Motor drive: 90-150 kw
PTO speed: 1000/ r-min
Screen mesh
Thickness: 6 mm
Diameter of hole :6 mm-125 mm
Drum/Tub
Outside width: 3.2m
Inside Dia: 2.3m
Screw pusher
Type: bi-column symmetric
Length: 1150mm
Discharging conveyor
Type: folding hydraulic drive;
Maximum lifting height: 4.19 m;
Belt: Rubber

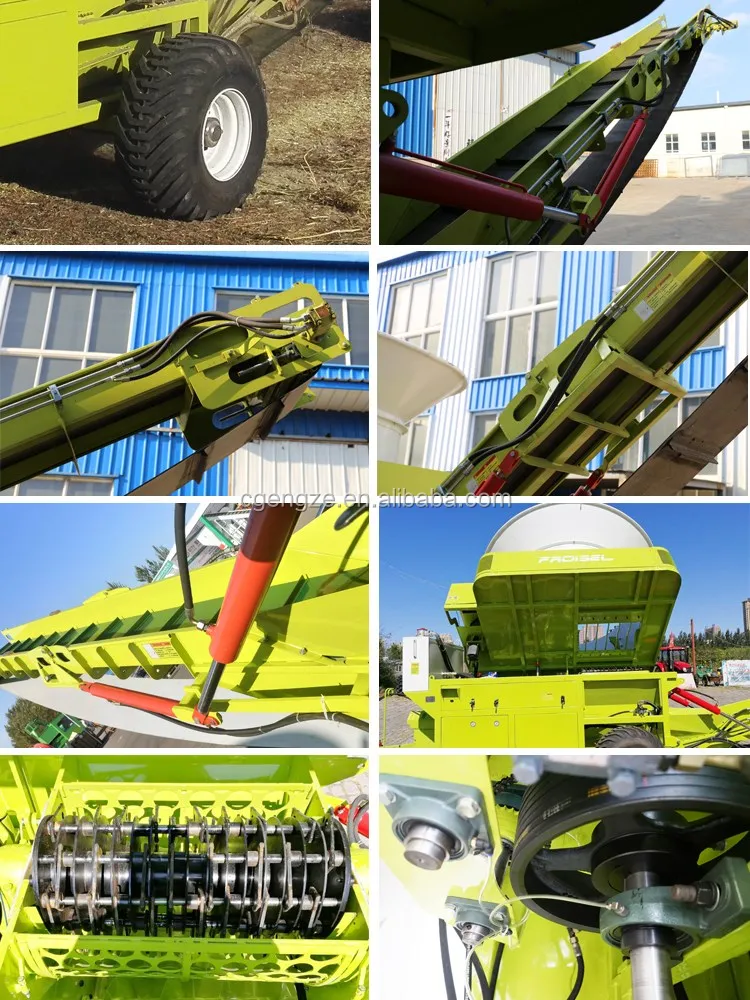

Detailed Images
Advantage
▪ Simple structure
▪ Reasonable design
▪ High quality steel material
▪ Low failure rate

▪ Low maintenance cost
▪ Best choice for large-scale farms
Our Company

Dalian Gengze Agricultural Equipment Manufacturing Co.,Ltd, specializes in designing and manufacturing agricultural equipment such as irrigation system, fertilizer spreaders and straw grinders.

Based in Dalian, Gengze has its factory covering 43000 square meters with advanced manufacturing machine and technology such as upset forgings, laser cutting machine, numerical control center, etc, which guarantees our production ability and capacity.

For each product category, Gengze have a wide range of products to meet the expectations of the clients, which features easy and mastered design as well as high quality material. As a solution provider, Gengze not only offer the product, but also the service. A series of service including before sales and after sales service will be offered to give the support our clients need.

With the core value of integrity, cooperation, innovation, and efficiency, Gengze will be your reliable partner to help you benefit from the most suitable and advanced modern technology in agricultural area to lower your cost and increase your benefit.

Our Service
High Efficiency

24 hours online timely answer to each question from clients

Professional

A professional technical and sales team are always at your service

Reliable

Perfect and timely pre-sale and after-sale service for clients

Certificate
Packing&Delivery

The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
