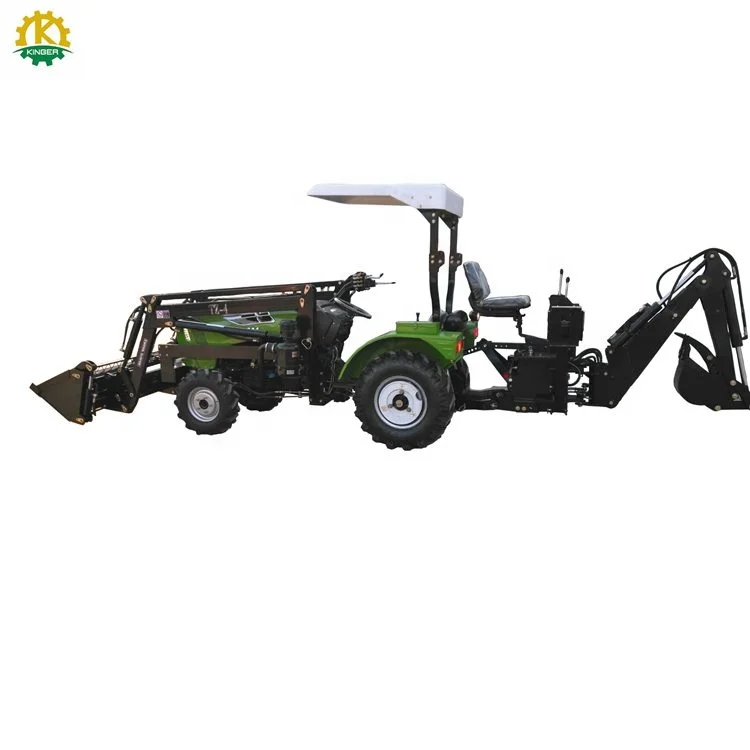

Agricultural tractor with front end loader and backhoe tractor implements price

FOB Reference Price:Get Latest Price
$1,800.00 - $3,900.00 / Sets | 1 Set/Sets (Min. Order)
Power(W):
20-125hp
Model Number:
TZ03 TZ04 TZ06 TZ08 TZ10
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Wheel Tractor
Usage:
Farm Tractor
Condition:
New
By wheel:
4WD
Drive Type:
Gear Drive
Certificate:
ISO
Brand Name:
CE
Place of Origin:
Shandong, China
After-sales Service Provided:
Video technical support, Online support
Product name::
Agricultural tractor with front end loader and backhoe implements
Style::
front end loader
Model Number::
TZ03 / TZ04/ TZ06/ TZ08/ TZ10
Rated payload::
300kg-1200kg
Bucket Capacity::
0.2CBM-0.65CBM
Matched tractor::
20-125hp
Suspension Type::
3-point links
Color::
customized
OEM service::
Yes
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Irone frame or container as customer's request.
Port
Qiingdoa
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 20 To be negotiated
Video Description
Product Description

Product Application:

Agricultural tractor with front end loader and backhoe tractor implements price

Power range: Matched for 18hp to 100hp tractor
Usage: garden, farm, greenhouse, agricultural land, etc..
Color: Green, Blue, Red, or customized


Tractor mounted front loader Can use many kinds of optional tools such as wooden fork, pipe fork, grass fork, stone bucket, enlarge bucket, prolonged arm etc, to meet the needs of various working states.

SPECIFICATIONS FOR FRONT END LOADER
Type
TZ03
TZ04
TZ06
TZ08
TZ10
Matched Power
18-30hp
30-50hp
60-70hp
70-90hp
80-100hp
Rated Capacity
0.2(cbm)
0.23(cbm)
0.43(cbm)
0.6(cbm)
0.65(cbm)
Rated loading
300kg
400kg
800kg
1000kg
1200kg
Uninstall Height Max.
1800mm
2000mm
2200mm
2400mm
2400mm
Unload angle
45°
45°
45°
45°
45°
Uninstall Distance Max.
650mm
900mm
960mm
1000mm
1000mm
Time for bucket lifting
6s
7s
8s
8s
8s
Max. Digging depth
100mm
140mm
160mm
160mm
170mm

Main Features:

1.Torque device and fixed gearbox, more reliable performance.

2. Complete hydraulic changing direction system, reliable performance, convenient to operate, easy to install and uninstall.

Optional Front Tools
Detailed Images

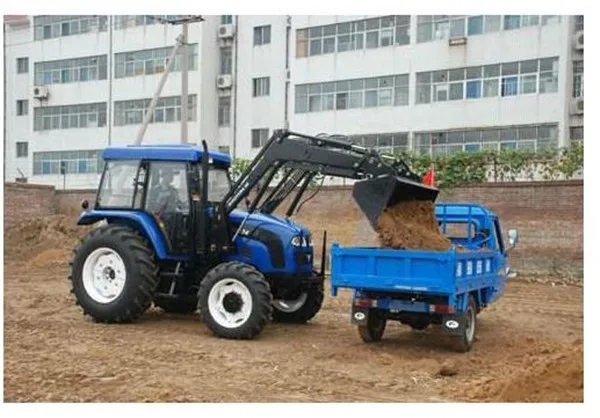

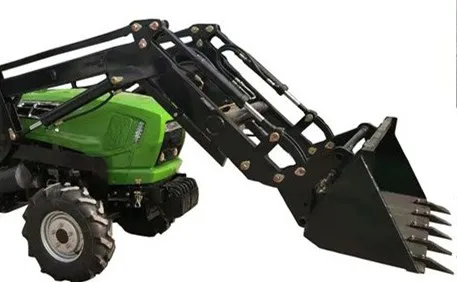

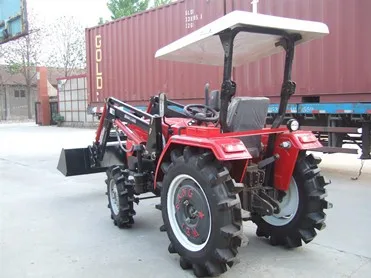

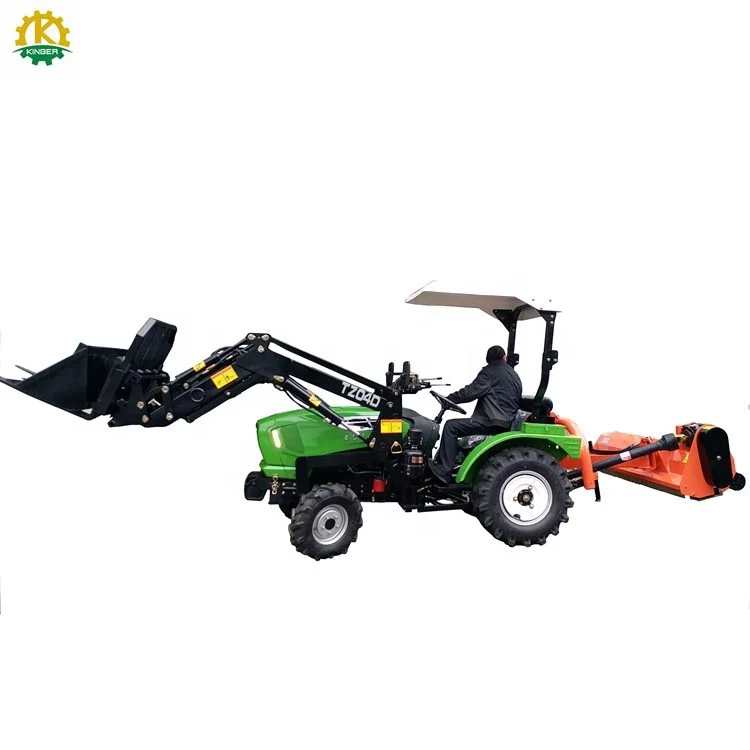

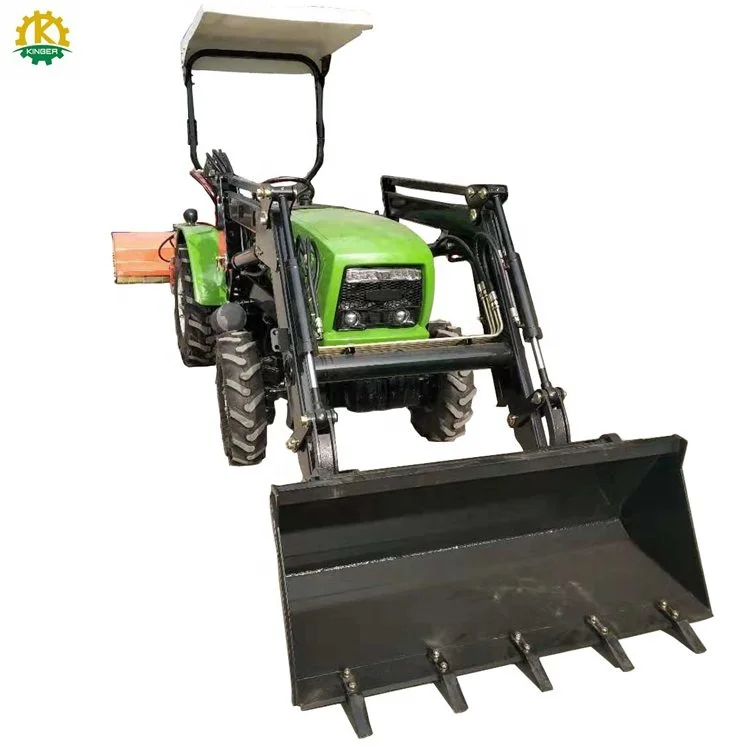

Front End Loader mounted on Tractor

Name: front end loader

Brand: Kinger

Original: China


front end loader mounted on 18-120hp tractors, it with self control valve, balance pole and quick switch and leg support. Including 3-way valve for 4 in one bucket/gripper fork/bale fork.

Disassembly and assembly adopts full-speed mounting:

1) The auxiliary equipment adopts the Euro mounting standard and is internationally-available.


2) The boom and the column are connected through a self-locking mechanism. The disassembly and assembly operations are simple and quick and do not require any tools


Full-height horizontal lift:

Make the driver's  operation simple, safe, efficient,
and do not spread the material.

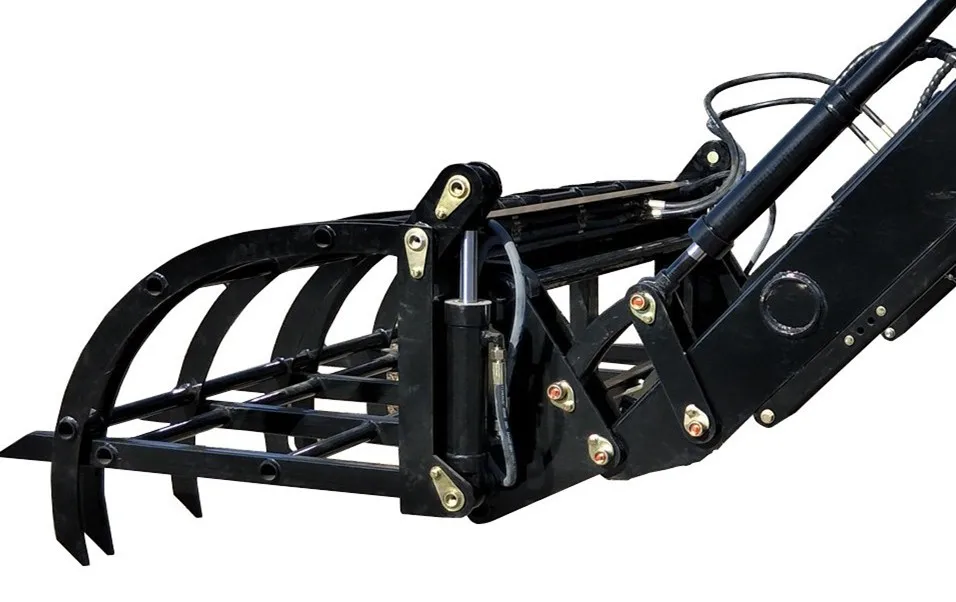

Grapple fork

Name: optional tools of front device


Function: for grapple work condition requirements, like grass, hay, etc.


It's very easy to change the front front tools between bucket and grapple fork, cause of front end loader have quickly switch device.

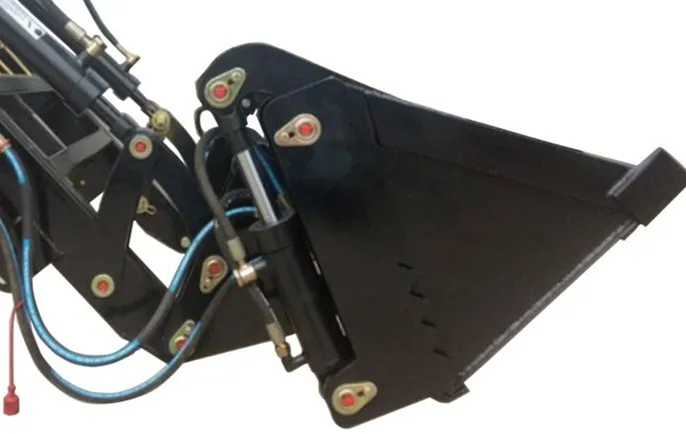

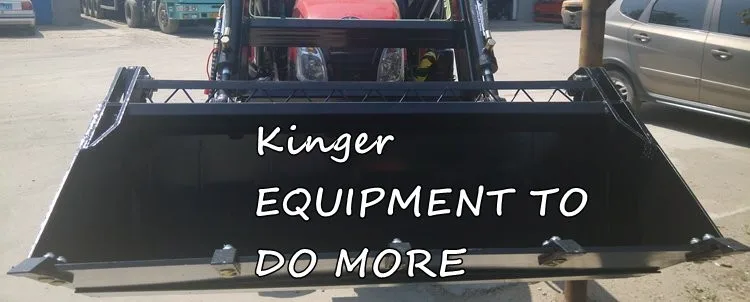

4-in-1 Bucket

Name: optional tools of front device

Multi-Function:

4-in-1 bucket can do the work of Loading, bulldozing, flattening, clamping operations, etc. during the work process.

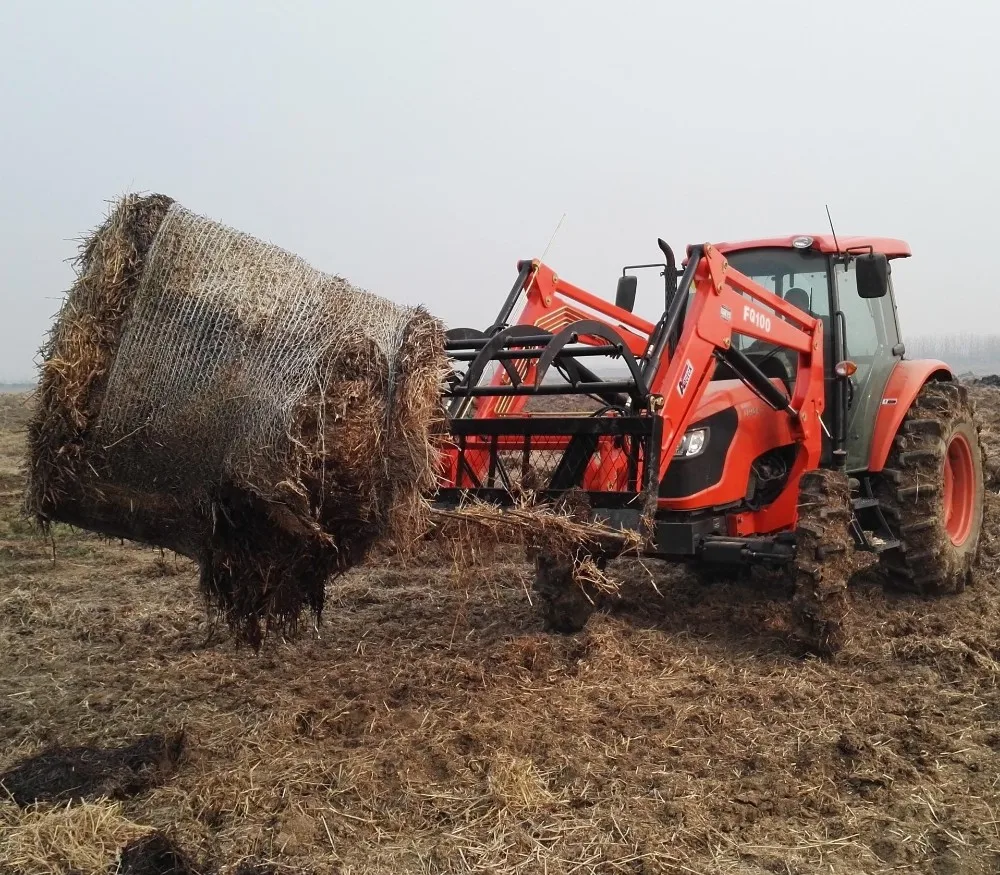

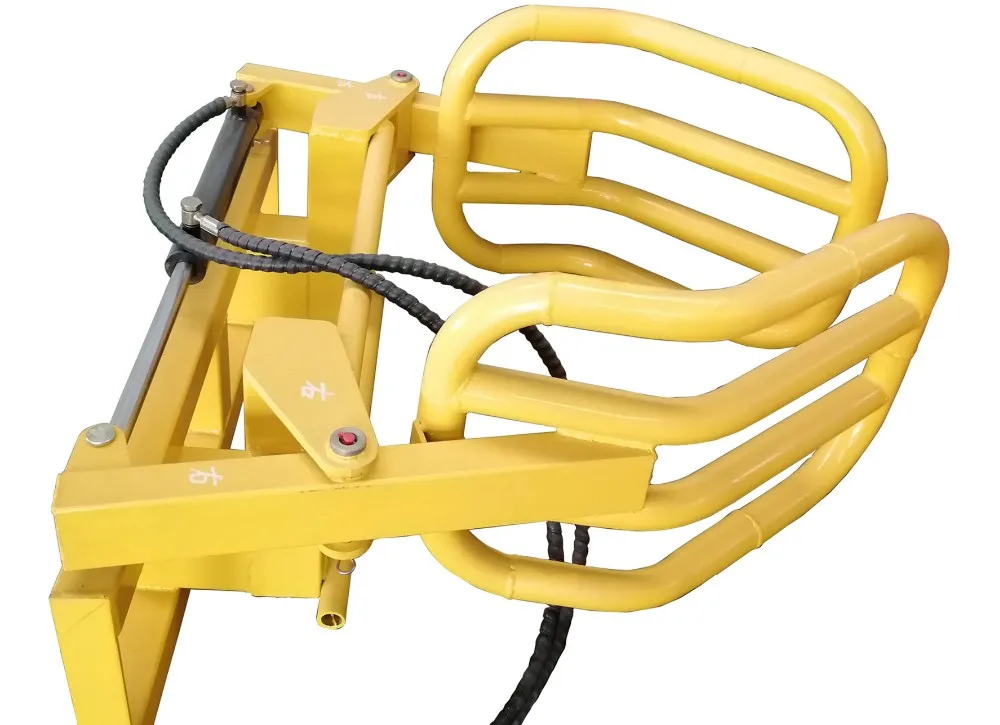

Bale Clamp

Name: optional tools of front device.


Function: for grapple bale work condition requirements

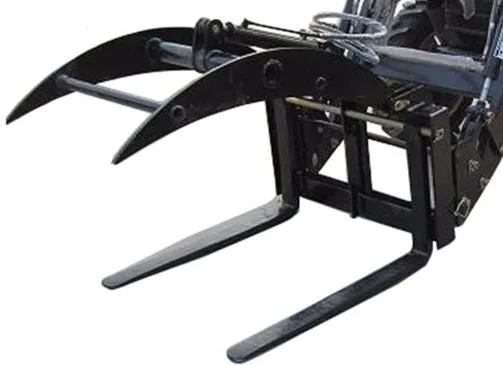

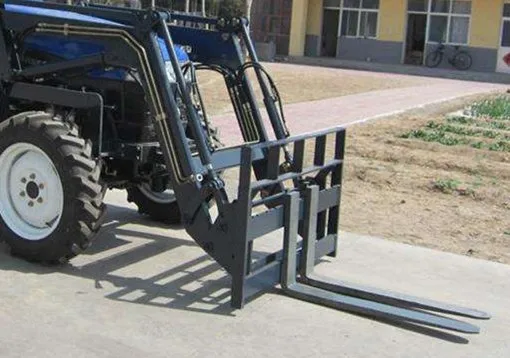

Grapple Pallet Fork

Name: optional tools of front device

Function: for grapple work condition requirements, like steel pipe, etc.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Alibaba gold supplier to ensure our deal.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Package
Size
 as customer's request.
Weight
depend on the fact.



Packaging Details

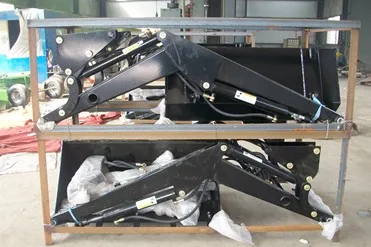

The normal package is iron crate with cover film for the front end loader.

Or mounted on well on tractor, we will drive tractor inside container and fix well.

Packaging
Size
as customer's request.
Weight
depend on the fact.



Packaging Details

The normal package is iron crate with cover film for the front end loader.

Or mounted on well on tractor, we will drive tractor inside container and fix well.
