Air-Cooled Oil Cooler Hydraulic Station Black Air Condenser AF1025T-CA Unit universal AJ1025 Heat Exchanger

$39.96 / Set | 20 Sets (Min. Order)
Model Number:
AJ-1025
$39.96
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Liquid Flow Rate:
30L/min
Maximum Working Pressure:
1.6MPa
Weight:
4kg
Warranty:
12 Months
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
RuiJia Cooler
Structure:
Plate Heat Exchanger
Voltage:
220v/380v/customized
Dimension(L*W*H):
258*105*257mm
Power(W):
36w
Certification:
ISO9001
Product Name:
AJ-1025
Material:
aluminum
Type:
Plate Fin Typle
Plate material:
aluminum
Fin material:
Auminum
Application:
cooling
Color:
Black
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X30X16 cm
Single gross weight:
5.0 kg
Package Type:
carton box or plywood case
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Video Description
Product Description

Product Application

Aluminum plate-fin heat exchanger of Foshan Rui Jia Machinery Equipment Co.,Ltd are widely used in hydraulic system, lubrication system, air compressor, engineering/construction machinery, power system, transmission oil cooling system, ship, vehicle engine water tank and other fluid cooling system. And our regular air oil coolers are used for mobile crane heat exchanger.

The products of this series are made of aluminum alloy material with light weight, good seismic intensity, high heat transfer efficiency. In the structure, channel, adopt efficient fin, the maximum increase the heat transfer area, increase the total heat transfer coefficient.


Hydraulic air-cooled oil cooler unit:

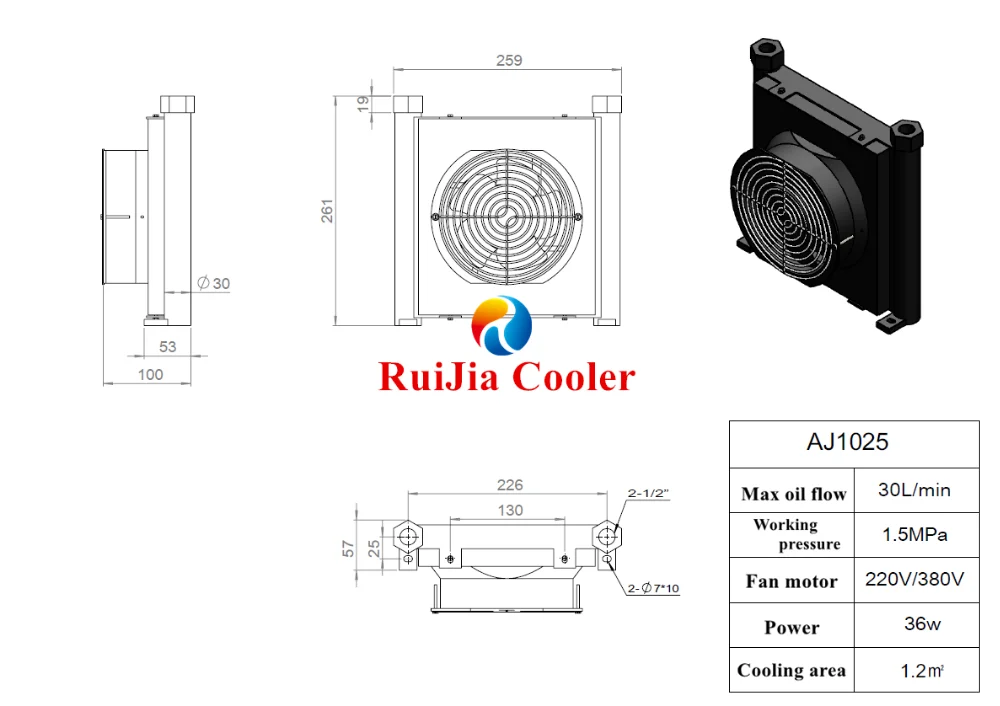

Technical data sheet
Model
AJ-1025
Maximum Oil Flow
30L/min
Fan Voltage
AC220V/380V, DC12V/24V
Fan Power
36W
Oil Connection
2* Rc 1/2 "
Test Pressure
16Bar
Cooling Area
1.2m2
Overall Unit Size
258*105*257mm

Main Features

1) To make our products more promising , we have trail for free and 12 months warranty period for full range products.

2) Better bursting pressure: over12.0 MPa.
3) Optimize the internal structure, strengthen the ability to oil and heat transfer efficiency, lengthen the service life more than 30%.
4) Developing unique heat transfer calculation software and providing cost-effective solution.
5) Providing solution in 30 minutes and non-standard customization.
6) A variety of reasonable ways for nuzzling and fixing tube to make it more convenient and good looking.
Certifications
Detailed Images
Our Service
Regular Product Service

* Consulting support:

   Provide you with the most accurate selection

   within 30 minutes!

Customized Product Service

* Customized design:
   Provide you with the most suitable design for your     system!

FAQ:

Q1. What kind of product structure?

Answer: Air oil cooler product is full aluminum plate-fin structure. Regarding the water oil cooler, there 6 types of inner structure. More details, welcome to contact our people.

Q2. How to choose suitable oil cooler for the system?

Answer: Customer provides us with system's main technical data, such as oil flow, gas flow, system power, working pressure, oil temperature and air temperature, etc. We will calculate and choose suitable product for you.

Q3. How to place a customized order?

Answer: As a professional and experienced oil cooler manufacturer, we welcome all kinds of customized orders. We are pleasure to be helpful to solve customer's problems. More details, welcome to contact our people.

Q4. How to place an order directly on ALIBABA?

Answer: Enter the product website that you want, press the button "Start Order".
