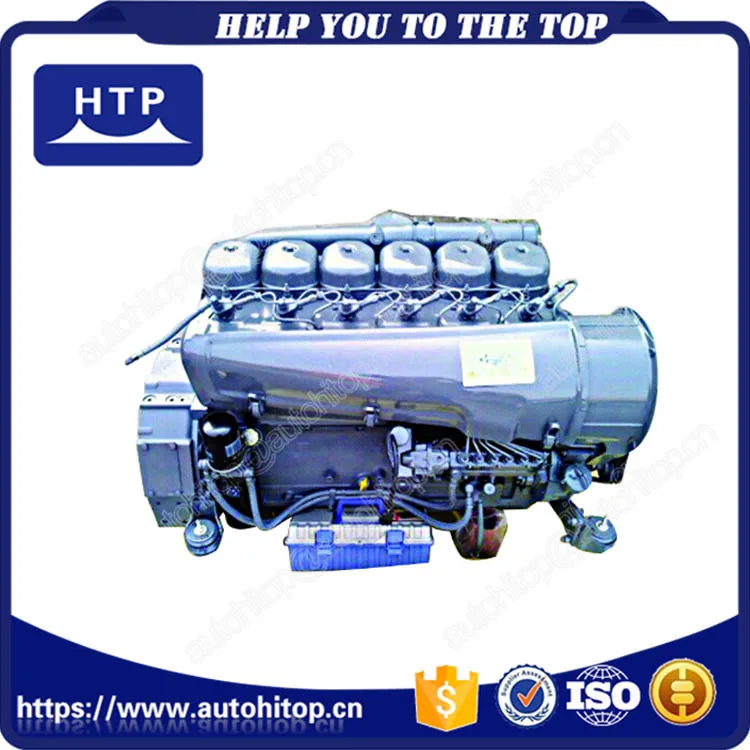

Air Cooled electric start 6 cylinder machine engine f6l913 details for deutz

$3,866.24 / Piece | 1 Piece (Min. Order)
Model Number:
F6L913
$3,866.24
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
HTP
Usage:
Gensets,Marine,Auto,Construction
Weight:
420
Fuel:
Diesel
Stroke:
4 Stroke
Cylinder:
Multi-cylinder
Cold Style:
Air-cooled
Start:
Electric Start
Certification:
ISO9001
Warranty:
1 year
Dimension(L*W*H):
1120*673*815 mm
After-sales Service Provided:
Overseas service center available
Part name:
Air Cooled electric start Diesel Engine for Deutz F6L913
Quality Level:
high quality
Compression Ratio:
17
Color:
same as photo
FIRING ORDER:
1-5-3-6-2-4
stroke:
120mm
displacement:
6.128
Electric System:
12v/24v
power,speed:
48/1500;60/1800;74/2300;78/2500
bore:
100mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
140X80X104 cm
Single gross weight:
580.0 kg
Package Type:
neutral package or plywood case
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 20 To be negotiated

Air Cooled electric start 6 cylinder machine engine f6l913 details for deutz

Product Description



Product Description
ENGINE MODELF6L913
NUMBERS OF CYLINDER4
INDUCTION SYSTEMnaturally aspirated
DISPACEMENT(L)6.128
Bore*Stroking(mm)100*125
compression Ratio17
DIRECTION OF ROTATION (FACING COOLING BLOWERclockwise
FIRING ORDER1-5-3-6-2-4
OVERALL DIMENSION1120*673*815
GOVERINGMachine Governor(%)5%
Electronic Governor(%)1%
NET WEIGHT(KG) 420


ENGINE MAXIMUM POWER(KW)1500RPM54
1800RPM64
ENGINE CONTINUE POWER(KW)1500RPM51
1800RPM68
GENERATOR POWER (KW)PRIME(CONTINUE)42
STANDBY(MAXIMUM)46
FUEL CONSUMPTION AT POWER RATING 110%(G/KWH)1500RPM228
1800RPM228
FUEL CONSUMPTION AT POWER RATING 100%(G/KWH)1500RPM228
1800RPM228
FUEL CONSUMPTION AT POWER RATING 75%(G/KWH)1500RPM237
1800RPM238
FUEL CONSUMPTION AT POWER RATING 50%(G/KWH)1500RPM247
1800RPM248
LUBRICATION SYSTEM CAPACITY(L) 14
LUBRICATING OIL CONSUMPTION (A PER OF MAX.FUEL OIL CONSUMPTION) %1%
COMBUSTION AIR FLOW(M3/MIN)4.6
EXHAUST GAS FLOW(M3/MIN)4.74
EXHAUST GAS TEMPERATURE(0C)PRIME (CONTINUE)500
Area of Heat Radiation(m2 )0.24
Noise dB(a)1500RPM105
1800RPM105
Electric System12V/24V



Features

  ·High Quality&Factory Price

  ·Safe neutral package and fast delivery time

  ·Advanced manufacturing process and testing equipment

  ·Perfect Follow-Up Service

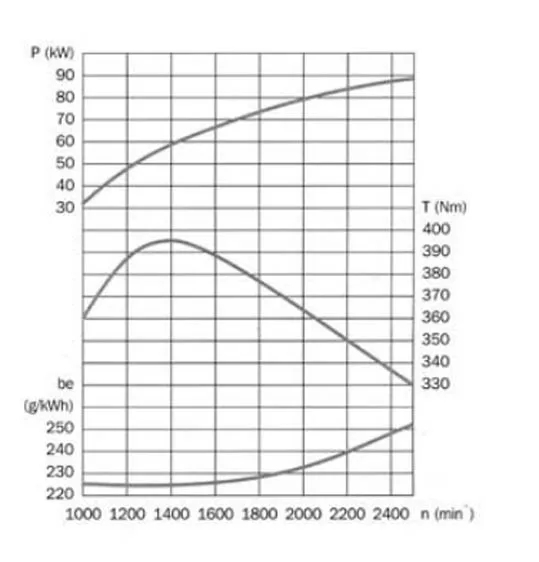

Engine performance curve

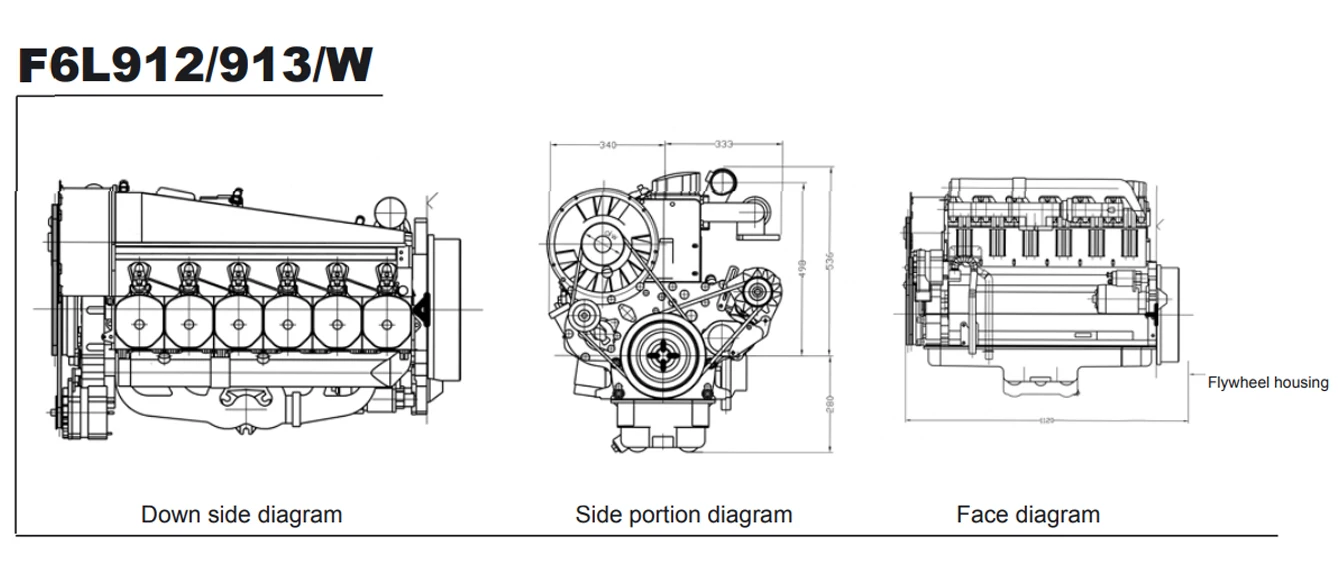

Engine dimension drawing:






 Engine assembly model list



descriptionmodeltype cooling typepower kwr/minoveralldimension
engine assemblyFor DeutzF2L511
engine assemblyFor DeutzF2L912D 141500
engine assemblyFor Deutzf3l912air cooling432800
engine assemblyFor Deutzf4l912air cooling59 1100*850*1030
engine assemblyFor Deutzf4l913Dair cooling341500
engine assemblyFor Deutzbf4l913dair cooling471500
engine assemblyFor Deutzf6l912air cooling882800
engine assemblyFor Deutzf6l912dair cooling481500

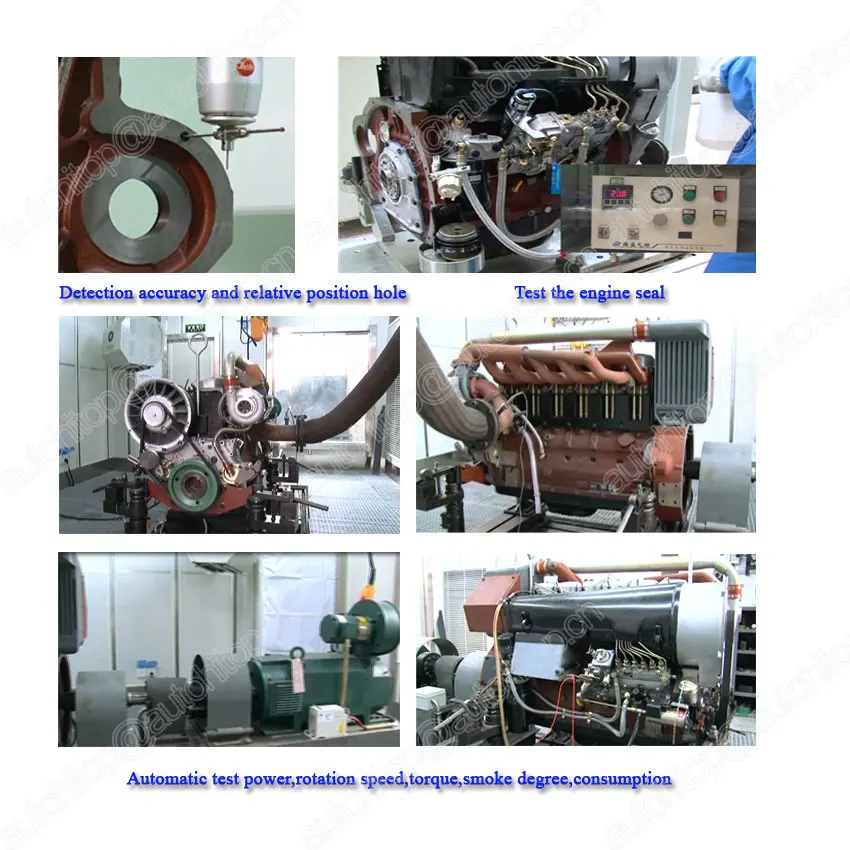

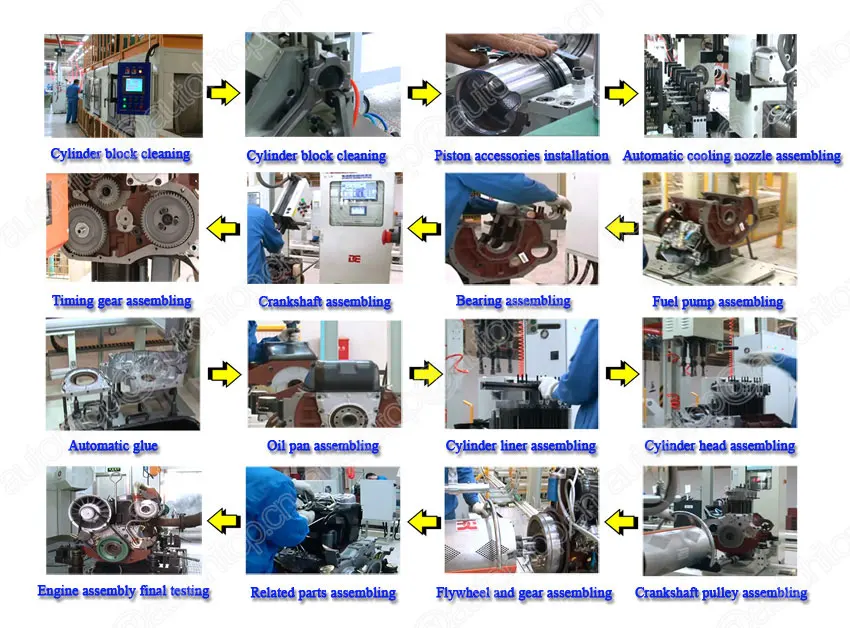

Production Process

.jpg

100% Inspection process

.jpg

Why Choose Us?








Our Advantage:



  ·OEM and aftermarket (assembled by OEM part)

  ·Production certificates For Deutz

  ·Enough Stock

  ·Follow customer need to provide the flywheel and housing



Our Service

.jpg





Contact Us

 contact us.jpg

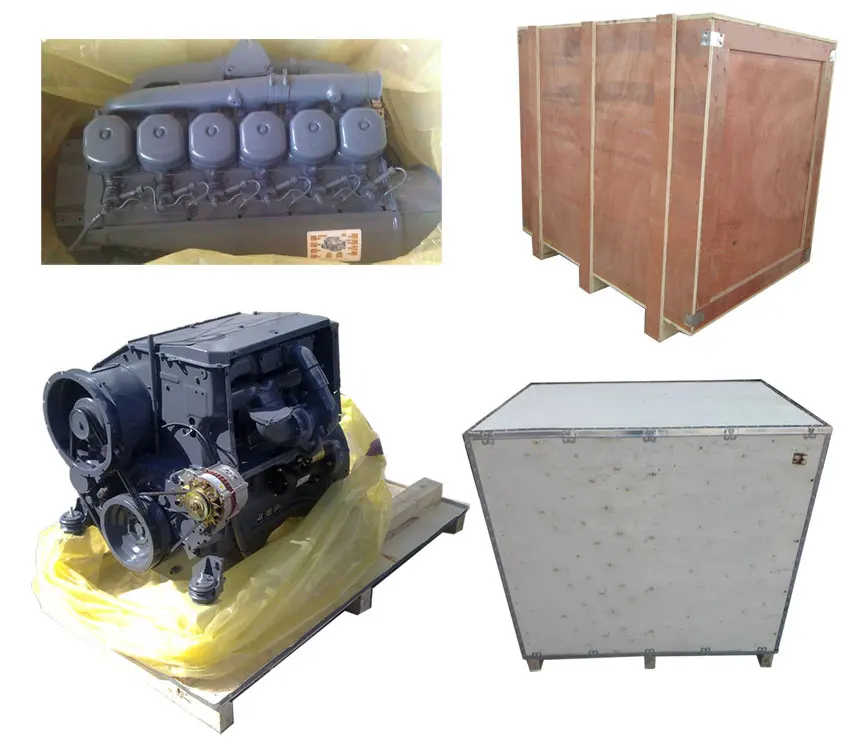

Packaging & Shipping

 Our Packagepackage.jpgtransportation.jpg





10.jpg 11.jpg

Company Information


FAQ

Q1. What are your terms of packing?
A: Generally, Plywood Case+Pallet  1 piece/box
 and customer request .

Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take
7-30days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by the samples customer confirmed.


Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
