Air conditioner evaporator unit price

  • >=50 Pieces
    $18.00
Model Number:
TYZF012-Air conditioner evaporator
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 Negotiable
Customization:
Production and processing according to drawings (Min. Order: 3 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Type:
Air conditioner evaporator
Application:
Refrigeration Parts
Certification:
RoHS
Product name:
Air conditioner evaporator
Evaporation area:
100(m2)
Power:
1800(KW)
Dimensions:
400*400(m)
Weight:
360(kg)
Model:
TYZF012-Air conditioner evaporator
Use for:
Air conditioner
Operating pressure:
Pressurize
Sports condition:
Outside loop
Structure type:
Horizontal
Supply Ability
Supply Ability:
181108 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The air conditioner evaporator is packaged in the following way: carton box + wooden box + foam box.
The production cycle of the air conditioner evaporator is: the production and delivery are arranged within 15 days after receiving the advance payment.
Port
Qingdao and Tianjin
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 To be negotiated
Video Description

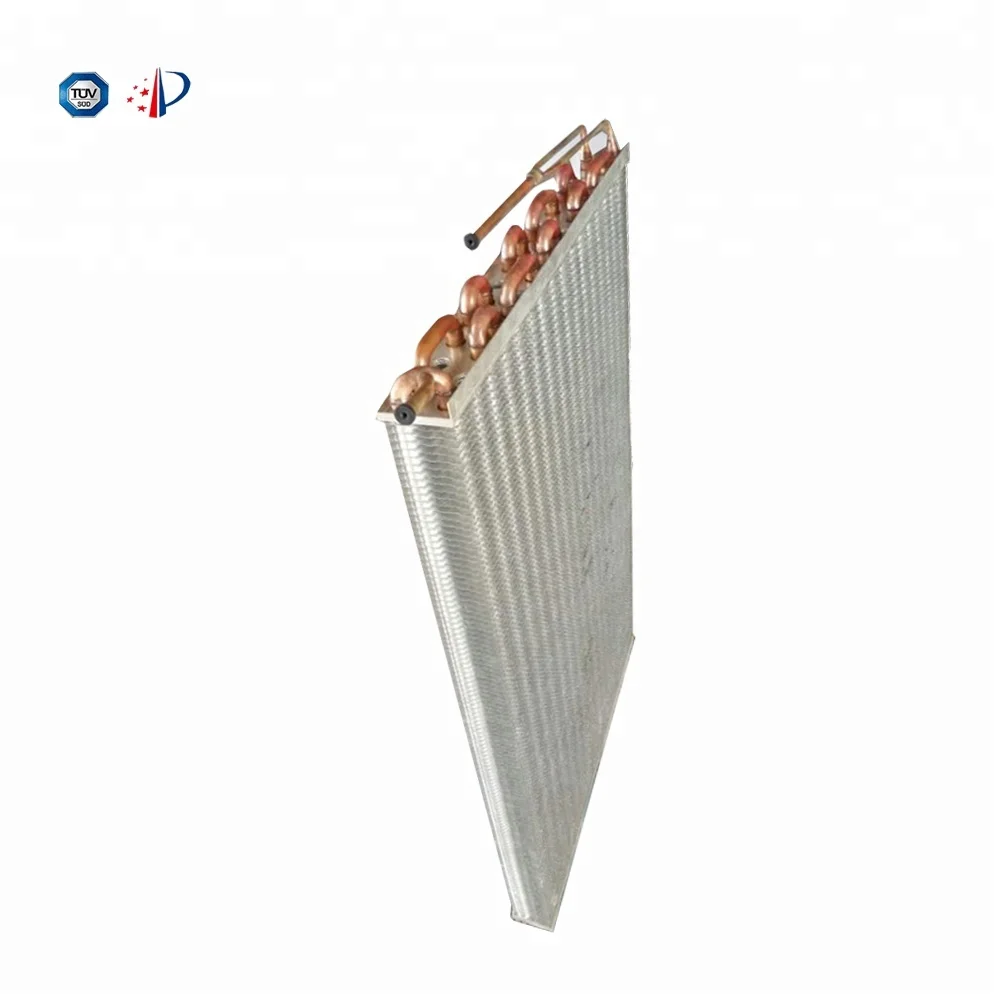

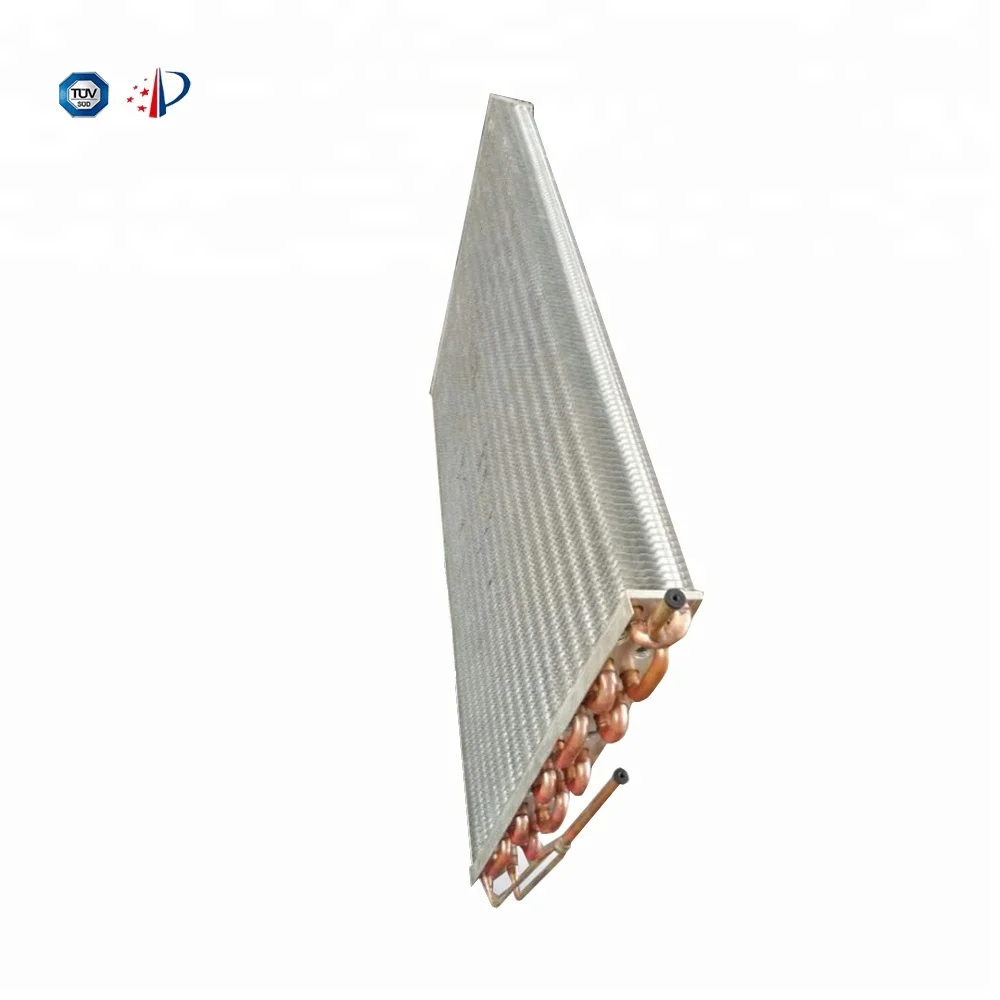

Product Picture

   AIR CONDITIONER EVAPORATOR UNIT PRICE

Raw Material : copper tube , aluminium fin , galvanized plate and stainless steel plate
Size of copper pipe: diameter:7mm, 7.94mm, 9.52mm ,Inner Grooved Or smooth tube .
Aluminum foil : Hydrophilic or bare
Fin type :Louver Fin , Flat fin , corrugated fin
Pitch of fins can be adjusted between 1.8-5.8mm
Pitch of holes and pitch of rows:25x21.65mm,19.05x12.7mm,25.4x22mm .
no less than 3.0mpa air pressure (nitrogen)leak test
Different alternative fan available: micro fan, shaded pole or outer rotor fan motor
We can offer customized service as well
Suitable for R134a, R22, R404a, R407c, refrigerant etc...




             AIR CONDITIONER                          EVAPORATOR


       AIR CONDITIONER                         EVAPORATOR


      AIR CONDITIONER                       EVAPORATOR


Product material

COPPER TUBE


 LOW PRESSURE TUBE


ALUMINUM FIN


COPPER TUBE

COPPER TUBE

COPPER TUBE

Mold Table
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
Connected Products
About Our Company

   Tianyang Electrical Appliance Co, Ltd. since its establishment in 1998 to producerefrigeration equipment with heat exchangers; that is, condenser, evaporator heat piperadiator-based, widely used in refrigerators, refrigerators, air conditioners, harvesters water tankigh-end drinking fountains. More than 65% of the partners are more than 10 years. 18 years hasgrown, has now become an outstanding supplier of the refrigeration industry; so that in early2015 Shuanghui Group for the community to tender the name of my company to the condensethe evaporator designated product suppliers.

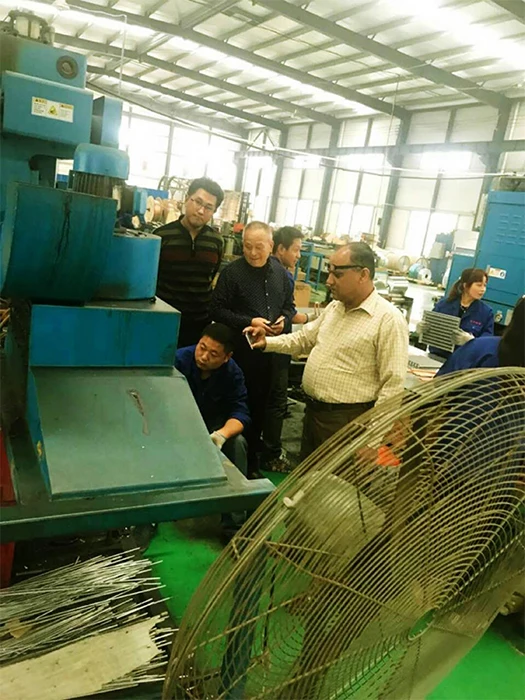

Product Processing

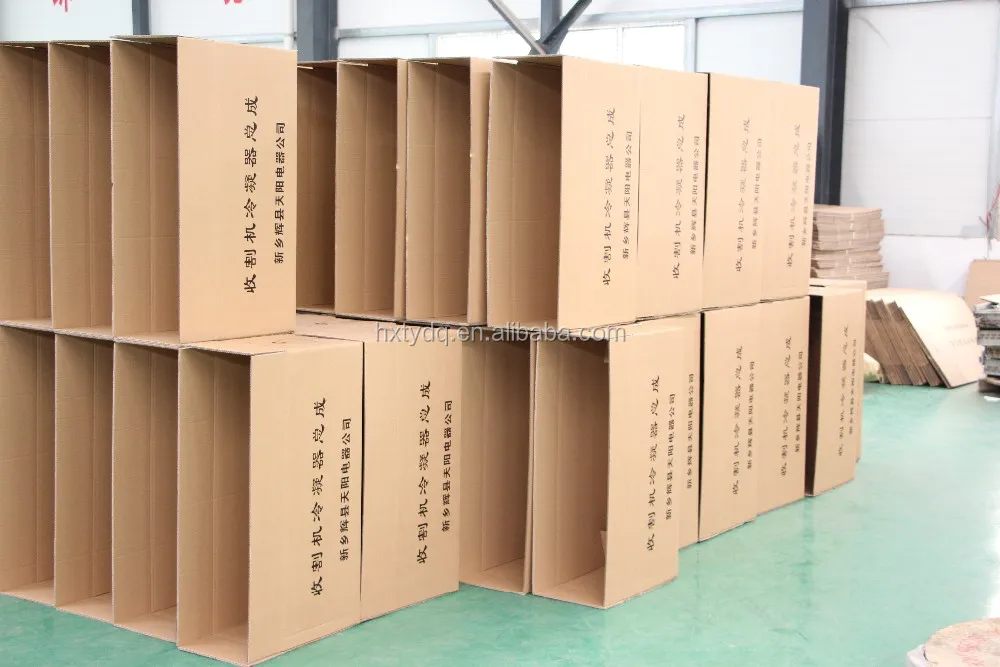

Packing&Transport
