Air lock rotary valve & rigid impeller feeder

FOB Reference Price:Get Latest Price
$320.00 - $2,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JL
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Ore / Coal / sand / Corn
Power Type:
Electric
Capacity(t/h):
Month
Place of Origin:
Henan, China
Brand Name:
Jinrui
Power(W):
Base
Dimension(L*W*H):
Choose
Weight:
As handing capacity
Certification:
ISO9001:2008
Warranty:
12 Months
Product name:
Air lock rotary valve & rigid impeller feeder
Function:
uniform discharge or feeding
Material:
Carbon Steel / stainless steel
Inclination angle:
0-30 degree
Bearing:
C&U / SKF / FAG
Capacity:
3-160T/H
Feature:
Low noise / Simple operation
Voltage:
380V/415V/220 v/ Design
Componet:
Motor / reducer / body of rigid impeller feeder
Frequency:
which can adjustable
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Seaworthy packing (Packing methord will pakced with wooden case or others by custom,er required )
Port
Qingdao/Tianjin/Shanghai

Air lock rotary valve & rigid impeller feeder
A
Application
Application


Jl type and jlt type rigid impeller feeder use the rotation of the impeller to transport the powder and small granular materials from the top storage bin or hopper t the discharge port , these achieve uniform feed or variable speed feed if use a variable speed motors

Jl rigid impeller feeder widely used in cement , building materials ,mining ,iron and steel industries




S

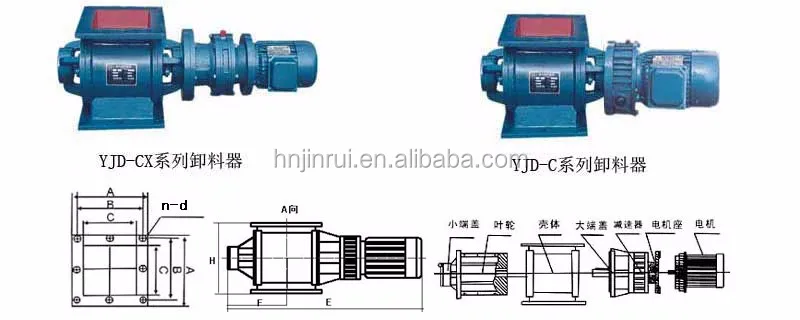

Structure
Structure








F
Features
Features



 *It has excellent performance through the pressure seal.

 *Air lock rotary valve (rotary valve) has the function of quantitative feeding.

 *We provide 50 ~ 750mm of various size, various materials.

 *The various dimensions of the aperture, can provide square or round flanged connection.

*Standard type gear motor drive (or chain driven), can choose frequency controlled .

*Superior performance, durable rotary valve.


T
Technical Parameters
Technical Parameters

ModelJL200JL200AJL300JL300AJL400JL500JL630JL800JL1000
size of rigid∅200*200∅200*300∅300*300∅300*400∅400*400∅500*500∅630*600∅800*800∅1000*1000
Speed RPM10191931.51925.525.53525.5352535202820282028
Theory of feeding capacity (m³/h)3691527373748689075105108126132160154192
Rating feeding capacity (m³/h)24610203030406080709098110110140132160
Power(Kw)0.750.751.11.51.52.22.2334445.55.55.57.57.57.5

P

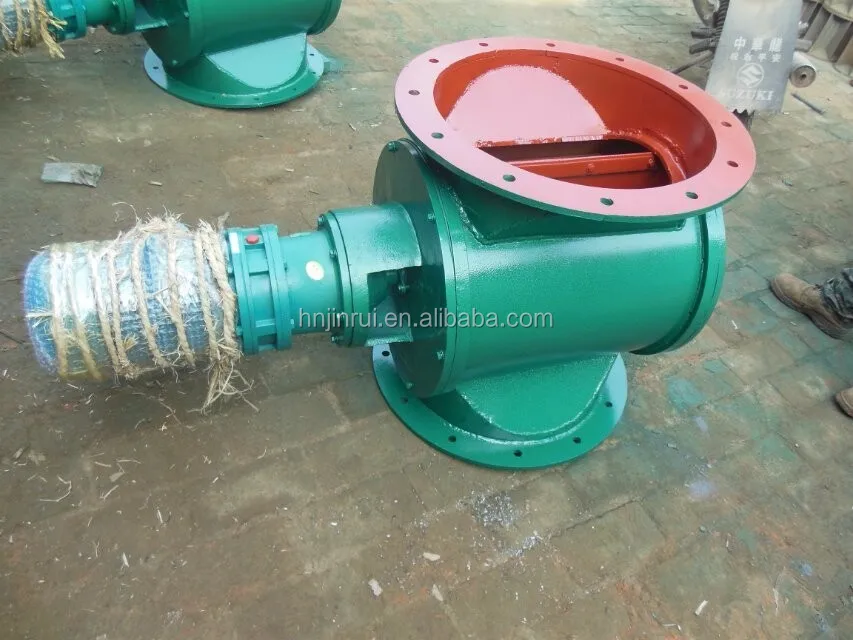

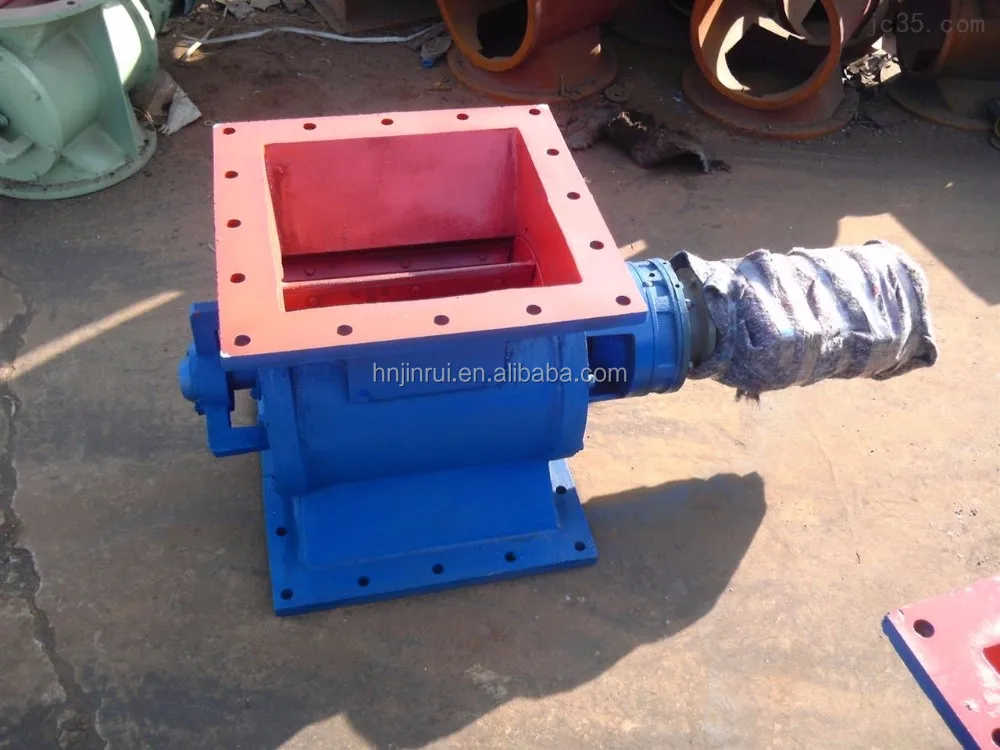

Product Show

Product Show





P

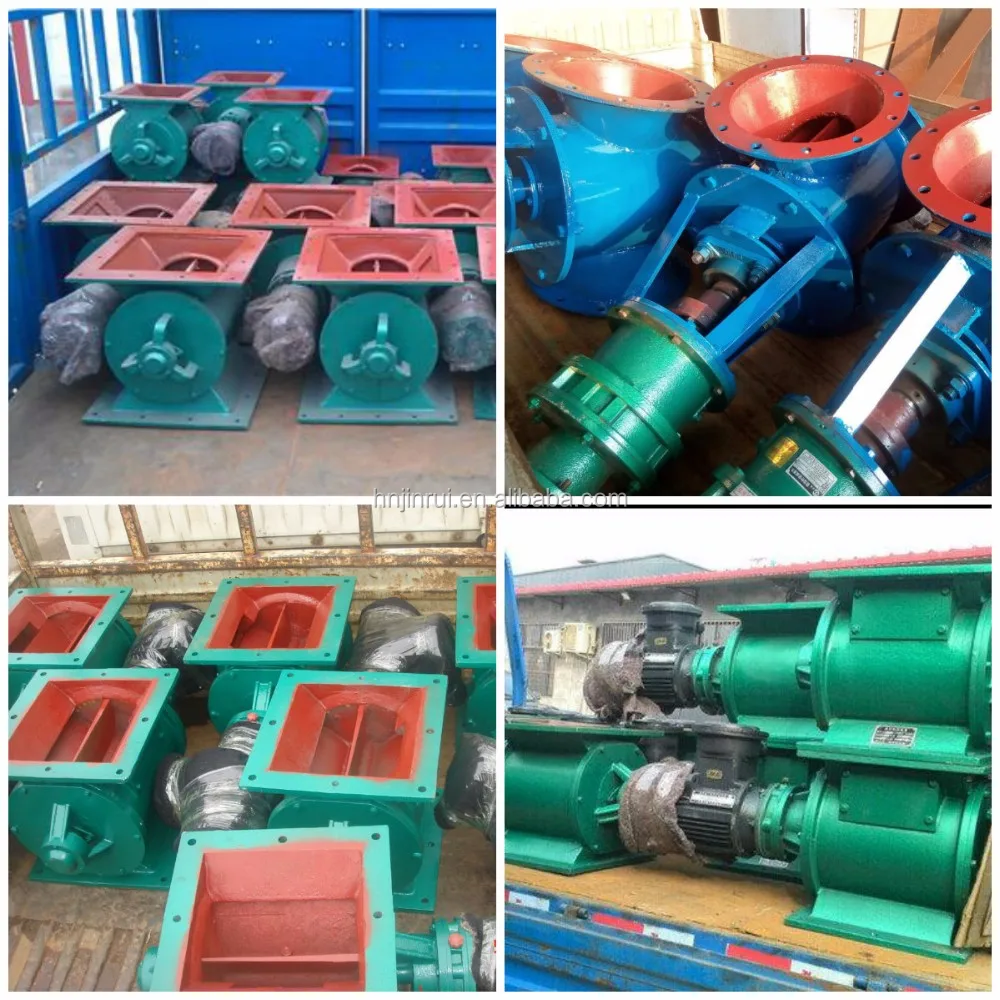

Packing &Shipping
Packing &Shipping


F
FAQ


 1.What is the conveying material?

 2.What is the handling capacity of conveying material per hour?

 3.What is the size and weight of conveying material?




A
About Us
About Us


Xinxiang Jin Rui Machinery Factory was established in 1999 year, located in Xinxiang city.

1.  Jinrui company has standard workshop of 3000 square meters.

2.  Jinrui company has passed ISO9001 quality management system certification .

3.  Main products: the conveying and lifting equipment of large angle belt conveyor,

DT series fixed belt conveyor, screw conveyor, mobile conveyor, chain plate conveyor,

 bucket chain conveyor, bucket elevator,chain bucket elevator

Any other misunderstand ,please don't hesitate to contact me
