All Weather Maize Dryer Machine

$6,500.00 - $22,000.00 / Set | 1 Set (Min. Order)
Model Number:
BSRB-6P
$6,500.00
- +
available
BSRB-8P
$9,500.00
- +
available
BSRB-15P
$22,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Drying Oven
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Yunnan, China
Brand Name:
Bestr
Voltage:
380,as models
Certification:
ISO,CCC,CE
Dimension(L*W*H):
Depend on the specific model
Power(W):
14-55kw
Application:
Medicine Processing, Chemicals Processing, Food Processing, Chemical Industry
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points:
Automatic
Name:
Dryer
Product name:
Hot Air Drying Machine
Material:
Stainless Steel
Heating source:
Steam
Usage:
Reduce Material's Moisture
Capacity:
400-500kg/h
Color:
Customer's Request
Installation:
Engineer Guide
Feature:
High Efficiency Low Cost
Weight:
Depend on the specific model

Packaging & Delivery

Selling Units:
Single item
Single package size:
220X210X230 cm
Single gross weight:
1600.0 kg
Package Type:
ISO 9001 factory,BESTR brand,FRUIT heat pump dryer 1,wooden case 2,20GP,40GP,40HQ,400T
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

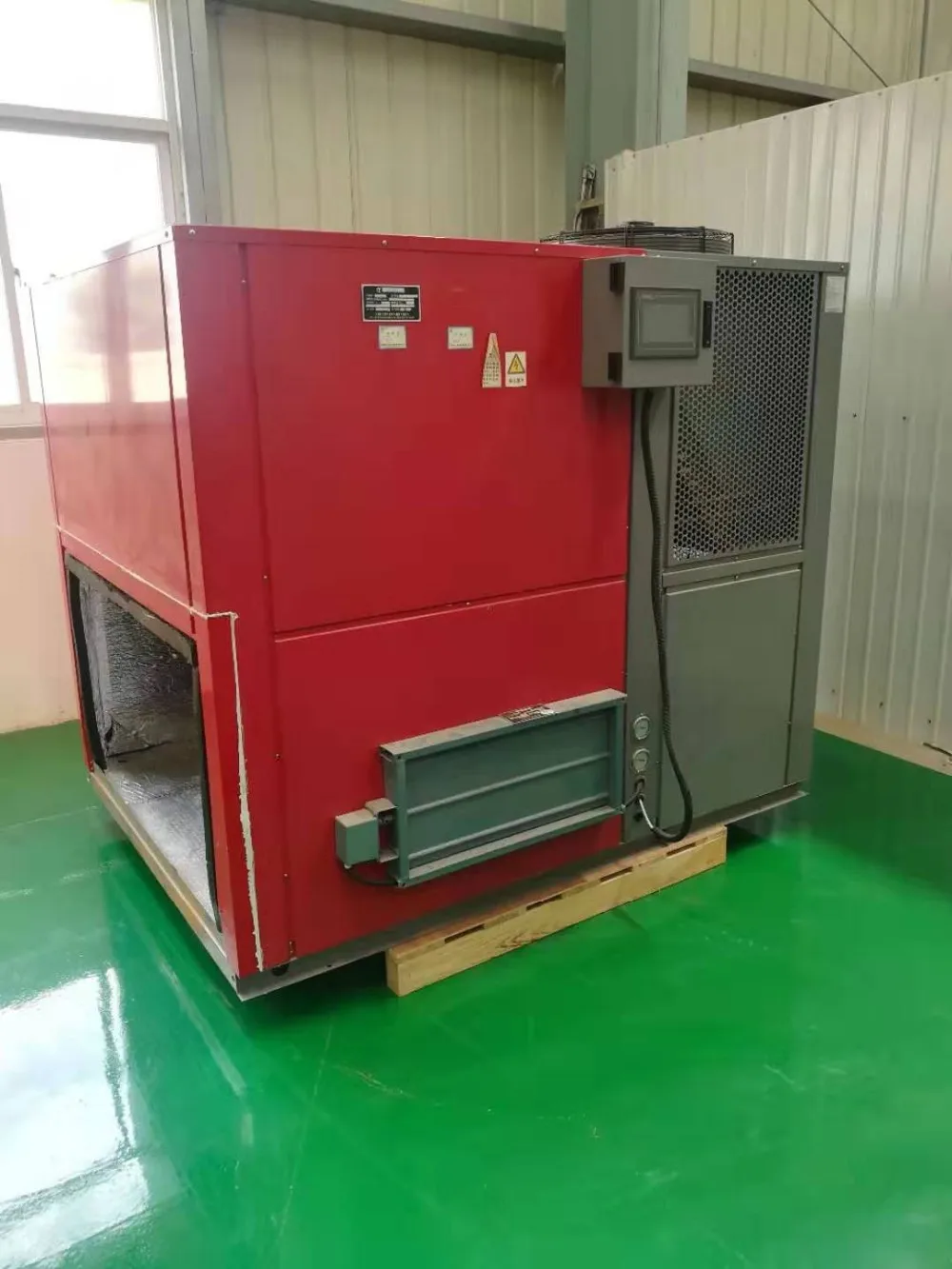

Product Show

It is widely used for the heating and humidification of raw materials and product in pharmaceutical,chemical, foodstuff, light and heavy industries.especially for the fruit and

vegetable food processing.such as leaf vegetables, cabbage,onions,carrot, apples,lemons,orange,
plums,bananas,pineapples,jujube.

Product Description

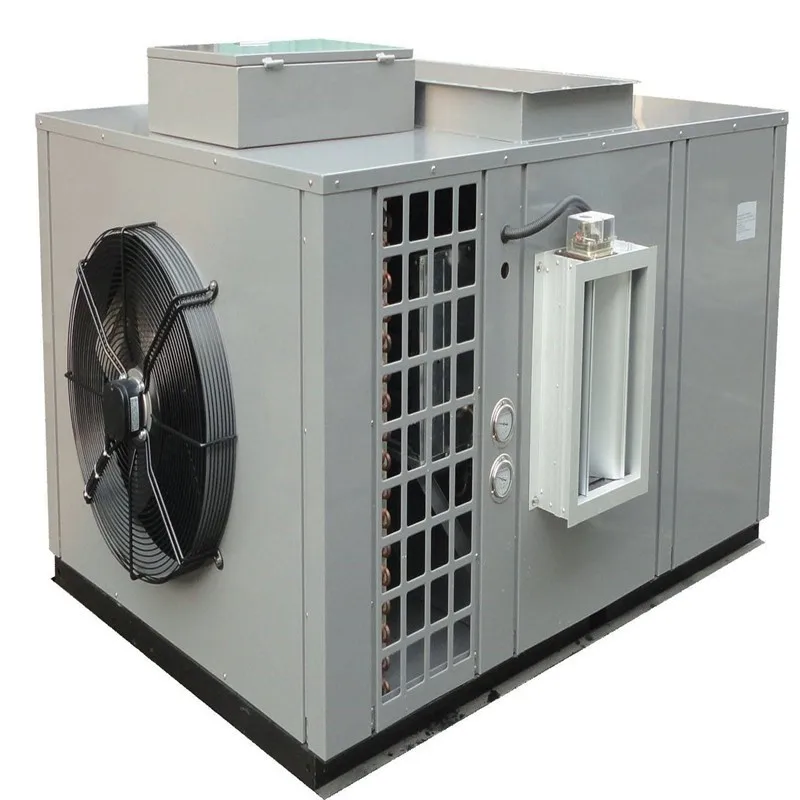

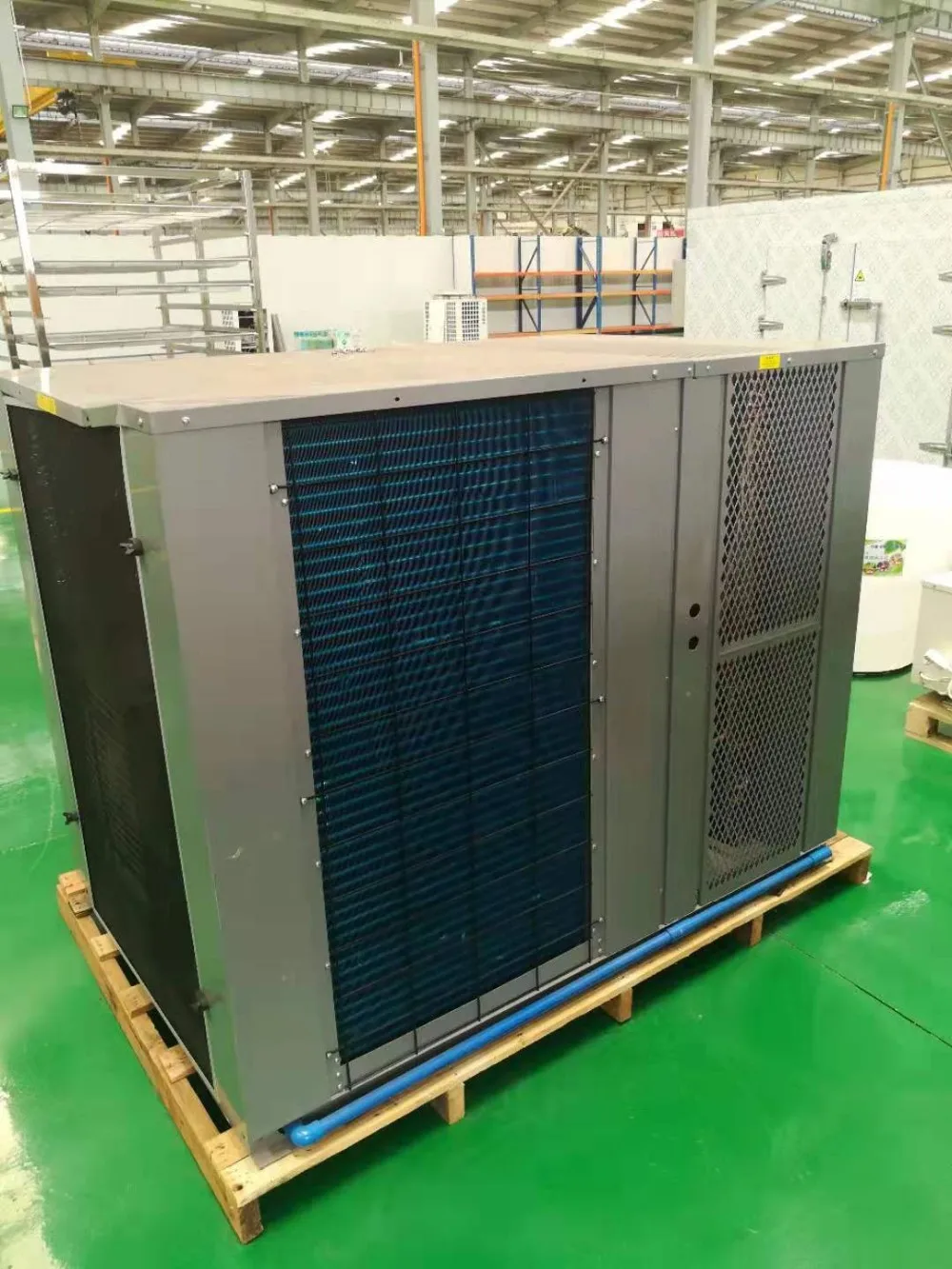

AIR SOURCE HEAT PUMP DRYER UNITS(DOUBLE SYSTEM)

The air source heat pump dryer units consists of the main system and drying room and the whole drying process is operated by the controller on the main system.

Unit Features:

Safe and reliable

Air source heat pump dryer units will use electricity, but it is not the drying device which produces heat by electricity

High efficient and energy-saving.Air source heat pump dryer units can absorb the inexhaustible heat from the air and it only consumes small amount of electricity for the compressor to move the air or solar energy.

Environmentally friendly

Air source heat pump dryer units uses three kinds of clean energy : solar energy, air heat and electricity instead of fossil fuels , such as oil, coal, gas and so on, which may cause environment pollution.

All-weather available

Air source heat pump dryer units will not effected by bad weather such as cloud and rain, it's available in all weather in 24 hours a day, which can insure the continuous drying all the year round.

Durable

The compressor, four-way valve and other main spare parts of the dryer units are supplied by the world famous manufacturers and its shell is made of corrosion-resistant and super-thick coated steel sheet, therefore, the high quality of the dryer units is guaranteed and its life span is as long as more than 10 years, which is much more longer than other drying devices.

Easily installed

The installation for the dryer units is quite simple and is not restricted by the environment; there is no need to appoint person to supervise the dryer or set a special room.

Widely applied
There are series products with different volumes for air source heat pump dryer units which can meet all kinds of requirements of the drying materials.

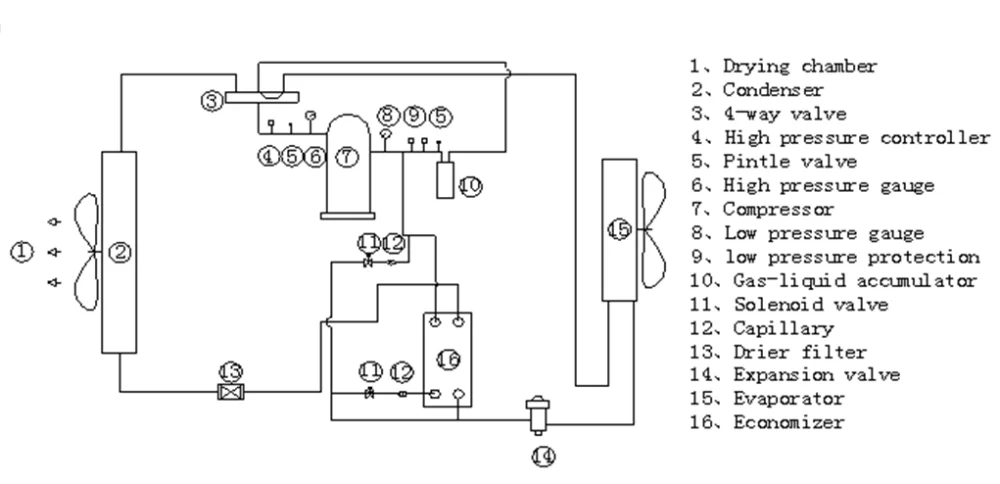

System Schematic

Remark:Due to the constant upgrading, the above system schematic is just for reference, it may be different from the real product.

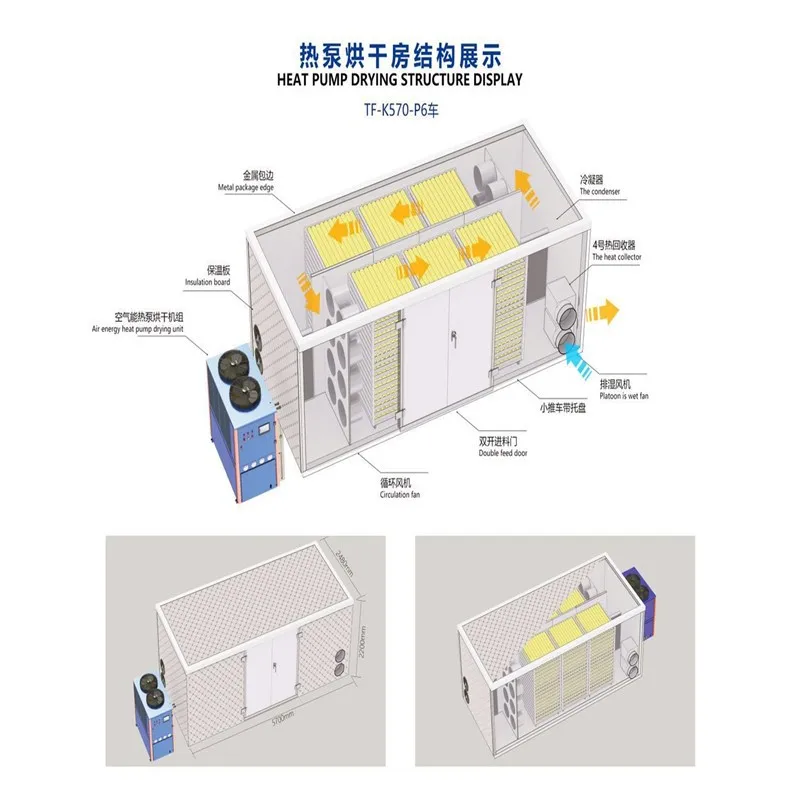

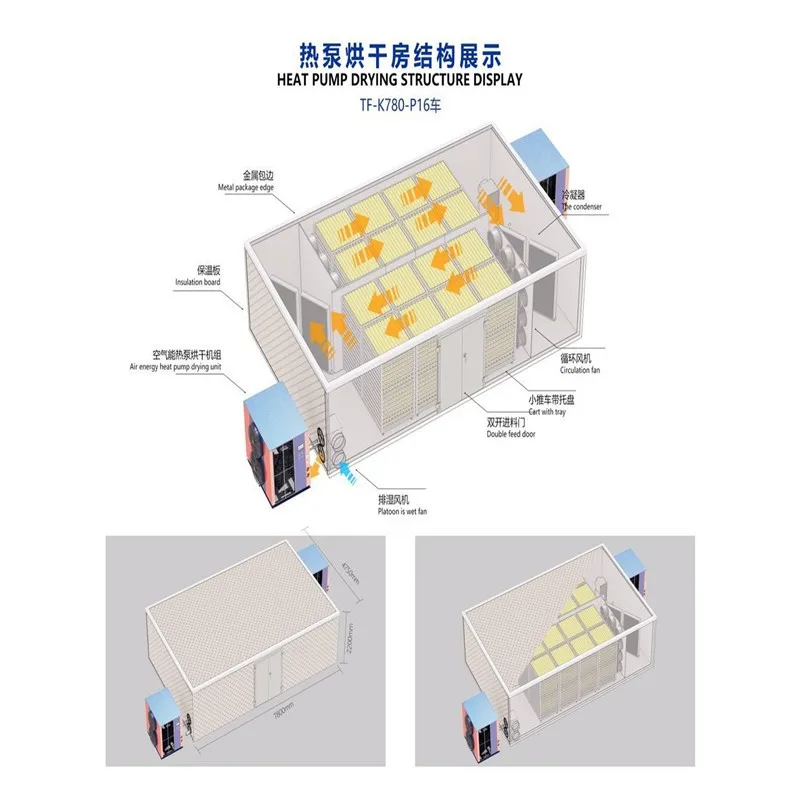

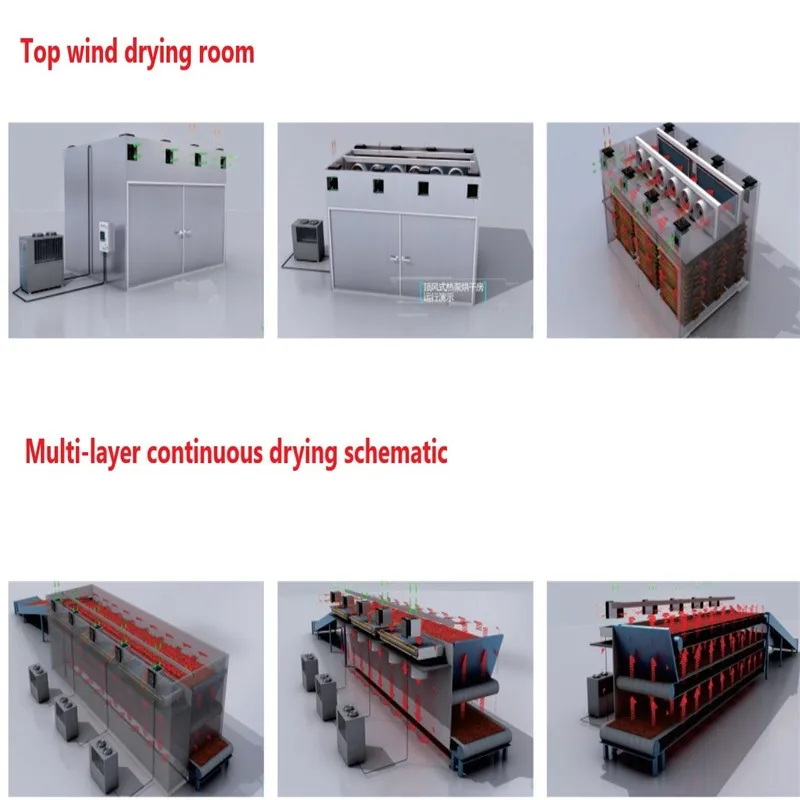

Structure Display
Parameter Display
Model NO
/
SLH-100
SLH-50
SLH-30
Heating capacity
kW
24
12.5
7.5
Input power
kW
11.2
5
3.1
Operating current
A
19
10
12
Power supply
/
380V/3N~/50Hz
380V/3N~/50Hz
220V~/50Hz
Compressor
set
2
1
1
Refrigerant
/
R134a
R134a
R134a
Fan quantity
/
6
4
2
Fan input power
W
550×3 + 250×3
550×2 + 250×2
650+450
Noise
Db (A)
84
71
71
Dimension (L/W/H)
mm
1880×1700×1300
1200×1200×2200
See  drawings
Packingsize(L/W/H
mm
See the label
See the label
280
N.W.
kg
510
280
see name plate
G.W.
kg
See the label
See the label
See the label
Remark: Due to the constant upgrading, the above parameters are only for reference, details should be seen on the name plate of the dryer units.

Accessories


Item
Quantity
Remark
Transfrio warranty card
1
_
Installation instruction manual
1
_
Wire controller components
1
Control units and display operating status
Units control box key
1
Open control box

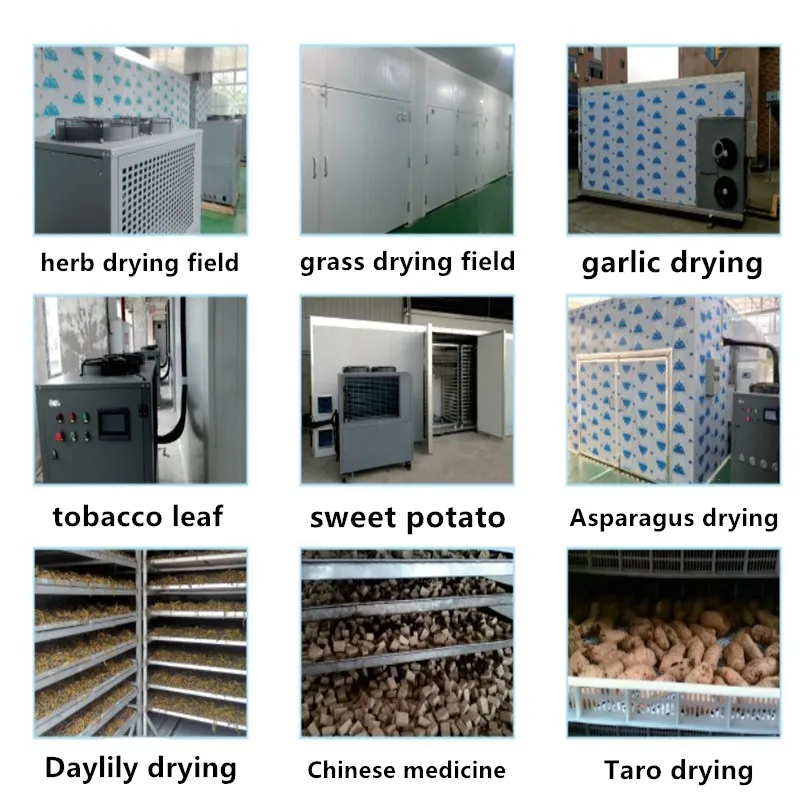

Material Display

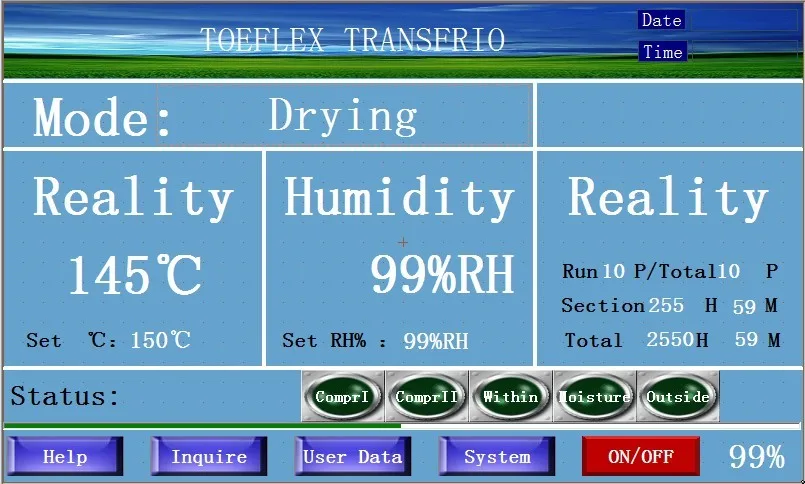

Control Display

One

[Mode]: This will display the units working mode, such as drying.
[Humidity]: This will display the humidity of drying room.
[Reality]on the left: This will display the temperature of drying room.
[Reality]on the right: This will display the units operating time.
[Status]This will display the units current operating status.

Two
[ComprⅠ]: Compressor NO. 1
[ComprⅡ]:Compressor NO. 2
[Within]: The inside fan.
[Moisture]: dehumidifying fan.
[Outside]: Outside fan.

(Remark:Main equipment's status displaying. It is on if the light gets green, otherwise, it is off.)

Three
[Help]: Users help
[Inquire]: Status inquiry
[User Data]: Operating setting
[System]: System setting
[ON/OFF]: Units on-off.
[99%]: Operating process percentage
