All around 360 degree Laboratory planetary rolling balls mill price for export

FOB Reference Price:Get Latest Price
$1,500.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QXQM-12lL ball mill
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Application:
Chemicals Processing, Plastics Processing, Food Processing
Condition:
New
Type:
Ball Mill
Product Type:
Other
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Samy ball mill
Voltage:
220V
Dimension(L*W*H):
830*750*920 Mm
Certification:
ISO9001:2008
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Model:
QMQX-12L all direction ball mill machine
Capacity:
3 L *4=12 L
Loading and unloading method:
Intermittent type
Feed particle size(mm):
Soil material≤10mm, other materials≤3mm
Discharge particle size(μm)::
<0.1μm,or 100nm,Min. As 0.1um
Ball size(mm)::
0.5,1,2,3,5,7,10,15,20
Style:
360 degree rotation
Transmission mode:
Gear drive
Speed control mode:
Frequency conversion speed regulation
The revolution speed(r/min):
0-320
Power(W):
7500W
Weight:
650kg
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export wooden package.
Port
Guangzhou,Shanghai,Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

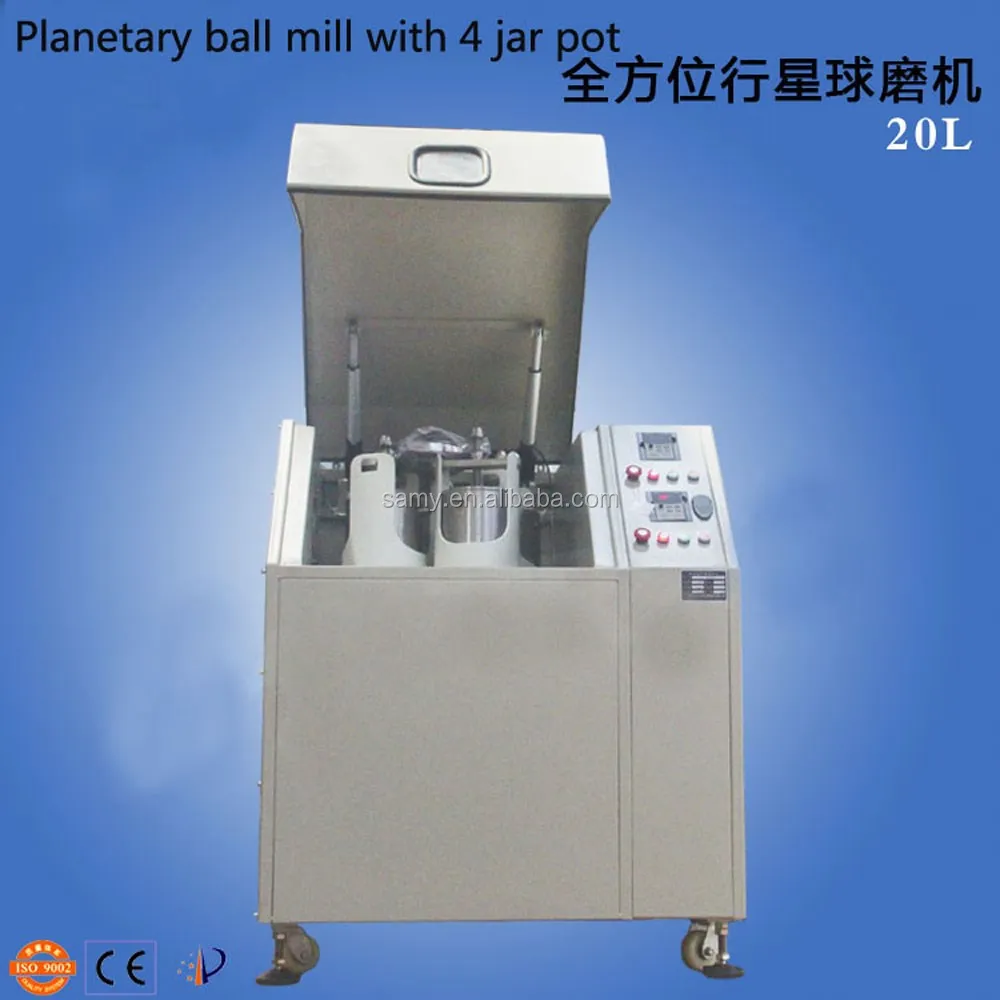

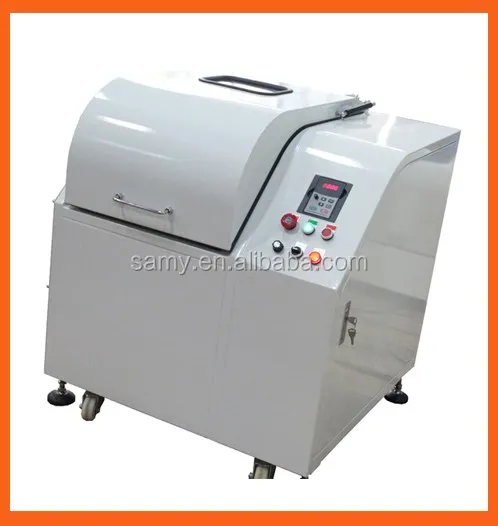

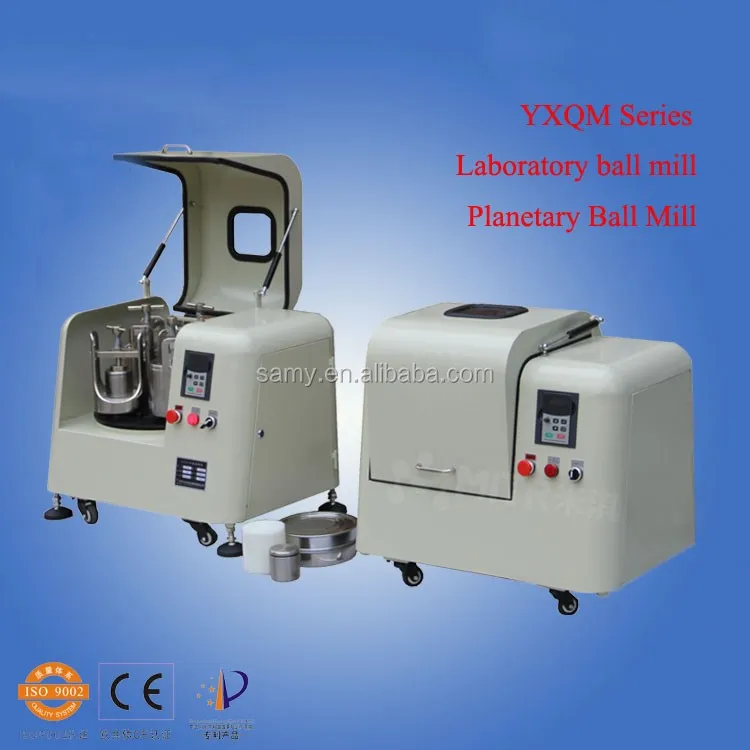

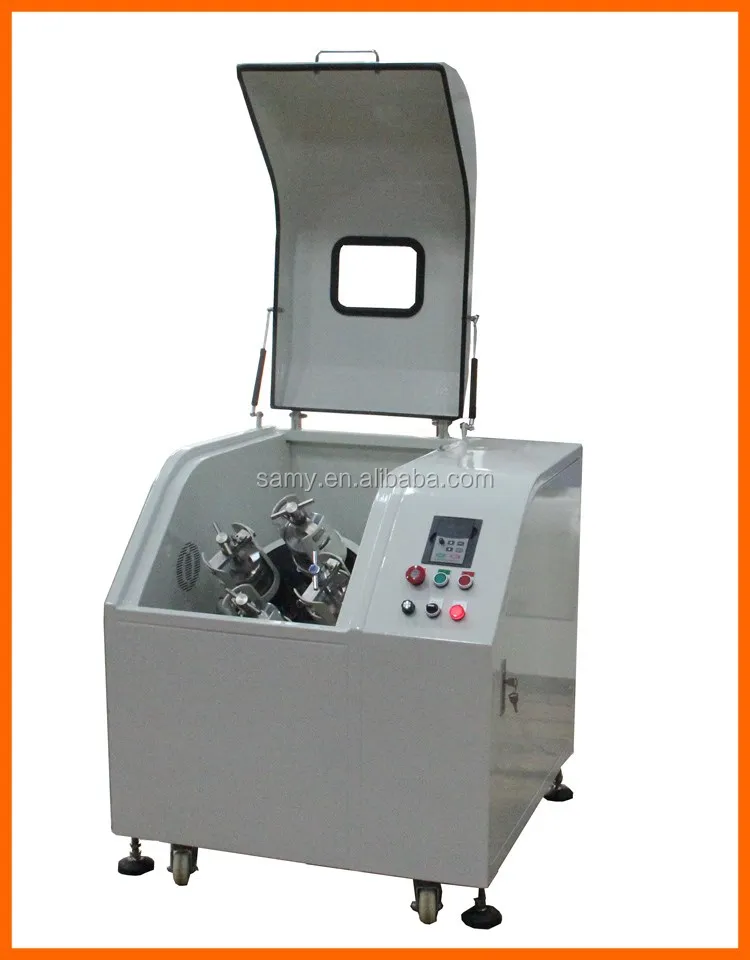

All around 360 degree Laboratory planetary rolling balls mill price for export

All around 360 degree Laboratory ball mill planetary ball mill price

All around Laboratory planetary rolling ball mill price

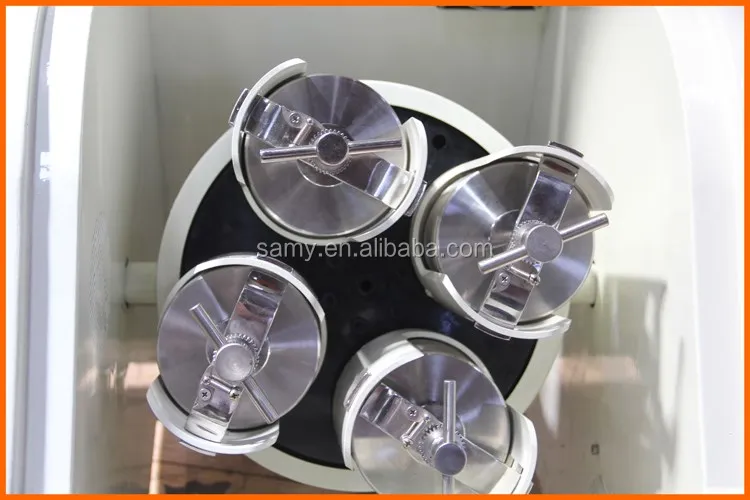

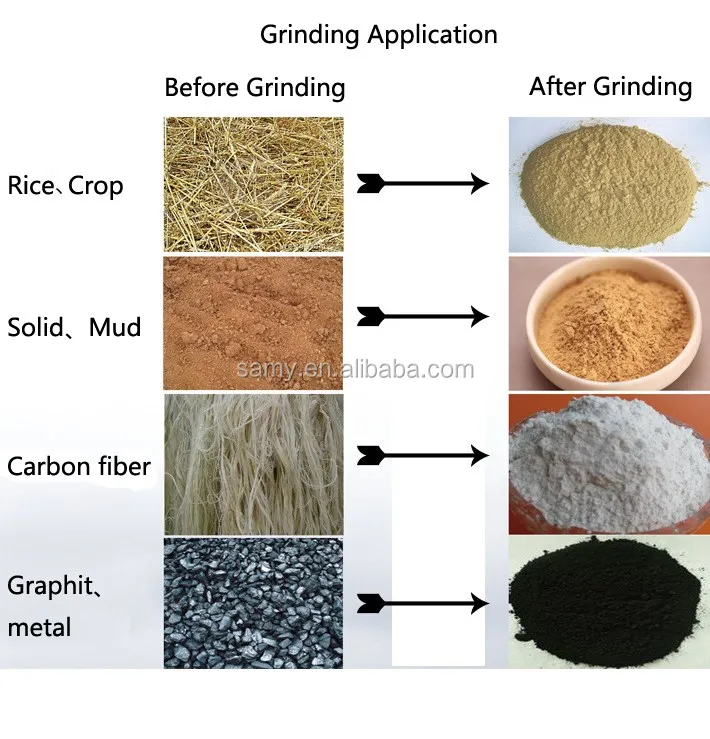

Planetary ball mill is mixed all of all, fine grinding, sample preparation, new product development and small batch production of high-tech materials, a necessary device.The product is small in size, full functions, high efficiency, low noise, is a scientific research units, institutions of higher learning, enterprises ideal equipment in the laboratory to study sample.

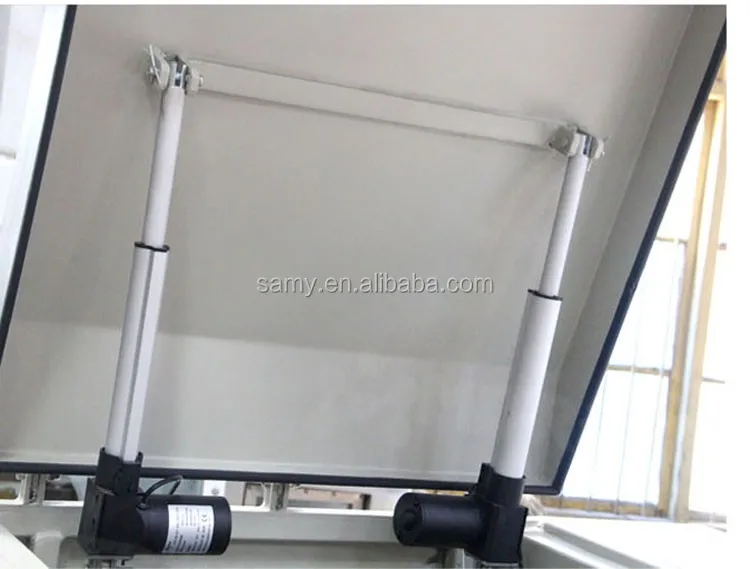

Pneumatic brace

Its elastic force is constant, easy operating and safety.

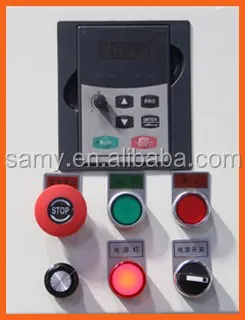

Controling panel

Can set various programma through pressing key to achieve better milling.

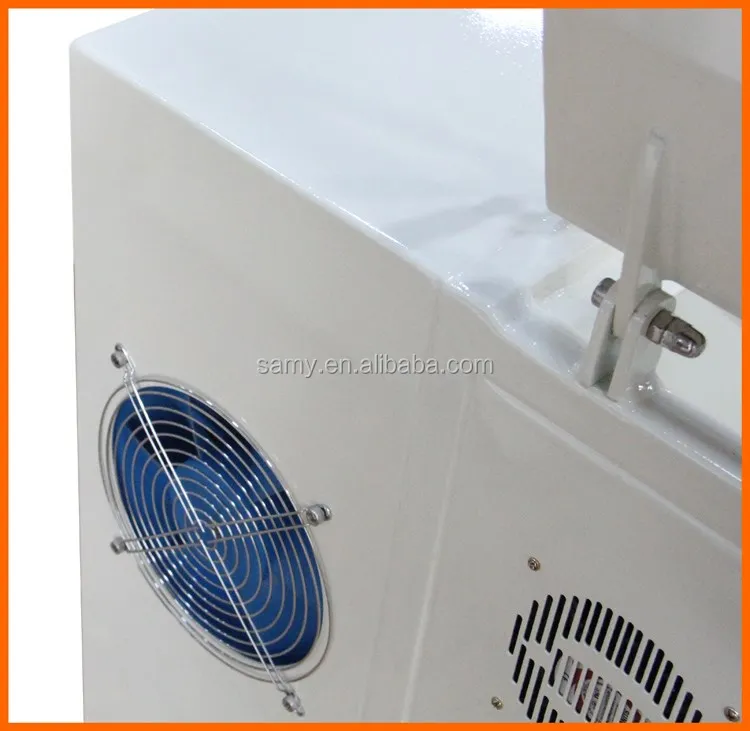

Fan

We install fan in the ball mill chamber to radiate heat when running, in this way can protect machinne well.

Main Features

360 Degree planetary ball mill frequency control system main function as following:

1. Positive work:Planetary panel clockwise operation;
2. Counter clockwise operation: the panel working with clockwise direction ;
3. Positive and reverse running:the ball mill panel running positive and counter clockwise on the time,counter clock wise alternately running can improve the effect of grinding material ;
4. Positive and reverse alternate running time setting : can be set positive operating time, and also can be set up reverse operating time ;
5. Intermittent operation: the combination of static and abrasive grinding, the grinding method can make the material appropriate to precipitate, cooling, very practical;
6. Intermittent running time set:can be according to material special feature or experience to set the stillness time and running time;
7. Speed adjust:Running speed adjust,no level adjust;
8. Running time set:The whole running time set,max setting time would be 9999 mins,we are advise time less than 100 hours;
9. Running:the machine would be running according to set program;
10. Pause:running stop;
11. Electronic stop emergency:Our machine special function,when emergency power off,our machine would be recover the memory when stop and start grinding again when power on;
12.Safe switch:Safety cover on and off,when set the function,whatever you open or close status,machine still running;

Specification
Name
12L capacity 360 degree grinding ball mill
Model
QMQX-12L
Capacity
3 L *4=12 L
Grinding ways

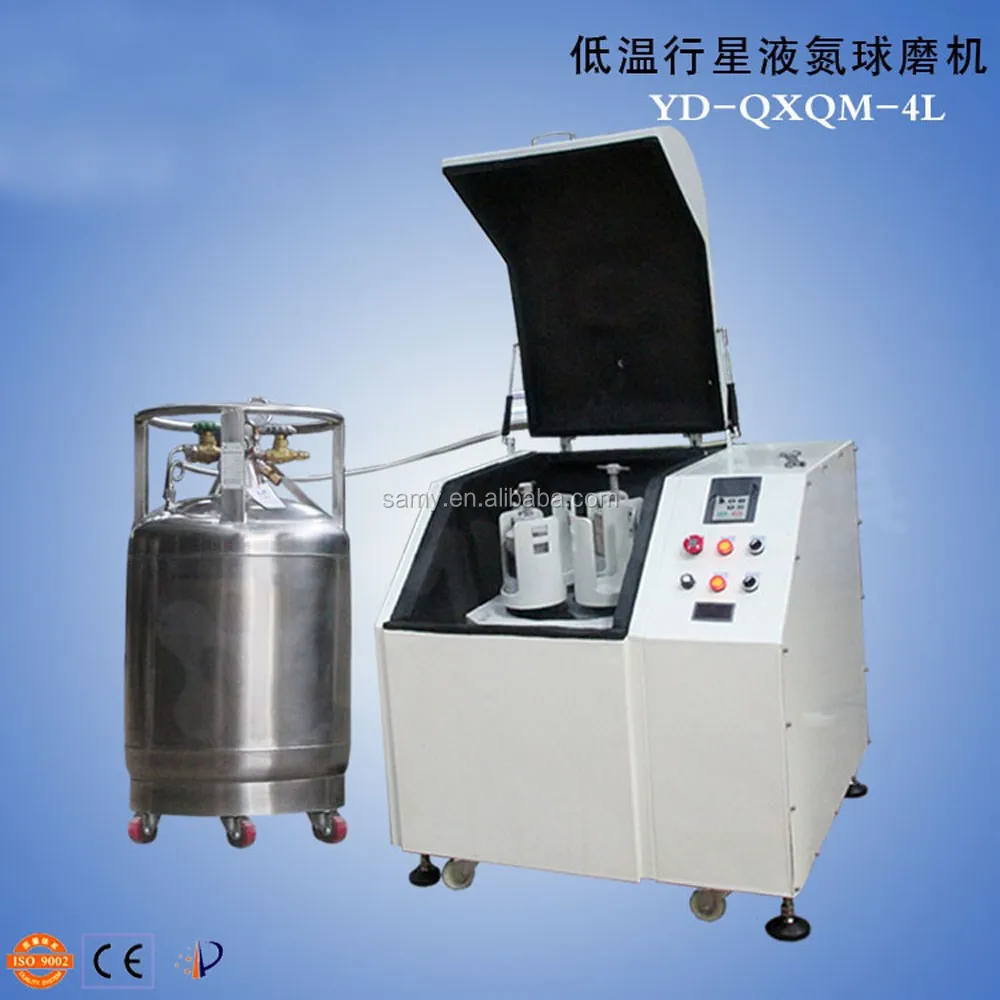

Dry grinding /wet grinding/High energy alloyed grinding/vacuum grinding/low temperature grinding for optional
Loading and unloading method
Intermittent type
Transmission mode:
Gear drive and belt drive
Control system
Frequency conversion control system, touch screen control system
Rated voltage(V):
220
Rated power(W):
750
Feed particle size(mm)
Soil material≤10mm, other materials≤3mm
Discharge particle size(μm):
《0.1μm,or 100nm,Min. As 0.1um
Ball mill material
Agate, zirconia, alumina ceramic, hard alloy, stainless steel, high chrome steel, nylon, PP tank, PTFE, polyurethane, custom
Ball size(mm):
0.5,1,2,3,5,7,10,15,20
Ball ratio:
(2~10):1
Net Weight:
650KG
Model
specification
capacity(ml)
Jars qty(pc)
Remarks
QMQX-8L
8L
500-2000
4
with 500-2000ml vacuum ball milling tank
QMQX-20L
20L
1000-5000
4
with 1000-4000ml vacuum ball milling tank
QMQX-40L
40L
4000-15000
4
with 3000-9000ml vacuum ball milling tank
QMQX-60L
60L
6000-15000
4
with 5000-13000ml vacuum ball milling tank
QMQX-100L
100L
10000-25000
4
with 9000-20000ml vacuum ball milling tank
Detailed Images

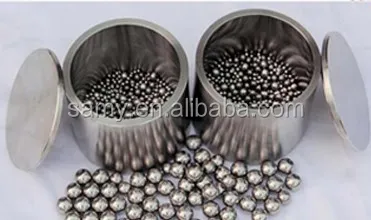

stainless steel ball milling jar

The stainless steel ball milling tank is 304 stainless steel tank. The horizontal milling tank, which our company produce, is made from 304 corrosion resistance stainless steel. It has high wear resistance, high temperature resistance, corrosion resistance and many other features. When using it with horizontal roller mill together, the grinding mixing effect is excellent.

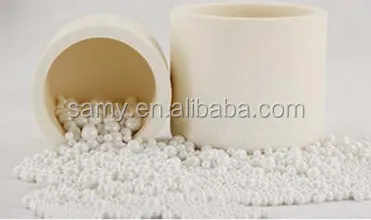

Alumina ceramic ball milling jar

Alumina ceramic ball milling tank is a kind of high wear-resistance grinding tank.There is crucible in the market, its appearance is very similar to our tank, but they are two different material. The wear resistance of crucible is low, that's the difference between crucible and our ball milling tank.

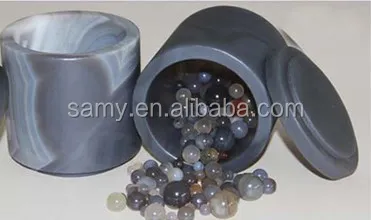

Agate ball milling jar

Agate ball mill jar is overall structure,the jar wall is thick,special packing of the tank mouth,easy to seal and open,tight seal,beautiful shape, strong and durable. During use the machine don't happen gap,leakage,save material and other undesirable phenomena, can produce ultrafine material with narrow size distribution.

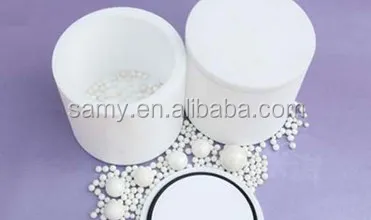

Zirconia ball milling jar

Zirconia ceramic ball milling tank is a kind of high wear-resistance grinding tank.There is crucible in the market, its appearance is very similar to our tank, but they are two different material. The wear resistance of crucible is low, that's the difference between crucible and our ball milling tank.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Certifications
Packing & Delivery
Packaging



Packaging Details

The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special

We are adopt strong wooden packing, ensure the product arrive safely at your office
Packaging



Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
