Aluminum Alloy Automatic Sliding Door Operator with Brushless Motor

FOB Reference Price:Get Latest Price
$264.50 - $291.90 / Set | 1 Set/Sets (Min. Order)
Type:
Automatic door opener
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
JianLai
Model Number:
JL-2200
Open Style:
Automatic sliding
Door Material:
Aluminum Alloy
Surface treatment:
Finshed
Motor:
Dunkermotoren
Supporting beem thickness:
5mm
Max Door weight:
150-250Kgs
Opening speed:
0.1-0.6m/s
Pass width:
800-3000mm
Passing height:
Below 3000mm
Certificate:
ISO9001
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 piece packed into a box, 6/10 boxes packed into a carton.
Port
Guangzhou
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Hot Sale Products
Specification
UPS backup battery
30mins
Ambient temperature
-15.C – 50.C
Max. relative humidity
90%
Protection level
IP23
Door width (DW)
2w+300mm
Opening width (W)
800-3000mm
Opening height (H)
≤2600mm
Keep Opening Time Adjustable Range
5~10s (5s, Standard)
Power supply
110-220VAC±10%,50HZ ,10A
Max. drive power (static)
150N

1. Gdoor use Dunkermotoren motor which is imported from Germany, work together with the 5mm thickness supporting rail.our sliding door opener could assemble the door leaf with the weight even 150K

2. Gdoor automatic sliding door opener use 5mm aluminus alloy supporting beam which is much stronger than 3mm-4mm .

3. Gdoor use Safety beam which installed on the fixed door leaf, make sliding door possesses the anti- squeezefunction.

4. Gdoor has Backup battery to ensures the automatic sliding door opener could run normally for at least 30 minutes when power fails.

5. Gdoor automatic door opener has Panic breakout system , when there is something urgent happened, the moving panel even the fixed panel of the sliding door can open at 90 degrees, make the "passage way" wide enough for the people to escape.

6. All the radar and sensors of Gdoor automatic sliding doors is BEA from Belgium or OPTEX from Japan,more sensitive, can keep us safe from squeezing and striking

7.Gdoor automatic sliding door opener can be connected with alarm fire to keep people safe when there is a fire.

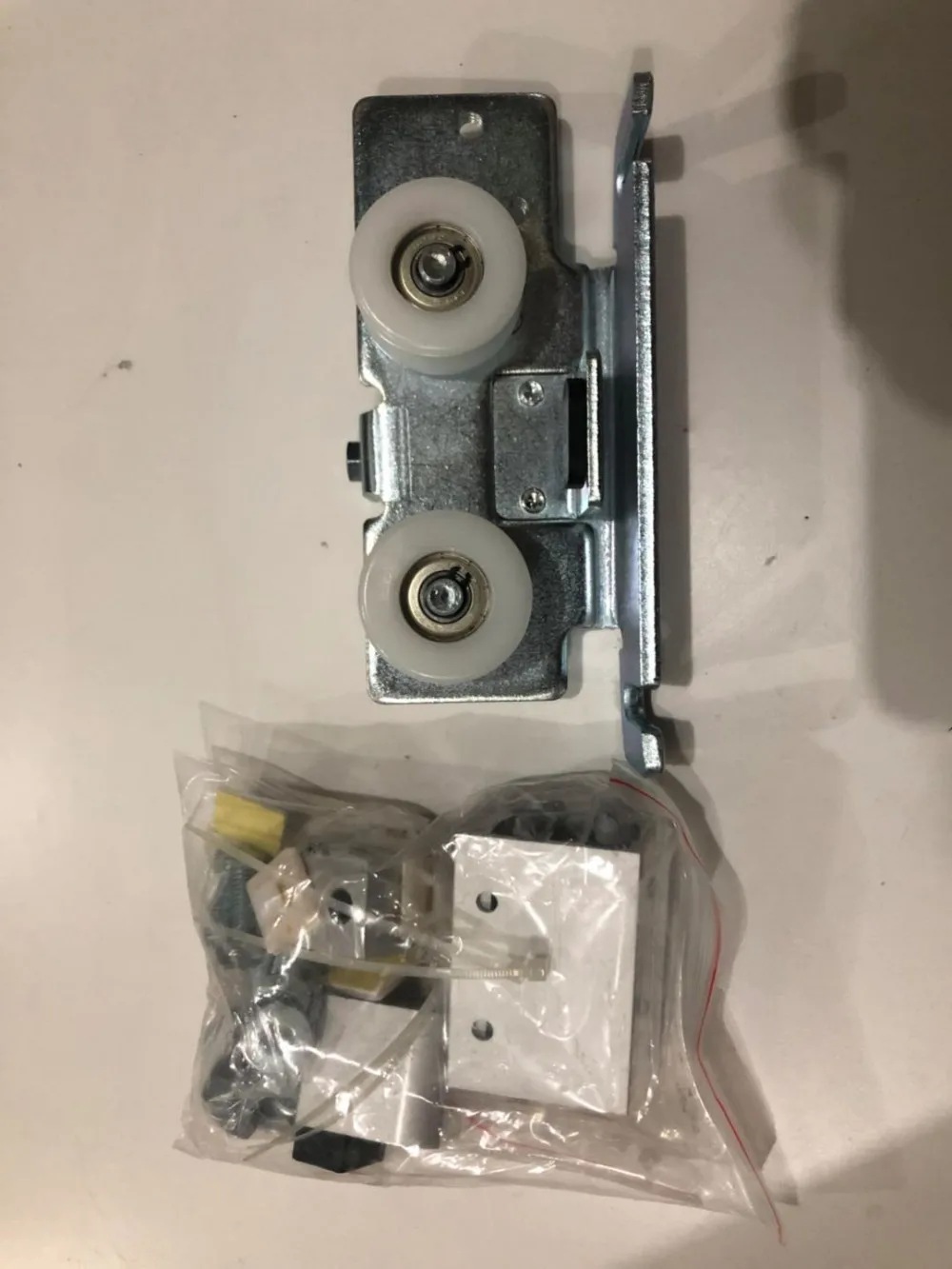

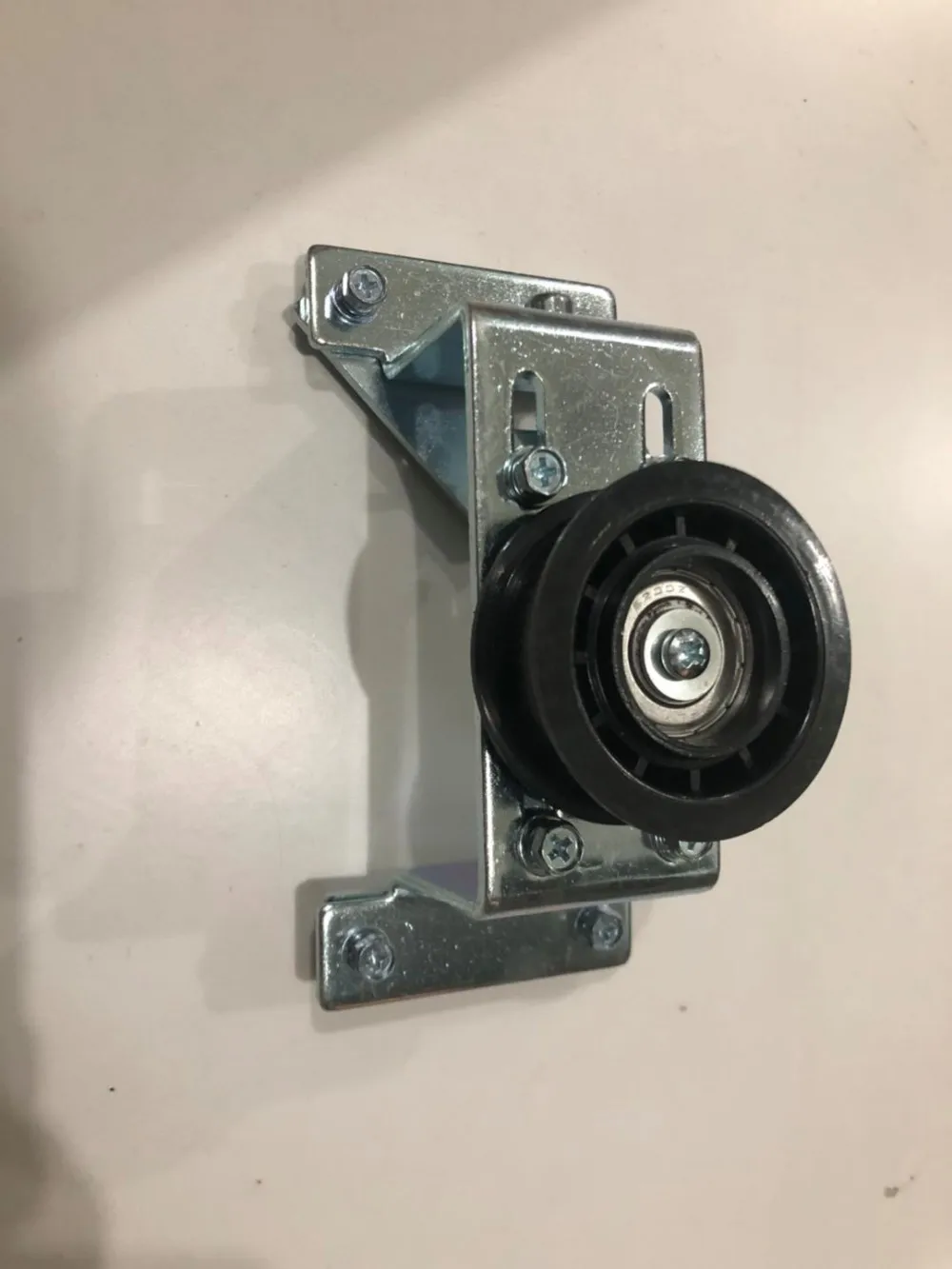

Detailed Images

Key Components:

1. Main control unit -Philips –Netherlands
2. Motor - Dunkermotoren – Germany

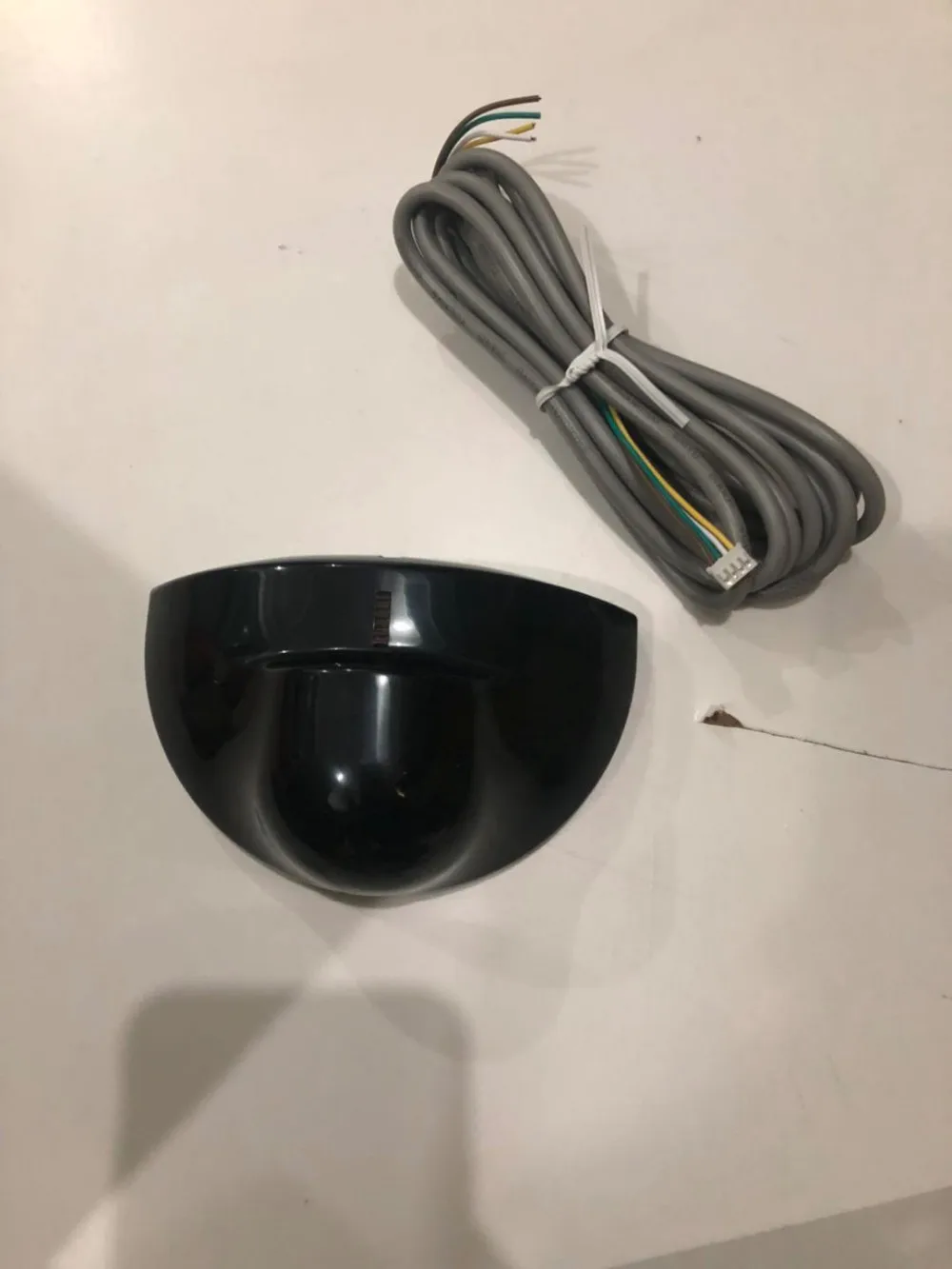

3. Radar - BEA (Belgium)/OPTEX(Japan)
4. Durable rail - Special nylon, durable, quiet and self-lubricated
5. PSA control Panel - 37 parameters could be set.
6. Supporting rails - High strength, 5mm thickness

Contact
Packing & Delivery

Carton packing (4.3m supportting beam)

Size for main spare parts: 54x20x20mm ,  gross weight: 9.9KGS
Size for supporting beam& Cover: 212x13x15mm , gross weight :37Kgs

Related Products
Our Company
FAQ

Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 3-4 weeks for order quantity more than 1000 piece.

Q3. Do you have any MOQ limit for order?
A: Our MOQ is 50 or 100 sets on alibaba,small order please go to our aliexpress store.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT if sample. It usually takes7-10 days to arrive. If big order will ship by sea.

Q5. Is it OK to print my logo on product or package?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q7: What is your payment method?
A: In general,we accept 30% T/T deposit and balance payment before shipmeng.But for big order,we can give the best payment method.
