Aluminum Holder Anti-flame Cable Management Strip Brush UL94-V0 flame retardant ISO5660

FOB Reference Price:Get Latest Price
$0.50 - $10.00 / Meters | 1 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Null
Model Number:
D-A-6-6-9-1000-05-BBS,Customized
Occasion:
Cabinet,escalator
Holder Material:
Aluminum
Function:
Seal, dustproof, shielded cold air, cable entry
Holder color:
Customized
Metal Handle Material:
galvanized plate
Bristle Height:
normally 5-178mm
Brush Length:
normally 5-3000mm
Bristle Diameter:
Customized
Weight:
600.5g
Certificate:
ROHS,Reach,UL
Supply Ability
Supply Ability:
100000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
Packed by carton and wrapping, or on request
Port
Shanghai,Guangzhou,Shenzhen port
Product Description

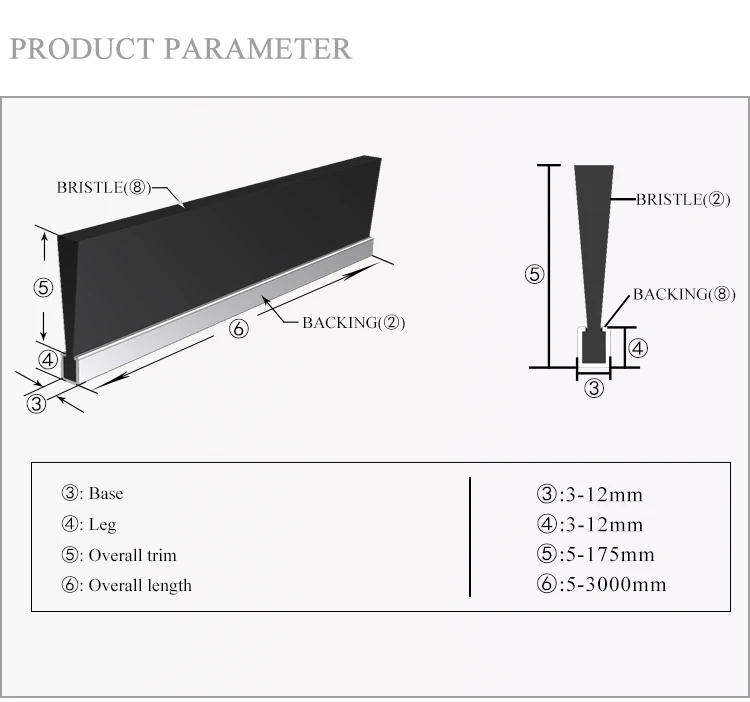

Product parameter

Product Parameter(unit:mm)
Product nameH type/F type/T type/Y type Special aluminum alloy holder for brush
Aluminum alloy holderAluminum alloy material6063-T5 aluminum alloy
  RoHSQualified
 REACHQualified
 ULQualified
Aluminum product  color(Anodized or solidified spray paint)Silver, black, gold, bronze, brown, yellow, white
Whole length L5-3000mm(Customizable)
Brush attributeBristle materialPA6,PA66,PP,PBT,PET(flame retartant, anti-static bristle optiontal),stainless steel wire, brass wire, animal hair, plant fiber, abrasive wire. etc
Bristle diameter0.15,0.2,0.3,0.4,0.5,0.6,0.8,1.0mm
 Bristle shapestraight wire,wave wire
Bristle colorblack,gray,blue,white,red,yellow,green,orange,purple(Customizable according to PANTONE and RAL colour atla)
Bristle propertyregular,flame retardant,anti-static etc.
  RoHSQualified
  REACHQualified(flame retardant type bristle unqualified)
 ULQualified
Size of H type aluminum product (Figure 1 above)Aluminum model:  H20-4-4-2.8 H22-4-4-3.2 H22-5-5-3.8 H25-5-5-4 H27-6-6-4.8 H30-6-7-5 H50-8-9-7 H60-8-9-7
 H 20mm 22mm 22mm 25mm 27mm 30mm 50mm 60mm
 W 6mm 6.3mm 7.3mm 7.3mm 8.3mm 8.6mm 11.4mm 11.4mm
 A 4mm 4.3mm 5mm 5.3mm 6.3mm 6.4mm 8.4mm 8.4mm
 B 6mm 6.3mm 7.2mm 7.3mm 8.3mm 9.6mm 11.8mm 11.8mm
 C 1mm 1mm 1.3mm 1mm 1.2mm 1.2mm 1.8mm 1.8mm
Brush match up with H type aluminum product  (Figure 1 below)Backing bottom width(3) 3.7mm 4mm 4.7mm 5mm 6mm 6mm 8mm 8mm
Leg height(4) 3.7mm 4mm 4.7mm 5mm 6mm 7mm 9mm 9mm
Bristle overall height(5) ≤61mm ≤61mm ≤81mm ≤81mm ≤121mm ≤121mm ≤181mm ≤181mm
Overall trim(6) ≤56mm ≤56mm ≤75mm ≤75mm ≤114mm ≤113mm ≤171mm ≤171mm
Brush overall length(7)5-3000mm(Customizable)
Size of F type aluminum product(figure 2 above)Aluminum model:  F20-4-4-2.8 F22-4-4-3.2 F25-6-6-5Size of F type aluminum product(figure 3 above)  T25-5-5-4Size of Y type aluminum product(figure 4 above) Y22-4-4-3.2
 H 20mm 22mm 25mm 25mm 22mm
 W 6mm 6.3mm 8.3mm 7.3mm 6.3mm
 A 4mm 4.3mm 6.3mm 5.3mm 4.3mm
 B 6mm 6.3mm 8.3mm 7.3mm 5.3mm
 C 1mm 1mm 1mm 1mm 1mm
Brush match up with H type aluminum product  (Figure 2 below)Backing bottom width(3) 3.7mm 4mm 6mmBrush match up with H type aluminum product  (Figure 3 below) 5mmBrush match up with H type aluminum product  (Figure 4 below) 4mm
Leg height(4) 3.7mm 4mm 6mm 5mm 4mm
Bristle overall height(5) ≤61mm ≤61mm ≤121mm ≤81mm ≤61mm
Overall trim(6) ≤56mm ≤56mm ≤114mm ≤75mm ≤56mm
Brush overall length(7)5-3000mm(Customizable)5-3000mm(Customizable)5-3000mm(Customizable)



Company Information



FAQ



1.Q: After i placed the order, how long does it take before you make the shipment?


A: Normally it only takes 3-5 working days after we recieved the payment. If the quantity you demaned exceeds our inventory, we will evaluate and the lead time before production, but 5~20 working days would be enough us us to complete the production and make the shipment as required(Note: This only applies to the situation that customer demanded quantity exceeds our inventory, and it's extremely rare)





2. Q: if I have special product specifications asking you to customize the sample for me, how soon will the sample be ready?


A: Iron brush strip generally takes 3-5 working days, planting brush, because needs fixture, takes 5-10 working days. On rare occasion if the inventory runs out, iron brush strip takes 5-7 working days, planting brush needs 10-15 working days.





3. Q: Do we have to pay for sample-making? Who pays the sample freight?

A: General no charge for sample making, if the cost is too high we might consider charge a token charge, if sample making uses special fixture, the costs may require customers to bear. When the order reaches a certain amount, the cost of the fixture will be returned, and the sample freight shall be covered by the customer.

4. Q: How long will the production cycle be if I place a order in your company?





A: After signing the contract and receiving the payment from the customer, we can ship the goods within 5-10 working days normally. If short of inventory, 10-20 working days(the above delivery date is based on actual quantity).





5. Q: What are your terms of trade? What's the mode of payment?


A: Our terms of trade generally is FOB, we can accept payment by T/T, Western Union, PayPal, Alipay.





6. Q: What is the acceptable mode of shipment for your company?


A: Our company accept DHL, FEDEX, UPS, air freight, sea transportation etc. Based on the mode of FOB trade, we are cleared by customs and deliver the goods free of charge to the chinese port of designated by the customer. The international mode of shipment is determined by the customer.





7. Q: What's the advantage of your company's products?


A: Durable, precise size, environmental protection, advanced raw material, exquisite appearance and delicate package.
