Aluminum tube making machine concrete pipe Production Line

  • 1 Sets
    $128,700.00
  • 2 Sets
    $119,600.00
  • 3-4 Sets
    $118,500.00
  • >=5 Sets
    $117,500.00
Model Number:
customized
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
100 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Production Capacity:
10-15M/Min
Power(W):
4+4kw
Place of Origin:
Hebei, China
Brand Name:
ZY
Dimension(L*W*H):
8.6*0.8*1.2m
Name:
Aluminum tube making machine concrete pipe Production Line
power source:
electric
product type:
roll forming machine
Raw Material Thickness:
0.45-0.55mm
Diameter of Shafts:
60-80mm
Application:
Sheet, Pipe, Drain Pipe
Material of Axis:
45#Steel with Chrome Treatment
Screw Design:
Double-Screw
Rollers:
16-20rows
Cutting System:
Fly Saw Track Cutting
Condition:
New
Type:
Pipe Welding Machine
Pipe Material:
Carbon Steel
After-sales Service Provided:
Engineers available to service machinery overseas
Voltage:
380V 50HZ
Weight:
5 Ton
Certification:
ISO9001:2008
Warranty:
2 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
860X80X120 cm
Single gross weight:
4.5 kg
Package Type:
Copper Aluminum Tube Welding Cold Roll Forming Machine packaged:nude,the computer controlling parts parcked with water proof cloth.
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 100 To be negotiated

Aluminum tube making machine concrete pipe Production Line



Products information of Aluminum tube making machine concrete pipe Production Line :

A.  Technical Parameter of  Aluminum tube making machine concrete pipe Production Line
1. Machine specification: forming thickness)1-2mm, yield strength≤G250Mpa
2. diameter of the tube: 25mm
3. Forming speed: 5-6M/min
4. Forming roller: about 12 stations
5. Main motor power: 7.5KW
6. Roller material: 45# forged steel, surface coated with chrome
7. Main shaft material: 45# steel
8. Main axis dia.: ¢68mm
9. Hydraulic cutting pressure: 10-12Mpa
10. Cutting method: hydraulic powered, cutting after roll forming.
11. Cutting blade material: Cr12 quenching treatment
12. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
high frequency welding pipe making machine

B.  Comprised Parts of Aluminum tube making machine concrete pipe Production Line

Serial No.Commodity & DescriptionQuantity
13T manual uncoiler1 set
2feeding guiding 1 set
3Main roll forming machine1 set
4Output table1 set
5Main drive1 set
6Fly saw cutting1 set
7Wig welding device 1 set
8Controlling system (including cabinet)1 set

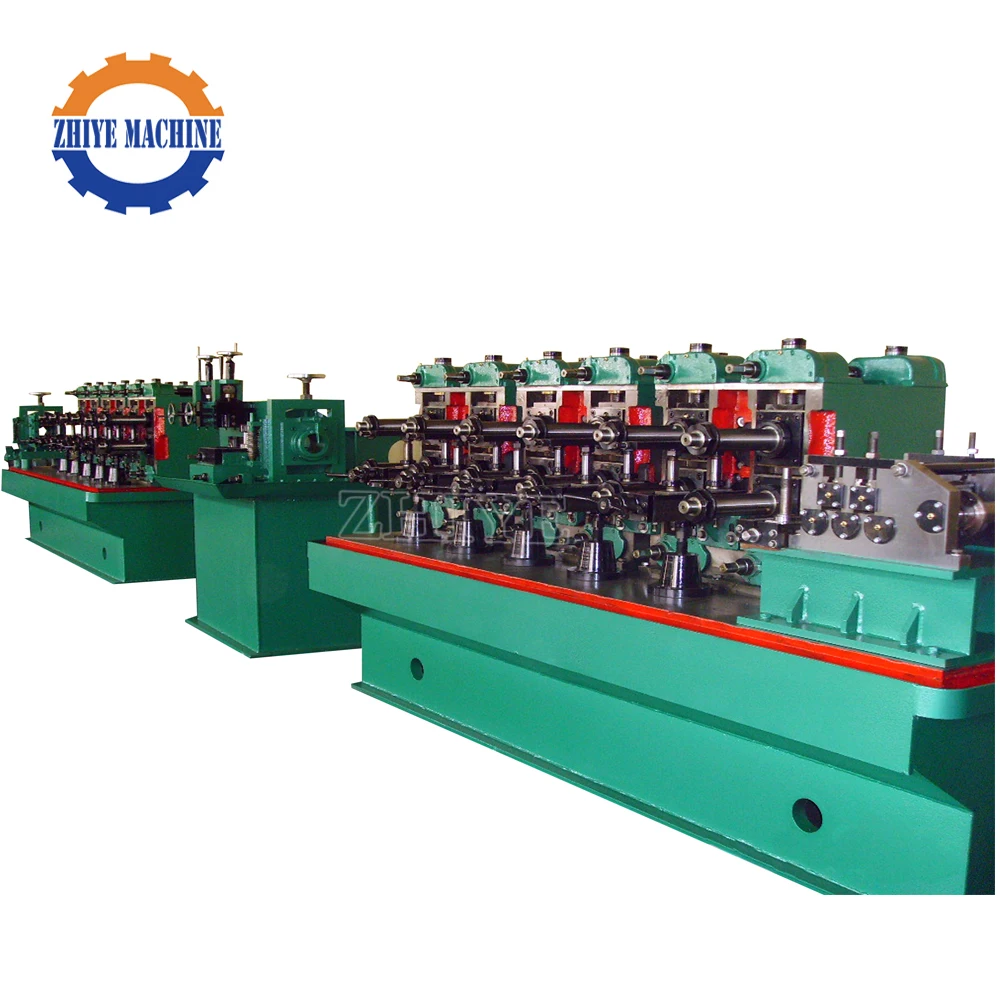

Automatic Tube Welding Cold Roll Forming Machine

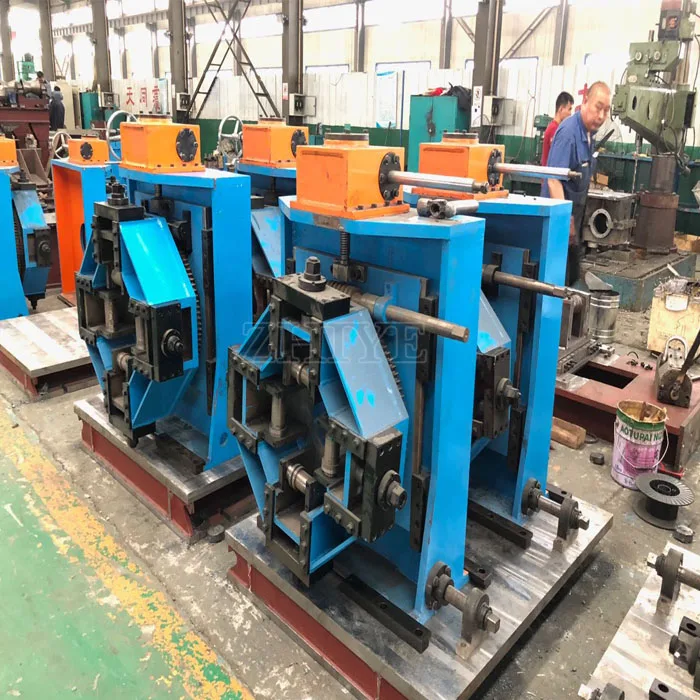

Welding Pipe Mills.jpg
welding pipe machinery.jpg

Character main structure of Aluminum tube making machine concrete pipe Production Line

Main features and components of the Aluminum tube making machine concrete pipe Production Line

1. Main features of Aluminum tube making machine concrete pipe Production Line
a. Simple structure & beautiful appearance, because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

b. All the components of Aluminum tube making machine concrete pipe Production Line  are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

d. It is very easy to install the equipment and suitable for producing in the factory.

e. The machine has features of low noise and high efficiency.

Automatic Tube Welding Cold Roll Forming Machine



Packaging & Shipping

Aluminum tube making machine concrete pipe Production Line   packaging: Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.



Delivery time : 30 WORKING DAYS AFTER RECEIVED THE DEPOSIT



The Aluminum tube making machine concrete pipe Production Line   packed 20 feet container, it fit for ocean shipping. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.



Automatic Tube Welding Cold Roll Forming Machine



Company Information

 Cangzhou Zhiye Cold Forming Machinery Co.,Ltd  has been entitled with the “key private   enterprise” by the local government and over the years, we have been dedicated to the research&development as well as the    fabrication of the forming machines of metallic plate cold bending roller.

 We manufacture all kinds of cold roll forming machines, we main supply trapezoidal roof sheet roll forming machine, glazed tile roller machine, C&Z purlin Rolling Making mahcine and Light steel keel frame former Line.

 Of course we also produce 1.double deck roller forming machine 2.Ridge cap cold roll former machine 3.Floor decking rolling forming machine 4.light steel frame roll forming machine 5.roller door shutter roll forming machine 6.sandwich panel roll forming machine 7.U purline roll forming machine 8.Gutter&Downspout roll forming machine 8.shelf&rack roll forming machine 9.welding pipe and tube roll forming machine.
    In recent years, our products at large scales have been sold to more than 50 countries and regions, for instance, France, Britain, Australia, The United States, Kazakhstan, Malaysia, Nigeria, Rumania, Albania, etc, and has won the universal appreciation and commendation from the customers all over the world.

 Welcome to Contact us and visit us!





Automatic Tube Welding Cold Roll Forming Machine



Automatic Tube Welding Cold Roll Forming Machine

Our Services

 We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial  damage, we will send you new ones for free. When need the technician to go abroad, we will arrange  the technician.But the buyer should take all the cost, including Visa, Roundtrip ticket,suitable accommodation and pay the service fee to the technician with $150/days

Automatic Tube Welding Cold Roll Forming Machine





FAQ

Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.

Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.

Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.

Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.

Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
