Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter

  • 1-49 Pieces
    $45.00
  • 50-199 Pieces
    $41.80
  • >=200 Pieces
    $40.50
Measurement Range:
Temperature -40-80℃ Humidity 0-100%RH
Accuracy:
Temp:±0.4℃
$
- +
available
Humi: ±2%RH
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples: $59.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $59.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
RENKEER
Model Number:
RS-WS-9TH
Type:
duct humidity transmitter
Product name:
0-10V 0-5V output pipe temperature sensor duct humidity transmitter
Keyword:
duct humidity transmitter
Warranty:
2 years
Certificate:
CE Rohs FCC ISO
Power supply:
10-30V DC
Response time:
Humi.≤8s Temp.≤25s
Accuracy:
Humi.: ±2%RH Temp.: 0.4℃
Output:
4-20mA/0-5V/0-10V/RS485
Application:
HVAC, medical equipment. environment equipment
Working temperature:
-20℃-+60℃

Packaging & Delivery

Selling Units:
Single item
Single package size:
13.5X9X4.6 cm
Single gross weight:
0.25 kg
Package Type:
duct humidity transmitter packed with inner EPE and carton box
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 5 7 10 To be negotiated

Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter

 duct humidity transmitter  duct humidity transmitter  duct humidity transmitter duct humidity transmitter

Before-sale service click hereAfter-sale service click here
Asking for sampleTechnical problem

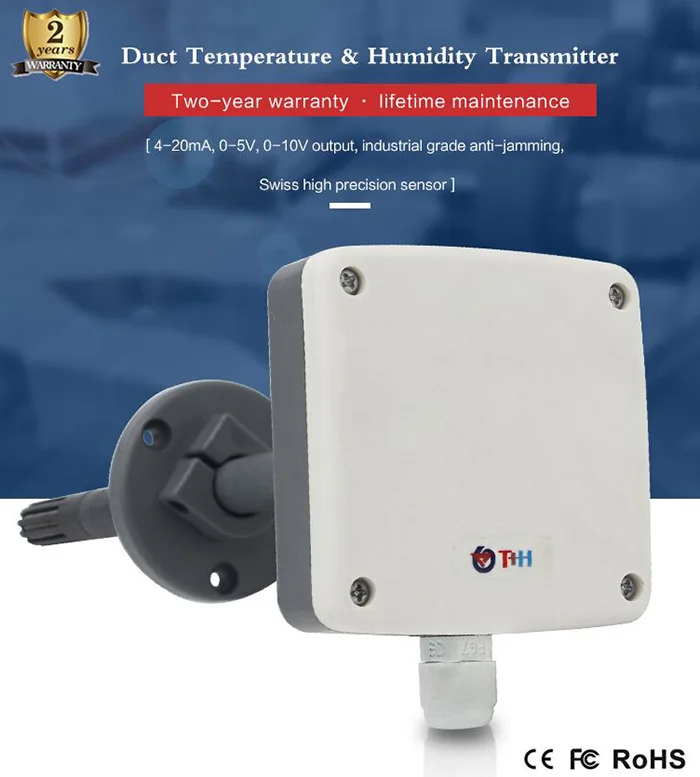

Product Description

This product uses a particle sintered probe sheath, and the probe is directly connected to the housing to look beautiful;
The output signal type is divided into RS485 and analog type, 10~30V wide voltage range power supply, complete specifications and convenient installation;
The circuit adopts imported industrial grade microprocessor chips and imported high-precision temperature sensors to ensure excellent reliability, high precision and interchangeability.

Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter

Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter



                          Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter

Detection Range

Temp. -40℃-+120℃

Humi. 0%RH-100%RH

Output

4-20Ma/0-5V/0-10V/RS485

Accuracy

Humi .  ± 2%RH  (5%RH-95%RH, 25℃)

Temp.  ±0.4℃ (25℃)

Power supply

10-30V DC (P≤0.4W)

Respond time

Humi. ≤8s

Temp. ≤25s

Size

225x80x14mm

Power Consumption

≤0.5W

Warranty

 2 years

Certificate

CE ROHS FCC ISO



Features detail
Advantage

Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter has core technology:

1) No need tightening screw

2) Every temperature range has its accordance switch.

3) Anti-interference module: keep our sensor stable working even strong interference

Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter

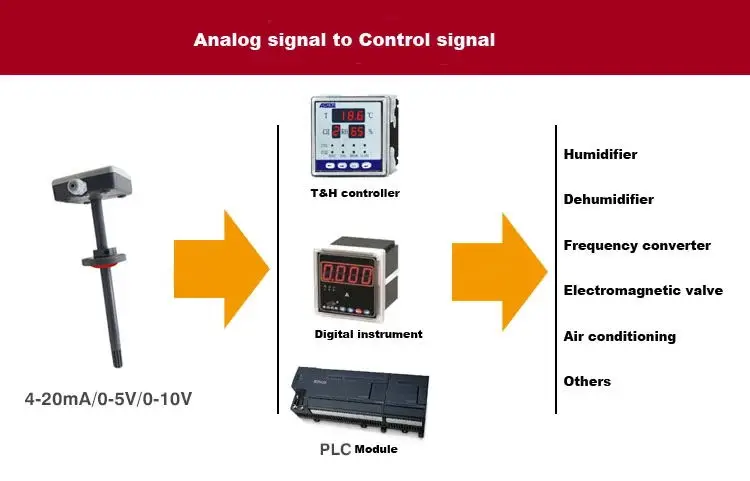

Analog to control

How the Analog to control signal of our Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter

Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter

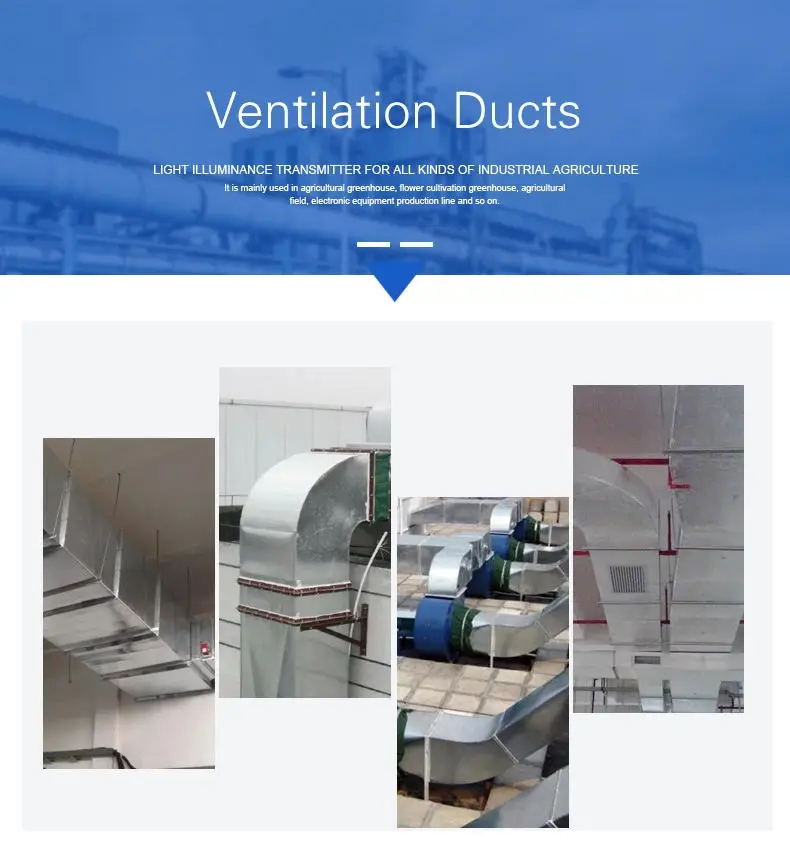

Application
Agriculture
HVAC system
Green houses
refrigeration system measuring
Indoor pools
Industrial area
Commercial buildings
Public transport hub



Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter

Company Information

Shangdong Renke Control Technology Co.,Ltd. is a leading environmental monitoring high technology enterprise in China.
Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service.
Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.

Analog 4 20mA 0-10V 0-5V output pipe temperature sensor duct humidity transmitter

FAQ

Q: Are you the final manufacturer? duct humidity transmitter
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patent.

 duct humidity transmitter  duct humidity transmitter

Q: Do you offer the OEM service? duct humidity transmitter duct humidity transmitter
A: Yes, we can offer OEM service and design the shell and logo for you.

 duct humidity transmitter duct humidity transmitter

Q: Do you offer free samples? duct humidity transmitter duct humidity transmitter
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.

 duct humidity transmitter  duct humidity transmitter

Q: What payment ways do you accept? duct humidity transmitter
A: You can pay us by T/T , PayPal , and West Union . duct humidity transmitter

 duct humidity transmitter

Q: What is your delivery time?duct humidity transmitter
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.

 duct humidity transmitter

Q: How is your quality assurance service? duct humidity transmitter
A: 24 months quality guarantee. duct humidity transmitter

 duct humidity transmitter  duct humidity transmitter

Q: Could we make a visit to your factory? duct humidity transmitter
A: Yes, you are welcomed .  duct humidity transmitter
