Anti-Abrasive Single Stage Centrifugal Horizontal Slurry Pump

FOB Reference Price:Get Latest Price
US $500-20,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Chengdu Yong Yi
Model Number:
WD
Theory:
Centrifugal Pump
Structure:
Cantilever type
Usage:
carry corrosive & abrasive liquid mediums
Power:
315kw
Standard or Nonstandard:
Standard
Fuel:
≤315KW
Pressure:
0.1~0.9(Mpa)
Application:
chemical, metallurgy, electricity, paper, food industry etc
Flow:
8~800m3 / h
Head:
10~90m
Use to:
carry liquid mediums which contain solids content no more than 35%
Series:
WD-series pumps
Product name:
High Chrome Pump Mining Slurry Pump Equipment
Material:
Customer Specifications
Color:
Customer Specifications
Voltage:
Country Voltage
Warranty:
12 Months
Feature:
Single Stage
Supply Ability
Supply Ability:
10 Set/Sets per Day
Packaging & Delivery
Packaging Details
Export wooden box packaging
Port
Domestic exports of ports
Lead Time :
Shipped in 30-60 days after payment

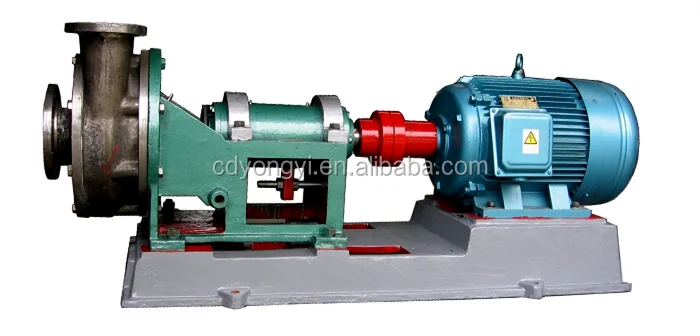

Anti-Abrasive Single Stage Centrifugal Horizontal Slurry Pump

Product Description

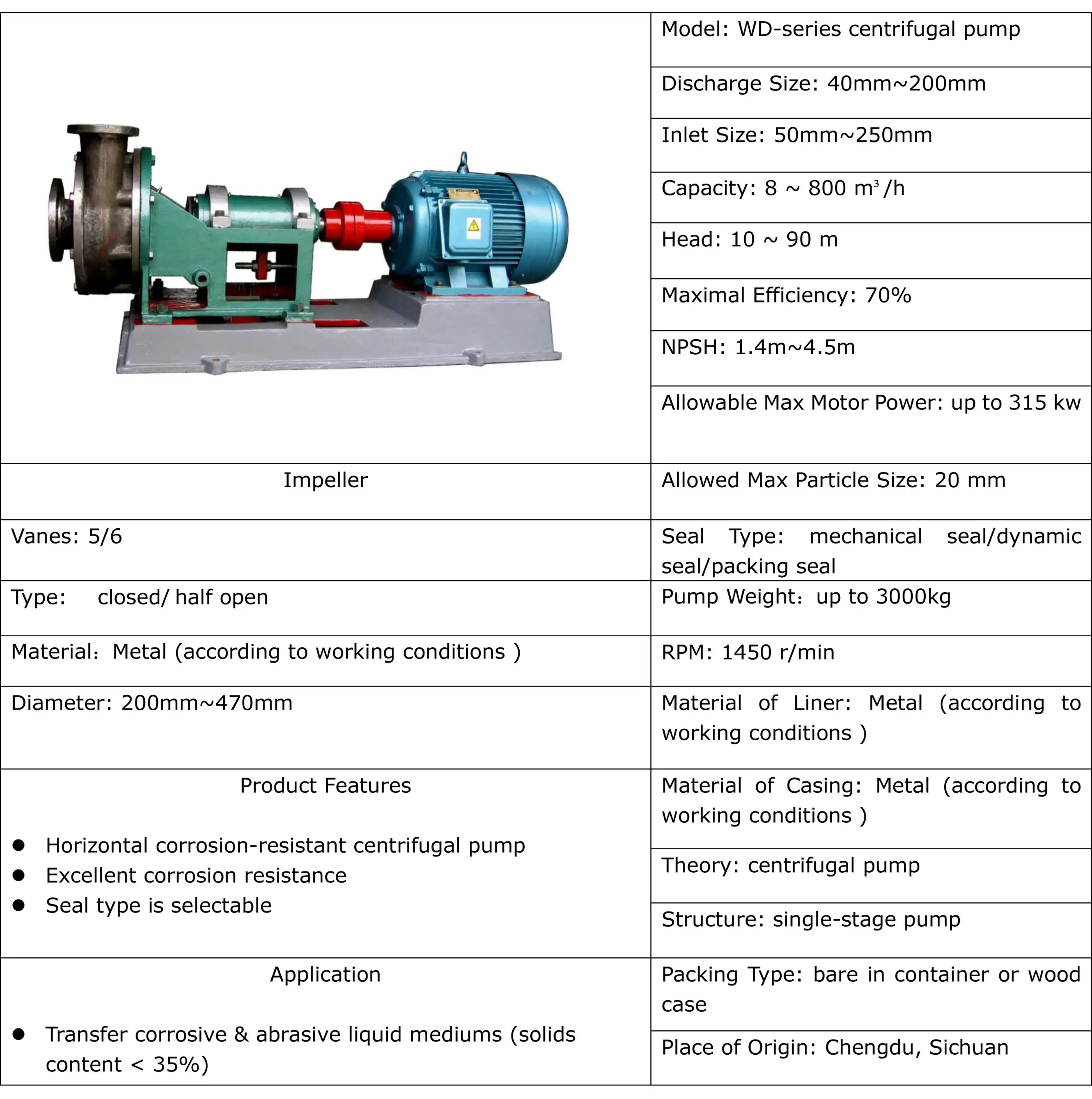

Performance Parameter

WD technique specification

Product Features

1. Spacious impeller flow channel and superior hydraulic performance.

2. Variable shaft seal : mechanical seal, dynamic seal + packing seal, dynamic seal + K-type seal.

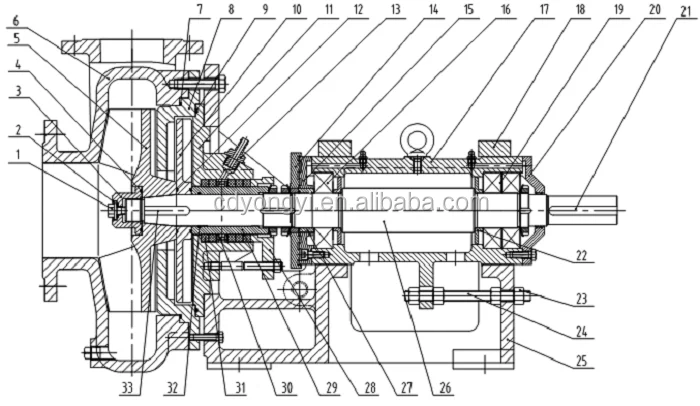

Centrifugal Wear Resistant Slurry Pump

*1Locking screw*8Vice impeller chamber15Front bearing cap22Oil pan*29Sleeve
2Gasket9O-ring*16Front bearing23Adjustment nut30Water seal ring
*3Impeller nut*10Vice impeller17Bearing body24Adjustment screw31Filler
4O-ring*11Packing chamber18Bearing bracket25Bearing body bracket32O-ring
*5Impeller12O-ring*19Rear bearing*26axis*33keys
*6Pump body13Rinse water nozzle20Rear bearing cover27Shield cover
7O-ring14Water retaining plate21Key28Packing gland

Centrifugal Wear Resistant Slurry PumpCentrifugal Wear Resistant Slurry PumpCentrifugal Wear Resistant Slurry Pump

Application

1. Carry corrosive & abrasive liquid mediums which contain solids content no more than 35% .

2. Applicable in different industries like chemical industry, metallurgy industry, electricity industry,  paper industry, food industry, pharmaceutical industry and synthetic fibre.

Related Products
Company Information

Chengdu Yongyi Pump Industry Co., Ltd. located in Qingbaijiang Industrial Development Zone, Chengdu, China, established in 1995, is professional in manufacturing corrosion-resistant and wear-resistant pumps and energy-saving stirrers. Yongyi Pump has been authorized by ISO9001:2008 International Quality System, obtained national industrial production permit and been titled by Chengdu Industrial Design Center.



Possessing powerful R & D team, superior production equipments, professional and advanced technology, Yongyi pump has established a joint experimental station with state key laboratory of Xihua University.



With strong technology support and great production capacity, Yongyi Pump is independent in designing & researching, casting, cold & hot process, assembling and testing. Its products are popular in chemical industry, metallurgy, mineral industry, electricity industry, coal industry and so on. Yongyi Pump works on offering customers high-quality products and superior after-sale service!

Centrifugal Wear Resistant Slurry Pump

With Pro / ENGINEER 3D design software and CD-adapco Star-CD, Yongyi Pump optimizes the design of pump structure and analyzes the internal flow field. Besides, Yongyi Pump boasts a large number of professional talents, patented technologies, and advanced comprehensive performance test-beds. Moreover, Yongyi Pump and Xihua University have co-established a joint experimental station.

Centrifugal Wear Resistant Slurry Pump

Warehouse

Centrifugal Wear Resistant Slurry Pump

Certificate

Centrifugal Wear Resistant Slurry Pump

Packaging & Shipping

Payment

We usually use TT. (T / T 30% deposit before production and balance 70% before delivery or against B / L copy if see shipmet. 100% L / C at sight if see shipment.)

Western Union.

Paypal.

High Quality Sulfuric Acid Chemical Pump

Shipping

If the quantity of order is not very big, we could send them to you by express delivery, such as TNT, DHL, UPS OR EMS etc.

If order is big , we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent. Our long-term cooperated agent also available.

Freight collect if bulk shipment.

High Quality Sulfuric Acid Chemical Pump

Why Choose Us

High Quality Sulfuric Acid Chemical Pump

corrosion-resistant centrifugal pump
