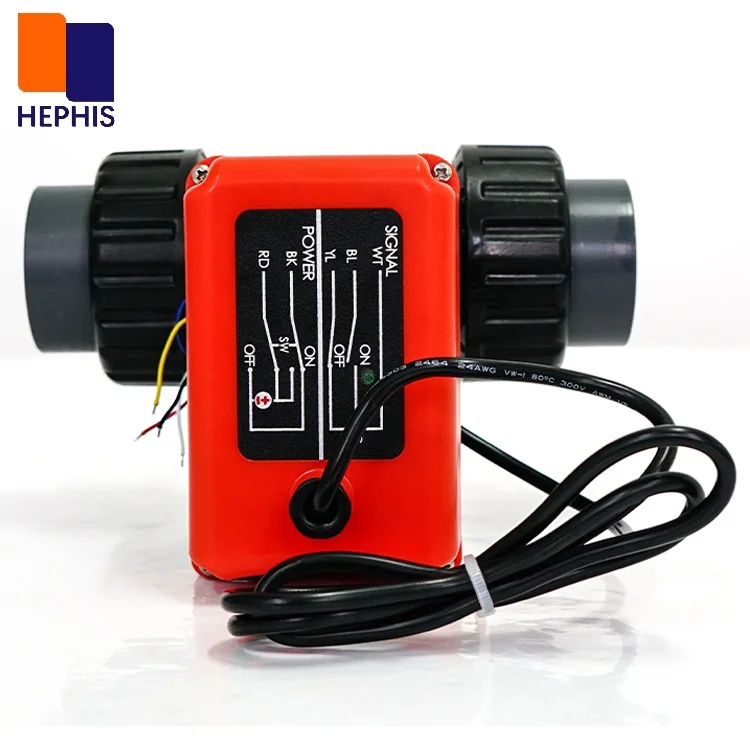

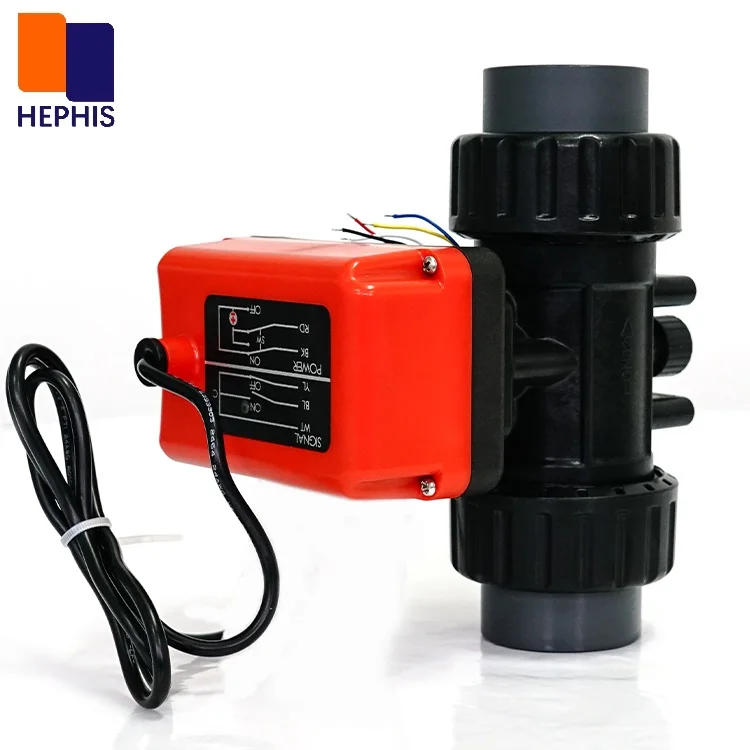

Anti-Corrosion PPO DN40 G11/2" DC12V24V 2Ways Actuator With Position Indicator Motorized ELECTRIC MOTOR PRICES Valve

Feedback Ratings
  • 1-10 Pieces
    $107.02
  • 11-20 Pieces
    $104.43
  • 21-50 Pieces
    $100.98
  • >=51 Pieces
    $98.39
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
9 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Contact Supplier
Samples - $64.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
HEPHIS

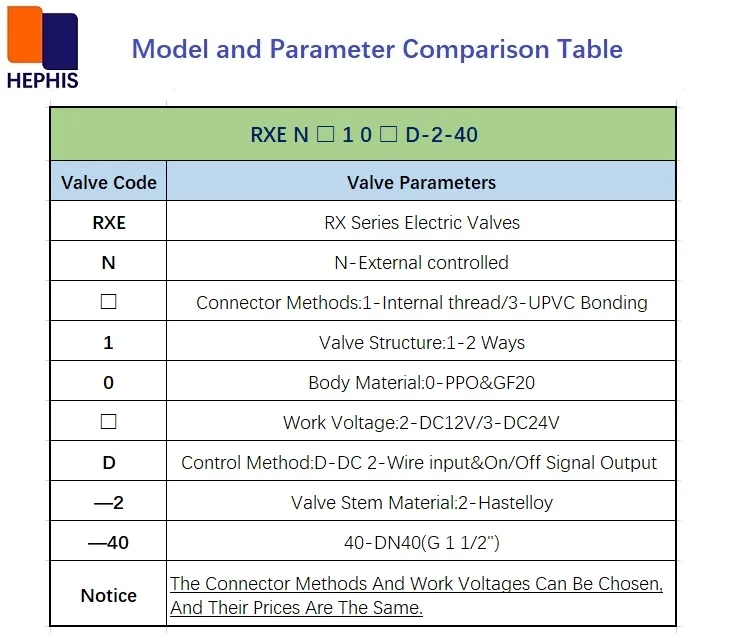

Model Number:
RXENX10XD-2-40
Application:
General
Material:
PPO
Temperature of Media:
High Temperature, 0-90 degrees
Pressure:
0~1.0MPa
Power:
Motor drive
Media:
Chemicals
Port Size:
G 1 1/2"
Structure:
Ball
Product Name:
2Ways Electric Valve
Usage:
Chamicals
Standard:
CNS/ANSI
Voltage:
DC12/24V
Connection Mode:
Internal thread/glue bonding
Size:
DN15/20/25/32/40/50/65/80
Valve Ball Material:
Alumina Ceramics
Seals Material:
Alumina Ceramics
Valve Stem Material:
Hastelloy
Valve Body Material:
PPO+GF20

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X40X30 cm
Single gross weight:
1.008 kg
Package Type:
1) Each valve is packed in a separate carton. 2) Many valves are packed in a large carton. 3) The inside of the large carton is filled with foam to prevent damage during transportation.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 500 501 - 1000 1001 - 2000 >2000
Est. Time(days) 9 10 12 To be negotiated
Product Description

Product Application

HEPHIS electric valve uses high-quality PPO material as the valve body, the valve core uses HEPHIS corundum ceramic material, has the strongest anti-corrosion and wear resistance, service life of 100000 +, HEPHIS electric valve has 6VDC 12VDC 24VDC and 220VAC control voltage can be selected.
HEPHIS electric valve has UPVC bonding, internal threads, PPR hot melt three kinds of connections can be selected.
Electric valves are mainly used in water treatment equipment, electroplating water treatment, seawater treatment, industrial water treatment, RO system, EDI system, etc.

Main Features

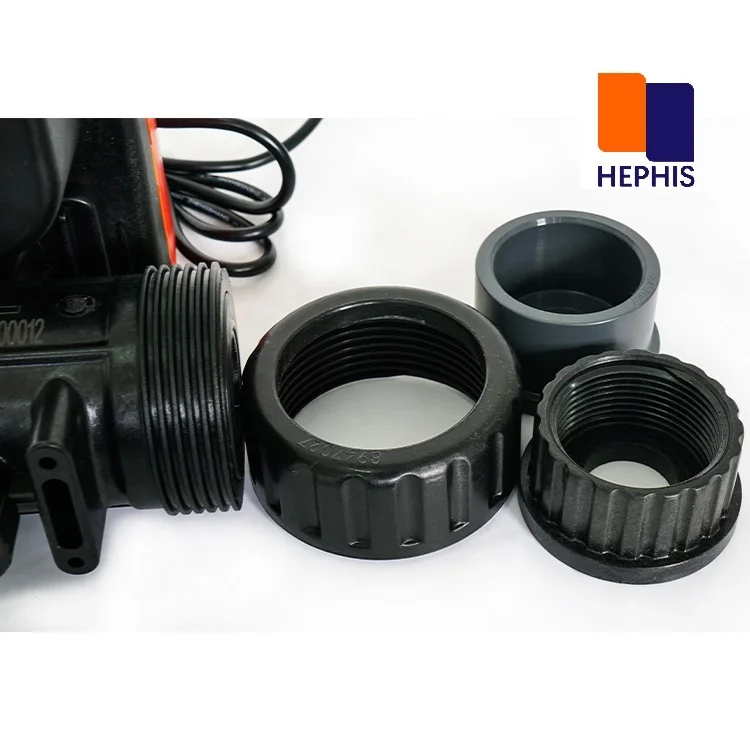

1) Double True Union with   Internal thread and glue can be selected.

2) We can provide European, American and Chinese standards.
3) Valve body material is PPO+GF20, good quality & long  life.

4) Valve ball's metarial is Alumina Ceramics, can be use 100000+.
5) working  pressure is 0~1.0 MPa.
6) More than 500 pieces can be OEM.
7) working temperature: 0-90℃

Our Core Technology
Detailed Images

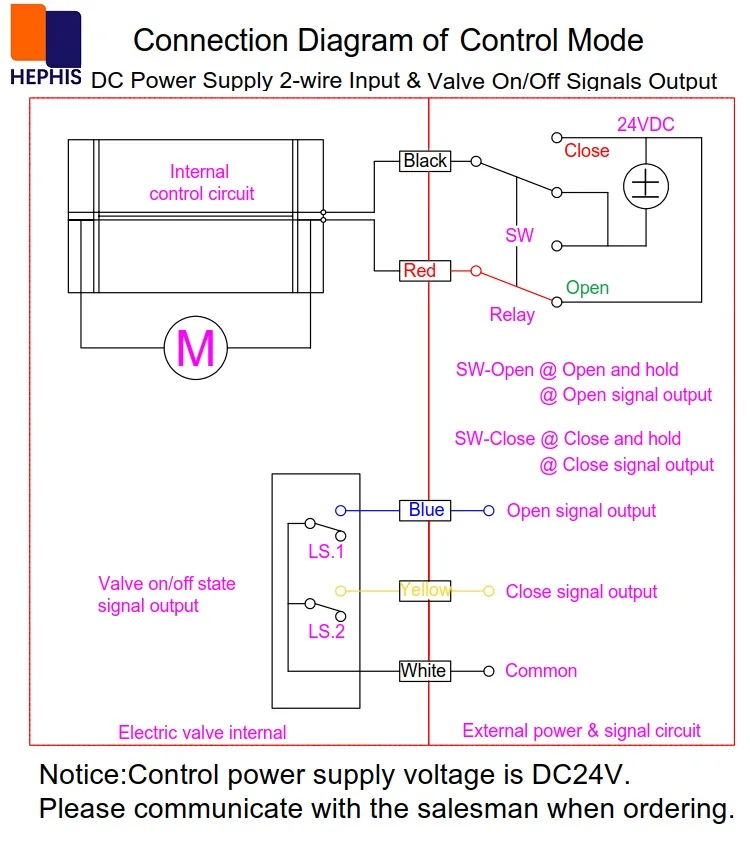

About electrical structure

1. The electronic circuit and motor are sealed in a waterproof box to prevent the electricity
    from being wet or corroded.
2. The circuit and motor are fixed stably and will not shake.
3. The waterproof rating IP65.


About electrical safety

1. Control the surface of the electronic circuit board through the anti-corrosion layer.
2. There is a sealing ring around the sealed box.
3. The running state of the electric valve is indicated by the on/off of the indicator light.
4, using high-quality micro-motors, the service life can reach more than 10 years.

Company Information

HEPHIS Aqua-Tech is a Sino-German joint venture specialized water treatment accessories manufacturer with RMB15,000,000 registered capital.
HEPHIS is a brand from Germany, having 42 years of R&D and manufacturing experience.
We provide high-quality products for water treatment ,such as Electric-Valves, Metering- Pumps,Water-Filters, Manual-valves, Flowmeters, Pulsation-Dampers, Pressure-Gauges ,Check-Valves,etc.
All the products were designed by German engineers according to German technology.
We produce the most advanced technology products on a large scale in Chinese factories, so we can guarantee the most stable product quality, lower cost, large supply capacity and fast delivery speed.
We always insist on a profit of 5%, so the price of our products is more cost-effective than the products in the same industry.
We have passed ISO9001-2015,ISO14001-2004,OHSAS18001-2011,CE,RoHs certifications to ensure the quality of products.
We always pursue the highest quality and low price for our customers.
With us, Your water-treament system will be more stable.
With us, your profit will be increased.
Welcome to send us inquiry !

Our Core Strenthes
Our Service

F A Q

1. Are you manufacturer or trading company?
We are a manufacturer, and we have a large-scale production factory in China,so we have the advantage in price and can guarantee the quality.
We also could do OEM.
2. Do you offer free samples?
We offer free samples of accessories, such as valves, but you have to pay the freight, sample will be sent within 1 working day.
3. How about the quality of your products?
HEPHIS is a brand from German. Applying the German production processes and quality standards to ensure the quality our products.
4. Are all your products inspected at the factory?
Yes! We have rigorous inspection of our products one by one before logistics.
5. What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
6. Would you have a discount if l have a large order?
Yes! You can contact our salesman and we will offer a satisfactory discount for you.
7. Where is the factory located?
We are located in Fuzhou city, Fujian Province, the South of China.

Packing & Delivery
Packaging
Size
500mm (L) *300mm (W) *400mm (H)
Weight
5~15Kg



Packaging Details
The normal package is Carton box.
We usually use carton packing.
If customers require wooden box packing, we will provide fumigated wooden boxes. Inside the package, we have foam filling to prevent damage to the goods.
