Aopack BM2508 automated slotted manufacturing machine for short run corrugated box making

FOB Reference Price:Get Latest Price
$79,000.00 - $80,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
BM2508
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, Corrugated carton making
Packaging Material:
Paper, Fumigation free plywood
Type:
Other, Carton slotting
Condition:
New
Packaging Type:
Cartons
Automatic Grade:
Automatic
Driven Type:
Electric and pneumatic, Electric and pneumatic
Voltage:
230 V
Power:
MAX2.5kW
Place of Origin:
China (Mainland)
Brand Name:
AOPACK BoxMaker
Weight:
Appr.2200kg
Dimension(L*W*H):
3410*1510*1860mm
Certification:
CE (in the application)
Product name:
Automatic short run cardboard box making machine
Name:
AOPACK BoxMaker
Keywords:
Box making machine
Function:
Cardboard rigid box making
Box type:
Special standard carton
Model Number:
BM2508
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
Before the machine is packed in a wooden box, we will apply oil to the machine and wrap the protective film to avoid moisture and rust during the transportation of the machine and to ensure that the machine is in the best condition when it reaches the customer.
We will use the fumigation-free glued wood board to make the most suitable packaging for the product, preventing the machine from rusting and unnecessary collision during transportation.
Port
Qingdao Qian Wan Port
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 40 To be negotiated
Product Description

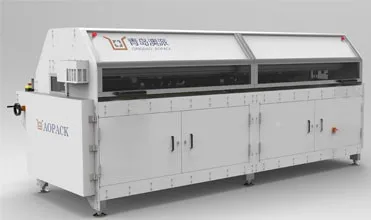

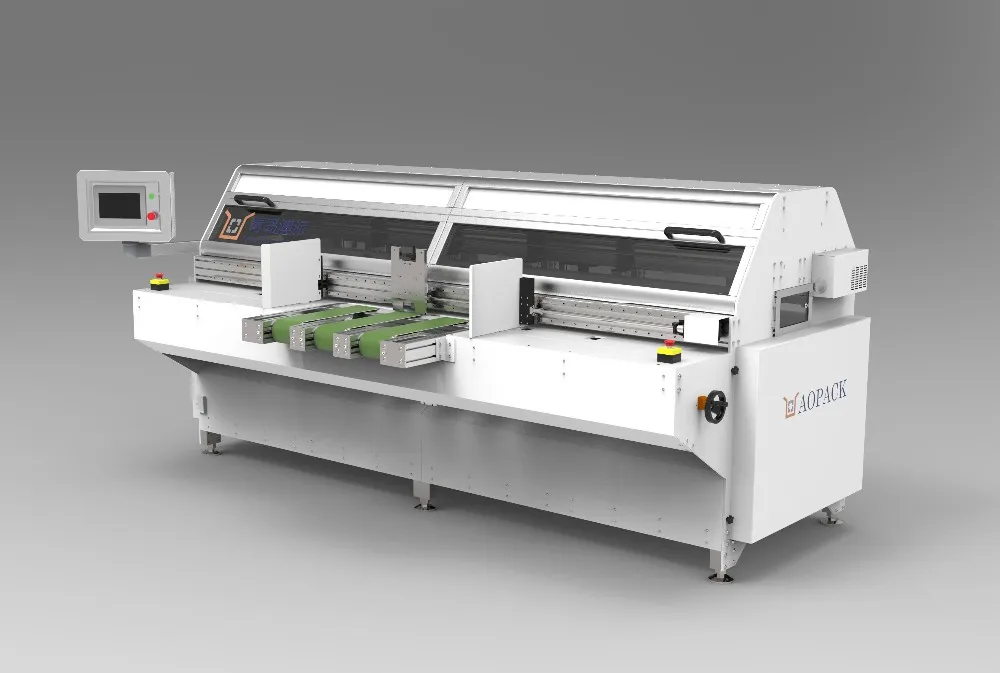

AOPACK BM2508 is the most advanced and Integrated box making machine giving the solution to short run and serial production process of corrugated cardboard boxes.


Infeed, slotting, scoring, slitting, cutting, trimming, outfeed, in one compact machine - no additional modules required! 1 Horizontal cutting knives, 2 slotting knives, 4 longitudinal cutting knives plus 4 scoring wheels automatically set by servo motor and cylinder, under PLC control, to suit the size and thickness of the board.



Simple operation

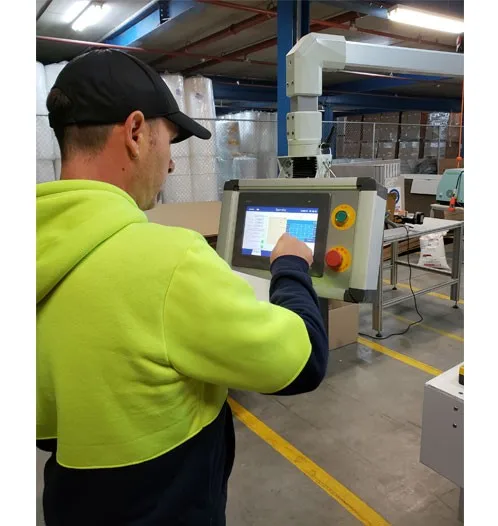

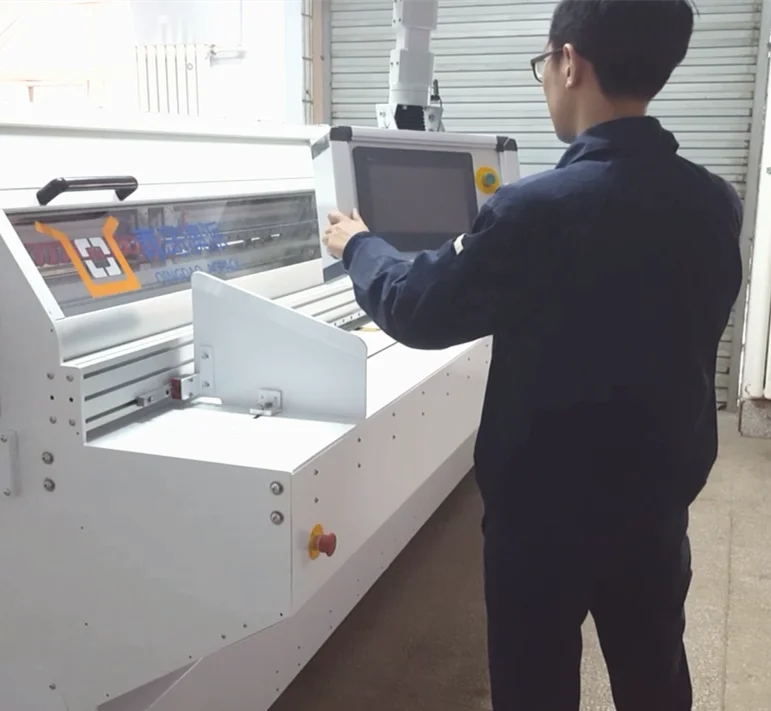

You can choose from more than 20 common box types and hundreds of spare box types.All settings are entered directly from a user-friendly touch screen panel within one minute

Features

1. One person is enough for operating, saving labor
2. Only need 30 seconds to change the order, the minimum   order quantity is 1, shorten the delivery cycle
3. High efficiency, without mold, saving your money
4. Automatic continuous paper feeding, makes the batch   order is more convenient
5. Cardboard size up to 2500mm width with unlimited   length,  oversized cardboard boxes is available
6. Have the ability to making dozens of orders with different   sizes and different box types every single day


Even more features

(1) 0.5-minute set-up
(2) 1 Horizontal cutting knive
(3) 2 Slotting knives
(4) 4 Cutting knives
(5) 4 Scoring/Creasing wheels
(6) Over 100 box styles
(7) Full servo drive motion
(8) Complete all settings for box production with an   intuitive touch screen panel
(9) No additional tools or mold, servo drive to complete all   settings
(10) Infeed, Slotting, Scoring, Slitting, Cutting, Trimming,   Outfeed- in one compact machine
(11) Use of pneumatic motors, making the edges of the   carton more beautiful and flat



BM2508

TECHNICAL SPECIFICATION


Max.board size
2500mm width × unlimited length
Min.board size
250mm width × 650mm  length
Max.slot distance
1700mm
Min.slot distance
70mm
Slot width
8mm
Standard slotting knives
500mm
Slotting knives
2
Cutting kinves
4
Scoring/Creasing wheels
4
Horizontal cutting knives
1
Cardboard used
2 - 7 mm
Power supply
220 V   10 A   Max.2.5 kW
Compressed Air
5 - 7 Bar
Dimension
3410(W)*1510(L)*1860mm(H)
Weight
Appr.2200kg
Capacity
Up to 400 Pcs/H


Any Size. Any Box. Just in Seconds
 .......


Main Features

1) Simple in structure, modular, easy to install and maintain.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation    parts.

3) Running in a high automatization and intellectualization,no pollution

4) Infeed , slotting , scoring , cutting , trimming ,out feed ,in one compact machine


Detailed Images

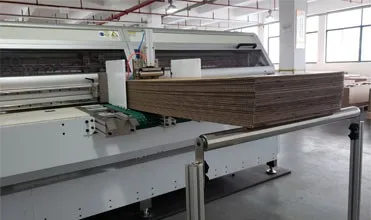

Cardboad Infeed


1. Can put 20-50 sheets of cardboard depending on the thickness of the board, automatic paper feeding


2. Continuous paper feeding system with suction negative pressure makes paper feeding more accurate

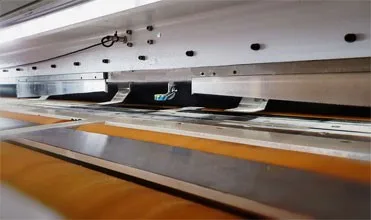

Horizontal Slot and Score


1. Two 500mm symmetrical slotting knives


2. Slotting knife and creasing beam integrated design

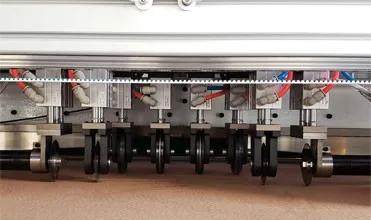

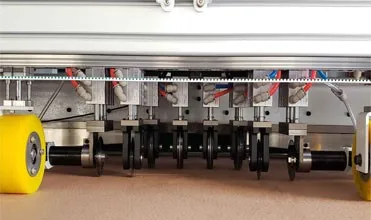

Vertical Score and Slit


4 Cutting knives

Two of the knives are rotated by the air motor to make the side of the carton more beautiful and flat

4 Scoring/Creasing wheels



Horizontal Cut and Cardboad Outfeed


Cut off excess cardboard without additional paper separator


        The components of the equipment come from the


        best manufacturers in the world as shown in the


        following figure.

Our Service
We offer you more than just products

Recommendation: From paperboard selection to packaging, we recommend the most appropriate solution for you.

Installation on site: Engineer is responsible for installation and commissioning of field equipment to ensure normal operation of equipment.

Operational training: we are responsible for training related personnel in operation and maintenance

Quality Assurance: quality Assurance for one year, all expenses during the warranty period shall be borne by our company

Packing & Delivery

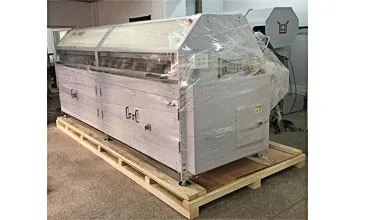

Protective measures


Before the machine is packed in a wooden box, we will apply oil to the machine and wrap the protective film to avoid moisture and rust during the transportation of the machine and to ensure that the machine is in the best condition when it reaches the customer.

Packing


We will use the fumigation-free glued wood board to make the most suitable packaging for the product, preventing the machine from rusting and unnecessary collision during transportation.

Delivery


We package the products in the factory, and the logistics company transports the goods to the port and packs them on board.
