Field maintenance and repair service, Engineers available to service machinery overseas
Real power consumption:
100kg/hr ~ 600 Kg/hr
Artificial rice processing line
10 Set/Sets per Month
Packaging & Delivery
daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
Qingdao, Dalian, Shanghai
1.Good quality rice manufacturing line, artificial rice making machine:
1).Good quality cheap price artificial rice making machine introduction: 2).Artificial rice making machine is easy and convenient and has the same edible method as the natural rice,by mixed the broken rice to produce the high similar rice. Then mix them into nature rice to sell the rice again with good price. 3).It has the abundant nutrition and the similar shape to the rice. 2.Artificial rice making machine Configuration: 1). Corn flakes food raw material mixer. 2). Screw Conveyor 3). Extruder machine 4). Air Conveyor 5). Dryer machine 3.Parameters of Artificial Rice Processing Line:

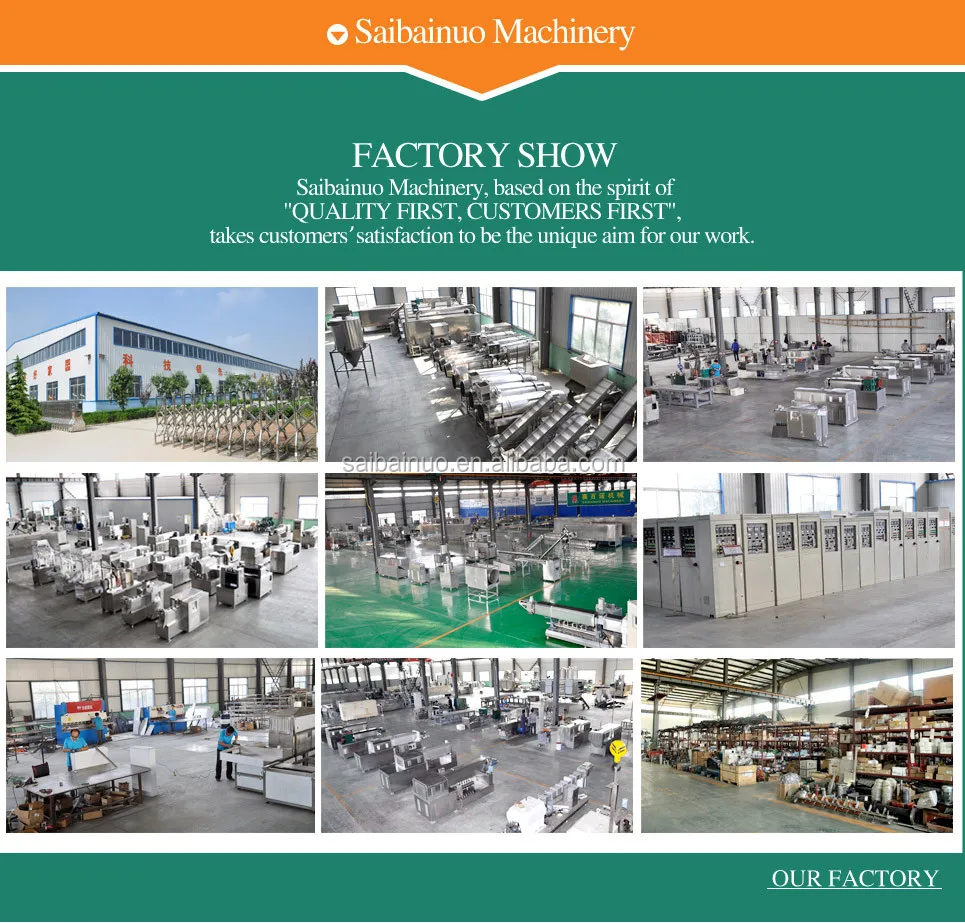

Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering in China since 2004, offer competitive advantage machines, so with us your money in safe, your business in safe.
Name: high speed mixer
Dimension(m): 1.1×0.8×1.4 Motor Power: 4KW Speed: 400rpm Throughput: 30kg per loading (5-6 minutes per loading) Functions: mix raw powder material with water Features: 1. stainless steel material(1.5mm). 2. new handle-opened design of discharge holes,no material leak 3.High speed can mix material better than other slow mixer.
Name: screw conveyor
Dimension(m): 3.2×0.6×0.7 Motor Power: 1.1KW Screw speed: 300rpm convey height range: 1.5~2.5M barrel diameter: Φ160mm Function: Power material can be conveyed in the stainless steel roller to the feeder of extruder without leaking, dust and pollution.
Name: twin screw extruder
Dimension(m): 2.6×1.0×1.3 Main Motor Power:45KW Feeder motor:0.75kw Cutting motor: 1.5kw Heating power:10kw Extruder diameter:Φ70 mm Function: Extrude and cook raw material into different size and shapes Features: Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC.. The barrel also use good material, hardness is 55HRC. The gear box has forced lubrication system. All motors can be adjusted the speed by Inverter. The Extruder can change different molds to produce different shapes product.
Name: multi-layer dryer
Dimension(m): 8.4×1.3×1.8 Heating Power:60kw Motor power:0.75kw Belt speed:0.1-10M/minute Temperature: 20-200℃ Function: There are Five layer inside,each layer is 8 meters long, it can save space and energy. Electricity heating,used to bake and dry food. Features: The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer. Heating adopts the electric heating. It has automatic temperature Control system. The belt and the cover are all stainless steel.
Name: cooling conveyor
Dimension(m): 5.0×0.7×1.1 Motor Power:1 KW Function: Cool the food after flavoring ,make the food suitable for packing. Feature: Stainless steel material Have fan and baffle,better cooling and no leakage.
