Automated Chain Vertical car parking tower building rotary automatic car smart tower parking system

FOB Reference Price:Get Latest Price
$3,500.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Height (mm):
Vehicle Length 5000
Width (mm):
Vehicle Width 1900
Parking lot:
OEM
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Lift
Place of Origin:
Shandong, China
Brand Name:
xingdou
Model Number:
PCX
Warranty:
1 Years
Loading Capacity:
3000
Product Name:
Smart rotary Parking System
Color:
Customerized
Drive mode:
Electric Motor
Certification:
CE ISO9001
Capacity:
2000-3000kg
Power supply:
220V / 380V / Customized
Usage:
Commercial Parking:car
Supply Ability
Supply Ability:
200 Set/Sets per Month Vertical car parking system
Packaging & Delivery
Packaging Details
Construction elevator seaworthy package (40HQ or 40OT)
Port
Qingdao
Product Description

Welcome  to Shandong Xingdou Intelligent Equipment Co.,Ltd.

IC card and manual type ultrasonic PLC automatic rotary car parking system with safety sensors

1.PJS-QX154 foundation pit 4-layer type (chain type)

Applied occasions:

 It is applicable to the ground parking lot and 2, 3, 4 or 5 layers can be designed.
 Type features:
 1: Each group of parking spaces are on the same frame and they are either elevated at the same time or individually;
 2: Each group of parking spaces can be installed individually or in a row ;
 3: Foundation pit is required by civil construction foundation and drainage facility is required at the bottom of the foundation pit ;
 4: The greatest advantages of this type: the foundation pit will be recovered after parking or driving away the vehicle by elevating the parking space and no garage frame that is higher than the ground will appear so it will not block the vision or hinder the landscape. It is similar to plane parking.

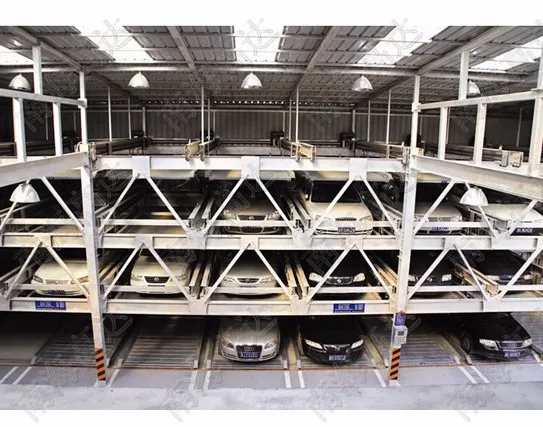

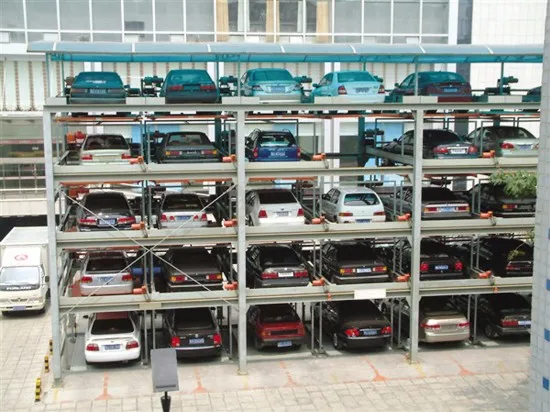

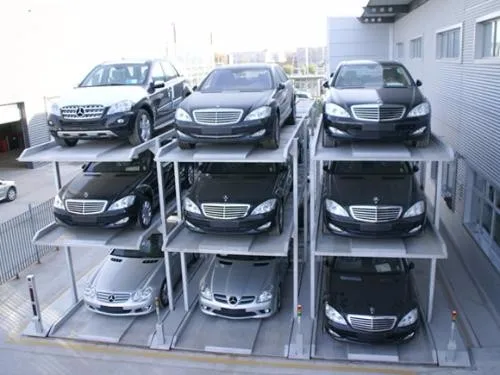

2.PSH-QX236 ground multi-layer type (steel cable type)
 Applied occasions:
It is applied to ground installation. Equipment civil foundation on the ground and equipment awning are required.


Type features:
1: This type is applicable to ground installation and can be divided into 3,4, 5 or 6 layers;
2: The vehicles enter or exit from the ground layer. The parking spaceson the ground layer shift only, those at the top layer elevate only while those in the middle can either elevate or shift;
3: One vacant space for side shift shall be reserved on the ground layer and middle layer of each group of control area.
The top layer is full of parking spaces. The number of parking spaces for each group of control area is about 30;
4: One electric control cabinet and operation cabinet will be set for each group of control zone;
5: The equipment will move the vehicles to the ground automatically by inputting the parking space No. or swiping card when using vehicles;
6: This type can use space effectively, realize stereo parking space and enjoys simple structure and convenient operation.

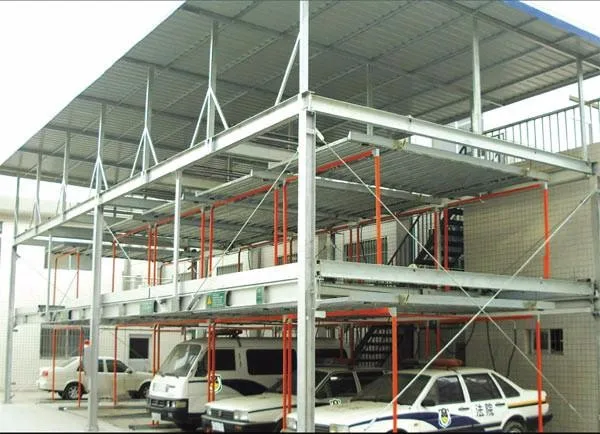

3.PSH-QX223 two-layer cantilever type (steel cable type)
Applied occasions:
It is applied to the underground parking lots and the net height of equipment is greater than 3,600mm.
Type features:
1: The elevation way of this type is motor steel cable type;
2: One group of control zone is generally the width of 10 parking spaces and one vacant space for shift is reserved in the lower layer of each group of control area. The number of parking spaces of each group of control zone is about 20;
3: One electric control cabinet and operation cabinet will be set for each group of control zone. The control cabinet is of 3-phase 5-wire type and 380V 5kW;
4: The parking spaces of upper layer elevates only and those in lower layer shift only;
5: The equipment will move the vehicles to the ground automatically by inputting the parking space No. or swiping card when using vehicles;
6: This type is featured by simple structure, low failure rate and high safety coefficient. No front column or beam is set at the entrance of parking space so that the lane is widened, making it convenient to enter or exit;
7: This type is most applicable to the underground parking lot.
IC card and manual type ultrasonic PLC automatic rotary car parking system with safety sensors

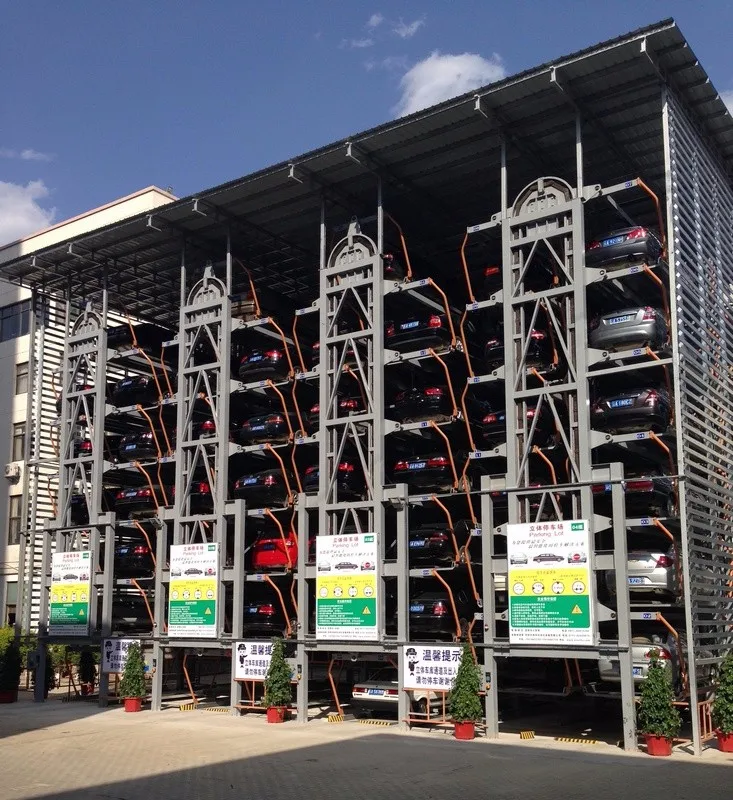

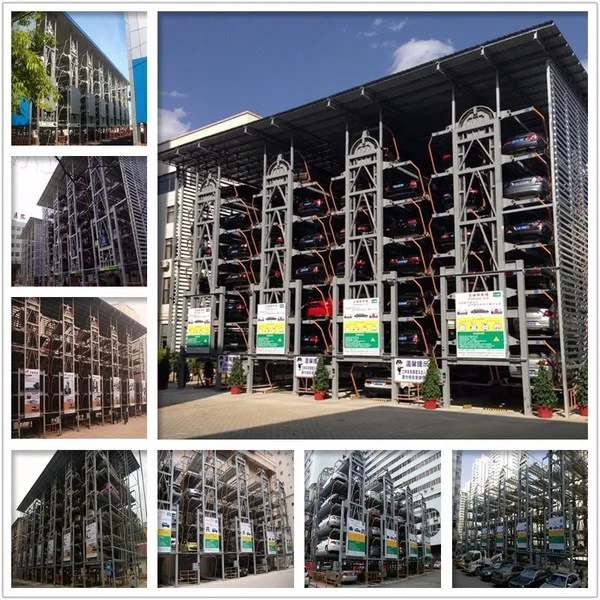

4.PR Rotary type

Applied occasions:
It is applied to ground installation. Equipment civil foundation on the ground.
Type features:
1: This type is applicable to ground installation and can be divided into 3, 4, 5, 6, 7 or 8 layers;
2: The vehicles enter or exit from the ground layer;
3: One electric control cabinet and operation cabinet will be set for each group of control zone;
4: The equipment will move the vehicles to the ground automatically by inputting the parking space
No. or swiping card when using vehicles;
5: This type can use space effectively, realize stereo parking space and convenient operation.

Certifications
International Certification about  Parking System:
We own International Certificate and standard CE, ISO9001, SGS, BV of Parking System
 IC card and manual type ultrasonic PLC automatic rotary car parking system with safety sensors

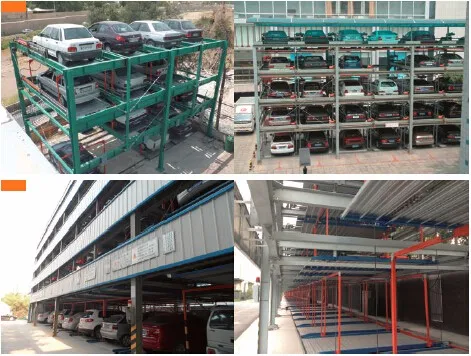

Detailed Images
Certifications
Contact Us

WELCOME TO SHANDONG AND VISIT OUR FACTORY!

You can get high quality products and professional service from us.
Any question from you is welcome and will get reply within 24 hours.
