Automatic 10 Line Box Drawing Facial Tissue Paper Making Machine

FOB Reference Price:Get Latest Price
$30,000.00 - $60,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
CS-190/10L
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Product Type:
Facial Tissue
Processing Type:
Paper Folding Machine
Power(W):
around 15 KW
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Warranty:
1 Year
Condition:
New
Place of Origin:
Fujian, China (Mainland)
Brand Name:
JORI
Voltage:
220V or 380V 50HZ
Dimension(L*W*H):
10500X2800X2050mm
Weight:
10.0T-12.0T
Certification:
CE
Production Capacity:
4000Kg-5000kg/8 hours
Finished products unfold size:
190x(120-210)x2mm
Folding Products Size:
95x(120-210)x2mm
Raw Material Width:
2000mm
Raw Material Diameter:
1100mm-1500mm
Raw Material Core Diameter:
76.2mm
Output Capacity (8 hours):
10.0T-12.0T
Embossing Unit:
Embossing Unit
Edge Embossing Unit:
Steel to steel edge embossing, independent pneumatic regulation
Name:
Automatic 10 Line Box Drawing Facial Tissue Paper Making Machine
Supply Ability
Supply Ability:
40 Unit/Units per Month Facial Tissue Machine
Packaging & Delivery
Packaging Details
Wooden Cases, Seaworthy Package.
Automatic 10 Line Box Drawing Facial Tissue Paper Making Machine
Port
xiamen port,China
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Product Description

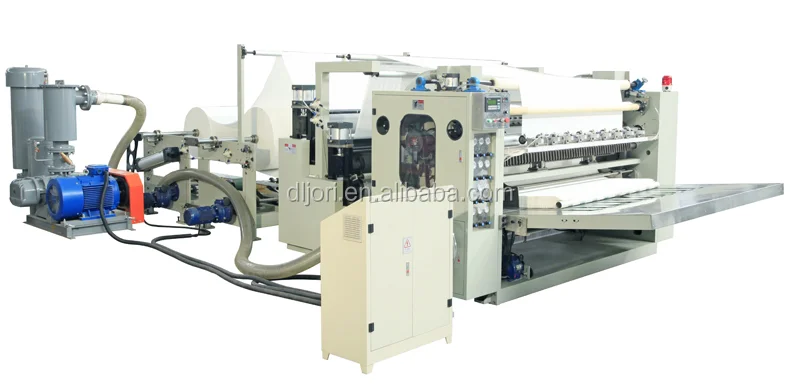

Automatic 10 Line Box Drawing Facial Tissue Paper Making Machine

Specification of Facial Tissue Folding Machine:

Features:
The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets. This machine adopts independent servo motor drive ,automatic sipped,electrostatic treatment, security system ,automatic cutting and stop,automatic tension adjustment,base paper power struggle,automatic marking functions. It features of high speed ,nice folding and easy operation .
1. Each unit are control by servo motor ,can adjust different raw material ratio of expansion and contraction
2. Wallboard rack and Machine running stability is extremely good fast

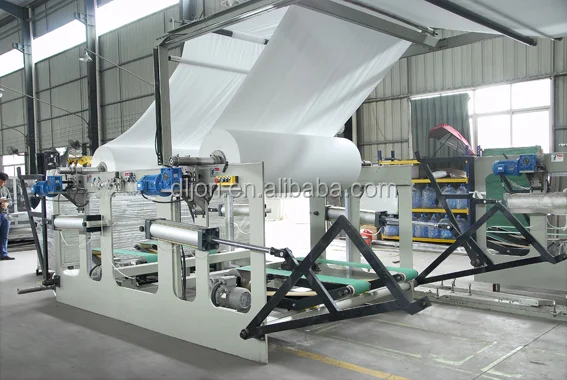

3. Pneumatic jumbo roll loading,pneumatic paper driving ,stepless speed additionustment ,and web tension control.
4. Equipped with roots type vacuum pump for stable running of the machine
5. Insertion point counting, simple and practical.
6. Equipped with edge embossing unit to keep the plies together
7. The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8. The web can be threaded on the machine by the two jog buttons,It's more safety and easier to thread the web.

Machine Model
CS-190/10L (Other size to be specified)
Finished Products Unfolded Size
95x(120-210)x2mm
Folding Products Size
190x(120-210)x2mm
Raw Material Width
2000mm
Raw Material Diameter
1100mm-1500mm
Raw Material Core Diameter
76.2mm
Output Capacity (8 hours)
4000Kg-5000kg
Embossing Unit
Steel to rubber,steel to steel embossing (Customer choose )
Edge Embossing
Steel to steel edge embossing, independent pneumatic regulation

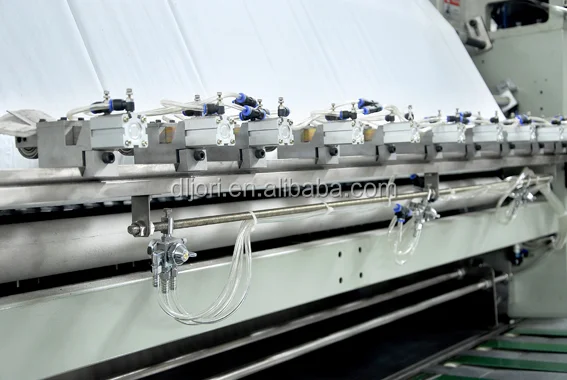

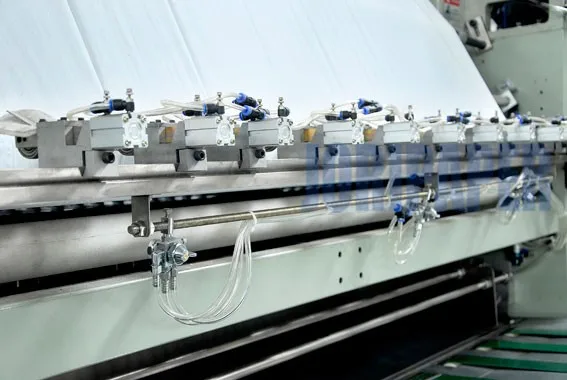

Slitting Unit
Pneumatic slitting
Main Servo Moter Power
5.5kw Main servo motor
3.0KW(2 sets) Unwind motor ,frequency motor
3.7KW(2 sets) Embossing motor ,servo motor
2.2KW Color printing ,servo motor
Vacuum System
37KW Fan,( Taiwan Roots blower )
Pneumatic System
3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves)
Driving System
Timing belt
Dimension
10500X2800X2050mm
Weight
10.0T-12.0T depend on the size and configure

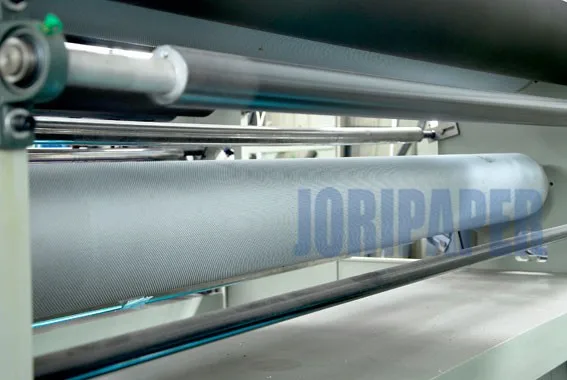

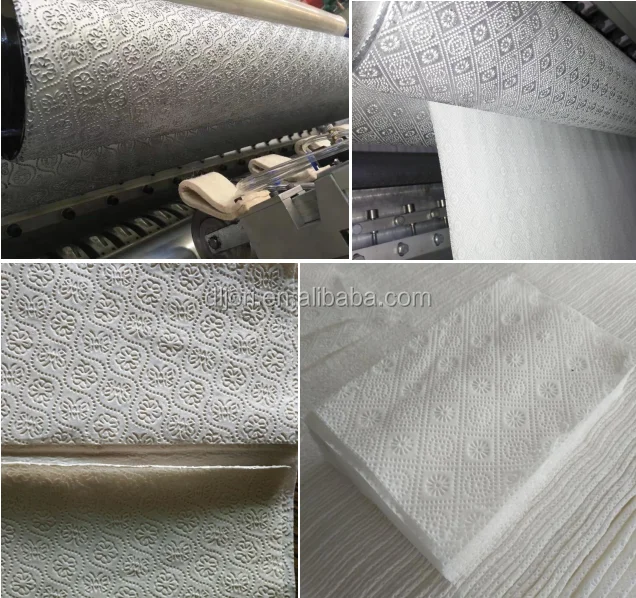

Embossing Rollers

Edge-Embossing Rollers

Color Printing Rollers

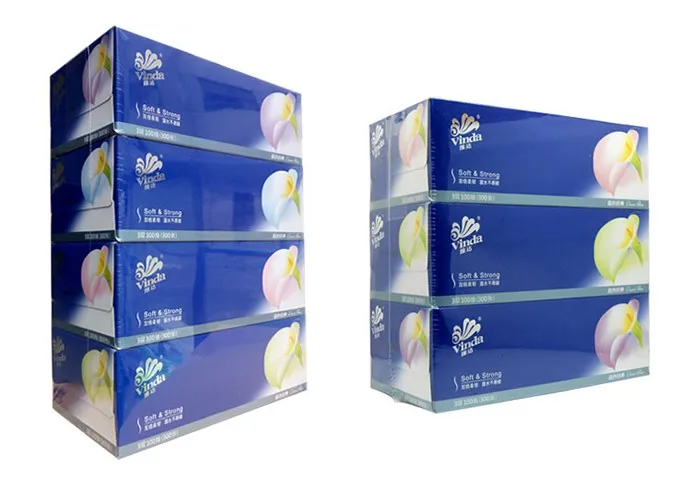

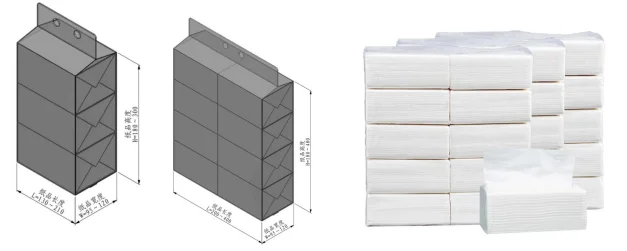

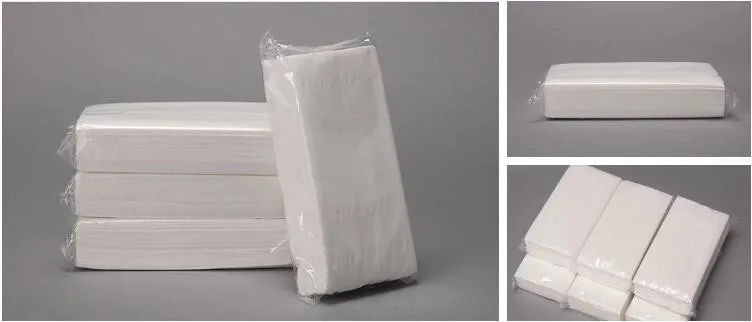

Final Products:

Our Company
Packing & Delivery
Our Service

Pre-sales Service Of Automatic 10 Line Box Drawing Facial Tissue Paper Making Machine

1.Fastly and professional reply to you about your questions for our napkin folding paper production machine.
2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
3.Detailed and clearly explain to you when you come to our factory for visiting before contract

In-sales service for Automatic 10 Line Box Drawing Facial Tissue Paper Making Machine

One-stop and customize service for you, all napkin paper processing related machines are available from us
24 Hours online service, 7 Days one week support for you if any technical questions or problems about toilet tissue paper making machine.

After sales service for Automatic 10 Line Box Drawing Facial Tissue Paper Making Machine

1.Engineers overseas installation and trainning, all our engineers are rich experience for overseas working
2.Guarantee you steady supply for the spare parts with the lower prices

Related Products
Buyer Feedback
FAQ
1. How long is your Warranty?
A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.

2. How to Guarantee transaction security?
A: We could draft Trade Assurance order for buyers via Alibaba-Trade Assurance is a free service by Alibaba.com that's designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

3. Your company accept Alibaba Trade Assurance?
A:  yes, of course. (1) We will draft order accoring buyer requirements.
                                 (2)Negotiate terms with the supplier and confirm order
                                 (3) Make payment to the bank account designated by Alibaba.com

4. What's the payment terms?
A: 30% initial payment when place your order, 70% balance payment before shipment.

5. About machine's Transportation & documents?
A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.

Before shipment we will supply all the common documents(packing list, commercial invoice, policy of insurance, bill of lading and certificate of origin) and send it by DHL.

6. What's the MOQ?
A: 1 unit.
