Automatic Cnc Metal Cnc Lathe For Metal Cutting Ck6150

$10,000.00 / Set | 1 Set (Min. Order)
Max. Swing Diameter (mm):
500
Spindle bore:
82
$10,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Contact Supplier
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Max. Length of Workpiece (mm):
1500
Type:
Horizontal
Condition:
New
Year:
2019
Max. Spindle Speed (r.p.m):
60-2500
Max. Turned Length (mm):
1500
Positioning Accuracy (mm):
0.01
Repeatability (X/Y/Z) (mm):
0.012
Place of Origin:
Anhui, China
Dimension(L*W*H):
3600*1600*1800mm
Brand Name:
WHITE EAGLE
Model Number:
CK6150
Voltage:
As customer required
Certification:
ISO and CE
CNC Control System:
FANUC ,SIEMENS AND GSK
Toolpost Brand:
Yaxing
Weight (KG):
2400
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, No after-sales service, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points:
High Productivity
CNC or Not:
CNC
Automatic Grade:
Automatic
Max. Swing Diameter (mm):
500
Power (kW):
7.5kw
Name:
Automatic Cnc Metal Cnc Lathe For Metal Cutting Ck6150
Max.swing over bed:
500
Max.swing over toolpos (mm):
290
Spindle taper:
D8
Spindle speed range:
60-2500
Power(W):
7.5kw

Packaging & Delivery

Selling Units:
Single item
Single package size:
360X160X180 cm
Single gross weight:
2400.000 kg
Package Type:
export iron casting pallet
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 45 To be negotiated
Product Description

Automatic Cnc Metal Cnc Lathe For Metal Cutting Ck6150
Model
CK6150
CAPACITY
Max.swing over bed (mm)
Φ500
Max.swing over toolpos (mm)
Φ290
Distance between centers(mm)
1500
Msx.machining length(mm)
1350
SPINDLEANDCHUCK
Chuck size(mm)
Φ250
Spindle nose and taper style
D8
Spindle speed range
30-2500
Spindle bore dia.(mm)
Φ82
Spindle power
7.5
Max.bar feeding dia.(mm)
Φ78
Rapid traverse speed(X/Z)
6/8
TURRET
Stations No.
T12
ACCURACY
X/Z Accuracy of positioning repeatability
0.01/0.012
TAILSTOCK
Quill diameter(mm)
Φ75
Quill travel(mm)
150
Taper of quill
M.T5
OTHERS
Guideway width(mm)
390
OVERALLSIZEANDWEIGHT
Overall size(L*W*H)(mm)
3600×1600×1800
Net Weight
2400


Main Features


1)Machine are made of high intensional cast iron with good aseismatic and high rigidty

2)Spindle of heavy-cutting structure to achieve high rigidity and high precision

3)With electrical turret,it can achienve high positioning ,fast speed for toolchange and high performance

4)With feeding motor and leadscrew for type of direct connection ,it can assure the machining precision and positioning accuracy

5)Tailstock can be adopted by hydraulic driving to make sleeve travel bigger and easy operation.

6)Complete closed cover can protect the iron scraps splashing out .

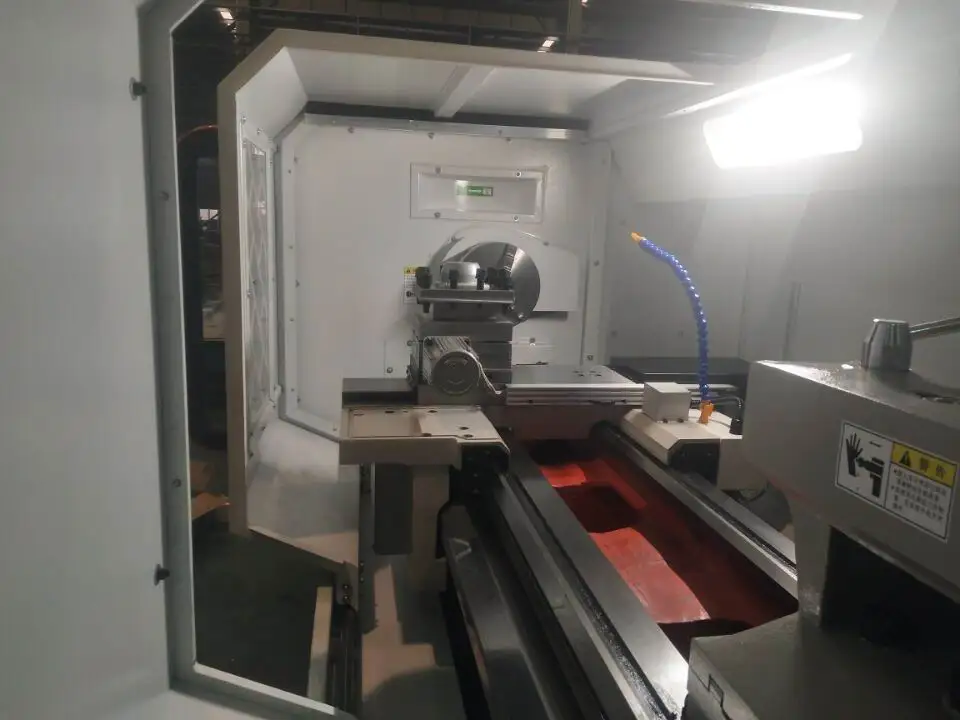

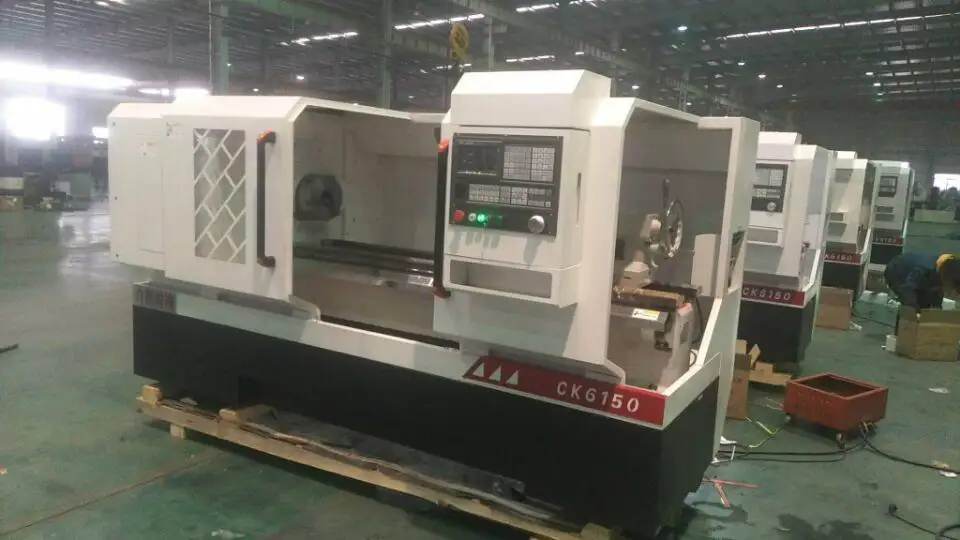

Detailed Images

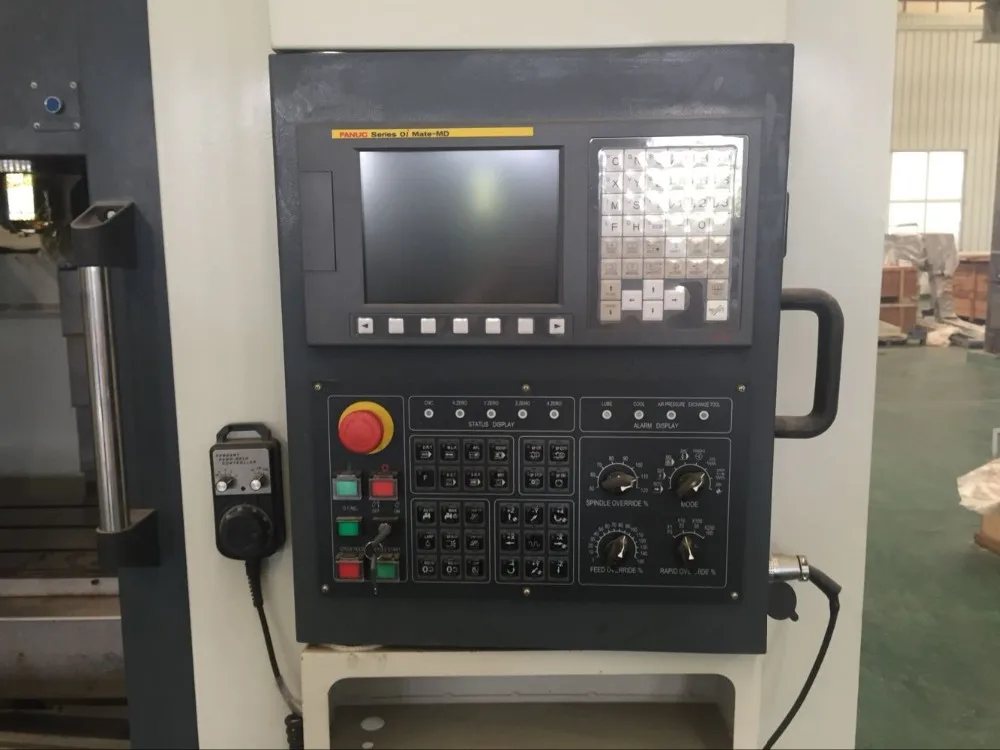

Control system :FANUC ,SIEMENS ,GSK or others

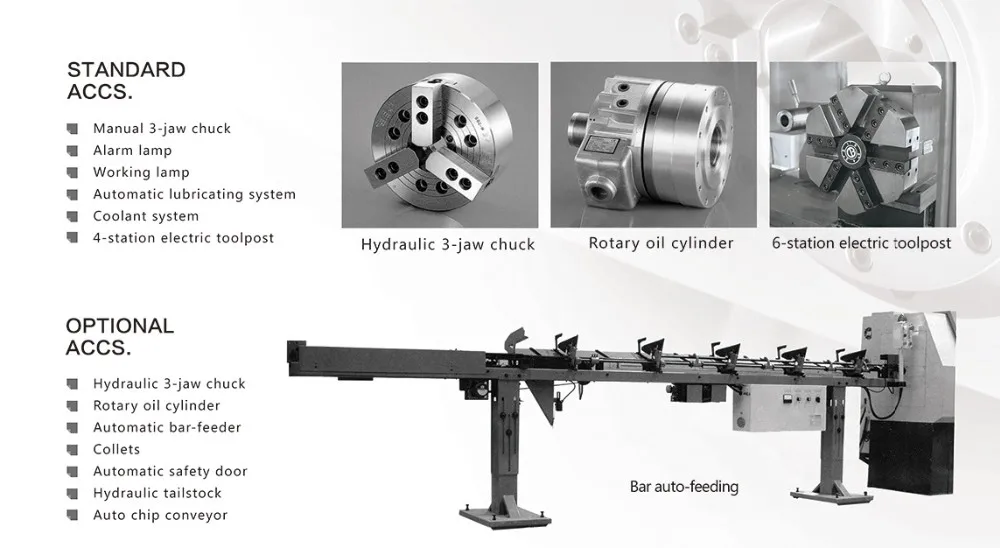

Standard accessories

Manual 3 jaw chuck,Alarm

lamp,working lamp,Automatic

lubricating system,Coolant

system,4-station electric toolpost

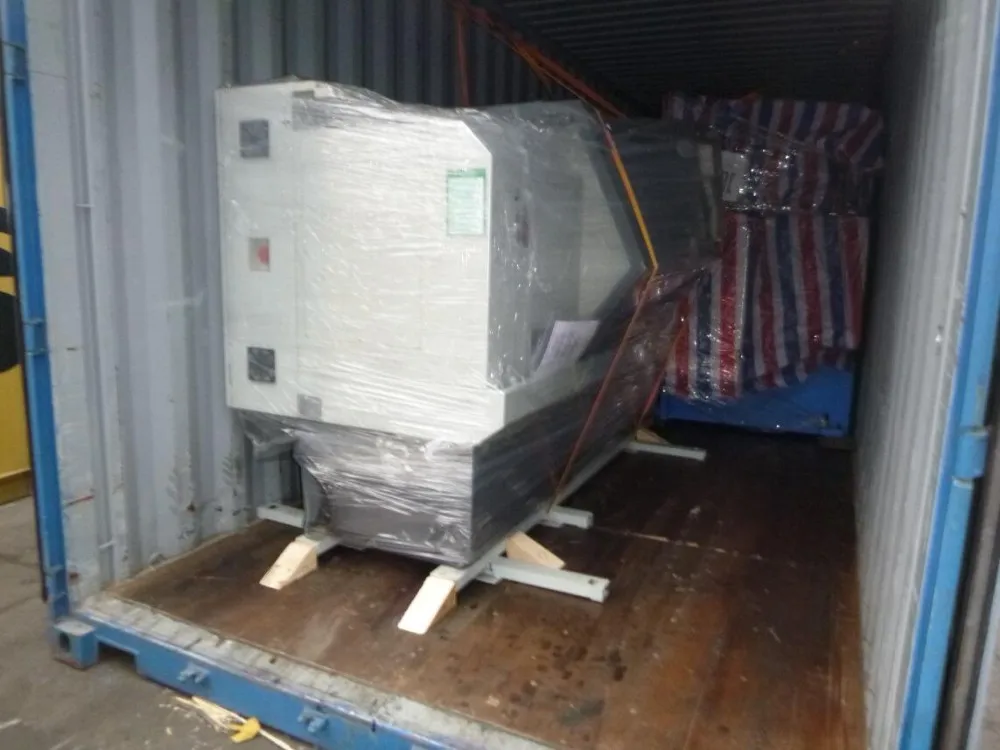

Packing & Delivery
Packaging
Size
3600×1600×1800mm
Weight
N.W./G.W 2400/2600KGS



Packaging Details
Iron casting pallet with
Certifications
Our Work Shop
We In Fairs
Our Service

OEM APPROVED

* LOGO OEM accept.

* Packing design OEM accept

* Even machine design OEM accept.

Our team Service

* Professional team,perfect pre-sale and after-sale service.

* Engineers available to service machinery overseas.

* Good English speakers from sale department,can handle your suggestion
