Automatic Combined Paper brochure Folding Machine with Mechanical Control Knife for Enterprise Use

  • >=1 Sets
    $28,000.00
Model Number:
PRY-660D
Power(W):
5.2Kw
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Paper Folding Machine
Dimension(L*W*H):
2920*1465*1610mm
Weight:
2370Kg
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Place of Origin:
China
Brand Name:
PRINTYOUNG
Voltage:
380V
Certification:
CE Certificate
Computerized:
Yes
Applicable Industries:
Printing Shops
Product name:
Automatic combined paper folding machine
Speed:
150 m/min
Machine size:
2070*1630*1470mm
Packing size:
2920*1465*1610mm
Function:
paper folder
Machine type:
combined automatic paper folding machine
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Fumigation free wooden packaging
Port
Ningbo Shanghai
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 30 To be negotiated
Product Description

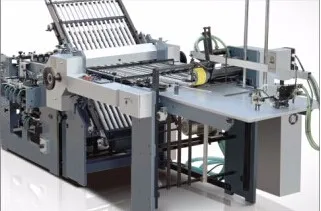

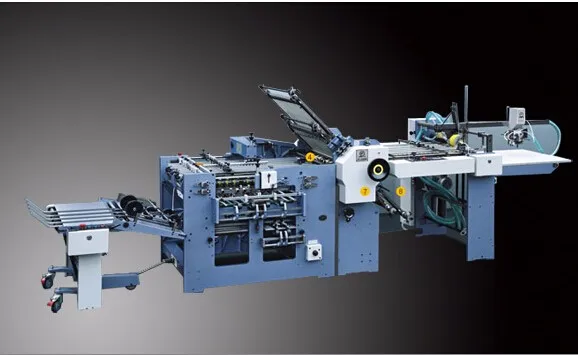

Automatic Combined Paper Folding Machine with Mechanical Control Knife for Enterprise Use

PRY-660D is a Combined automatic paper folding machine, ZYH660D type first folding group is four buckle plates Configurable FD stacked feeder or RD type ring wrap type feeder. The buckle folding of PRY-660D in the four parallel folding, folding method for parallel type, concertina type, web type, ZYH660D can be two times and parallel to the fold. The folding process can also complete scoring, perforating. Using PLC and Frequency control system,the paper folding machine possesses the automatic stepping device in case of double sheet and paper jamming. This machine can meet the international standards. The quality of this machine uses high electric knife to achieve the effect of high precision, good stability, convenient use, simple debugging,so it is the ideal equipment for large and medium-sized enterprises.
Main Parameters
PRY-660D
Foldable max sheet size
660*1040mm
Foldable min sheet size
150*200mm
Foldable sheet rotation range
40-200g/㎡
Folding & rolling max line speed
150m/min
Clasp knife max speed
160strokes/min
Total power
5.2kw
Machine size
2070*1630*1470mm
Packing size
2920*1465*1610mm
Packing Weight
2590Kg

Main Features

1.rubber roller with latest pressing technology

2.High accuracy cross coupling movement adjust

3.High performance feeder

4.780D Model has front back folding function.

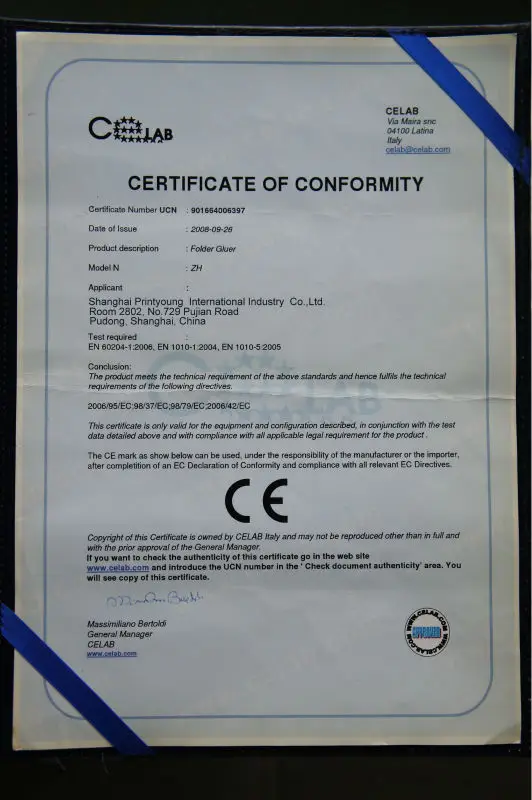

Certifications
Detailed Images

Machine Parts

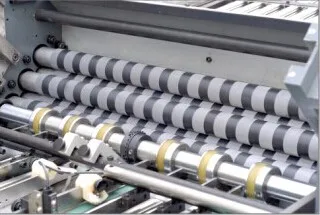

1.Rubber roller with latest pressing technology
Machine Parts

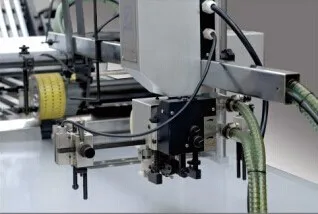

2.High accuracy cross coupling movement adjust

Machine Parts

3.High performance feeder

Machine Parts

4. 780D Model has front back folding function.
Our Service

1.Train how to operate the machine.

2. Post sale service available overseas.
