Automatic Drinking Mineral Water Bottle Filling Machine Liquid filling machine

FOB Reference Price:Get Latest Price
$13,000.00 - $55,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
4.06kw
Model Number:
CGF18-18-6
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years, 2years
Packaging Type:
Bottles
Packaging Material:
Wood
Type:
Filling Machine
Condition:
New
Application:
Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220/380V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
U-TECH MACHINE
Dimension(L*W*H):
2460x1970 x2350mm
Weight:
3500KG
Certification:
CE SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training
Product name:
Automatic Bottle Washing Filling Capping Machine
Model:
CGF 18-18-6
Capacity:
6000bph
Filling range:
200-2000ml
Function:
Washing Filling Capping
Bottle type:
PET Plastic Bottle
Material:
Stainless Steel 304
Usage:
Filling Material
Filling material:
Flowing Liquid
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package/wooden box for Water Filling Machine
Port
SHANGHAI
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product description

Automatic Drinking Mineral Water Bottle Filling Machine Liquid filling machine

The machine is suitable to the civil liquid products, such as lubricating oil, edible oil, daily chemical.It adopts PLC control ,only need to modify the parameters in the touch screen, each filling head can be regulated and micro adjustment. The whole filling process is the perfect combination of machine, electricity, light and gas. To integrate cap feeder, cap sorter, cap checker ,cap sealer and effect detection into it, using grasp cap/suction cap locating for sealing. The key parts of host adopt mechanical and electrical integration of protection device, no bottle no filling, the host can stop and alarm lacking of bottle or blocking bottle.Frequency adjustable production speed, to make for equipped with production line, can satisfy the customer's production needs.


Advantages

1. Automatic 3 in 1 Water Bottling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen.

2. It is used for filling kinds of non-carbonated water, such as still water, drinking water. mineral water, spring water, flavored water.

3. Its usual production capacity is in 1000--20,000bph, 0.3--2L PET bottle is available.

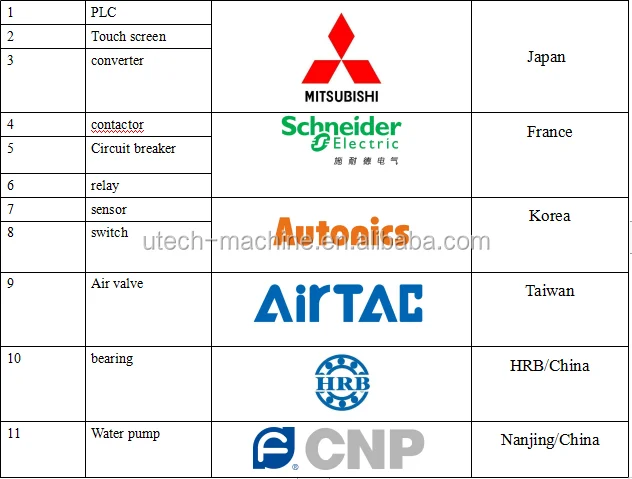

4. Pivotal electrical part use Mitsubishi, OMRON, SIEMENS.

5. Filling accuracy is more or less than 1%.

6. We can provide RO water treatment machine, bottle blowing machine, filling machine, labeling machine, packing machine etc.


Main Technical Parameters

Capacity
6000BPH(500ML)
Washing Heads
18
Filling Heads
18
Capping Heads
6
Suitable bottle
PET bottle /plastic bottle
Diameter ofbottle
55-110mm
Height of bottle
150-310mm
Suitable Cap
Plastic screw cap
Weight
4000kg
Main motor power
3KW

Small Scale Mineral Water Bottle Blowing-Filling-Capping Machine for Whole Water Bottling Production Line

Machine Components

Automatic Drinking Mineral Water Bottle Filling Machine Liquid filling machine

Machine Show

The whole line contacts 5 main parts:
1.Bottle blowing machine
2.Water treatment sytem
3.Water bottle washing filling and capping three in one machine
4.Labeling machine
5.Shrink Packing machine


Small Scale Mineral Water Bottle Blowing-Filling-Capping Machine for Whole Water Bottling Production Line

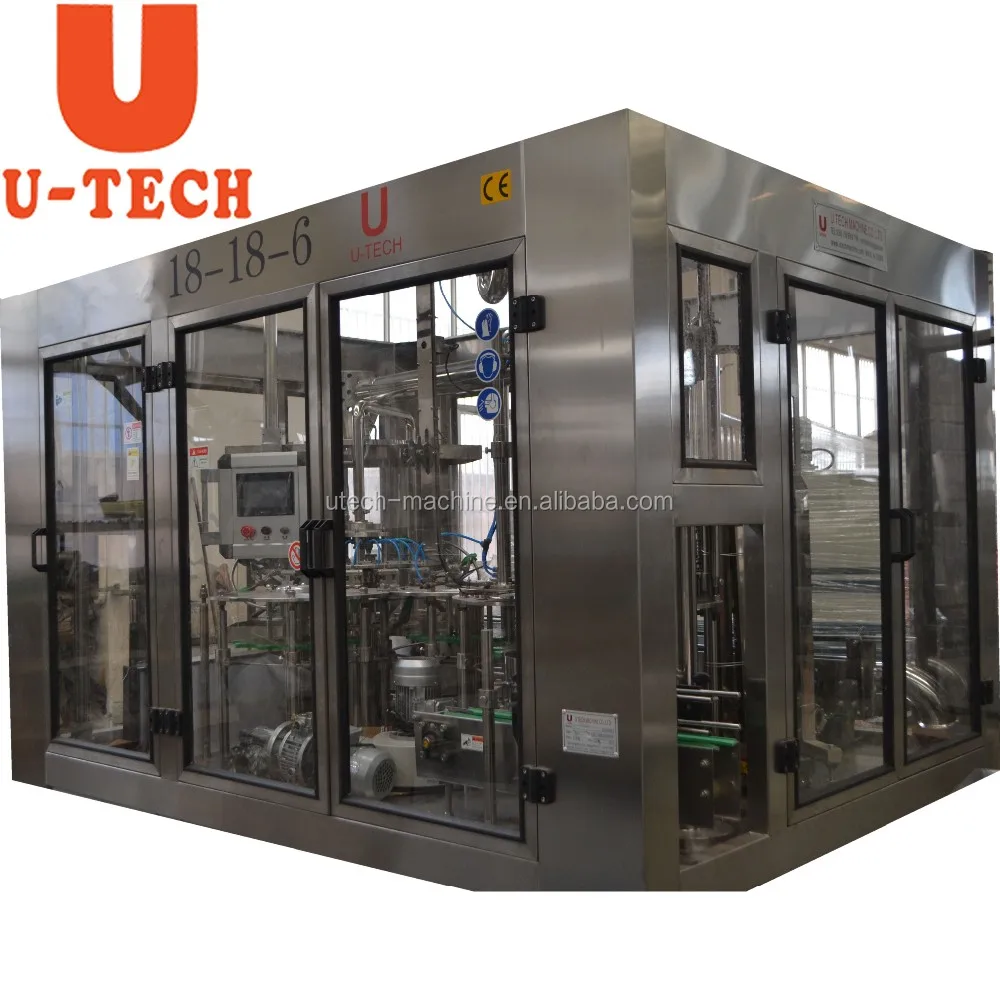

Water bottle washing filling and capping three in one machine

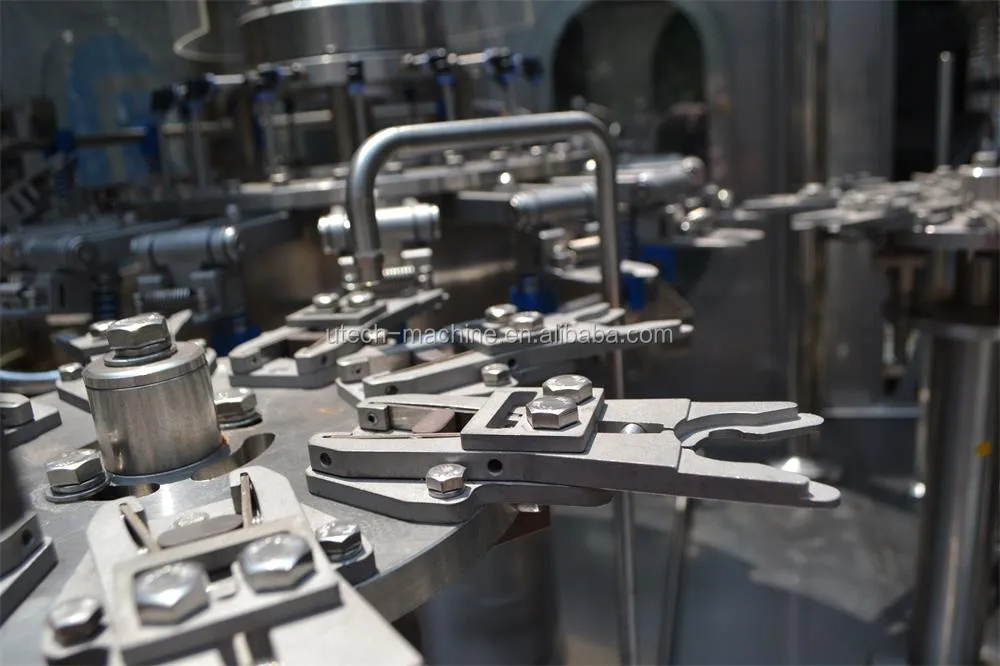

Washing part

The bottle washing section is mainly composed of turn- up guide-bar ,opening clippers cam, water distributing plate ,clippers and others .Its function is washing bottles inside

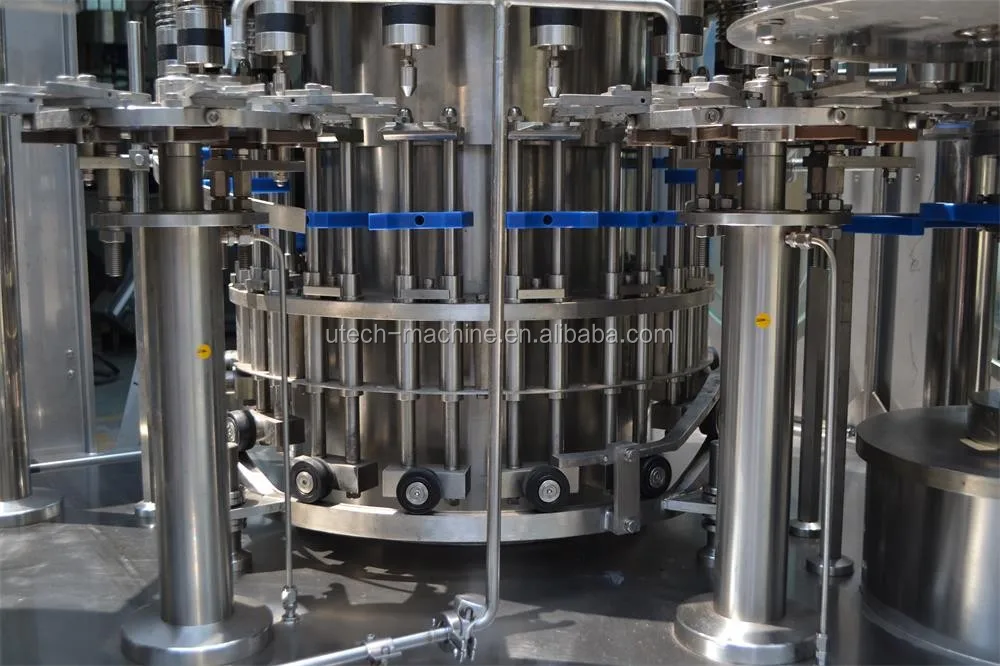

Filling part

The cap screwing machine is composed of frame ,slide way, cap screwing device, transmission and others.The transmission of the cap screwing machine is drive to the gear by the reduce ,the power is transferred to the cap screwing head through the hollow main axle.

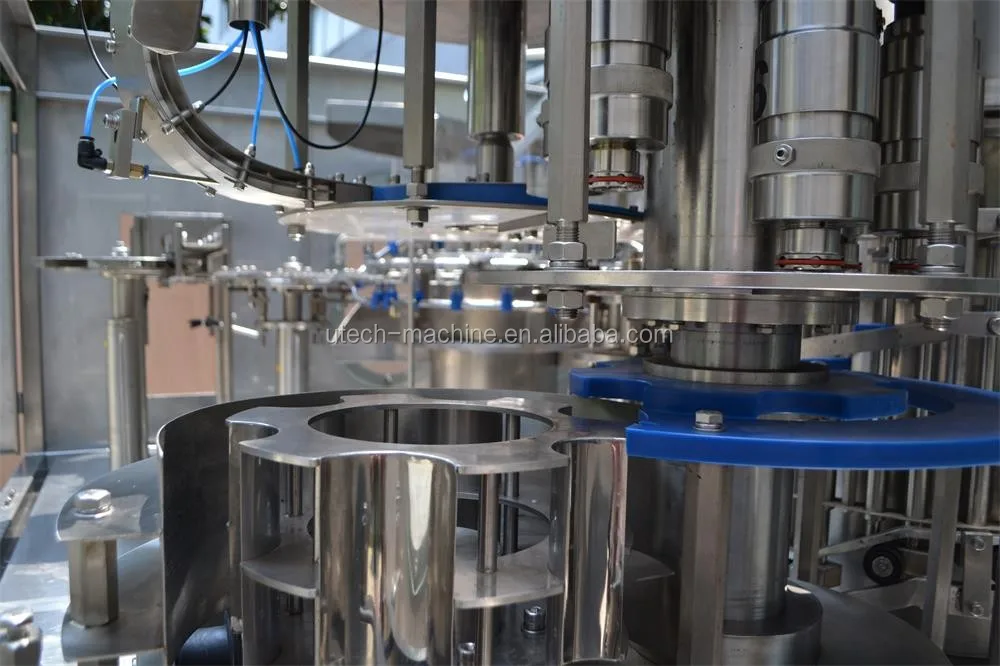

Capping part

The capping machine can cap different kinds of bottles, it is reliable, easy to operate and easy to maintain. It are widely used in wines, food, drinks, medicine, chemicals, reagents, pesticides and automatic packing etc. It is the most popular rotary screw automatic folding capper.

Small Scale Mineral Water Bottle Blowing-Filling-Capping Machine for Whole Water Bottling Production Line


Bottle blowing machine

1.The Blow Molding system does not require highly trained operators to produce consistent quality bottles.

2.The bottle making process starts by loading preforms into the preheater.

3.The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance.

4.When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder. .

5.After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use.

blow moulding machine

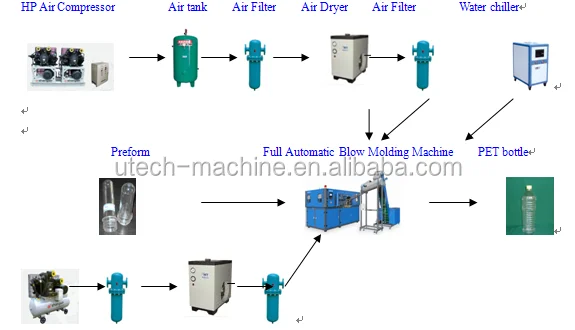

Flow Chart


Small Scale Mineral Water Bottle Blowing-Filling-Capping Machine for Whole Water Bottling Production Line

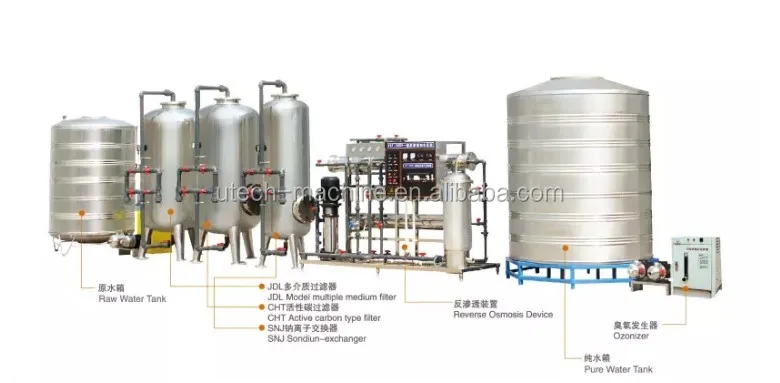

water treatment system

Small Scale Mineral Water Bottle Blowing-Filling-Capping Machine for Whole Water Bottling Production Line

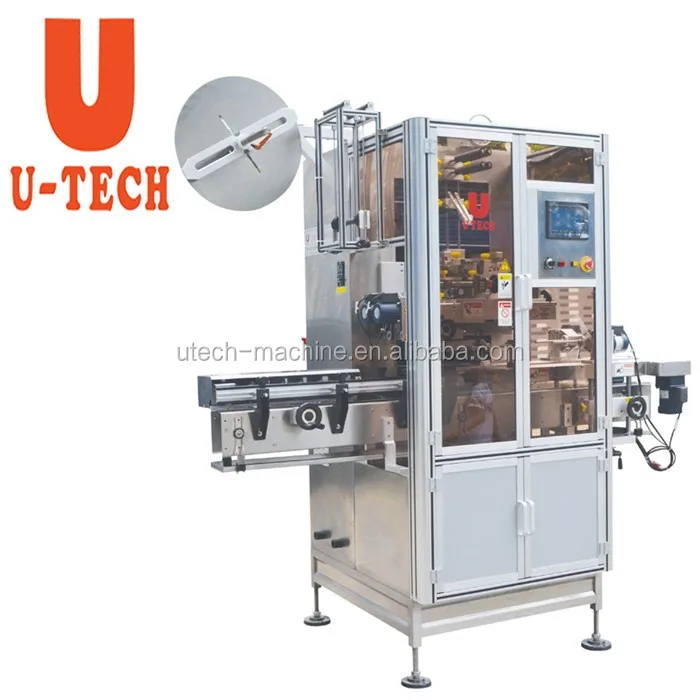

Labeling Machine

It comprises of shrink sleeve applicator, shrink tunnel, steam generator and conveyor and can be incorporated into customer's existing production line or operated stand-alone.

Filled or empty containers are transported via an infeed conveyor and then metered via a rotating feedscrew, As the containers enter the labeler, the labels in web form are opened and formed into a tube by a mandrel, fed in precise registration with a printed graphic, cut in precise registration, applied to a container which is then transported via conveyor to a steam tunnel where controlled steam heat shrinks the sleeve tightly onto the container.

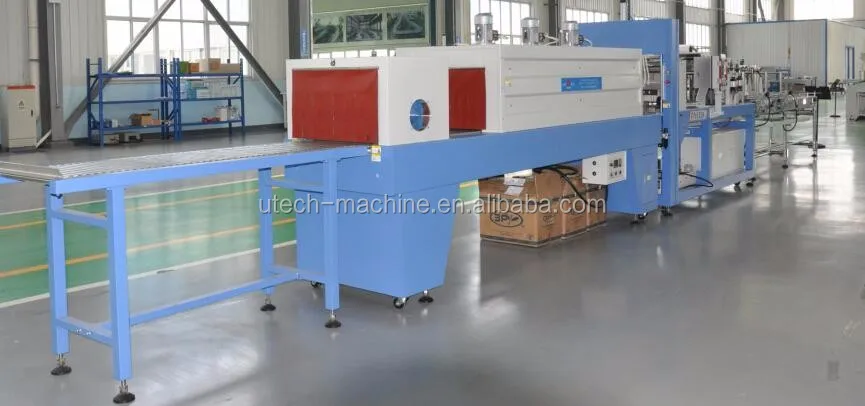

Shrink Packing Machine

Full Automatic sleeve-type (no bottom tray) sealing, cutting and shrinking packing machine is specifically designed for single product or products without bottom pallets. This machine is automatic equipment connected with manufacture line, and has unmanned operation of automatic material feeding, film wrapping, sealing, cutting, shrinking, cooling and modeling.
About U-TECH

Automatic Drinking Mineral Water Bottle Filling Machine Liquid filling machine

Company Intro

Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.

Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.



Our customer

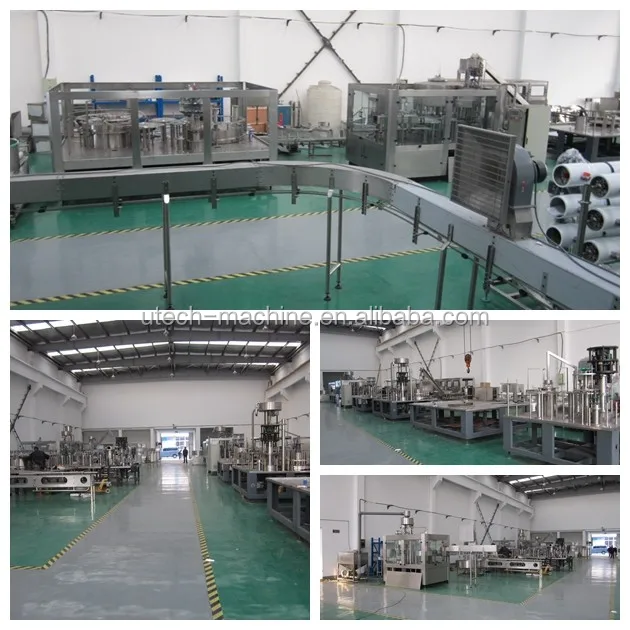

Factory


Exhibition

Certification


Packing & shipping
Our Service

What service U Tech Machine Co.,Ltd can offer you ?
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese

• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

• 2 Years guarantee

• Your business relationship with us will be confidential to any third party.

• Good after-sle service offered, please get back to us if you got any questions.

FAQ

Q1:Are you a trading company or a manufactory?

A1:We are a manufactory, can give u best service .


Q2:What's your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years


Q3:When can I get my machine after I paid?

A3:We will deliver the machines on time as the date we agreed both side.


Q4:How can I install my machine when it arrives?

A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.


Q5:How about the spare parts?

A5:After we deal down all the things , we will offer you a spare parts list for your reference.
